Trigger Modes

Time slices, Peak (threshold, up- /downslope), Timetable (combination of time intervals and peak) and Manual trigger (supported only with G1323BControl Module)

Operating Modes

Discrete fractions: default mode for all vessels. The flow is diverted to waste, while moving from one vessel position to the next vessel position Continuous flow: optional, available only when using well plates. It is possible to move from one well plate position to the next one without diverting the flow into the well plate to waste

Test Tube/Plate Sizes

Minimum 48 mm to 75 mm maximum

Maximum Tube Volume

ca. 45 ml

Maximum Flow Rate

100 ml / min (depending on viscosity and generated back pressure, max. 6 bar at the diverter valve)

Delay Volumes [μl]

Fraction collector inlet to diverter valve: -500 (typical, depends on length of the tubing)

Diverter valve: ~15

Diverter valve to needle: ~110

Needle: -~5

Delay Calibration Sensor

Single wavelength absorbance detector working at 654 nm, consisting of a LED and a photo diode

Diverter Valve

3/2 Diverter valve with low internal volume (15 μl), switching time < 100 ms, maximum operating pressure 6 bar

Maximum Capacity

3 fraction collectors in parallel plus one recovery fraction collector connected via 12-Position, 13-Port Selector valve

Interfaces

Controller-area network (CAN). optional; LAN or external contacts interface RS232C, APG-remote (for remote start / stop signals to / from other modules) Interface to G1330A Thermostat CAN-DC-out for operation of Agilent approved external devices like valves

Safety Features

Leak detection and safe leak handling, error detection and display, exhaust fan for fume extraction of hazardous vapors

Temperature Range

Ambient Temperature +8°C to 65°C

Temperature Uniformity

within ±0.3°C at 37°C

Volume

50 L (1.75 cu. Ft)

Internal Dimensions (L x W x H)

54.5 Æ’” 54.1 Æ’” 70.1 cm

(21 7/16 Æ’” 21 5/16 Æ’” 27 5/8 in)

CO2 Range

N/A

Electrical Requirements

120V, 60Hz, 200W

Temperature Range

5C above ambient to 150C

Temperature Stability

± 2 at 37C (± 5 at 60C)

Number of Blocks Included

4

Electrical Requirements

120V, 50/60Hz, 2.6A, 310W

Temperature Range

40° to 240°C

Temperature Uniformity

±1.5°C at 150°C

Volume

1.5 cu ft / 42L

Internal Dimensions (W x D x H)

13.7 x 13.7 x 14.5 in

External Dimensions (W x D x H)

21.5 x 21.5 x 32 in

Electrical Requirements

120V, 50/60Hz, 10A

Thermal Range

0°C - 105°C

Accuracy

±0.5°C of programmed target at 60°C

Thermal Uniformity

±0.4°C well-to-well within 30 sec of arrival at 60°C

Ramping Rate

60-well block: up to 1°C/sec

96-well: up to 1.2°C/sec

Sample Capacity

60-well block: 60 x 0.5 ml tubes

96-well block: 96 x 0.2 ml tubes or one 96-well plate

Memory

320 programs

Gradient Function

No

Electrical Requirements

100 to 240V

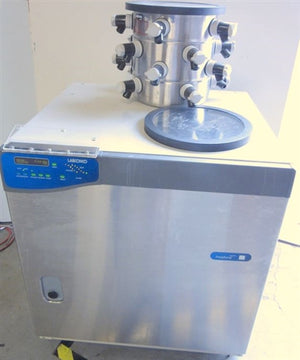

Ice Holding Capacity

12L

Lowest Temperature

-84°C

Water Removal Over 24 Hours

4L

Manifold

16 Port Drying Chamber

Electrical Requirements

230V, 60Hz, 9A

Temperature Range

5°C above ambient to 125°C

Temperature Stability

±0.1°C

Number of Blocks Included

4

Electrical Requirements

115VAC, 50/60Hz, 4A
