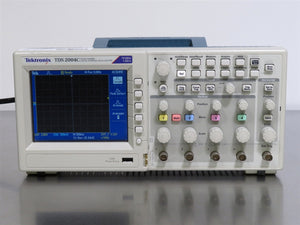

Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope

Click For Product Details

Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope

Tektronix TDS 2004C Four Channel Digital Storage Oscilliscope Specifications

Bandwidth	70 MHz for 5 mV/div 20 MHz for < 5 mV/div
Number of Channels	4
Sample Rate / Channel	1.0 GS/s
Sensitivity Range	2 mV/div to 5 V/div
Vertical Resolution	8 bits except at 2 mV/div
Seconds/Division Range	5 ns/div to 50 s/div in 1–2.5–5 sequence
Time Base Accuracy	± 50 ppm over any ≥1 ms interval
Input Impendance	1 MΩ ±2% in parallel with 20 pF ±3 pF
Dimensions (W x D x H)	12.9 x 4.9 x 6.2 in. (32.6 x 12.4 x 15.8 cm)
Electrical Requirements	100 to 240 VAC, RMS ± 10%

$475.00

In StockShips in 3 to 5 business days
