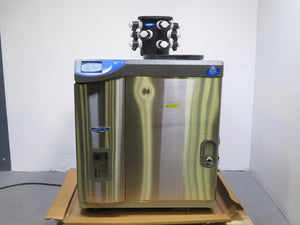

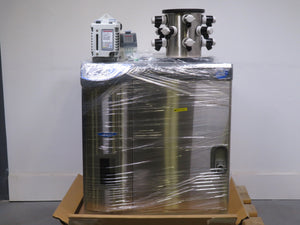

| Labconco 711212110 FreeZone 12L -84C Console Freeze Dryer Specifications |
| Ice Holding Capacity |
12 L |
| Collector Temperature |
-84°C |
| Water Removal Over 24 Hours |
6.5 L |
| Chamber Material |
PTFE-Coated Stainless Steel |
| Collector Coil |
PTFE-Coated Stainless Steel |
| Interface |
Full Color 5 in. Capacitive Touchscreen with Lyo-Works OS |
| Type |
Freeze Dryer/Lyophilizer |
| Dimensions (W x D x H) |
31.8 x 29.6 x 36.6 in. (80.7 x 75.1 x 92.9 cm) |
| Weight |
350 lbs. (158.8 kg) |
| Electrical Requirements |
230V, 60Hz, 9A |
| Labconco 7522801 12-Port Drying Chamber Specifications |
| No. of Ports |
12 |
| For Use With (Application) |
To provide a means to attach flasks to a freeze dry system or contain samples in bulk |
| Material |
PTFE-coated stainless steel
|
| Dimensions (H x Dia.) |
9.75 x 8 in. (24.8 x 20.3 cm) |
| Weight |
11 lbs. |
| Edwards RV8 Vacuum Pump Specifications |
| Peak Pumping Speed |
5.9 cfm at 60 Hz |
| Ultimate Pressure |
2 x 10-3 mbar (1.5 x 10-3 Torr) |
| Maximum Water Vapor Inlet Pressure |
38 mbar (28.5 Torr) |
| Maximum Water Vapor Capacity II |
220 grams/hr |
| Operating Temperature Range |
12 to 40°C |
| Oil Capacity |
0.75 L |
| Oil Type |
Ultragrade 19 |
| Noise Level |
48 dB(A) |
| Dimensions (W x D x H) |
6.2 x 18.5 x 8.9 in. (15.7 x 47 x 22.6 cm) |
| Weight |
61.6 lbs. (27.9 kg) |
| Electrical Requirements |
1 Ph, 100-120/200-230 VAC, 50/60 Hz |
