Labconco 700401000 FreeZone 4.5L -50C Benchtop Freeze Dryer, 115V (New in Open Box)
Ice Holding Capacity
4.5L
Collector Temperature
-50°C
Water Removal Over 24 Hours
2L
- Designed for light sample loads, this compact Labconco FreeZone 4.5L Benchtop Freeze Dryer optimizes limited lab space
- Stainless steel collector with a temperature of -50°C suitable for aqueous samples
- Features dual 1/3 hp HCFC/CFC-free refrigeration systems for eco-friendly and efficient cooling
- Includes a vacuum break valve to protect the vacuum pump by bleeding air into the system during power interruptions
- Automatic vacuum pump shutdown activates during leaks to maintain system integrity and prevent damage
The Labconco 700401000 FreeZone 4.5L -50°C Benchtop Freeze Dryer provides a compact, complete solution for lyophilization of light to moderate sample loads. Its stainless steel collector and upright coil provide a 4.5-liter ice capacity and reach temperatures down to -50°C, making the system well suited for aqueous samples and general-purpose laboratory freeze-drying applications. The benchtop configuration delivers useful processing capability while conserving valuable laboratory space.
The integrated Lyo-Works OS provides operation through a full-color 5 in. touchscreen, allowing users to monitor collector temperature and vacuum conditions throughout the freeze-drying process. Built-in safeguards include moisture detection, vacuum leak protection, and a vacuum break valve that helps protect the vacuum pump during power interruptions. Vacuum control helps maintain the selected vacuum level, while integrated data logging provides useful process information for monitoring runs and sample conditions.

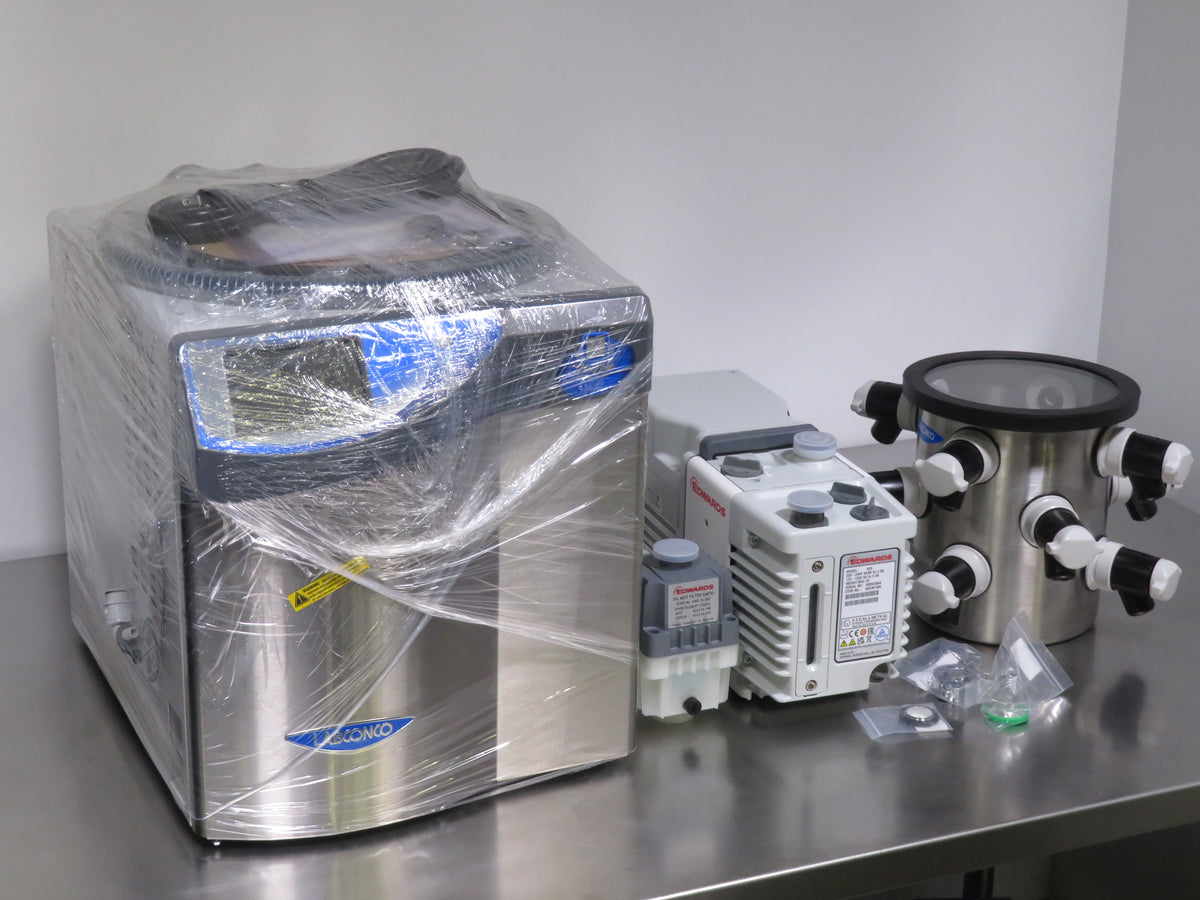

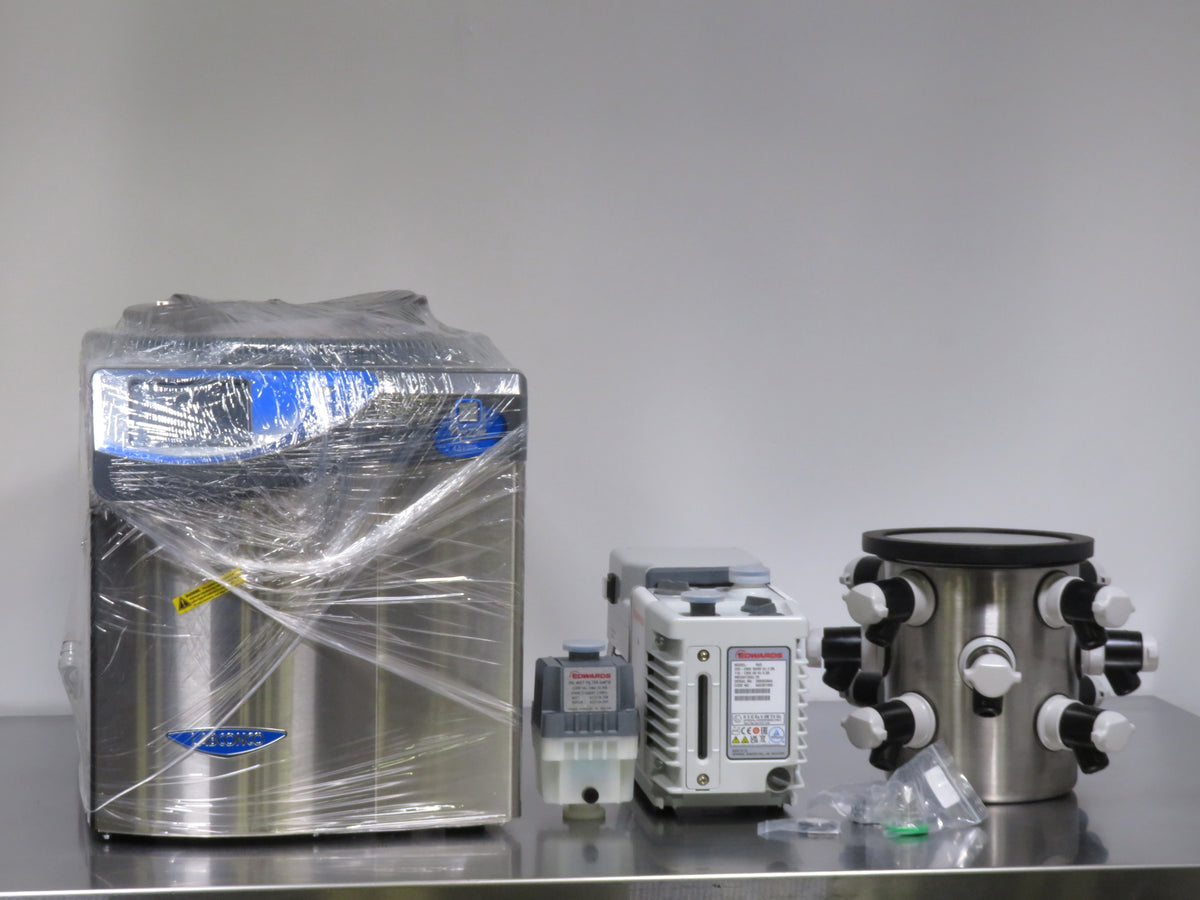

This new, unused open-box system is configured with an Edwards RV5 vacuum pump, 12-port drying chamber, and vacuum tubing and connections. The combination of the FreeZone benchtop freeze dryer, multi-port drying chamber, and dedicated vacuum pump provides a versatile package for routine laboratory lyophilization.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Labconco 700401000 FreeZone 4.5L -50C Benchtop Freeze Dryer, 115V (New in Open Box) includes:
- New Edwards RV5 Vacuum Pump
- Mist Filter

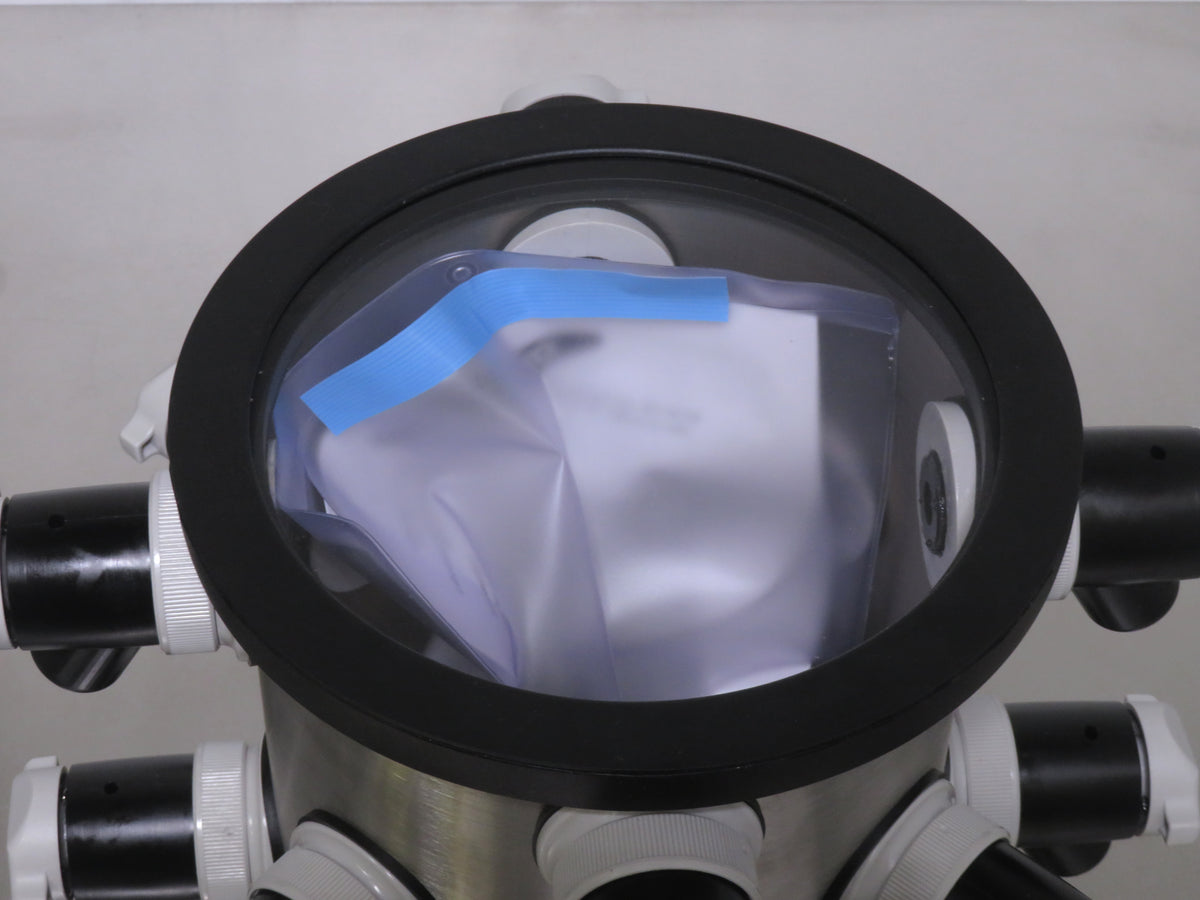

- New 12-Port Drying Chamber

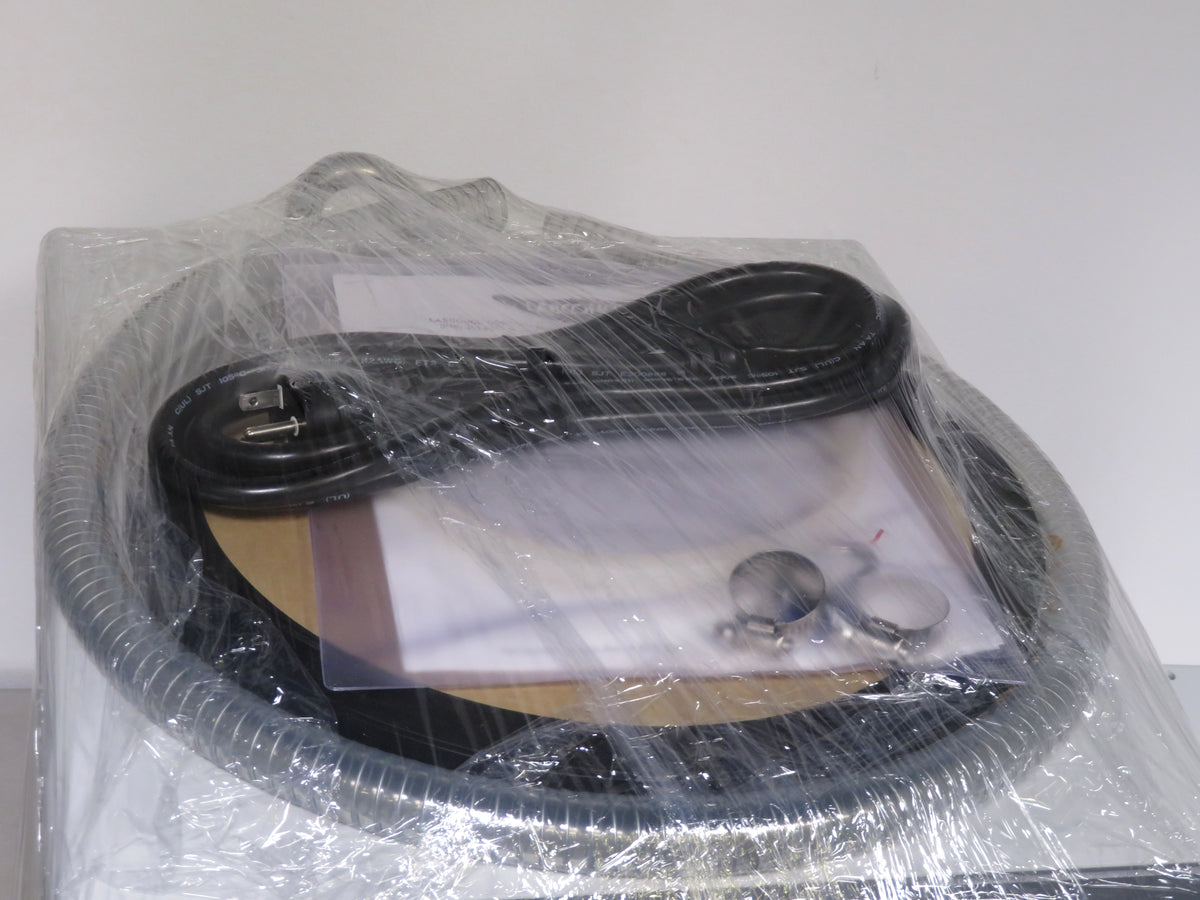

- Vacuum Tubing and Hardware
- Power Cords
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Labconco 700401000 FreeZone 4.5L -50C Benchtop Freeze Dryer, 115V (New in Open Box) Specifications
| Ice Holding Capacity | 4.5 L |
| Collector Temperature | -50C |
| Water Removal Over 24 Hours | 2 L |
| Material | Steel |
| Type | Freeze Dryer/Lyophilizer |
| Dimensions (W x D x H) | 16.5 x 22.4 x 18.9 in. (41.9 x 56.8 x 48.0 cm) |
| Weight | 139 lbs. (64 kg) |
| Electrical Requirements | 115V, 60 Hz, 14A |
| No. of Ports | 12 |
| For Use With (Application) | To provide a means to attach flasks to freeze dry system or contain samples in bulk |
| Material | Stainless Steel |
| Dimensions (H x Dia.) | 9.75 x 8 in. (24.8 x 20.3 cm) |
| Weight | 11 lbs. (4.98 kg) |
| Peak Pumping Speed | 4.1 cfm at 60 Hz |
| Ultimate Pressure | 1.5 x 10-3 Torr (2 x 10-3 mbar) |
| Maximum Water Vapor Inlet Pressure | 38 Torr (50 mbar) |
| Maximum Water Vapor Capacity II | 220 grams/hour |
| Operating Temperature Range | 12 to 40°C |
| Oil Capacity | 0.7 L |
| Oil Type | Ultragrade 19 |
| Dimensions (W x D x H) | 6.2 x 16.9 x 8.9 in. (15.7 x 42.9 x 22.6 cm) |
| Weight | 47 lbs. |
| Electrical Requirements | 1 Ph, 100-120/200-230 VAC, 50/60 Hz |
Downloads
Click Here to View the Technical Specs for the Labconco 700401000 FreeZone 4.5L -50C Benchtop Freeze Dryer, 115V (New in Open Box)
