Labconco 711212110 Freezone 12L -84C Console Freeze Dryer, PTFE Coated with Purge Valve, 230V
Ice Holding Capacity
12L
Collector Temperature
-84°C
Water Removal Over 24 Hours
6.5L
- Patented moisture sensor protects the vacuum pump by preventing refrigeration or vacuum start-up when moisture is detected in collector chamber area
- Purge valve allows the vacuum pump to be isolated from the system during operation
- Vacuum control valve maintains set point vacuum level to speed the freeze drying process
- -84C collector temperature tailored for low eutectic point samples containing water or acetonitrile
- Lyo-Works OS provides a real time display of collector temperature and vacuum level
- The PTFE-coated collector coil provides added resistance when processing corrosive compounds
The Labconco 711212110 Freezone 12L -84C Console Freeze Dryer, PTFE Coated with Purge Valve, 230V provides a complete lyophilization system for moderate to large sample loads across research, laboratory, and production environments. Its 12-liter collector reaches temperatures down to -84°C, while the PTFE-coated stainless steel collector coil and chamber provide enhanced resistance to corrosive compounds. The console-style configuration features a front viewing window and internal space for the vacuum pump, creating an integrated setup while maintaining convenient access to the system.
Operation is managed through a full-color 5 in. capacitive touchscreen featuring Lyo-Works OS, providing real-time monitoring of collector temperature, vacuum levels, and other system parameters. Programmable operation supports automated startup and run settings, while integrated data logging allows run information to be exported through USB or Ethernet connectivity. A built-in purge valve allows the vacuum pump to be isolated during operation, and the hot gas defrost system simplifies collector defrosting with automatic shutoff.

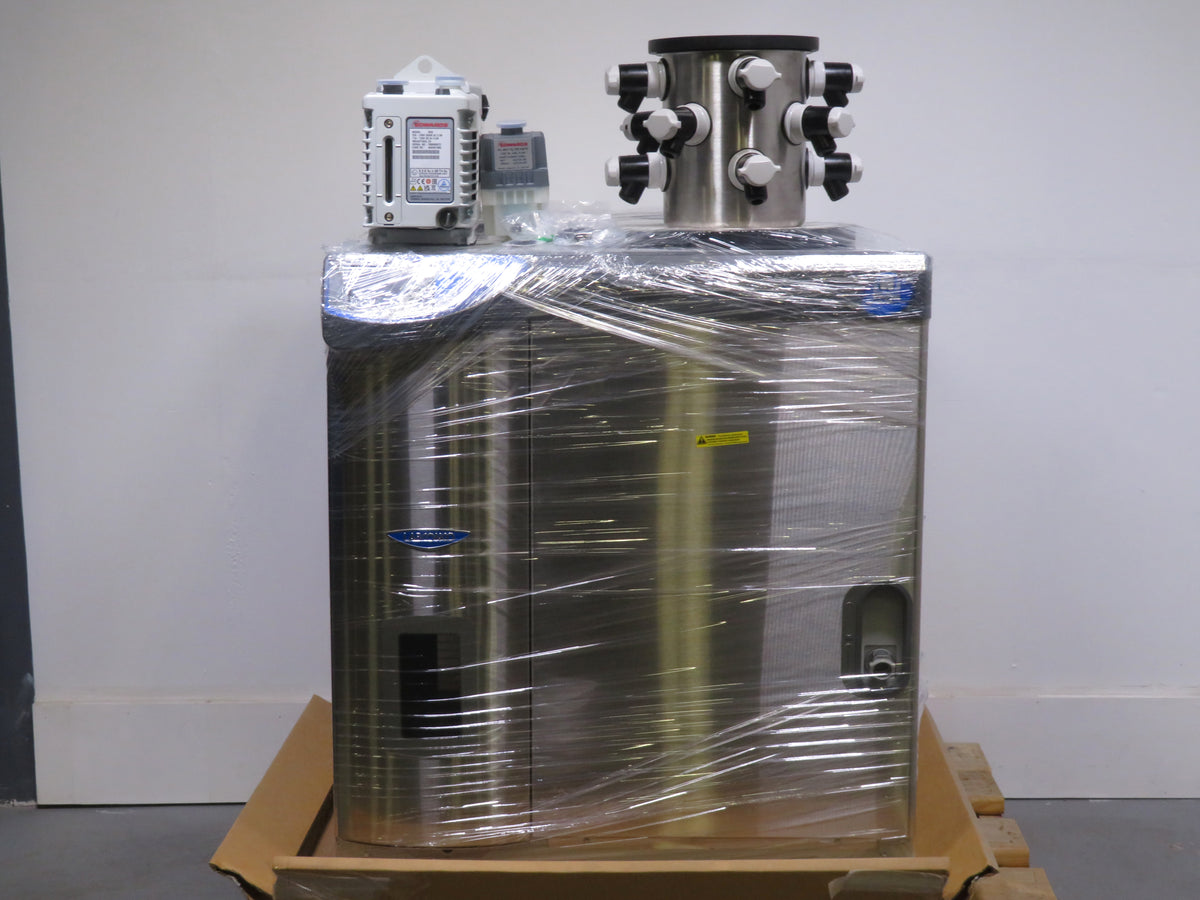

This system is configured with a brand new Edwards RV8 vacuum pump and brand new 12-port manifold, providing the primary components needed for a complete freeze-drying setup. A mist filter, vacuum tubing and hardware, power cords, and operator's manual are also included to support installation and operation. The complete system is backed by a full 180-day parts and labor warranty from Marshall Scientific.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Labconco 711212110 Freezone 12L -84C Console Freeze Dryer, PTFE Coated, 230V includes:
- New Edwards RV8 Vacuum Pump
- Mist Filter
- New 7522801 PTFE 12-Port Drying Chamber
- Vacuum Tubing and Hardware
- Power Cords
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Labconco 711212110 Freezone 12L -84C Console Freeze Dryer, PTFE Coated, 230V Specifications
| Ice Holding Capacity | 12 L |
| Collector Temperature | -84°C |
| Water Removal Over 24 Hours | 6.5 L |
| Chamber Material | PTFE-Coated Stainless Steel |
| Collector Coil | PTFE-Coated Stainless Steel |
| Interface | Full Color 5 in. Capacitive Touchscreen with Lyo-Works OS |
| Type | Freeze Dryer/Lyophilizer |
| Dimensions (W x D x H) | 31.8 x 29.6 x 36.6 in. (80.7 x 75.1 x 92.9 cm) |
| Weight | 350 lbs. (158.8 kg) |
| Electrical Requirements | 230V, 60Hz, 9A |
| No. of Ports | 12 |
| For Use With (Application) | To provide a means to attach flasks to a freeze dry system or contain samples in bulk |
| Material |
PTFE-coated stainless steel |
| Dimensions (H x Dia.) | 9.75 x 8 in. (24.8 x 20.3 cm) |
| Weight | 11 lbs. |
| Peak Pumping Speed | 5.9 cfm at 60 Hz |
| Ultimate Pressure | 2 x 10-3 mbar (1.5 x 10-3 Torr) |
| Maximum Water Vapor Inlet Pressure | 38 mbar (28.5 Torr) |
| Maximum Water Vapor Capacity II | 220 grams/hr |
| Operating Temperature Range | 12 to 40°C |
| Oil Capacity | 0.75 L |
| Oil Type | Ultragrade 19 |
| Noise Level | 48 dB(A) |
| Dimensions (W x D x H) | 6.2 x 18.5 x 8.9 in. (15.7 x 47 x 22.6 cm) |
| Weight | 61.6 lbs. (27.9 kg) |
| Electrical Requirements | 1 Ph, 100-120/200-230 VAC, 50/60 Hz |
