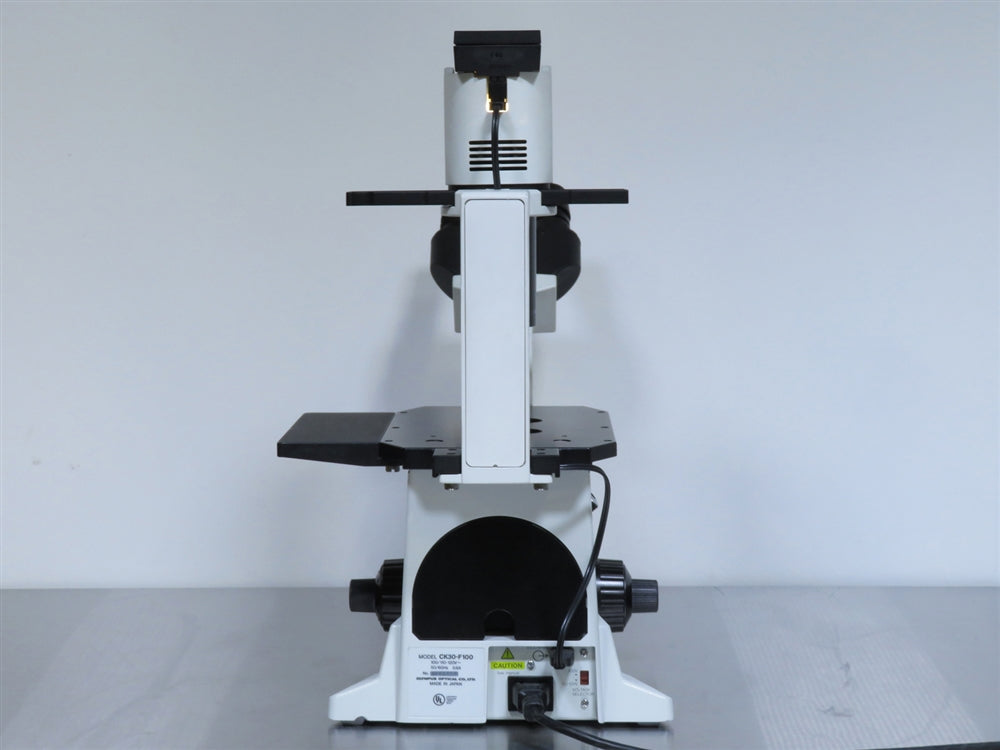

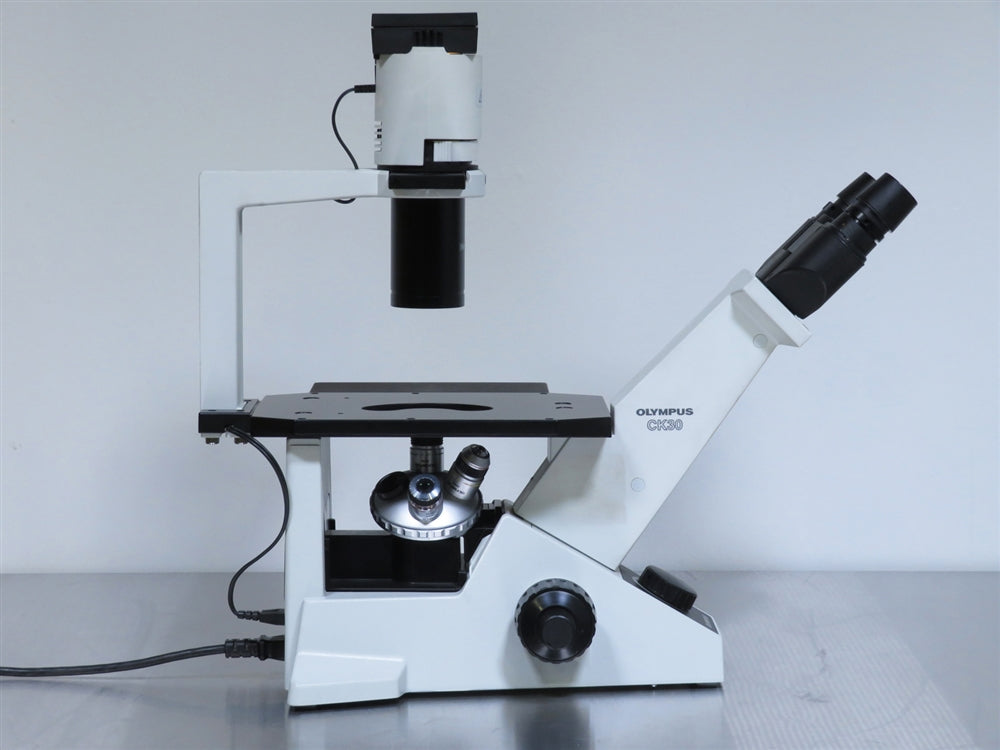

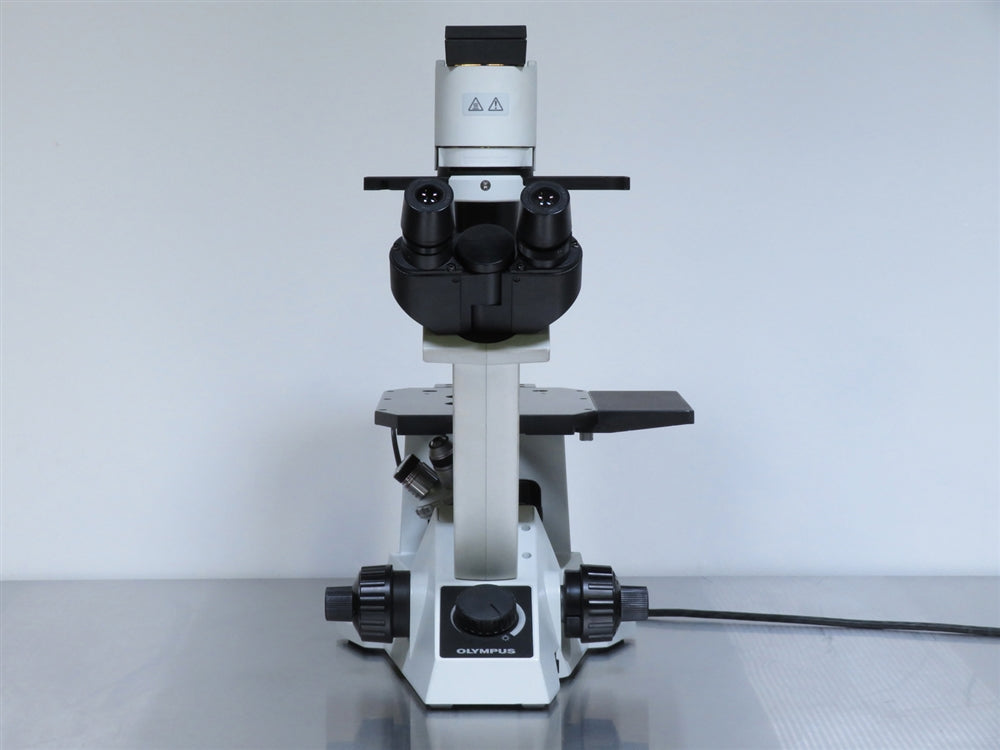

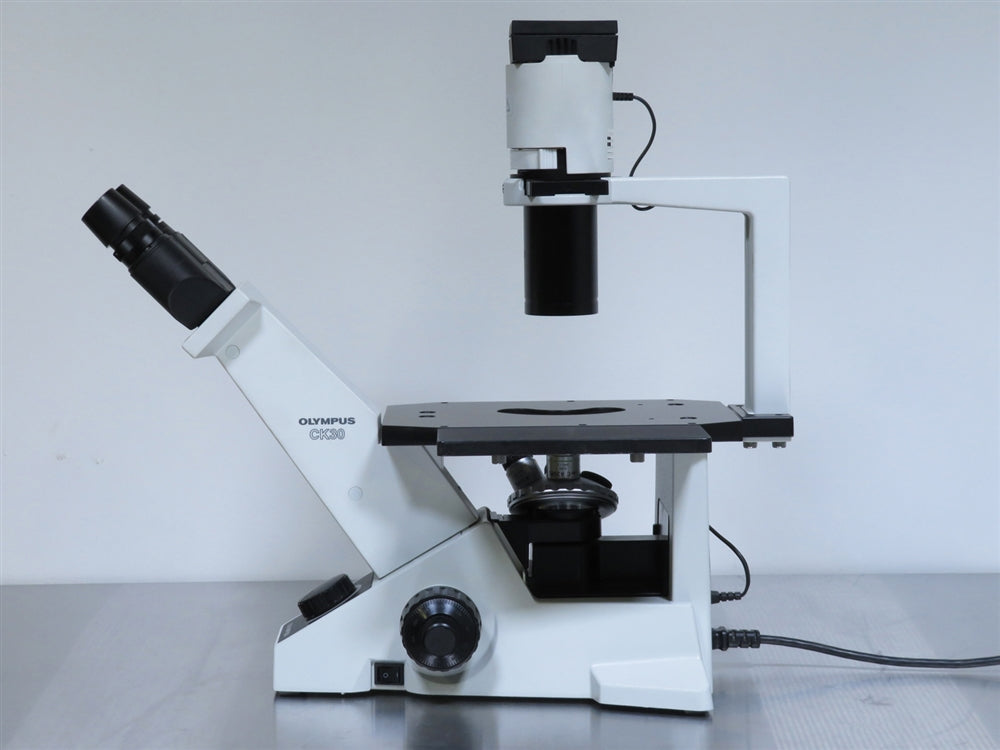

Olympus CK30 Inverted Phase Contrast Microscope
The Olympus CK30 Inverted Phase Contrast Microscope produces high quality images for tissue culture labs, readily meeting biological and metallurgical research needs. This Olympus microscope offers simple operation with an easy-to-maintain inverted microscope frame. This inverted phase microscope is configured with S Plan 4xPL, A 20xPL, and A 40x PL Objectives with critical halogen illumination. The CK30 can accommodate a variety of Olympus objectives on its revolving triple nosepiece, along with multiple other accessories, such as stage adapters and extenders, sliders and rings, and extra long working condensers.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Olympus CK30 Inverted Phase Contrast Microscope includes:
The Olympus CK30 Inverted Phase Contrast Microscope includes:

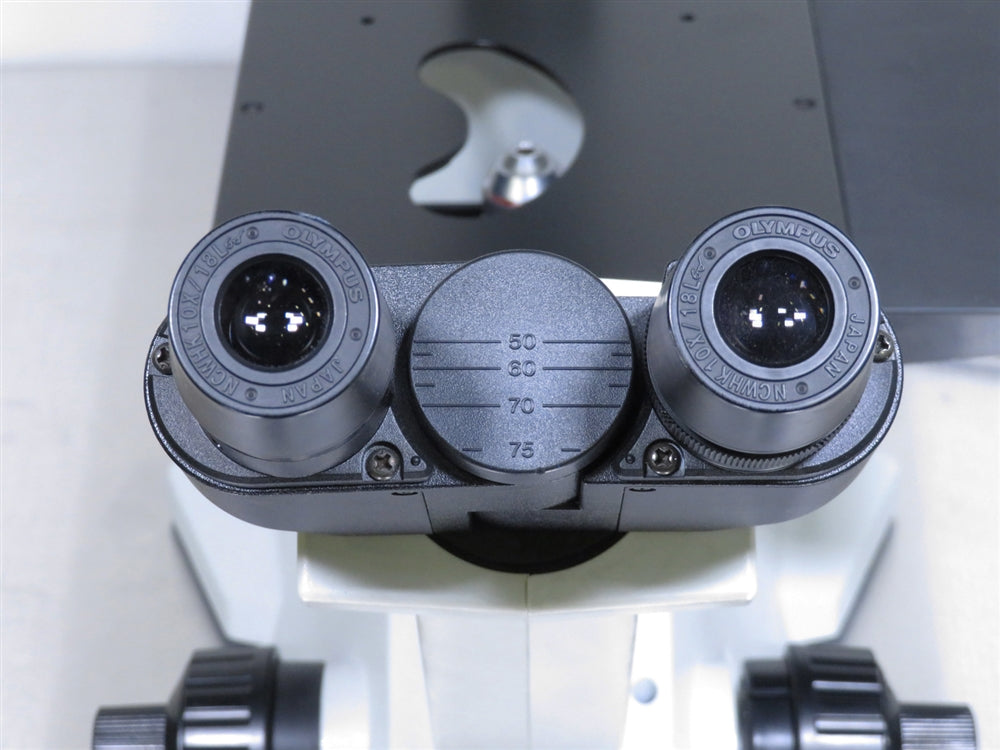

- > NCWHK 10x Eyepieces

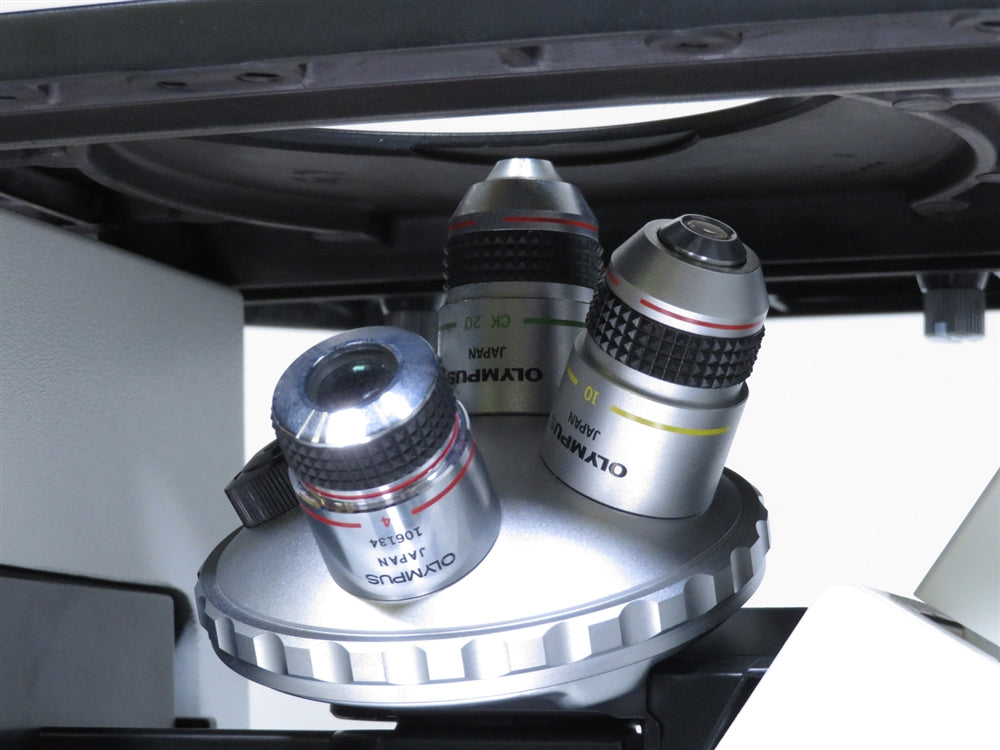

- > S Plan 4xPL, A 20xPL, and A 40x PL Objectives

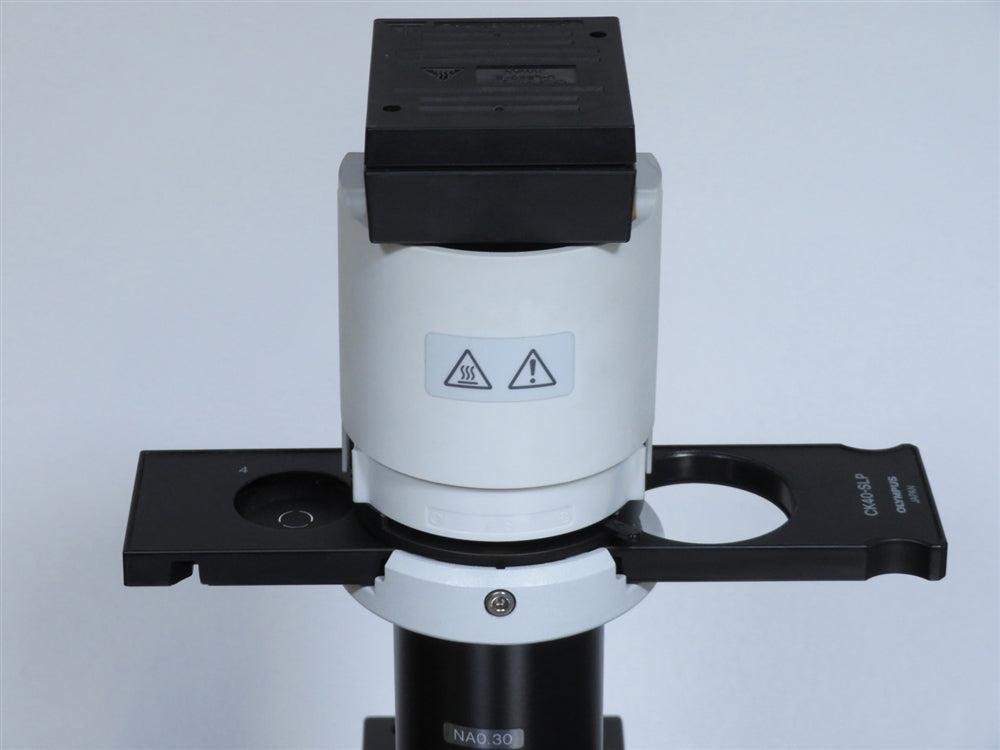

- > Phase Contrast Ring Slider
- > Halogen Lamp
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Olympus CK30 Inverted Phase Contrast Microscope Specifications
| Optical System | LB optical system (finite-corrected system) |
| Illumination | 6 V 30 W HAL high-intensity halogen bulb |
| Focusing | Coarse/fine adjustment knobs (provided with tension adjustment mechanism) |
| Revolving Nosepiece | Quadruple |
| Observation Tube | Binocular tube CH3-BI45 incorporated in micrscope body |
| Eyepiece | NCWHK 10X |
| Objectives | S Plan 4xPL, A 20xPL, and A 40x PL |
| Stage Dimensions (W x D) | 160 x 250 mm |
| Condenser | Ultra-long-working distance condenser N.A. 0.3, W.D. 72 mm; detachable |
| Dimensions (W x D x H) | 236 x 469 x 476 mm |
| Weight | 17.6 lb. (8 kg.) |
| Electrical Requirements | 100/110-120V, 50/60Hz, 0.6A |
Microscope Inspection and Recertification Checklist
- Verify that power supply output provides stable and precise voltage as per specifications
- Check the power level indicator to ensure accurate power status readings
- Assess all moving components for smooth operation, confirming they are free from obstructions and foreign contaminants
- Test lamp functionality and replace if illumination falls below optimal standards
- Examine internal wiring and electrical connections for continuity, identifying any breaks, tears, or wear
- Inspect and clean internal mirrors, objective lenses, and eyepieces to ensure clear optical performance
- Apply lubrication to the eyepiece distance adjuster to maintain smooth adjustment functionality
- Validate the clarity and resolution of specimen slides viewed through eyepieces for precise visualization
- Conduct a detailed cosmetic inspection to confirm the microscope meets visual and cleanliness standards
Technician Inspection and Recertification Checklist: Microscopes
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm power supply output provides stable and accurate voltage | Completed | |
| Check power level indicator for accurate status display | Completed | |
| Verify smooth operation and cleanliness of moving components | Completed | |
| Test lamp functionality and replace if illumination is suboptimal | Completed | |
| Inspect internal wiring and connections for continuity and integrity | Completed | |
| Clean internal mirrors, objectives, and eyepieces thoroughly | Completed | |
| Lubricate eyepiece distance adjuster for optimal functionality | Completed | |
| Confirm clarity and resolution of specimen slide visualization | Completed | |
| Conduct cosmetic inspection to ensure visual acceptability | Completed |
