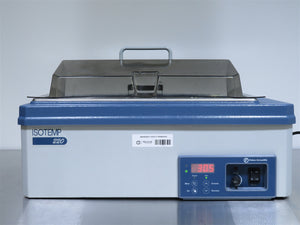

Temperature Range

Ambient to 100°C

Temperature Uniformity

±0.24°C at 37°C

Control

Digital

Capacity

20L (5.3 gal)

Bath Dimensions (L x W x D)

11.75 x 19.75 x 6 in (30 x 50 x 15 cm)

Electrical Requirements

120V, 50/60Hz, 8.3A

Speed Range

300 to 1,400 RPM

Temperature Range

10C below ambient to 99C

Temperature Accuracy

±0.5C at nominal values between 20C and 45C

±2C at nominal values <20C and >45C

Heating/Cooling Rate

Heating: 5C/min

Cooling: 2 to 3C/min (0.5 to 1C/min from ambient to 13C below)

Electrical Requirements

100-240V, 50-60Hz, 90W

Temperature Range

10° below ambient to 80° C

Temperature Stability

± 0.15°C

Temperature Accuracy

± 0.8°C

Column Capacity

Three 30cm columns

Warm-up/Cool Down

5 mins from ambient to 40°C

Dead Volume

3 ul left heat exchanger 6 ul right heat exchanger

Dimensions (H x W x D)

5.5 x 16 x 17 in (14 x 41 x 43.5 cm)

Temperature Range

Ambient +5°C to 100°C

Temperature Uniformity

± 0.2°C at 37°C

Control

Digital

Capacity

20L (5.3 gal)

Bath Dimensions (L x W x H)

11.7 x 19.7 x 5.9 in (29.7 x 50 x 15 cm)

Electrical Requirements

100-120V, 50/60Hz, 9.6A

200-230V, 50/60Hz, 4.8A

Temperature Range

Ambient to 100°C

Temperature Uniformity

± 0.2°C at 37°C

Control

Digital

Capacity

10L (2.6 gal)

Bath Dimensions (L x W x H)

11.9 x 13 x 5.9 in (30.1 x 33 x 15 cm)

Electrical Requirements

100-120V, 50/60Hz

200-230V, 50/60Hz

Flow Rate

0.3 µL/min‚30 mL/min at a maximum pressure of 0.5 MPa

Speed Range

Continuous adjustment from 0 to 48 rpm by 0.01 rpm increments up to 9.99 rpm and by 0.1 rpm increments above 10 rpm

Type of Pump Head

1, 2, 4, or 8 channel head (standard and high flow)

Reversible Motor

Yes

Electrical Requirements

90-132 or 180-264V; 47-63Hz

Volume µl

Increment µl

Relative Accuracy (%)

Absolute Accuracy (µl)

Relative Precision (%)

Absolute Precision (%)

500

2500

5000

2

2

2

2.4

0.6

0.6

12

15

30

0.6

0.2

0.16

3

5

8

Temperature Range

Ambient to 100°C

Temperature Uniformity

±0.24°C at 37°C

Control

Digital

Capacity

5L and 10L (1.3 gal and 2.6 gal)

Bath Dimensions (L x W x H)

5L Bath: 6.1 x 11.8 x 5.9 in (15.4 x 30 x 15 cm)

10L Bath: 11.9 x 13 x 5.9 in (30.1 x 33 x 15 cm)

Electrical Requirements

120V, 60Hz, 9A

Speed Range

300 to 1,400 rpm

Temperature Range

13°C below ambient to 99°C

Temperature Uniformity

±2°C at nominal values < 70°C

-5°C between 70°C and 99°C

Heating/Cooling Rate

Heating: approx. 5°C/min

Cooling: approx. 2 to 3°C/min (0.5 to 1°C/min from ambient to 13°C below)

Electrical Requirements

100-240V, 50-60Hz, 90W

Type

Specification

Weight

0.8 kg

Dimensions (width x depth x height)

130 x 225 x 35 mm (5.1 x 8.9 x 1.4 inches)

Line voltage

22 VDC, ± 10 %

Power consumption

6 W / 20.5 BTU/hour

Ambient operating temperature

0 to 55C (32 to 131F)

Ambient non-operating temperature

-40 to 70C (-40 to 158F)

Humidty

< 95%, at 25 ‚ 40C (77 to 104F)

Operating Altitude

Up to 2000 m (6562 ft)

Non-operating altitude

Up to 4600 m (15092 ft)

Safety standards: IEC, CSA, UL, EN

Installation category II, pollution degree 2. For indoor use only. Research Use Only. Not for use in Diagnostic Procedures.

Flow Rate

0.3 µL/min‚40 mL/min at a maximum pressure of 0.5 MPa

Speed Range

Continuous adjustment from 0 to 48 rpm by 0.01 rpm increments up to 9.99 rpm and by 0.1 rpm increments above 10 rpm

Type of Pump Head

1, 2, 4, or 8 channel head (standard and high flow)

Reversible Motor

Yes

Electrical Requirements

90-132 or 180-264V; 47-63Hz

Volume µl

Increment µl

Relative Accuracy (%)

Absolute Accuracy (µl)

Relative Precision (%)

Absolute Precision (%)

500

2500

5000

2

2

2

2.4

0.6

0.6

12

15

30

0.6

0.2

0.16

3

5

8

Microplate Types

96 and 384 well plates

Low profile and standard height

Manifold Type

96 Tube Dual Action manifold for 96 and 384 well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

384-wells,100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Flow Rate

1 to 1300 ml/hr

Speed Range

1 to 48 RPM

Type of Pump Head

4 channel head

Electrical Requirements

120V
