Microplate Types

96 and 384 well plates

Low profile and standard height

Manifold Type

96 Tube Dual Action manifold for 96 and 384 well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

384-wells,100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Microplate Types

96- and 384-well

Low profile and standard height

Solid and filter bottom (option)

Manifold Types

96-well washing: 96-tube manifold - straight dispense tubes

96- and 384-well washing: 96-tube Dual-Action manifold - 20° angled dispense tubes

384-well washing (fast): 192-tube Dual-Action manifold - 7° angled dispense tubes

Volume Range

25 to 3,000 µL/well, in 1 µL increments

Wash Speed

96-wells, 300 µL/well, 3 cycles; <30 seconds

384-wells,100 µL/well, 3 cycles: <80 seconds

384-wells, 400 µL/well, 1 cycle: <20 seconds

Electrical Requirements

100 - 240 Volts AC. 50/60 Hz

Microplate Types

96-well

Low profile and standard height

Manifold Types

96 Tube Dual Action manifold for 96-well washing

Volume Range

25 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

Electrical Requirements

100 to 240V, 50/60Hz

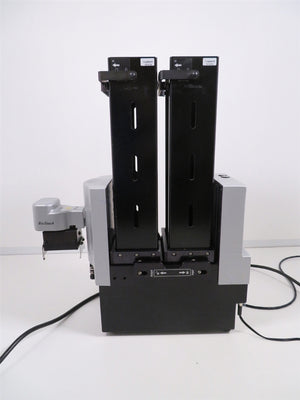

Microplate Types

ANSI/SBS Standard and low profile 96, 384, and 1536 wells; maximum plate height of 14.6 mm

Microplate Capacity

10-, 30-, and 50-plate stacks are removable and interchangeable; 96-/384-well plates: up to 50 plates; 1536-well plates: up to 75 plates

Processing Speed (Plate Exchange Time)

<33 seconds

Overall Dimensions (W x D)

7 x 18.5 in (18 x 47 cm) height varies depending on connected instruments and stacks used

Microplate Types

96-/384-well

Low profile and standard height

Manifold Types

96 Tube Dual Action manifold for 96- & 384-well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

384-wells, 100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60 Hz

Microplate Types

96-well

Low profile and standard height

Manifold Types

96 Tube Dual Action manifold for 96-well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Microplate Types

96- and 384-well

Low profile and standard height

Manifold Types

96 Tube Dual Action manifold for 96- & 384-well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

384-wells, 100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Microplate Types

96- and 384-well

Low profile and standard height

Manifold Types

96 Tube Dual Action manifold for 96- & 384-well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

384-wells, 100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Microplate Types

96- and 384-well

Low profile and standard height

Manifold Types

96 Tube Dual Action manifold for 96- & 384-well washing

Volume Range

50 to 3000 microliter increments

Wash Speed

96-wells, 300 µL/well, 3 cycles: <30 seconds

384-wells, 100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Microplate Types

384-well

Low profile and standard height

Manifold Types

Two manifolds, one with 192 aspirate tubes and the other with 192 dispense tubes for processing 384-well plates

Volume Range

50 to 3000 microliter increments

Wash Speed

384-wells, 100 µL/well, 3 cycles: <80 seconds

Electrical Requirements

100 to 240V, 50/60Hz

Microplate Types

ANSI/SLAS Standard and low profile 96, 384, and 1536 wells; maximum plate height of 14.6 mm

Microplate Capacity

10-, 30-, and 50-plate stacks are removable and interchangeable; 96-/384-well plates: up to 50 plates; 1536-well plates: up to 75 plates

Processing Speed (Plate Exchange Time)

<33 seconds

Overall Dimensions (W x D)

7 x 18.5 in (18 x 47 cm) height varies depending on connected instruments and stacks used
