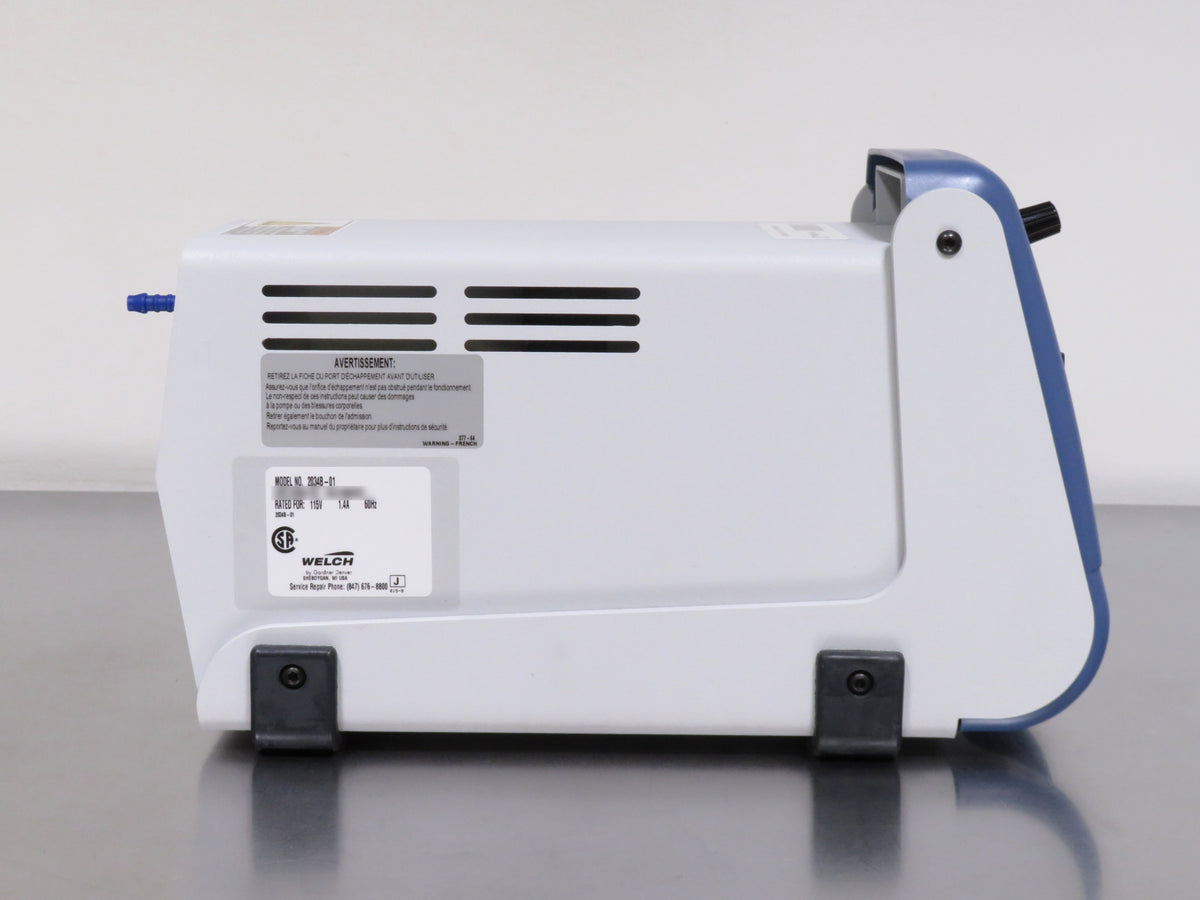

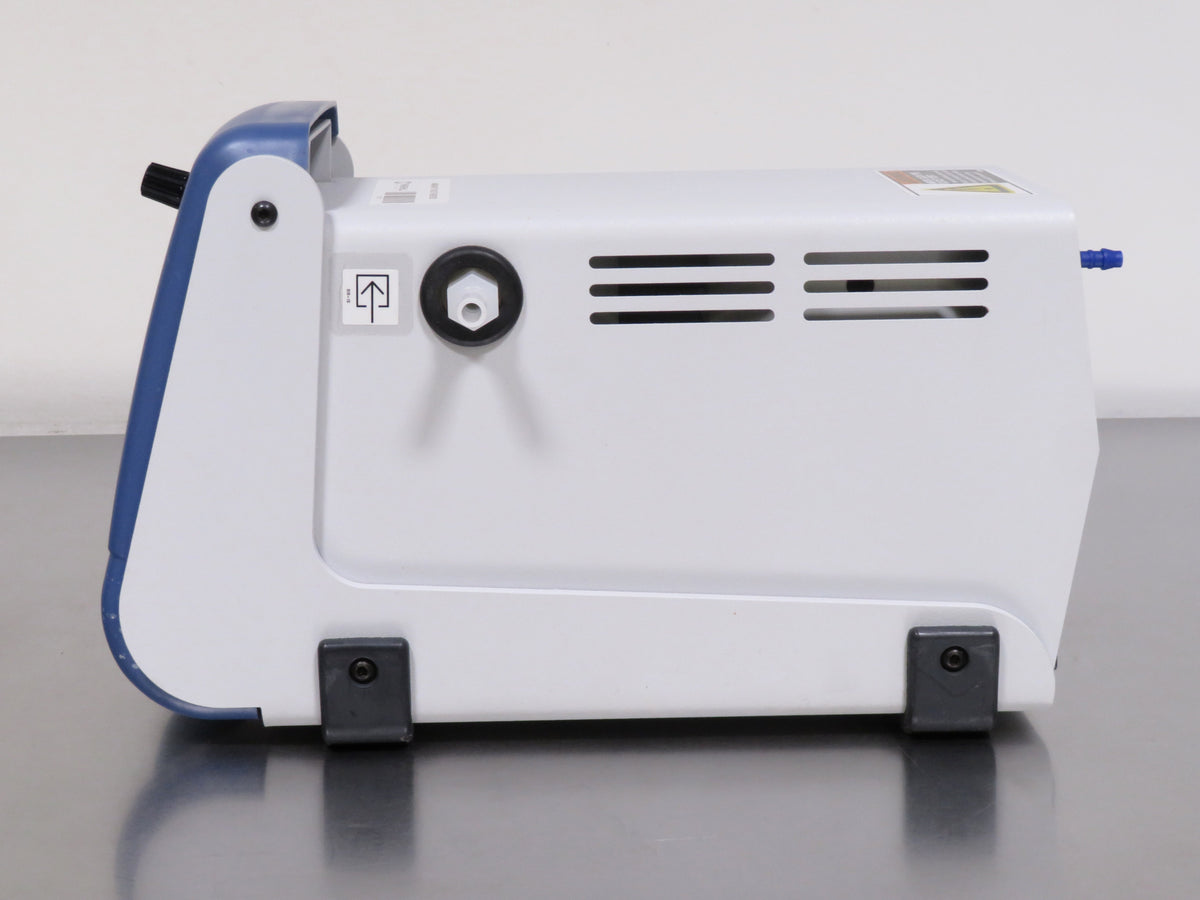

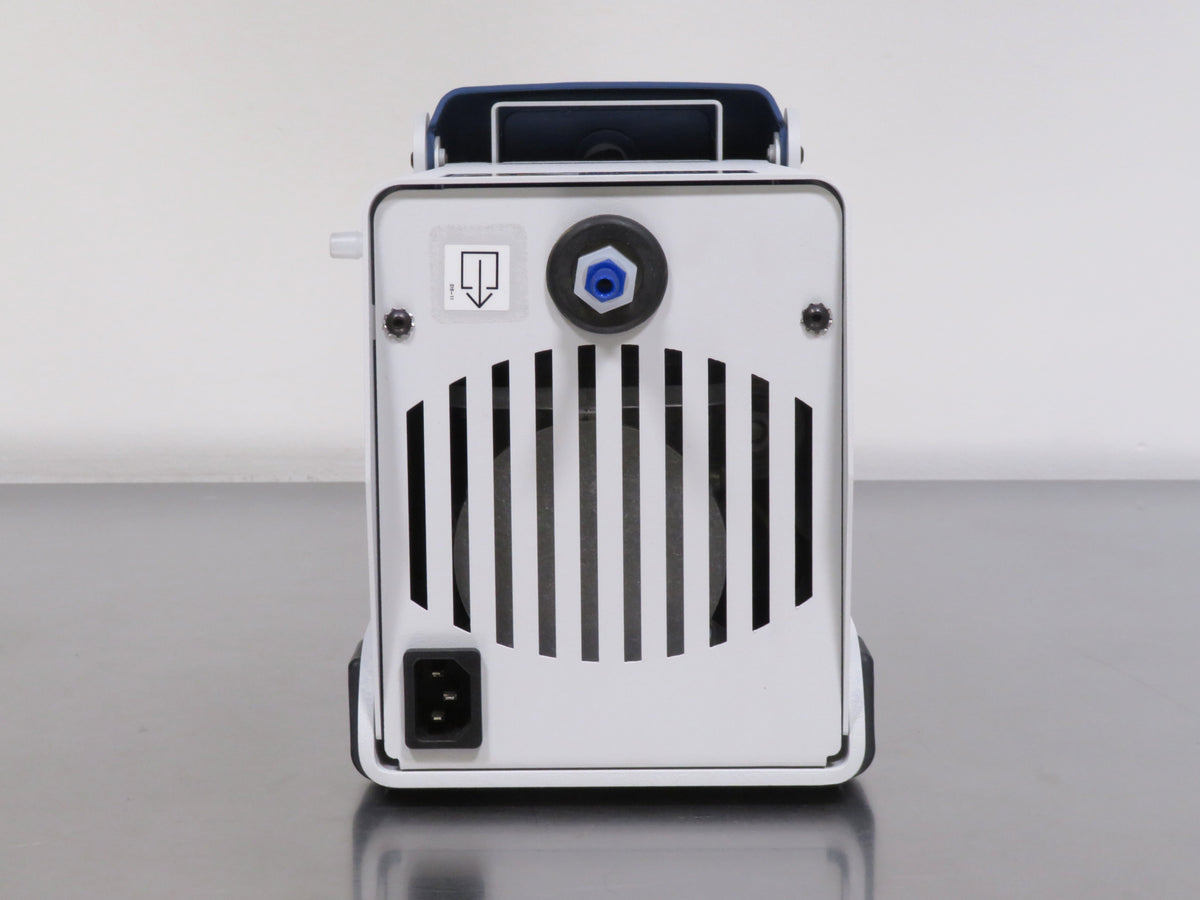

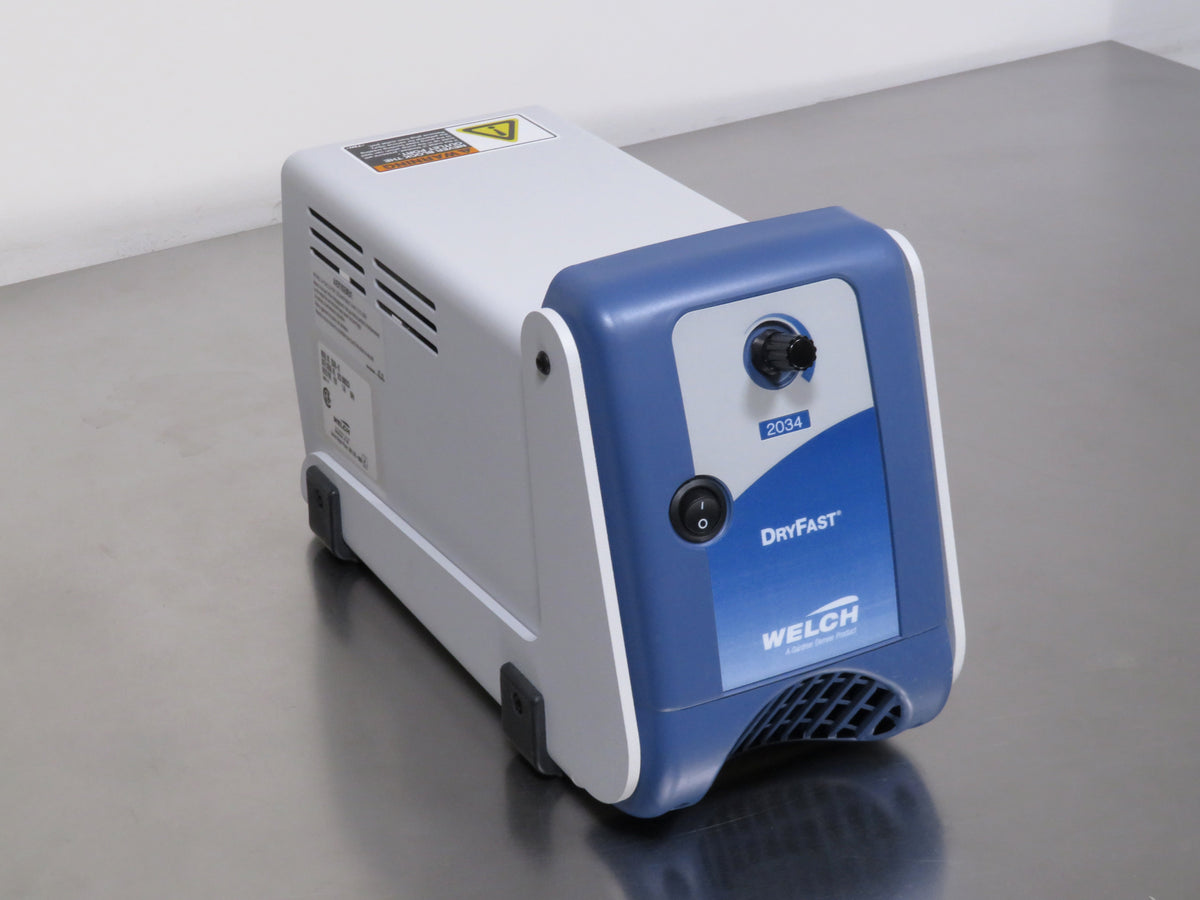

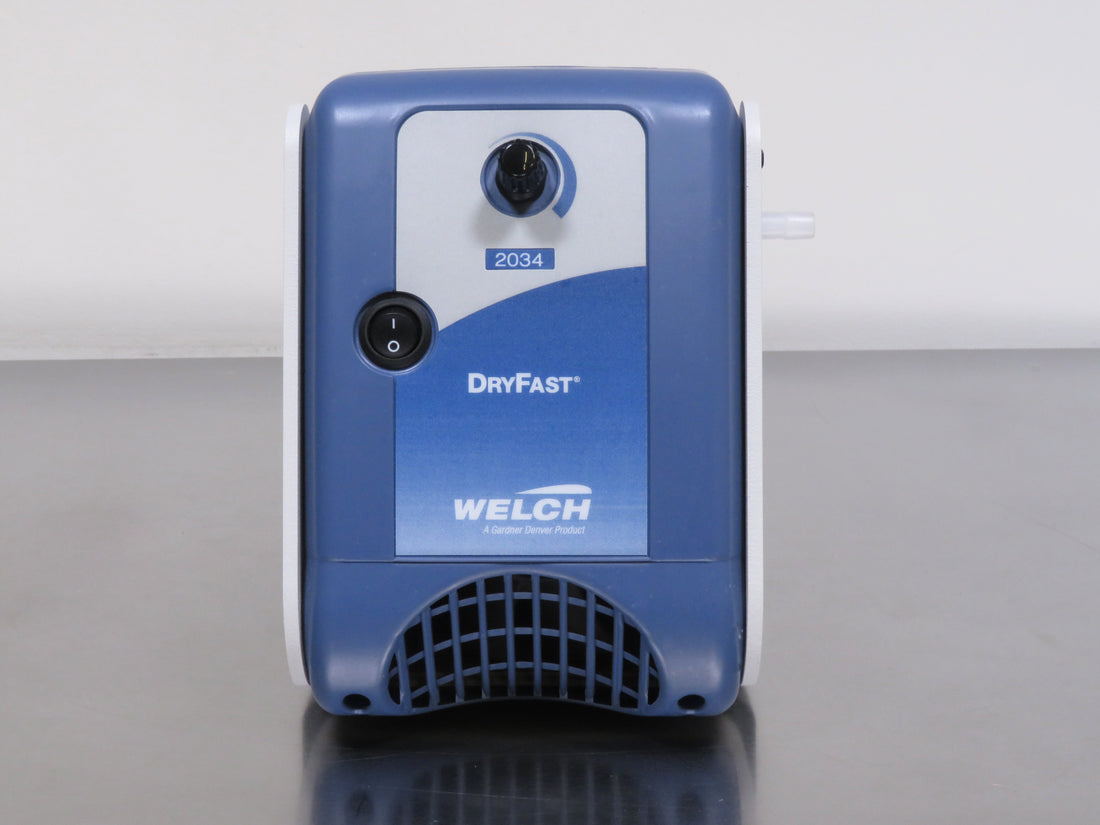

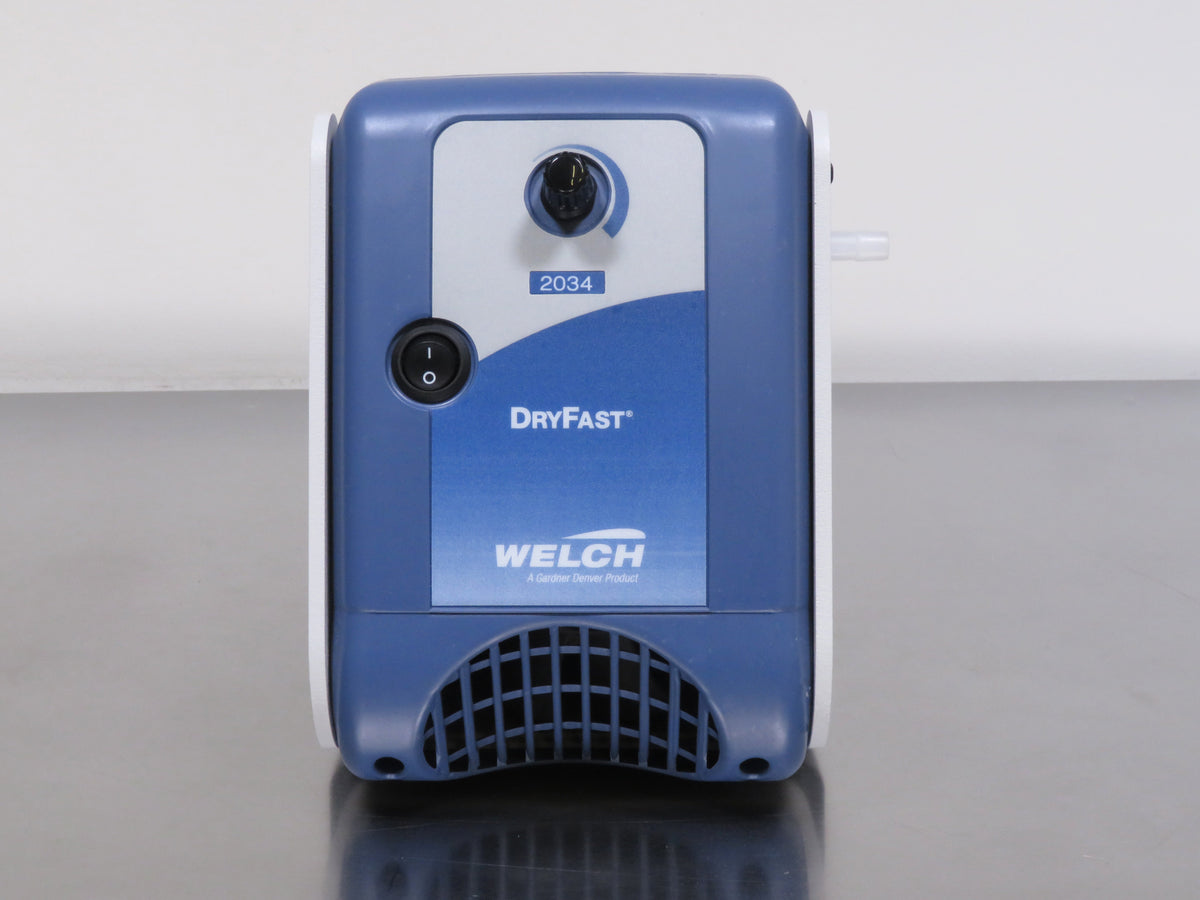

Welch Dryfast 2034 Diaphragm Pump
Maximum Pumping Speed
25 L/min (0.9 CFM) @ 60Hz
Ultimate Vacuum
12 mbar (9 Torr)
Maximum Vacuum
29.6 in. Hg
- Two-stage diaphragm pump design for dependable vacuum generation
- Chemical-resistant construction for demanding laboratory applications
- PTFE pump heads provide durability when handling aggressive vapors
- Perfluoroelastomer valves enhance resistance to challenging chemicals
- Fluorinated plastic wetted surfaces help protect against corrosion
- Oil-free operation minimizes routine maintenance requirements
- Suitable for solvent, acidic, and basic vapor applications

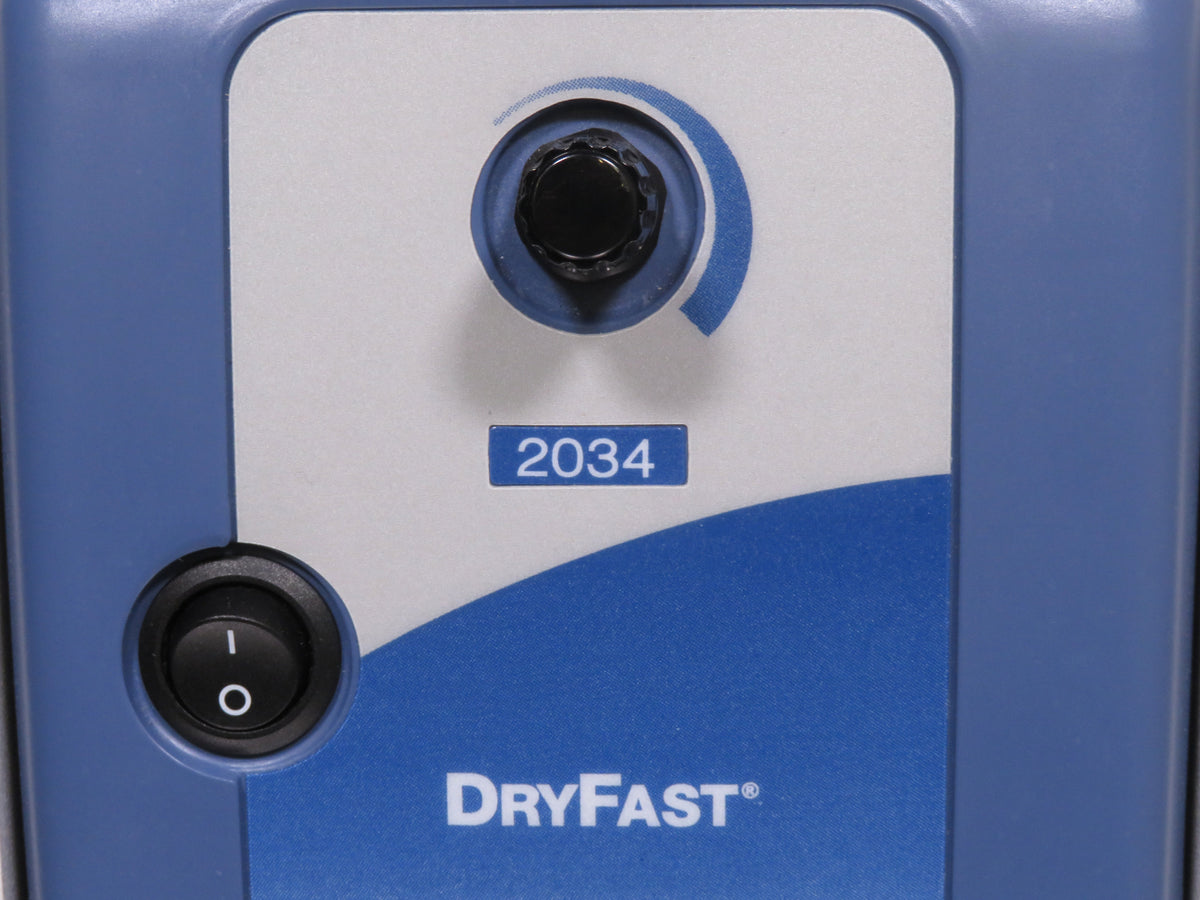

- Fine-tune adjustment knob provides convenient vacuum control
- Well suited for solvent evaporation processes
- Rugged construction designed for reliable, low-maintenance operation
The Welch DryFast 2034 Diaphragm Pump is a chemical-duty vacuum pump designed for reliable operation with solvent, acidic, and basic vapors. Its rugged construction features PTFE heads, perfluoroelastomer valves, and fluorinated plastic wetted surfaces, providing the chemical resistance needed for demanding laboratory and industrial applications. Oil-free operation provides a clean vacuum source while helping minimize routine maintenance and overall operating costs.
The DryFast 2034 provides a free air displacement of 0.9 CFM (25 L/min) at 60 Hz and reaches an ultimate pressure of 9 Torr (12 mbar). A standard fine-tune adjustment knob allows the vacuum level to be controlled for different processes. The pump is particularly suited for evaporation applications involving solvents with atmospheric boiling points up to 110°C, combining adjustable vacuum performance with durable, low-maintenance operation.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Welch Dryfast 2034 Diaphragm Pump includes:
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Welch Dryfast 2034 Diaphragm Pump Specifications
| Maximum Pumping Speed | 25 L/min (0.9 CFM) @ 60Hz |
| Ultimate Vacuum | 12 mbar (9 Torr) |
| Maximum Vacuum | 29.6 in. Hg |
| Maximum Continuous Pressure | 0 PSIG |
| Tubing Required | 3/8 in. I.D. |
| Motor H.P. | 1/5 HP |
| Motor Voltage | 115V @ 60Hz |
| Motor Amps | 0.9–1.6A (N.L. – F.L.) |
| Dimensions (L x H x W) | 13.8 x 6.8 x 8.8 in. (35 x 17 x 22 cm) |
| Weight | 21 lb. (9.6 kg) |
| Electrical Requirements | 115V, 1.4A, 60Hz |
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
Downloads
Click Here to View the Technical Specs for the Welch Dryfast 2034 Diaphragm Pump
