VWR UV Crosslinker, Cat. # 89131-484
UV Wavelength
254 nm
UV Energy Range
Up to 999,900 uJ/cm²
Preset UV Energy
120,000 uJ
- Overhead 254 nm UV illumination provides consistent exposure for nucleic acid crosslinking and sterilization applications
- Integrated UV sensor continuously monitors radiation intensity and compensates for changes in UV output as lamps age
- Microprocessor-controlled operation ensures accurate and reproducible UV energy delivery
- Adjustable manual controls allow customized UV exposure settings for different applications
- Automatic UV shutoff terminates exposure once the programmed energy dose has been reached

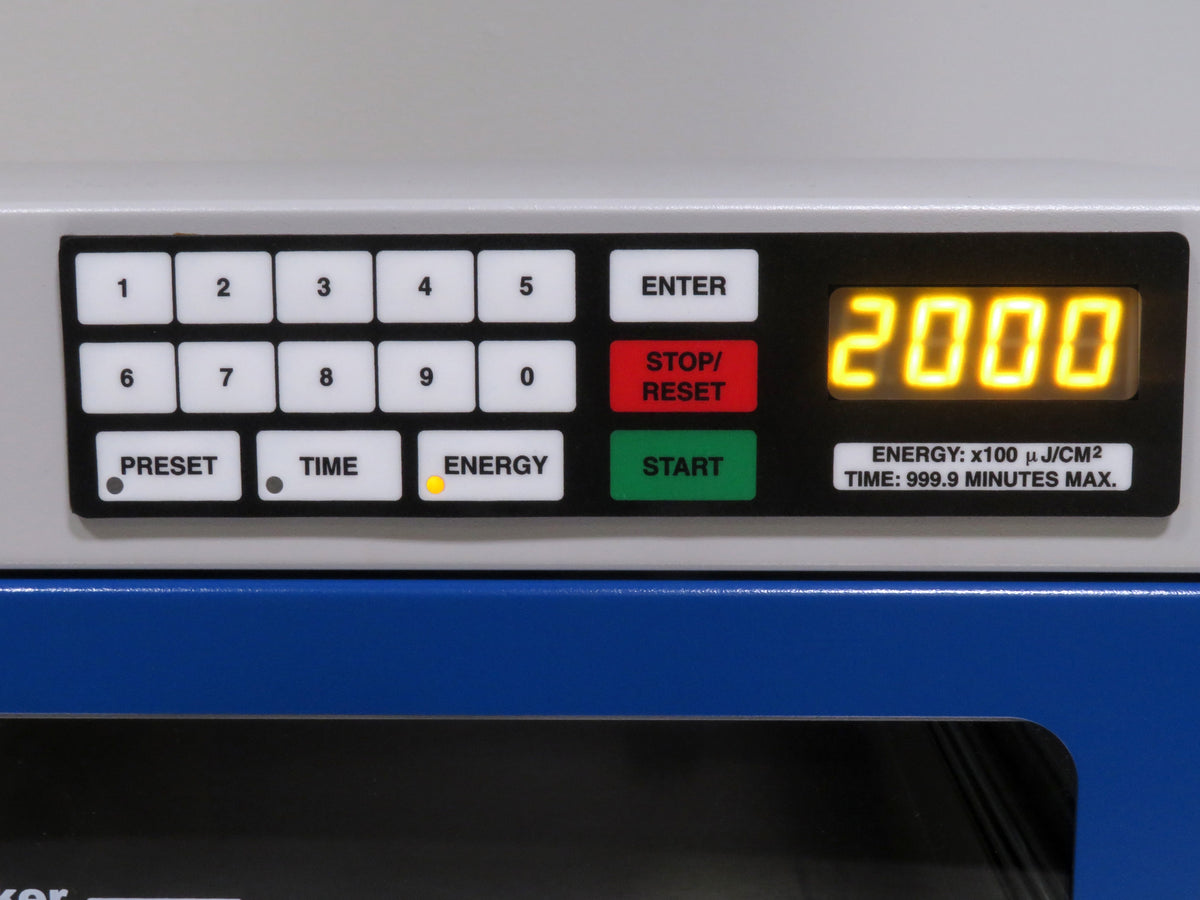

- Large LED display provides clear visibility of operating settings and exposure parameters

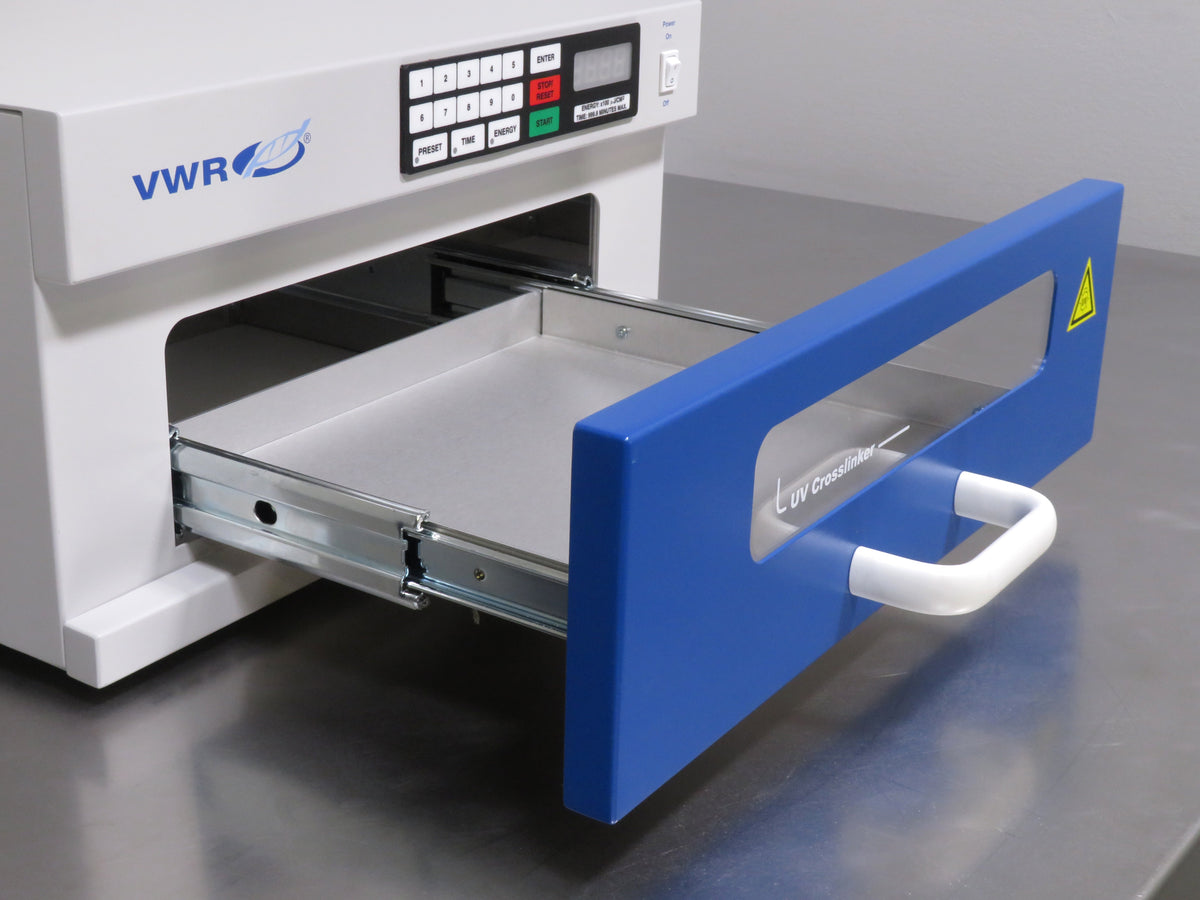

- Convenient pull-out drawer allows easy sample loading and removal
- UV-blocking observation window enables sample monitoring while minimizing exposure to ultraviolet radiation
- Supports applications including DNA/RNA crosslinking, PCR contamination control, UV sterilization, and sample decontamination

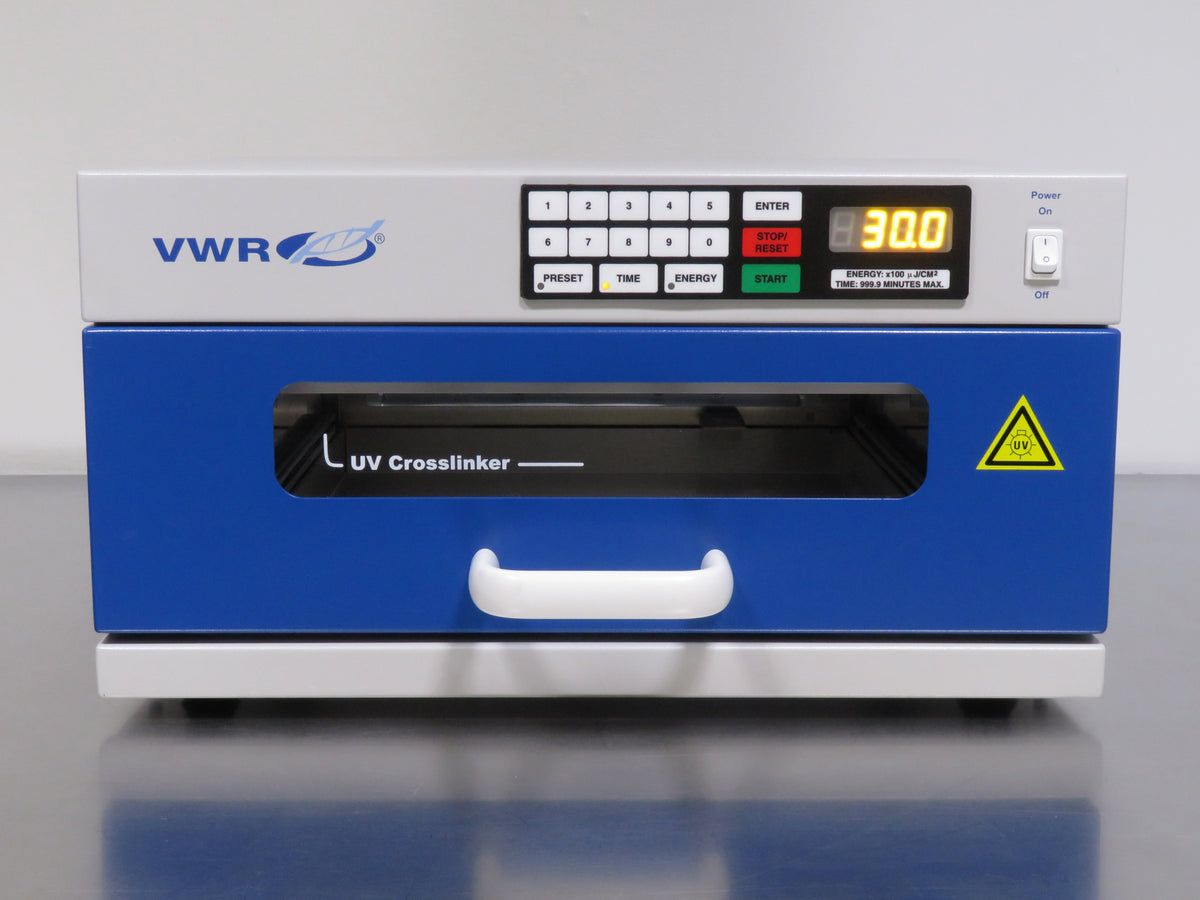

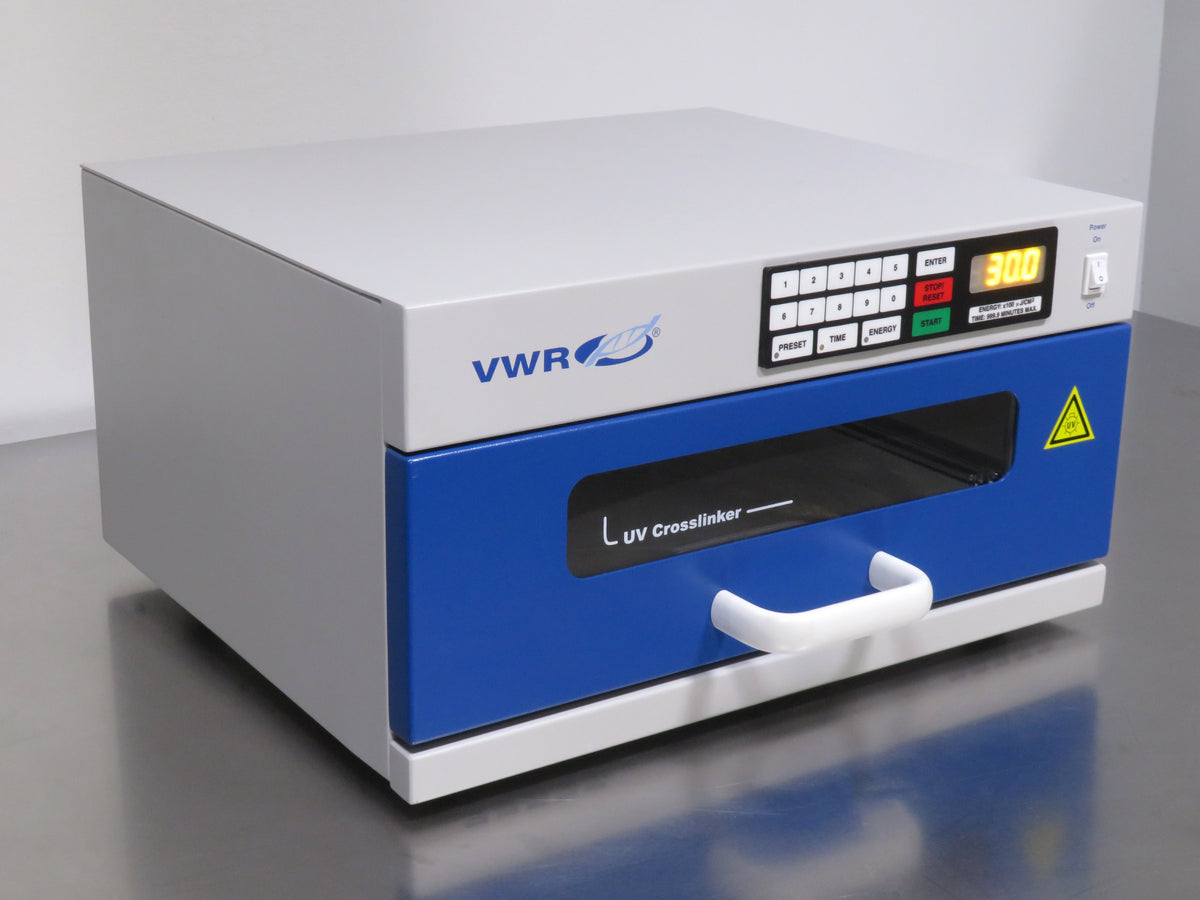

The VWR UV Crosslinker, Cat. # 89131-484, is a versatile laboratory instrument designed to deliver precise and consistent ultraviolet exposure for molecular biology applications. Utilizing overhead 254 nm UV illumination, the system is ideal for crosslinking DNA and RNA to nitrocellulose and nylon membranes, PCR contamination control, UV sterilization, and sample decontamination. Equipped with five 8-watt UV tubes, the system provides uniform illumination throughout the exposure chamber, while an integrated UV sensor continuously monitors radiation intensity and compensates for changes in UV output as the lamps age.
Designed for convenient and reliable operation, the VWR UV Crosslinker features a large LED display, intuitive controls, and a pull-out drawer for easy sample placement. Preset exposure settings of 120,000 microjoules or 5 minutes, along with adjustable manual controls, provide flexibility for different applications. The system automatically terminates UV exposure once the programmed energy dose is reached, ensuring consistent and reproducible results. A UV-blocking observation window allows users to monitor samples while minimizing exposure to ultraviolet radiation.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The VWR UV Crosslinker, Cat. # 89131-484 includes:
- 5 x 254nm UV Tubes
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
VWR UV Crosslinker, Cat. # 89131-484 Specifications
| UV Wavelength | 254 nm |
| UV Light Source | 5 x 8W UV Tubes |
| UV Exposure Control | Microprocessor-Controlled |
| UV Energy Range | Up to 999,900 uJ/cm² |
| Preset UV Energy | 120,000 uJ |
| Preset Exposure Time | 5 Minutes |
| Exposure Modes | Preset and Manual |
| UV Monitoring | Integrated UV Sensor with Automatic Intensity Compensation |
| Display | LED |
| Sample Access | Pull-Out Drawer |
| Safety Features | UV-Blocking Observation Window, Automatic UV Shutoff at Programmed Energy Dose |
| Internal Chamber Dimensions (W x D x H) | 11.4 x 11.3 x 3.6 in. (29.0 x 28.7 x 9.1 cm) |
| External Dimensions (W x D x H) | 17.5 x 15 x 9.75 in. (44.5 x 38.1 x 24.8 cm) |

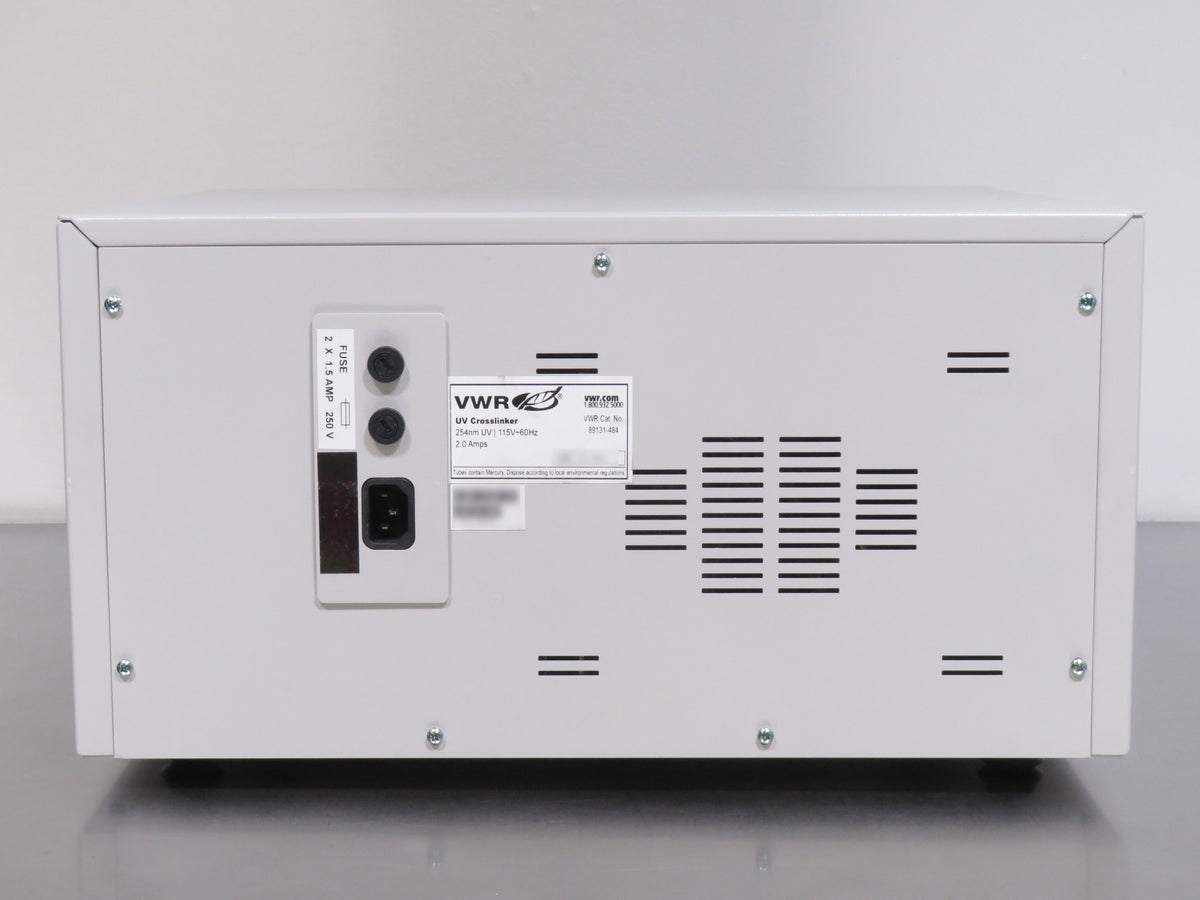

| Electrical Requirements | 115V, 60Hz, 2A |
