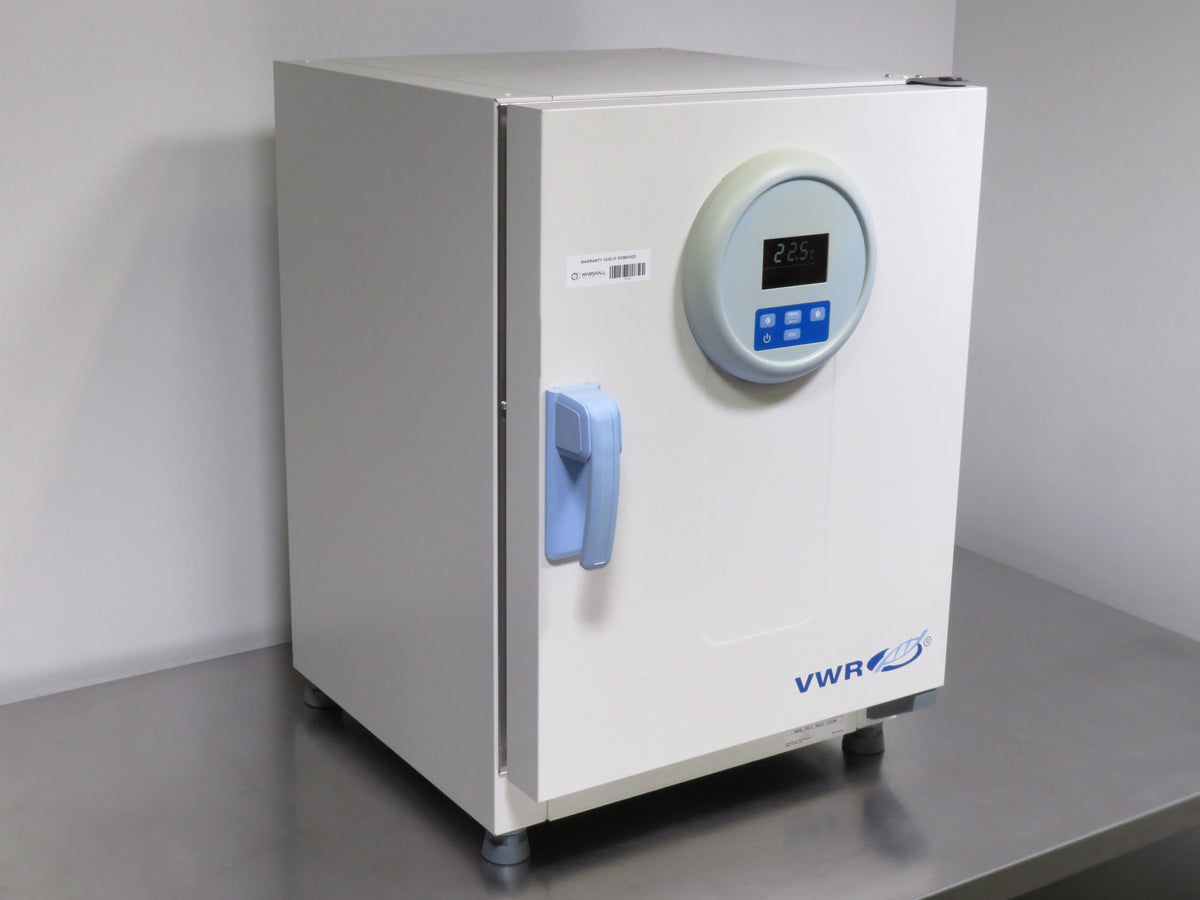

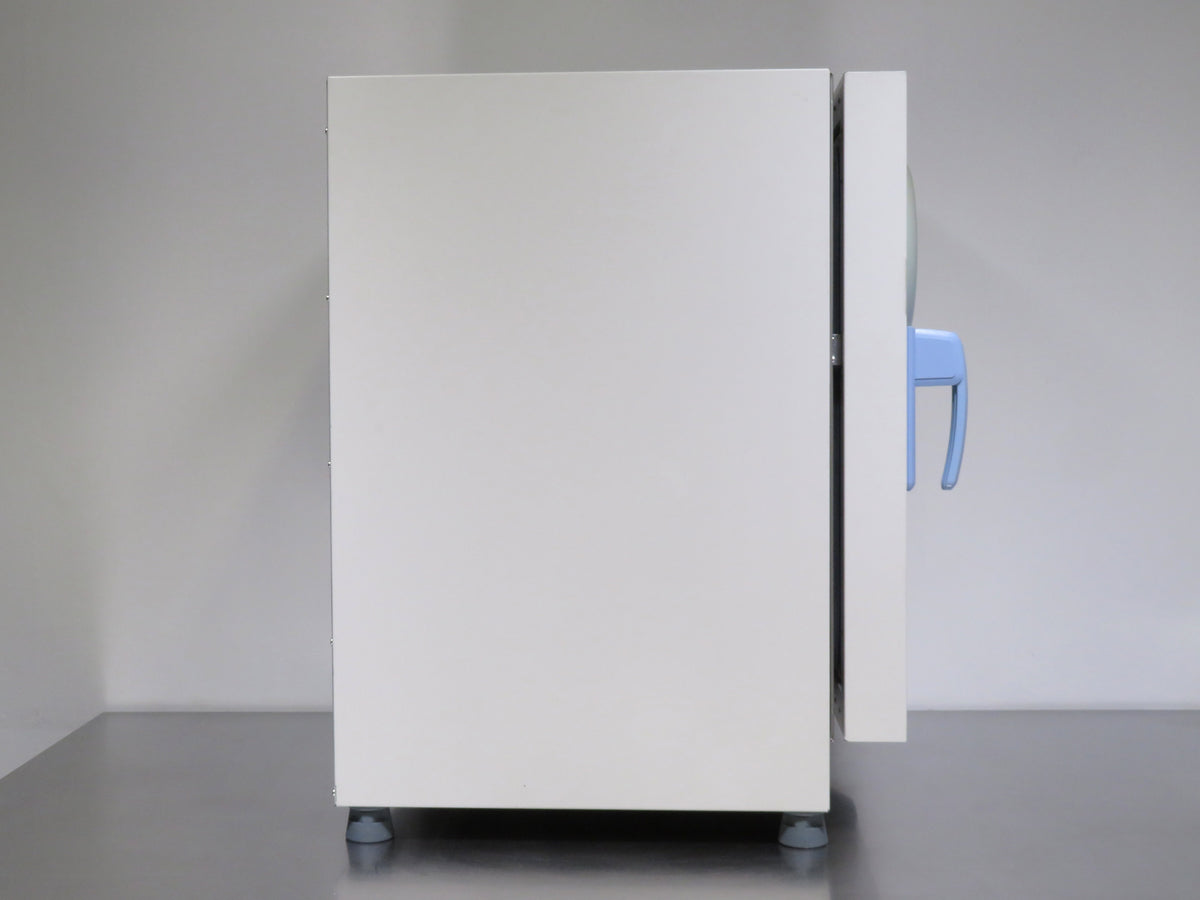

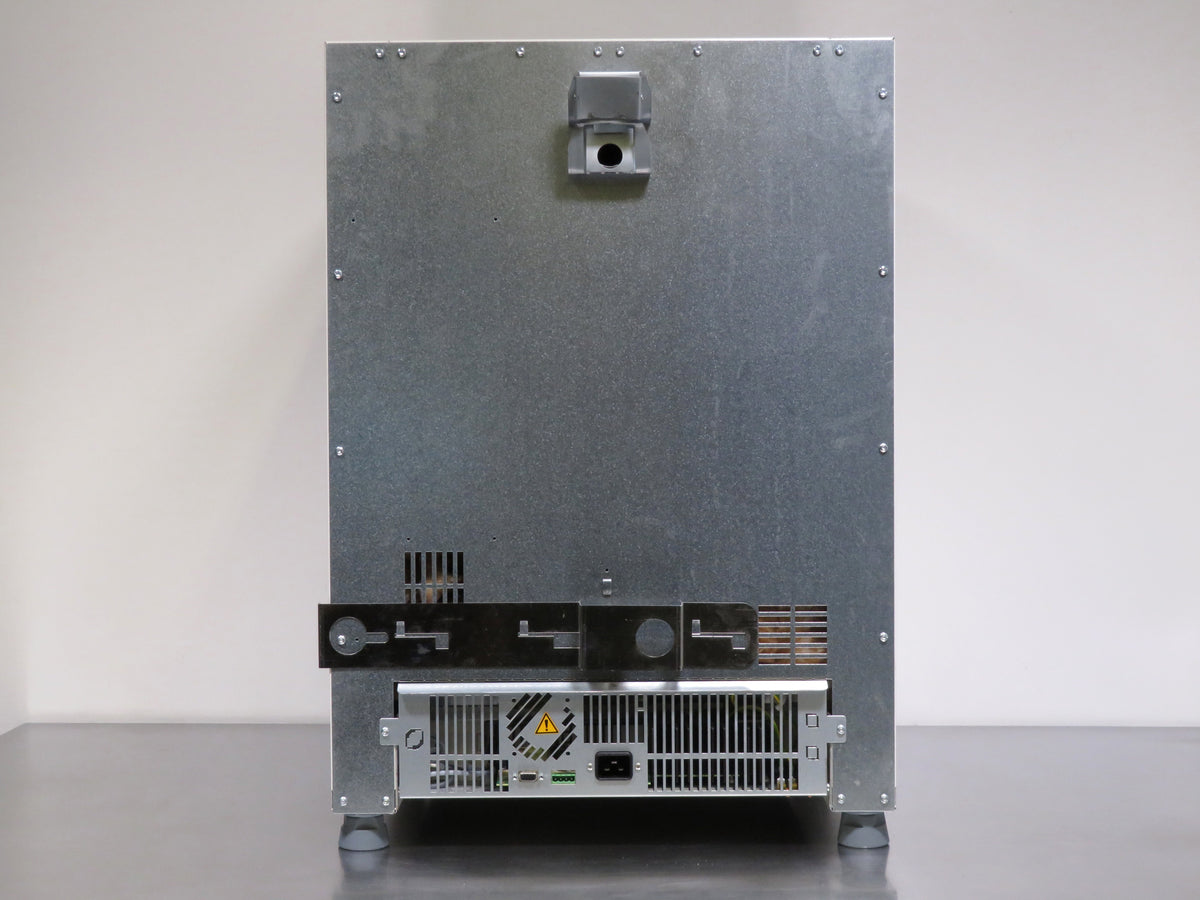

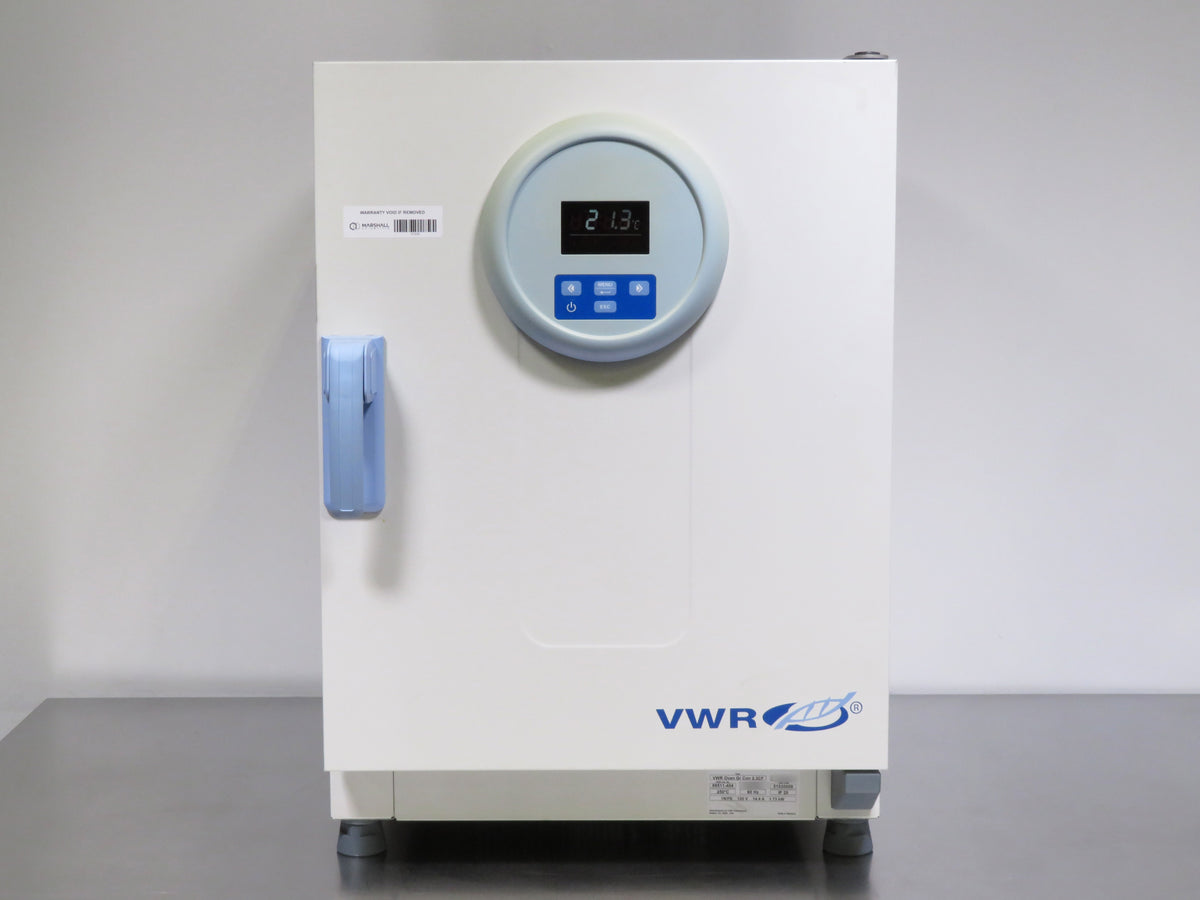

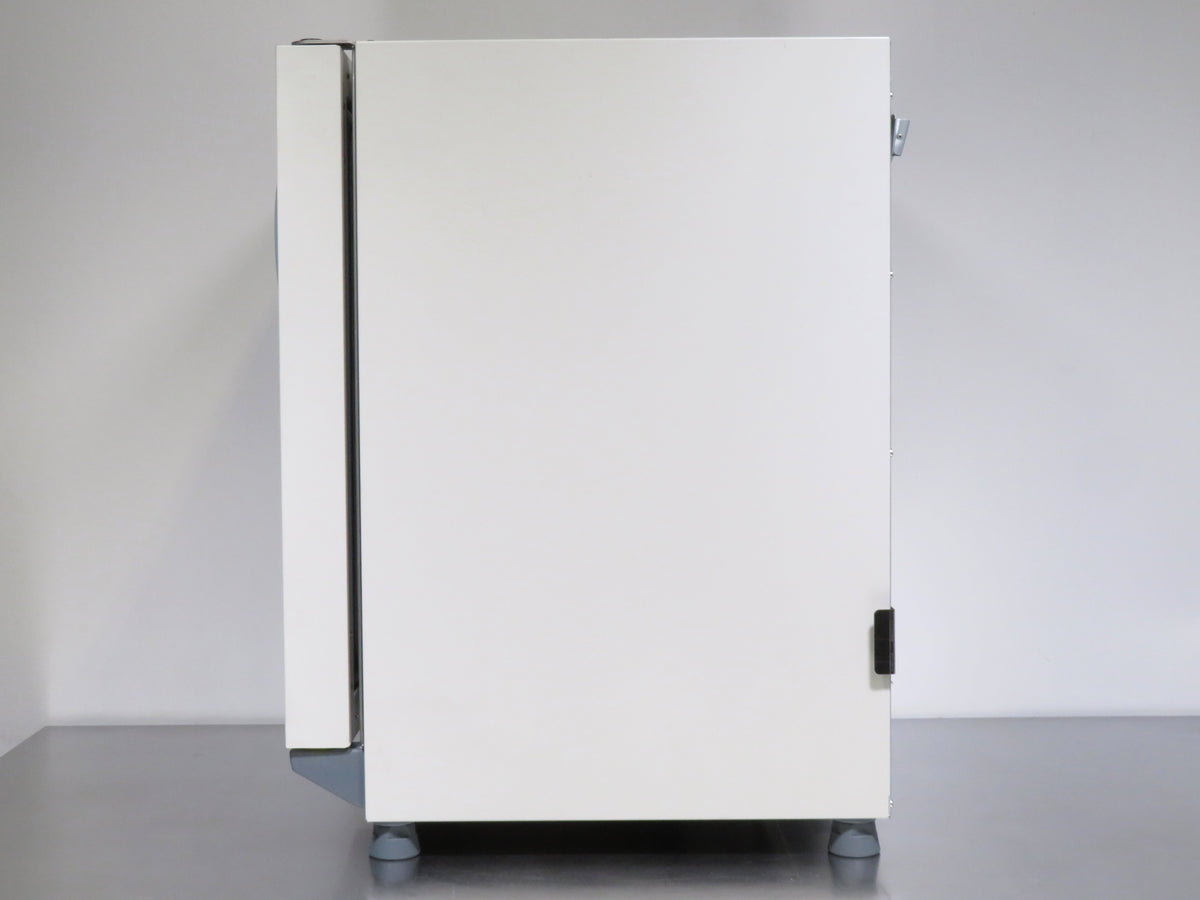

VWR 65L Gravity Convection Oven, Cat. # 89511-404
Temperature Range
50°C to 250°C
Capacity
65 L (2.3 cu. ft.)
Temperature Deviation at 150°C, Spatial
± 4.5 K Maximum / ± 4.0 K Typical
- Gravity convection provides gentle natural airflow to help protect powders, lightweight materials, and delicate samples from being disturbed during heating

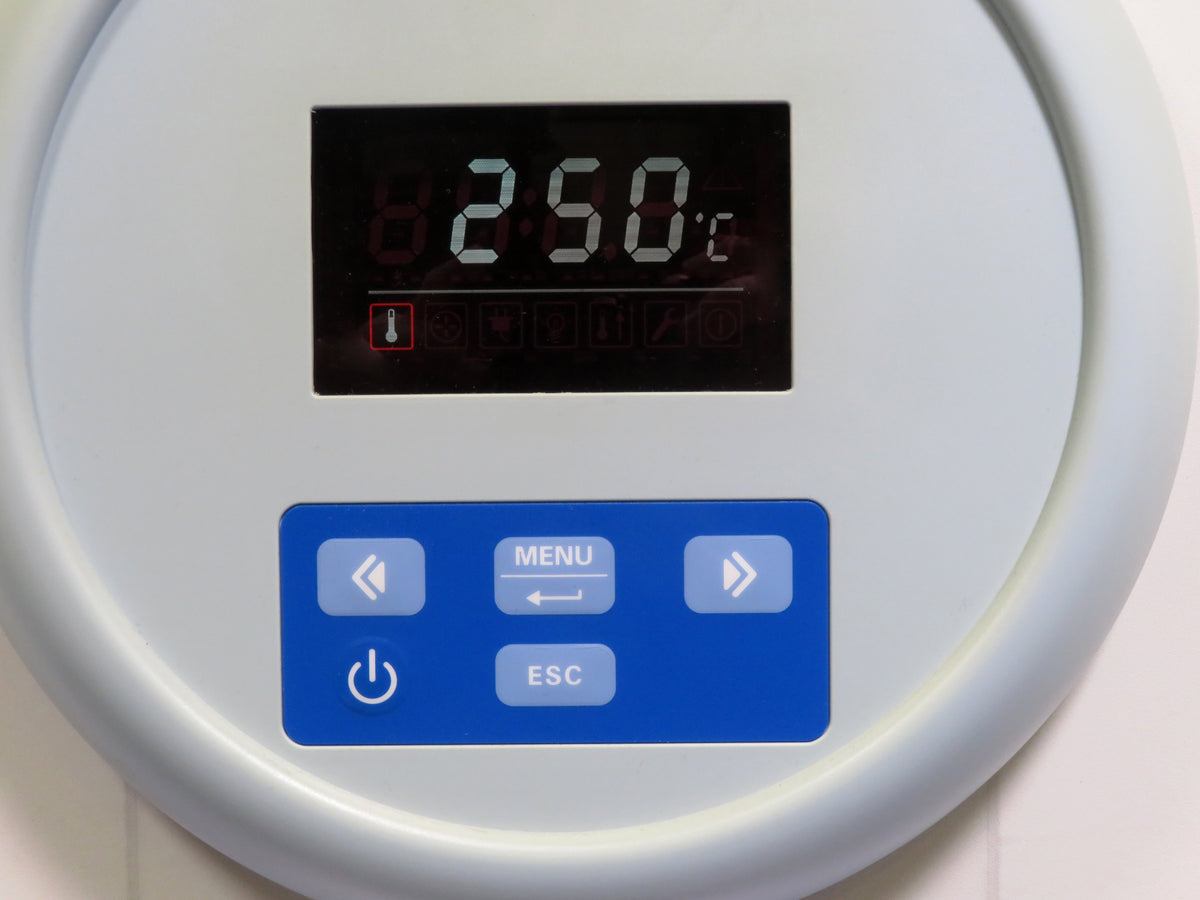

- PID temperature control supports consistent, repeatable heating for routine laboratory processes
- Fast heat-up and recovery performance helps the oven return to operating conditions efficiently during everyday workflows.
- Stainless-steel interior construction with rounded corners helps simplify routine cleaning and maintenance
- Overtemperature protection provides additional monitoring for safer operation
- Flexible shelf positioning helps accommodate different sample sizes and makes effective use of the available chamber space
- Insulated chamber design helps retain heat for efficient drying, sterilization, heat treatment, and heated storage applications
The VWR 65L Gravity Convection Oven, Cat. # 89511-404 provides gentle, controlled heating and drying for laboratory applications where forced air movement may disturb delicate materials. Its gravity convection design relies on natural airflow, making it particularly well suited for powders, lightweight samples, and other materials that could be displaced by an active circulation system. The oven can support a variety of routine workflows including drying, heat treatment, sterilization, and heated storage.
A PID temperature controller provides straightforward operation while helping maintain consistent conditions for repeatable laboratory processes. The gravity convection design provides gentle, natural airflow throughout the chamber, making the oven well suited for heating and drying delicate or lightweight samples. Sensor based overtemperature protection provides additional monitoring during operation.

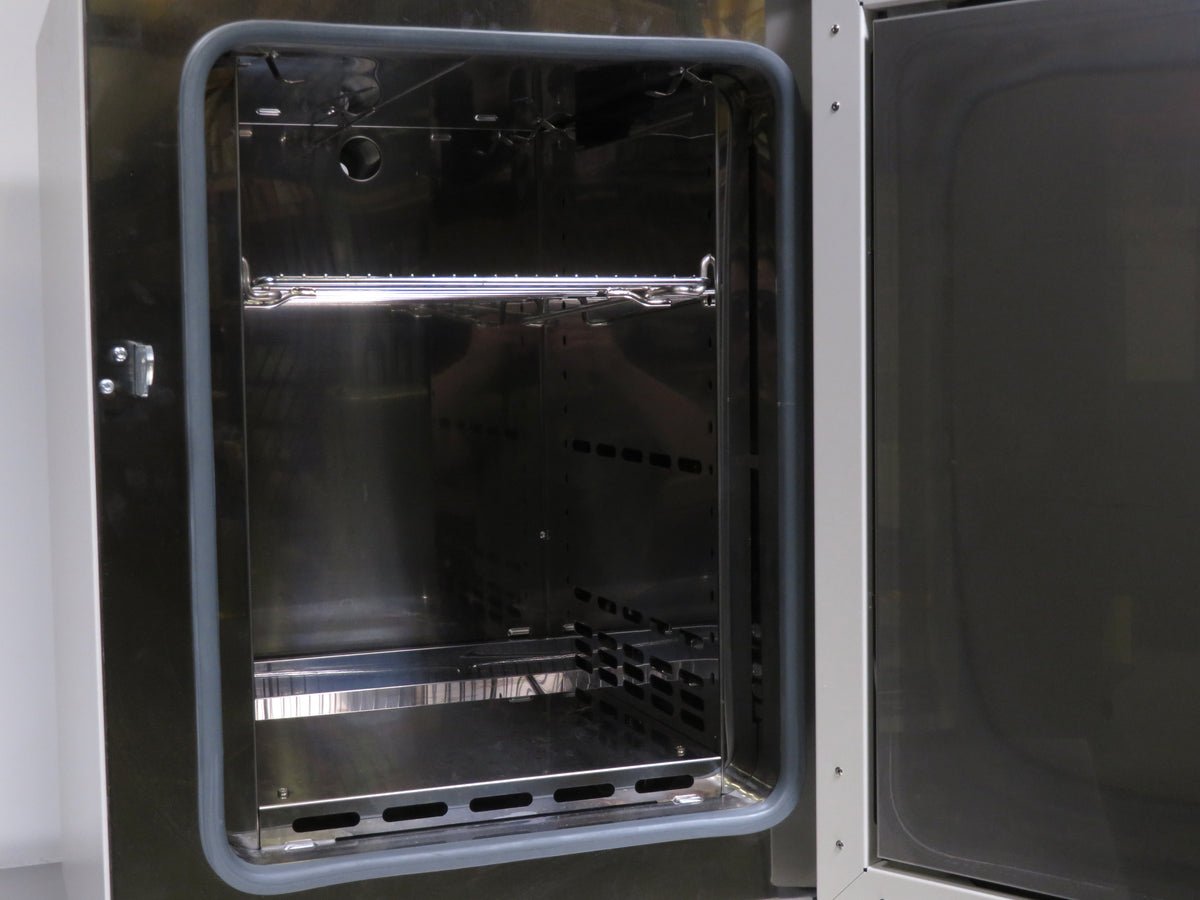

The stainless-steel interior features rounded corners for easier routine cleaning, while flexible shelf positioning helps accommodate different sample sizes and laboratory workflows. An insulated chamber design helps retain heat for efficient operation, and the compact footprint provides useful 65 L capacity without unnecessarily consuming bench space.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The VWR 65L Gravity Convection Oven, Cat. # 89511-404 includes:
- Shelf
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
VWR 65L Gravity Convection Oven, Cat. # 89511-404 Specifications
| Temperature Range | 50°C to 250°C |
| Capacity | 65 L (2.3 cu. ft.) |
| Temperature Deviation at 150°C, Spatial | ± 4.5 K Maximum / ± 4.0 K Typical |
| Temperature Deviation at 150°C, Over Time | ± 0.4 K |
| Heat-Up Time to 150°C | 25 min. Maximum / 20 min. Typical |
| Recovery time (work space unoccupied, door open for 30 s, to set temperature) | 9 min. Maximum / 8 min. Typical |
| Air Circulation | Gravity Convection |
| Loading Capacity per Shelf | 55 lb. (25 kg) |
| Dimensions (W x D x H) | 20.8 x 22.2 x 28.3 in. (53.0 x 56.5 x 72.0 cm) |
| Weight | 93 lb. (42 kg) |
| Electrical Requirements | 120V, 60Hz, 14.4A, 1730W |
- Verify power supply and PCB outputs are within specified voltage ranges
- Inspect display for any dim or dead pixels, replacing as needed to ensure visibility
- Confirm full functionality and responsiveness of all control buttons
- Examine all internal wiring for frays, cuts, or damage, ensuring secure and reliable connections
- Inspect door seals and gaskets for integrity, replacing any compromised components
- Evaluate door handle and locking mechanism for wear or issues, replacing if performance is impaired
- Inspect and clean internal fan; replace if performance does not meet requirements
- Calibrate set temperature using a NIST-traceable probe for precise accuracy
- Confirm functionality of over-temperature alarm and indicator light
- Verify internal outlet functionality, if applicable, to ensure it meets operational standards
- Inspect internal lighting for full functionality and brightness, if applicable
- Perform a cosmetic inspection to confirm the oven’s exterior and interior meet quality standards
Technician Inspection and Recertification Checklist: Ovens
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB outputs are within specified voltage ranges | Completed | |
| Inspect display for dim or dead pixels; replace if needed | Completed | |
| Confirm full functionality of all control buttons | Completed | |
| Examine internal wiring for damage; ensure secure connections | Completed | |
| Inspect door seals and gaskets, replacing any compromised components | Completed | |
| Evaluate door handle and locking mechanism, replacing if worn | Completed | |
| Inspect and clean internal fan; replace if performance is insufficient | Completed | |
| Calibrate set temperature using a NIST-traceable probe | Completed | |
| Confirm over-temperature alarm and indicator light functionality | Completed | |
| Verify internal outlet functionality, if applicable | Completed | |
| Inspect internal lighting for full functionality and brightness | Completed | |
| Perform cosmetic inspection to confirm quality standards of exterior and interior | Completed |
