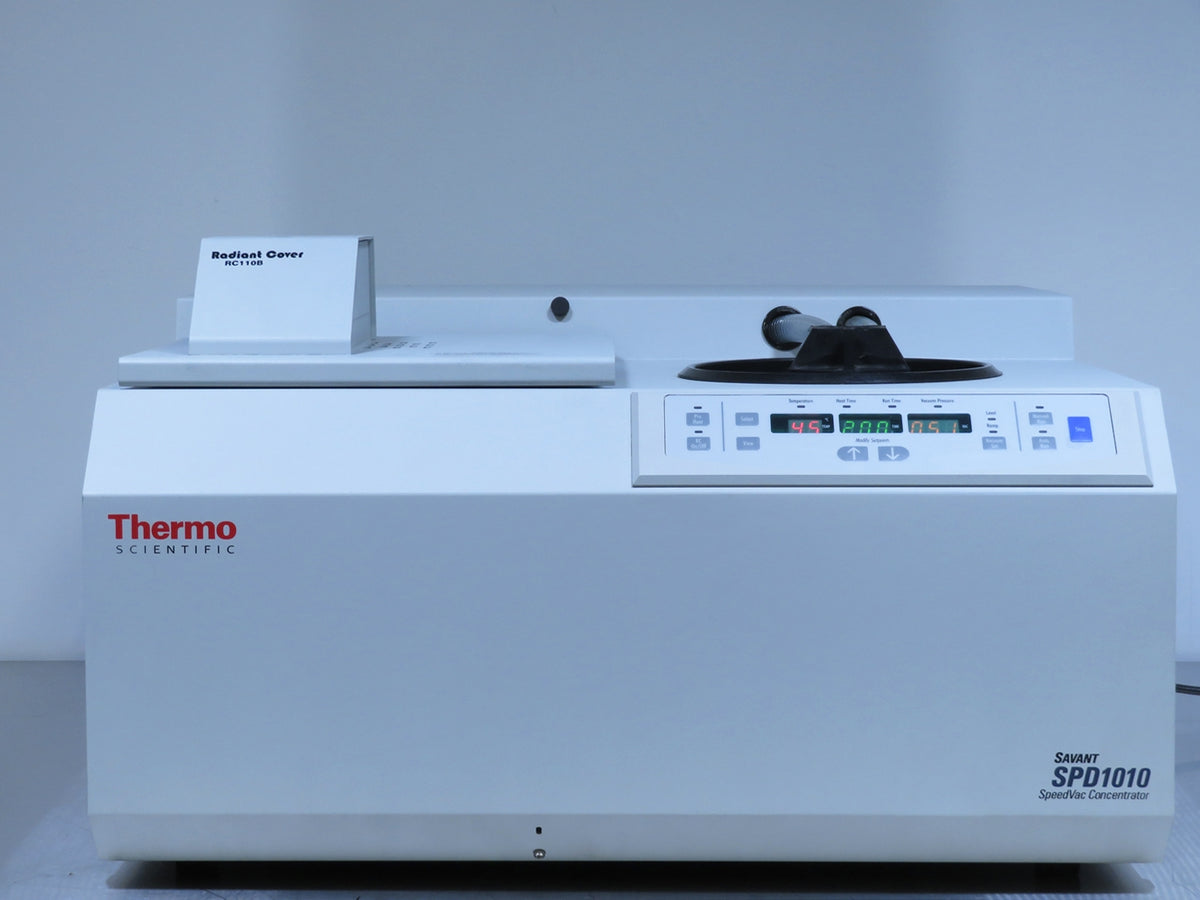

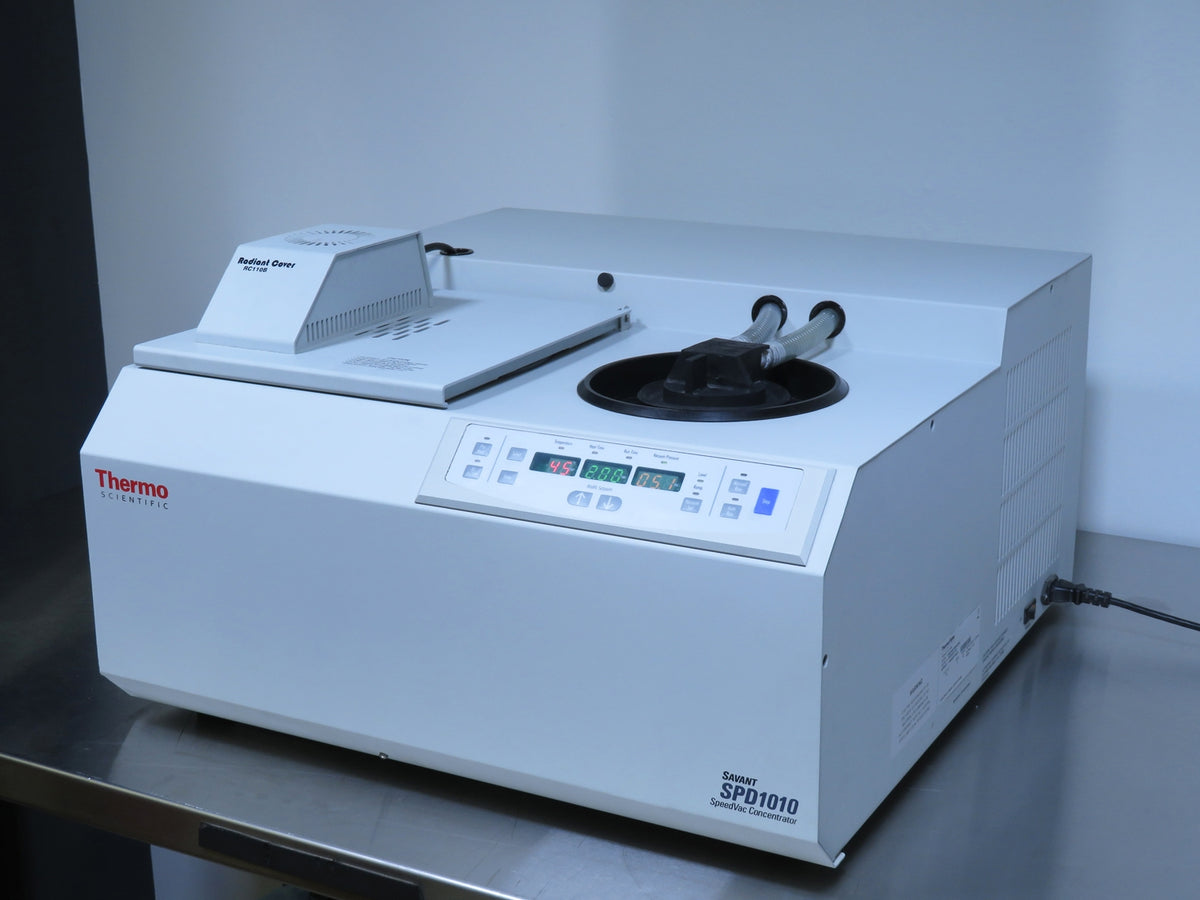

Thermo Scientific Savant SPD1010-115 SpeedVac Concentrator
The Thermo Scientific Savant SPD1010-115 SpeedVac Concentrator is a complete system for solvent evaporation, sample concentration, and drying. The SPD system uses a patented technique that combines centrifugal force, vacuum, and applied heat to eliminate sample bumping and foaming. The application of thermal energy to the sample during concentration counteracts the natural evaporative cooling effect that slows the drying rate.

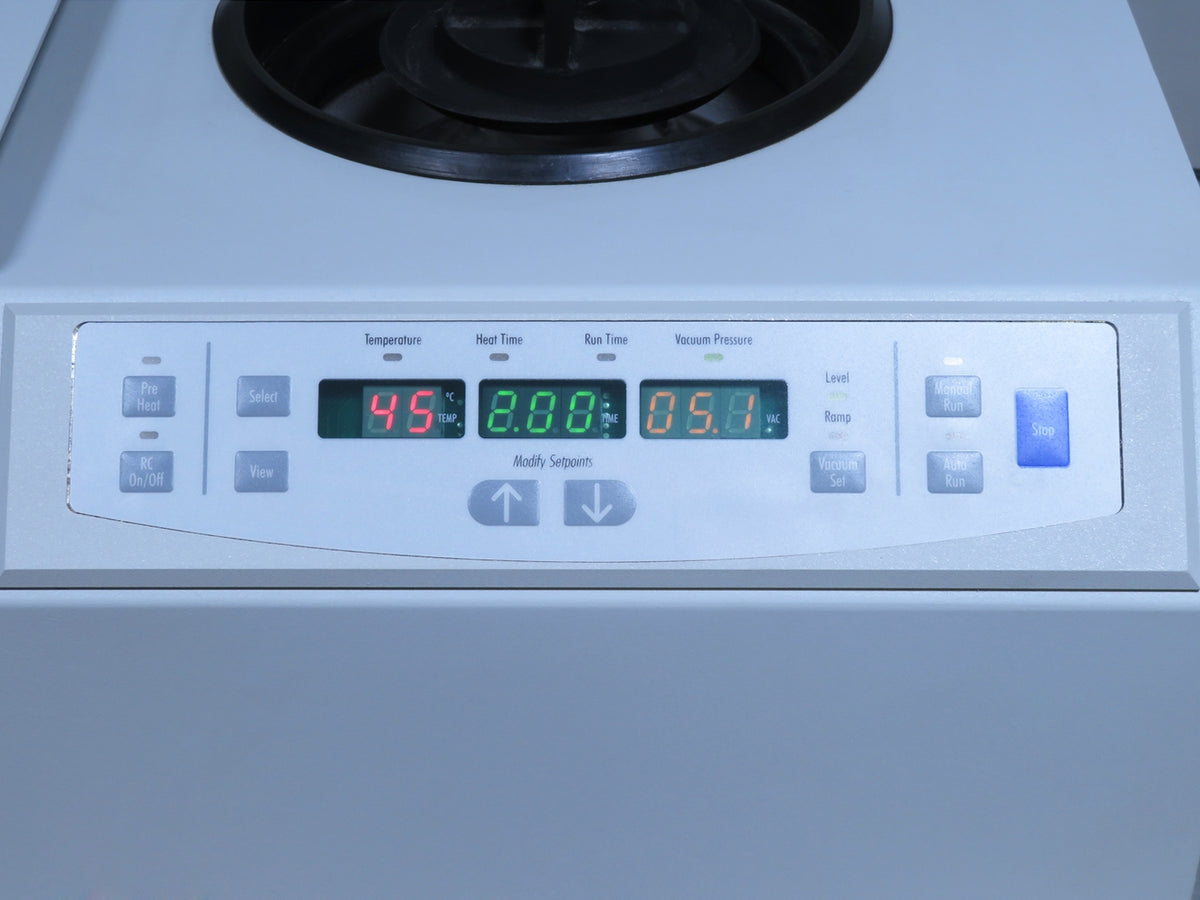

This complete system integrates an oil-free vacuum and a refrigerated vapor trap into a single compact package. The SPD1010 features a small chamber capable of processing up to 4 x 500ml samples. This concentrator also features an advanced front panel with a dual timer for automatic or manual control of run conditions.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific Savant SPD1010-115 SpeedVac Concentrator includes:
The Thermo Scientific Savant SPD1010-115 SpeedVac Concentrator includes:
- > 40 x 1.5ml Fixed Angle Rotor
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Savant SPD1010-115 SpeedVac Concentrator Specifications
| Temperature Range | 45°C to 80°C |
| Temperature Increments | ± 5°C |
| Timer | 1 min. to 10 hours |
| Maximum Vacuum | 7 Torr (9.3 mbar) |
| Displacement | 36L/min at 60Hz |
| Vacuum Control Ramp Rates | 1 to 5 |
| Vacuum Control Range | 30 to 5.1 Torr (40 to 6.8 mbar) |
| Refrigerated Vapor Trap | -50°C |

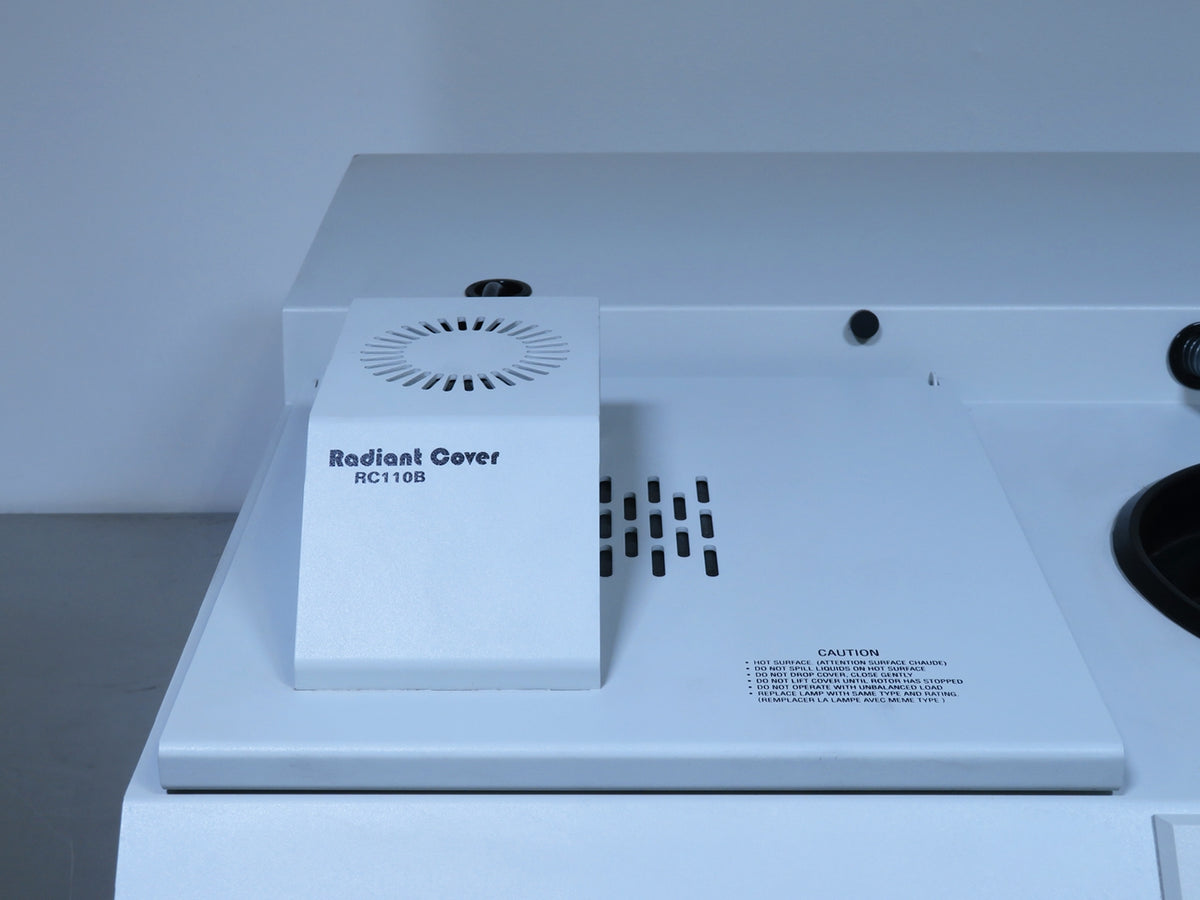

| Cover | Radiant Glass |

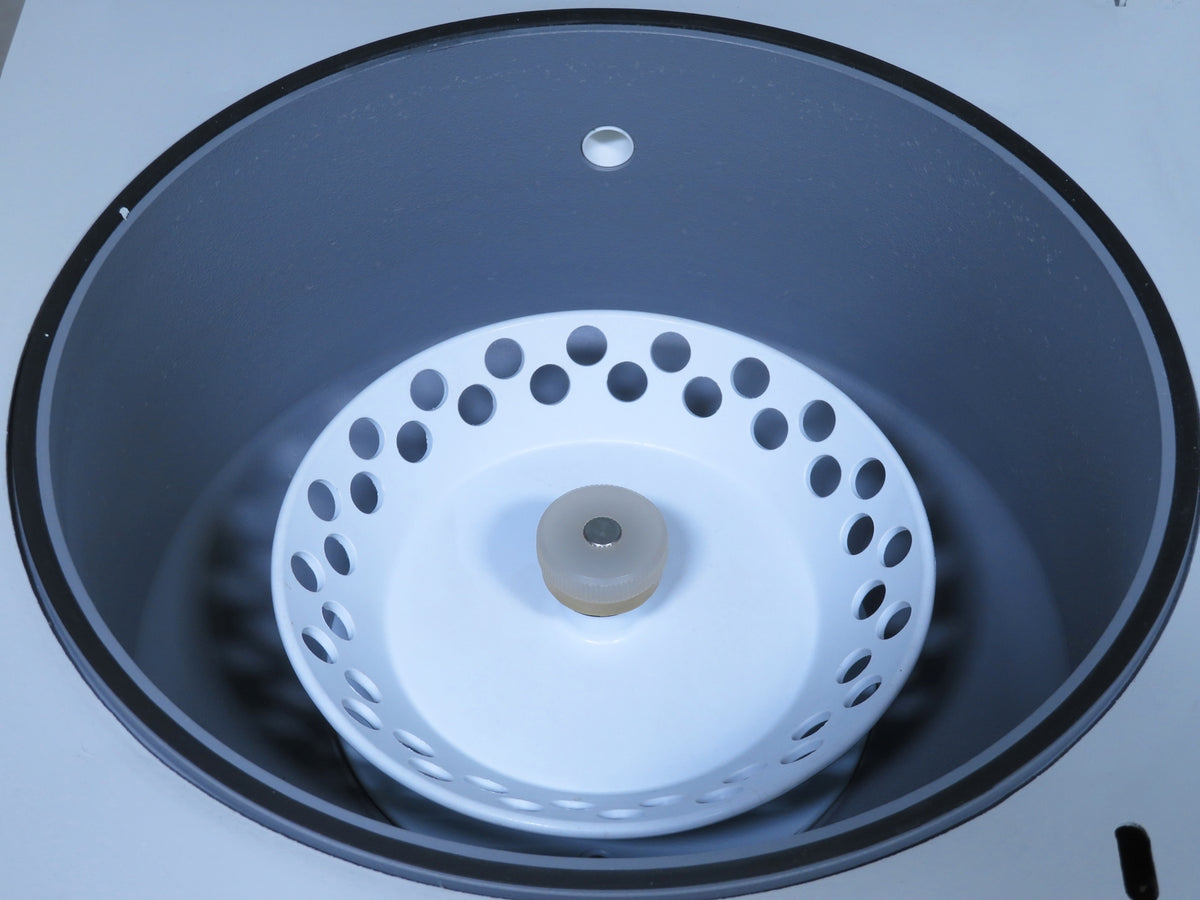

| Rotor Capacity | 40 x 1.5ml tubes |
| Refrigerant | R404A |
| Dimensions (W x D x H) | 25 x 26 x 15 in. (62 x 65 x 37 cm) |
| Weight | 152 lb. (60 kg) |
| Electrical Requirements | 115V, 60Hz, 12A |
Centrifugal Evaporator Inspection and Recertification Checklist
- Inspect the display panel, replacing any dim or dead pixels to ensure clear visual feedback
- Verify full functionality of all buttons, confirming consistent responsiveness
- Examine the acrylic or glass lid for any cracks or chips, ensuring safety and integrity
- Check the vacuum chamber seal for any tears or cracks that could impact pressure retention
- Test chamber lid functionality, confirming all micro switches report a consistent .04 Ohms

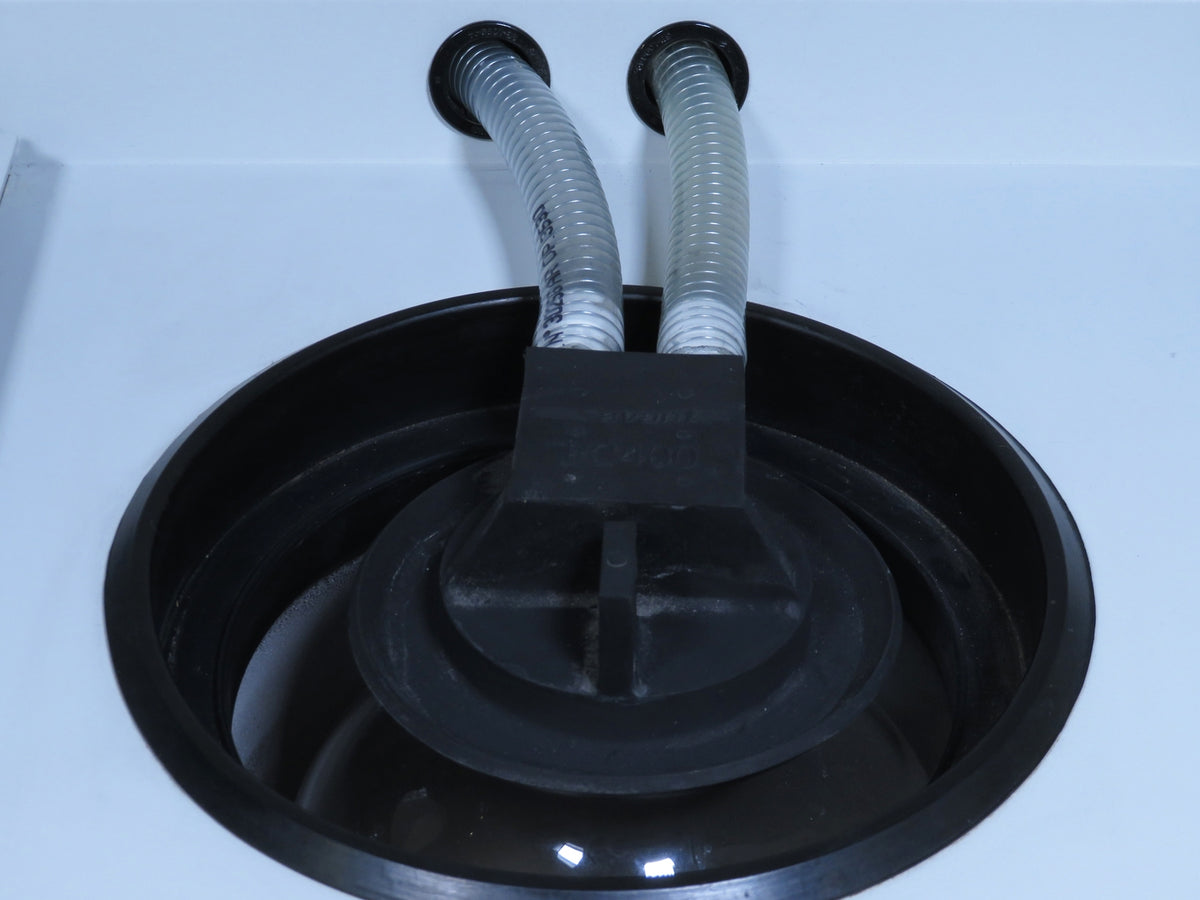

- Verify external connections to the pump or cold trap, ensuring they are properly sealed and leak-free
- Inspect and clean the internal fan and condenser (if applicable) for efficient cooling and airflow
- Examine all internal wiring for frays or breakages, confirming secure and intact connections
- Test motor functionality, replacing motor or bearings if performance is compromised
- Inspect internal pump seals, replacing any worn or damaged seals to maintain vacuum integrity
- Inspect all internal hoses for potential leaks, ensuring tight, clean seals
- Confirm unit is capable of achieving all manufacturer-specified temperature ranges
- Verify the unit can reach specified vacuum levels in accordance with manufacturer standards
- Conduct a 6-8 hour cycle test to confirm consistent operational performance
Technician Inspection and Recertification Checklist: Centrifugal Evaporators
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display panel for dim or dead pixels | Completed | |
| Confirm functionality of all buttons | Completed | |
| Check acrylic/glass lid for cracks or chips | Completed | |
| Inspect vacuum chamber seal for tears or cracks | Completed | |
| Confirm chamber lid micro switches report .04 Ohms | Completed | |
| Verify pump or cold trap connections are sealed and leak-free | Completed | |
| Inspect and clean internal fan and condenser (if applicable) | Completed | |
| Inspect internal wiring for frays or breakages | Completed | |
| Test motor functionality, replace motor/bearings if needed | Completed | |
| Inspect internal pump seals, replace if needed | Completed | |
| Inspect all internal hoses for leaks, ensure clean seals | Completed | |
| Confirm unit achieves specified temperature ranges | Completed | |
| Verify unit reaches specified vacuum levels | Completed | |
| Conduct a 6-8 hour cycle test for operational performance | Completed |
