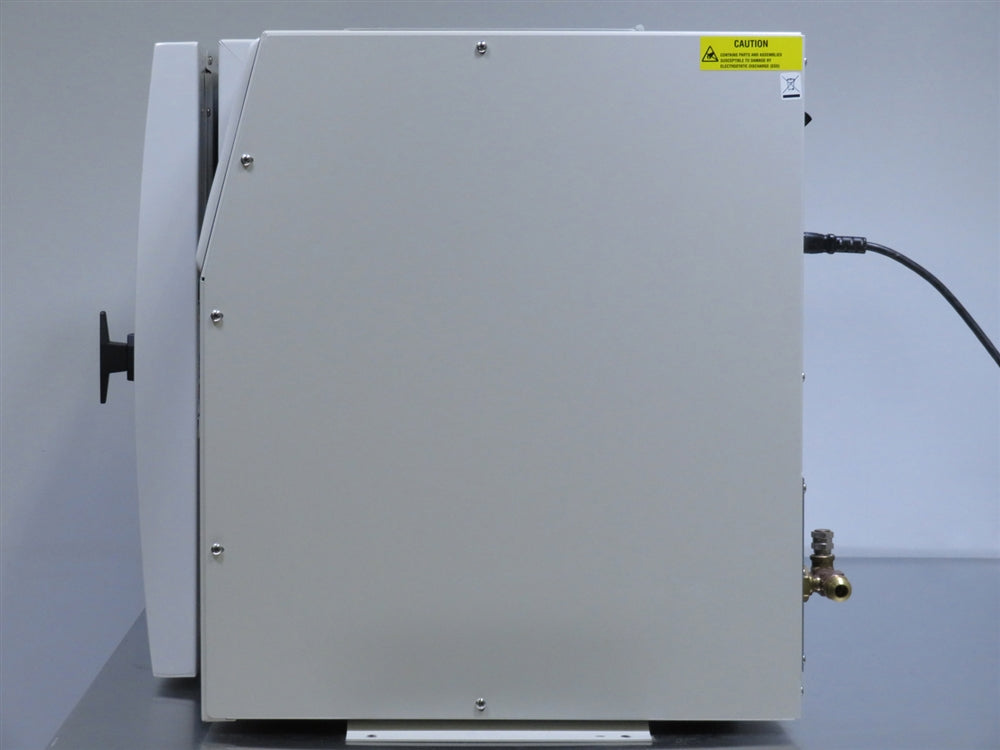

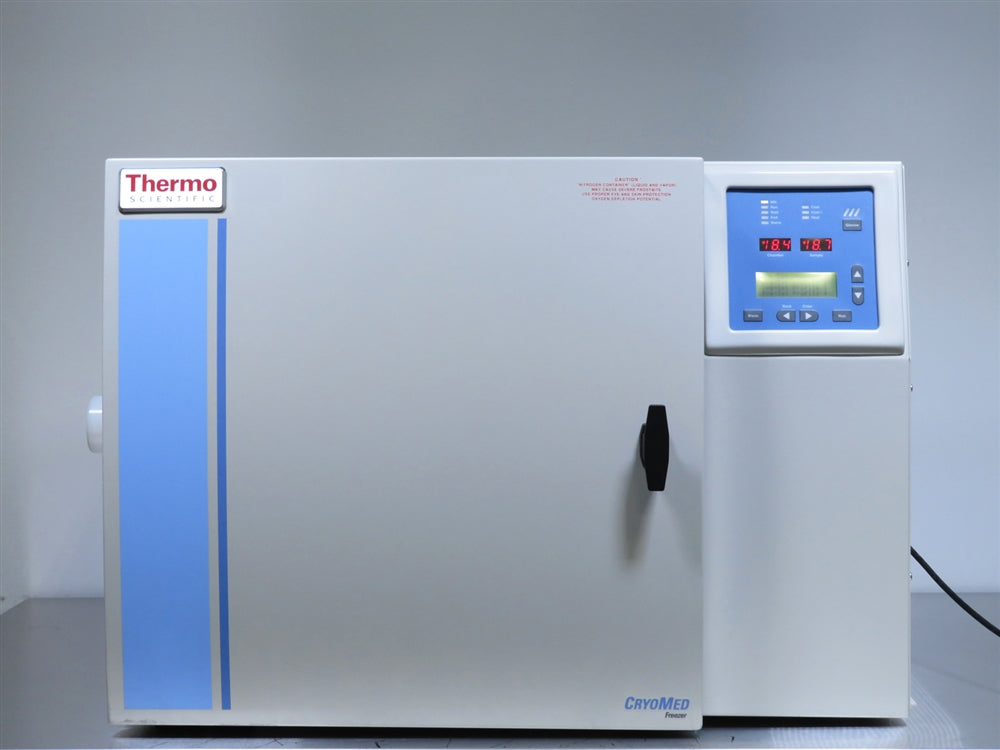

Thermo Scientific Model 7450 CryoMed Controlled Rate Freezer
Temperature Range
-180°C to 50°C
Volume
17L (0.6 cu. ft.)
Exterior Dimensions
31.7 x 21.2 x 20.4 in.
Features
- Wide range from -180°C to 50°C, suitable for various freezing requirements.
- All-In-One Benchtop Unit: combines a freezing chamber, microprocessor controls, and a printer.
- Tailored freezing profiles allows customization of multiple freezing protocols.
- Monitor chamber and sample temperatures, providing real-time responsiveness.
- Alarms for open thermocouple, heater malfunction, and temperature tracking.

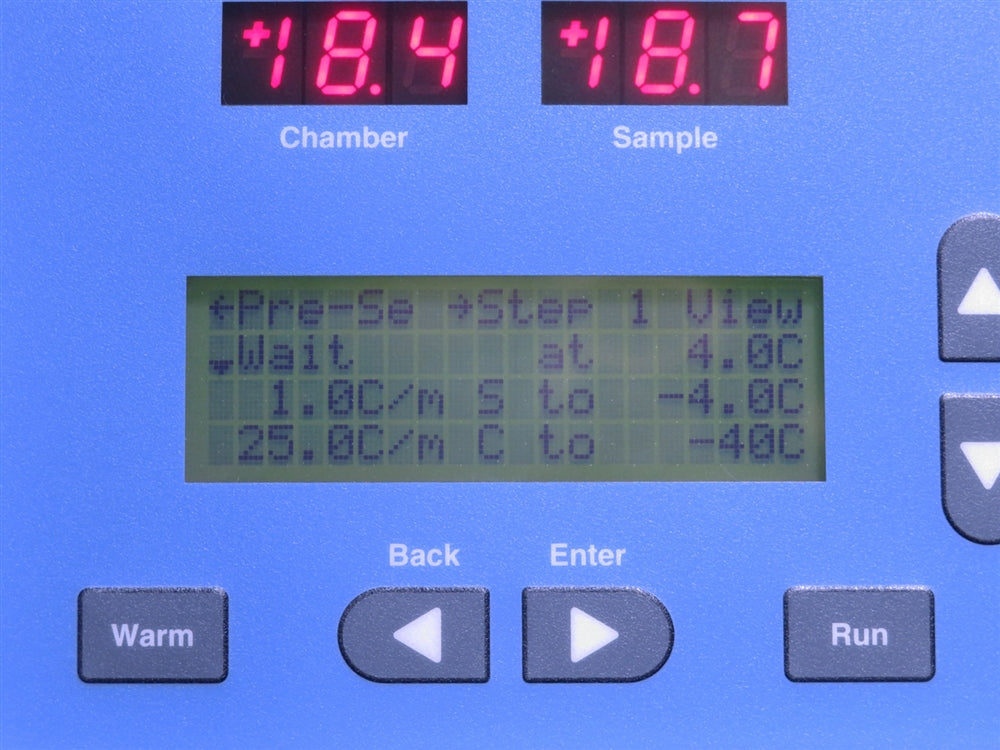

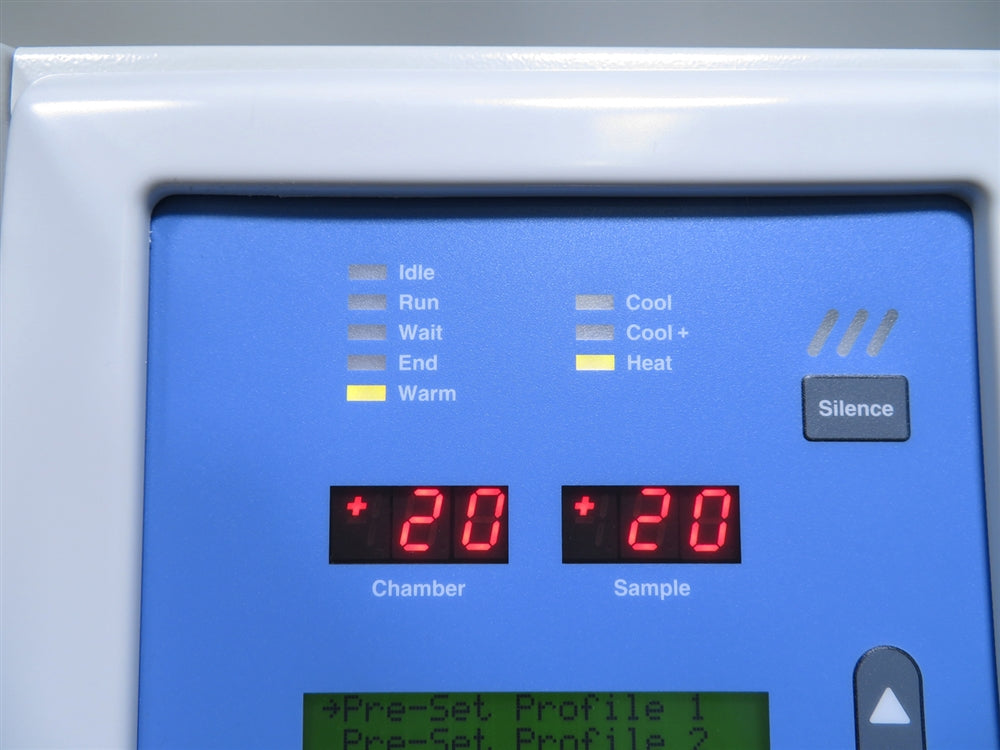

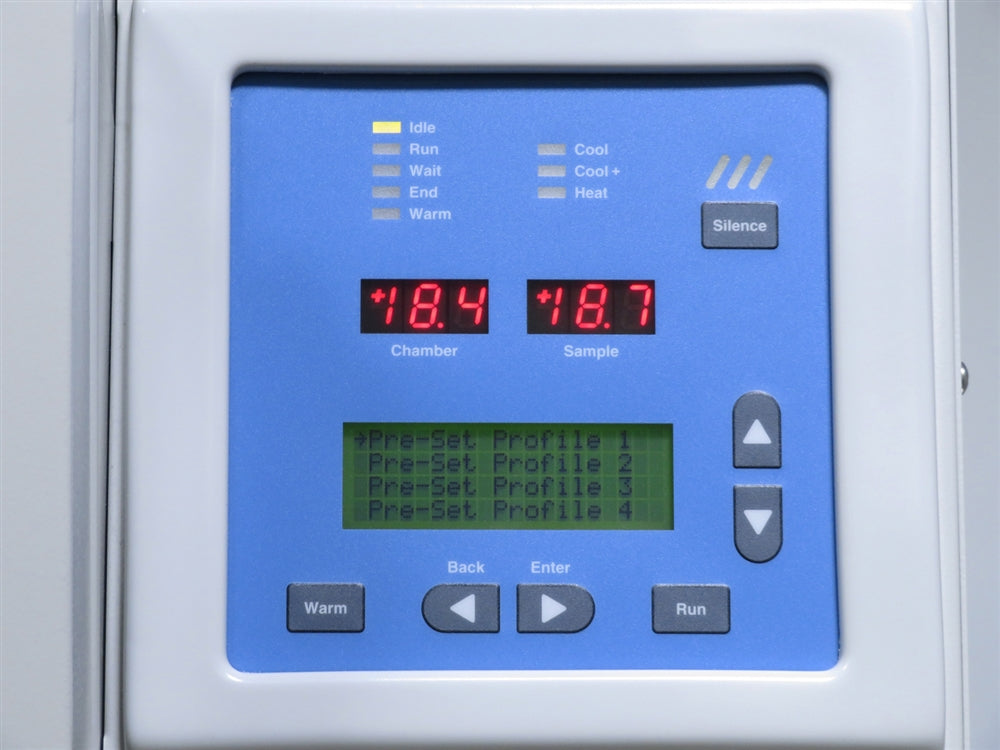

- Three displays monitor temperature, profile status, and allow freeze profile edits.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific Model 7450 CryoMed Controlled Rate Freezer includes:
The Thermo Scientific Model 7450 CryoMed Controlled Rate Freezer includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Model 7450 CryoMed Controlled Rate Freezer Specifications
| Temperature Range | -180°C to 50°C |
| Volume | 17L (0.6 cu. ft.) |
| Application | Sample Preparation |
| Access Type | Front Access |
| Interior Dimensions (W x H x D) | 7 x 12 x 13 in. (17.8 x 30.5 x 33 cm) |
| Exterior Dimensions (W x H x D) | 31.7 x 21.2 x 20.4 in. (80.5 x 53.8 x 51.8 cm) |
| Weight | 140 lb. (63.5 kg) |
| Electrical Requirements | 120V, 60Hz, 12.0A, 1Ph |
Recertification Inspection Protocol
- Inspect the display for pixel clarity and brightness, replacing any dim or dead pixels.
- Test all buttons for responsiveness, resistance, and durability; replace any that don’t meet standards.

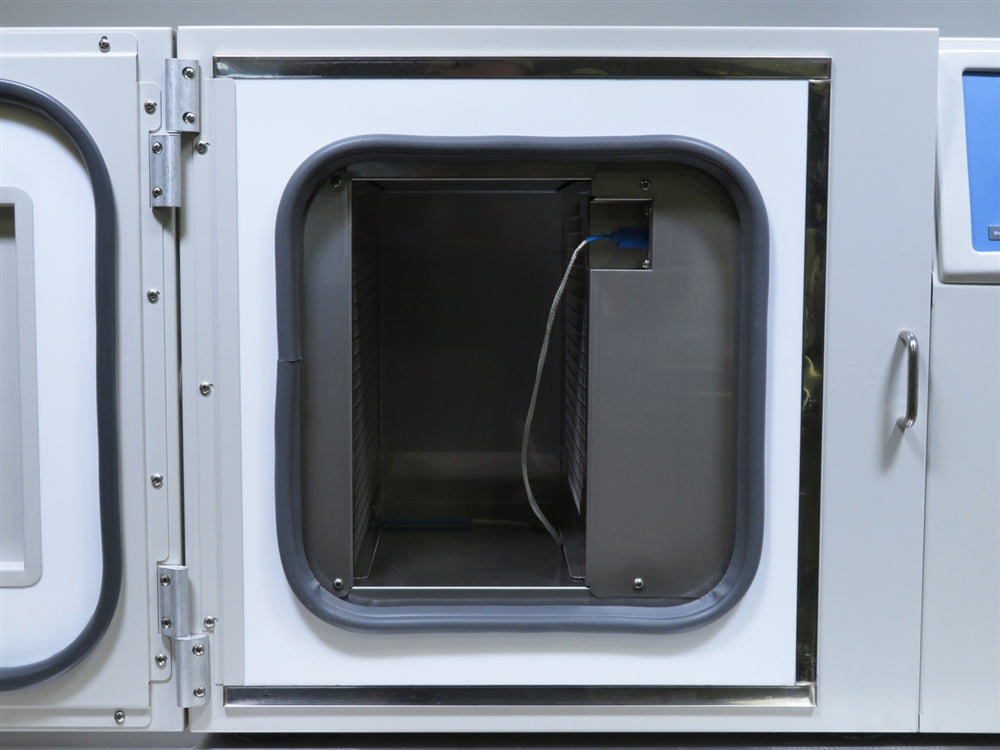

- Check the door seal and lock for airtightness, replacing any compromised components.
- Run diagnostics on PCB test points for voltage and current accuracy, replacing faulty components.

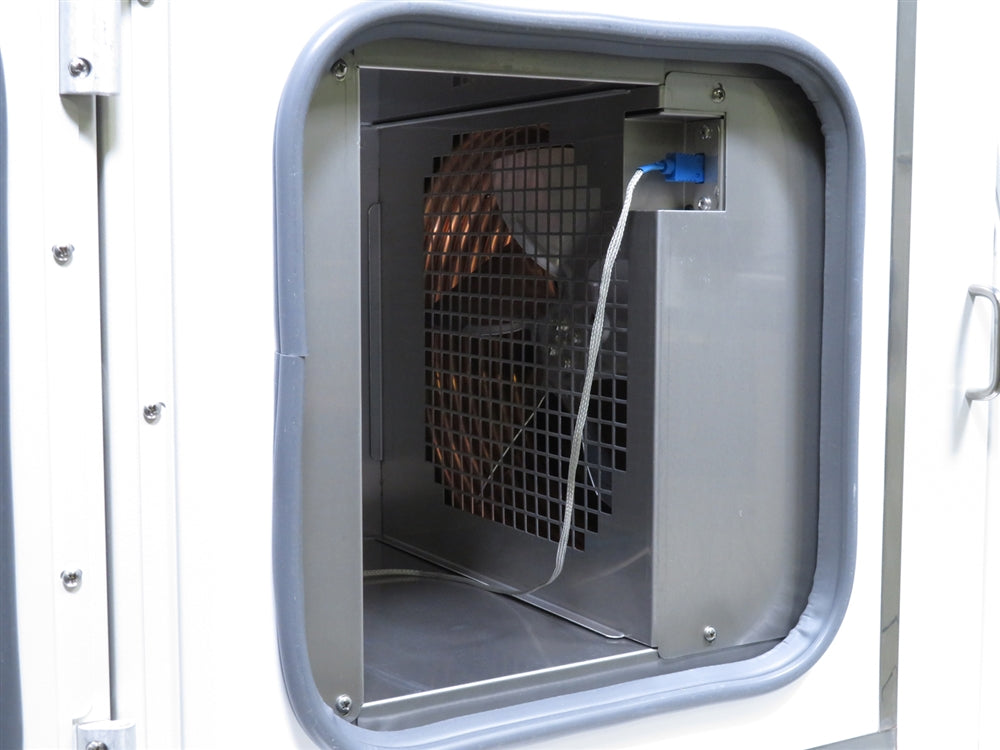

- Verify compressor output and airflow, ensuring all internal fans function properly.
- Cross-check internal temperature probe accuracy with a NIST-traceable probe, recalibrating if needed.
- Inspect wiring for frays or tears, replacing compromised sections as necessary.
- Test the start capacitor's capacitance and replace if it’s outside the specified range.
- Replace all internal filters and thoroughly clean condenser fins for efficient heat dissipation.
- Verify the alarm battery holds a full charge and replace if there is any degradation.
- Operate the unit for 72 hours to confirm stable temperatures and operational consistency.
- Perform a final cosmetic check, repairing or touching up surfaces as needed for a professional appearance.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect display for pixel issues and replace if needed | Completed | |
| Test button functionality and replace any defective buttons | Completed | |
| Examine door seal and lock functionality; replace if compromised | Completed | |
| Conduct PCB test point diagnostics and replace as needed | Completed | |
| Verify compressor and internal fan functionality | Completed | |
| Confirm temperature probe accuracy with NIST-traceable probe | Completed | |
| Inspect all wiring for frays, tears, or breakages | Completed | |
| Test start capacitor capacitance range; replace if needed | Completed | |
| Replace all internal filters and clean condenser fins | Completed | |
| Test alarm battery for full functionality | Completed | |
| Run 72-hour test with data recorder to confirm stable temperatures | Completed | |
| Conduct cosmetic inspection and address any issues | Completed |
