Thermo Scientific Masterflex P/S Peristaltic Pump Model 1400-1320
Speed
3 to 300 RPM
Speed Regulation
± 0.25%
Flow Capacity
0.18 to 1,700 ml/min
- Precise speed control with ±0.25% regulation for consistent flow rates
- Digital LED interface enables intuitive programming and real-time monitoring
- Quick-load pump head design allows fast tubing changes with minimal downtime
- Reversible motor supports bidirectional flow for added flexibility
- Splash-resistant front panel and molded handle for portable, durable operation
- Remote control compatibility via 4–20 mA and 0–10 V inputs
- Compact, stackable housing conserves valuable benchtop space
The Thermo Scientific Masterflex P/S Peristaltic Pump Model 1400-1320 is a versatile digital pump engineered for reliable flow control across a wide range of lab and industrial applications. Its precise speed regulation (±0.25%) and intuitive LED interface allow users to dial in consistent, repeatable flow rates—ideal for processes like chemical feed, filtration, and fluid transfer involving aggressive or high-purity solutions.
Designed for ease of use and maintenance, the 1400-1320 features a splash-resistant front panel, quick-change tubing access, and a molded handle for one-handed portability. The compact, stackable design conserves bench space, while universal voltage input ensures global usability. With a programmable speed range of 3 to 300 RPM, reversible motor, and remote control compatibility, this pump delivers both flexibility and precision in demanding environments.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Thermo Scientific Masterflex P/S Peristaltic Pump Model 1400-1320 includes:
- > Single Channel Pump Head
- > Operator's Manual
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Masterflex P/S Peristaltic Pump Model 1400-1320 Specifications
| Speed | 3 to 300 RPM |
| Flow Capacity | 0.18 to 1,700 ml/min |
| Speed Regulation | ± 0.25% |
| Torque output maximum | 180 oz-in |
| Reversible | Yes |
| Operating Temperature | 0°C to 40°C |

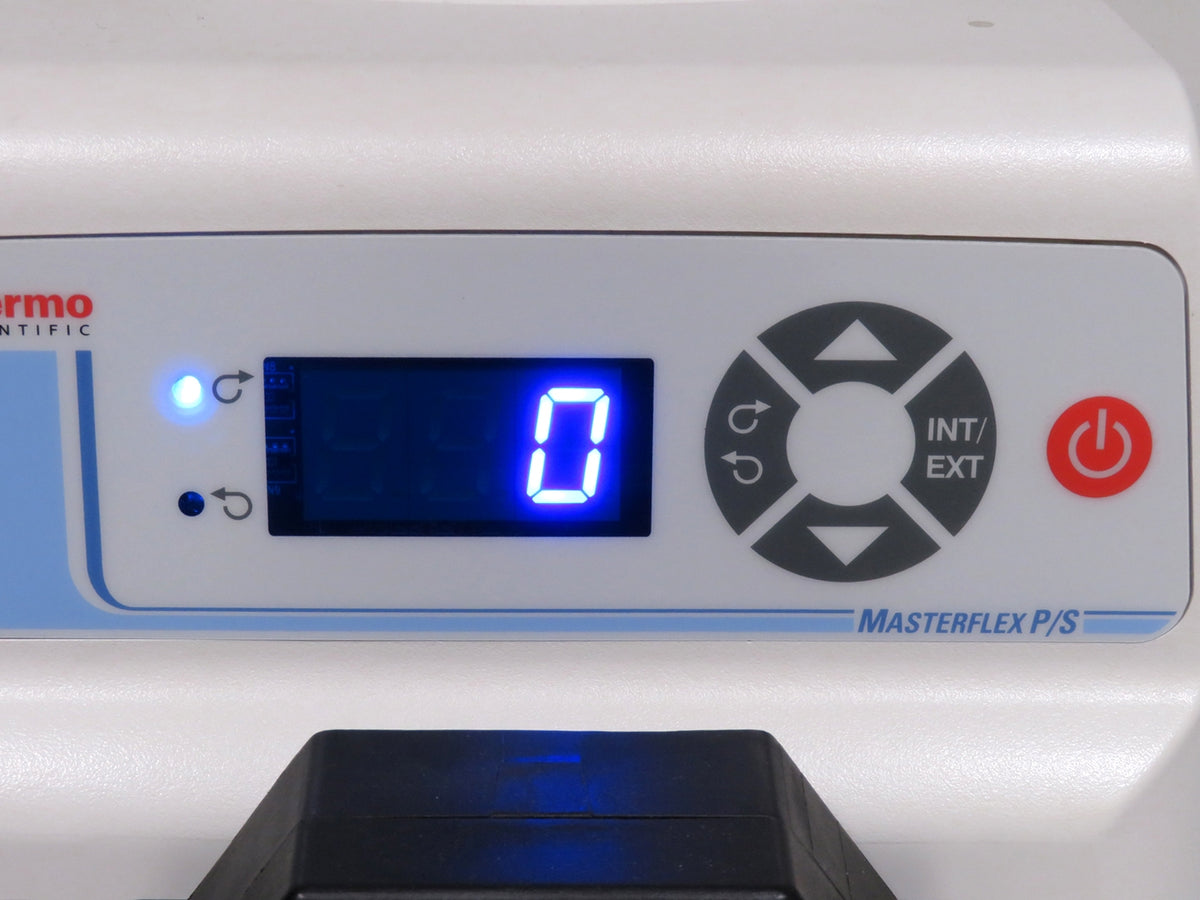

| Display | Seven-segment, 3-digit, Blue LED, 1RPM resolution |
| Electrical Requirements | 115/230V, 50/60Hz, 1.1A |
- Verify power supply and PCB voltage outputs for accuracy and stability
- Inspect display for dim or dead pixels, replacing any compromised segments
- Test full functionality of speed, time, and start/stop buttons
- Confirm proper bidirectional rotation of the pump head
- Examine all internal wiring within the casing for secure and intact connections
- Inspect pump head for any blockages or obstructions that could hinder rotation
- Confirm functionality of the fan, replacing if performance is suboptimal
- Inspect and clean the internal casing to maintain optimal conditions
- Verify RPM of pump head using a NIST-traceable tachometer
- Conduct a cosmetic inspection to ensure all surfaces meet quality standards
Technician Inspection and Recertification Checklist: Peristaltic Pumps
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB voltage outputs for accuracy and stability | Completed | |
| Inspect display for dim or dead pixels; replace any compromised segments | Completed | |
| Test full functionality of speed, time, and start/stop buttons | Completed | |
| Confirm proper bidirectional rotation of the pump head | Completed | |
| Examine all internal wiring for secure and intact connections | Completed | |
| Inspect pump head for blockages or obstructions | Completed | |
| Confirm fan functionality, replacing if performance is suboptimal | Completed | |
| Inspect and clean internal casing to maintain optimal conditions | Completed | |
| Verify RPM of pump head using a NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection to ensure all surfaces meet quality standards | Completed |
