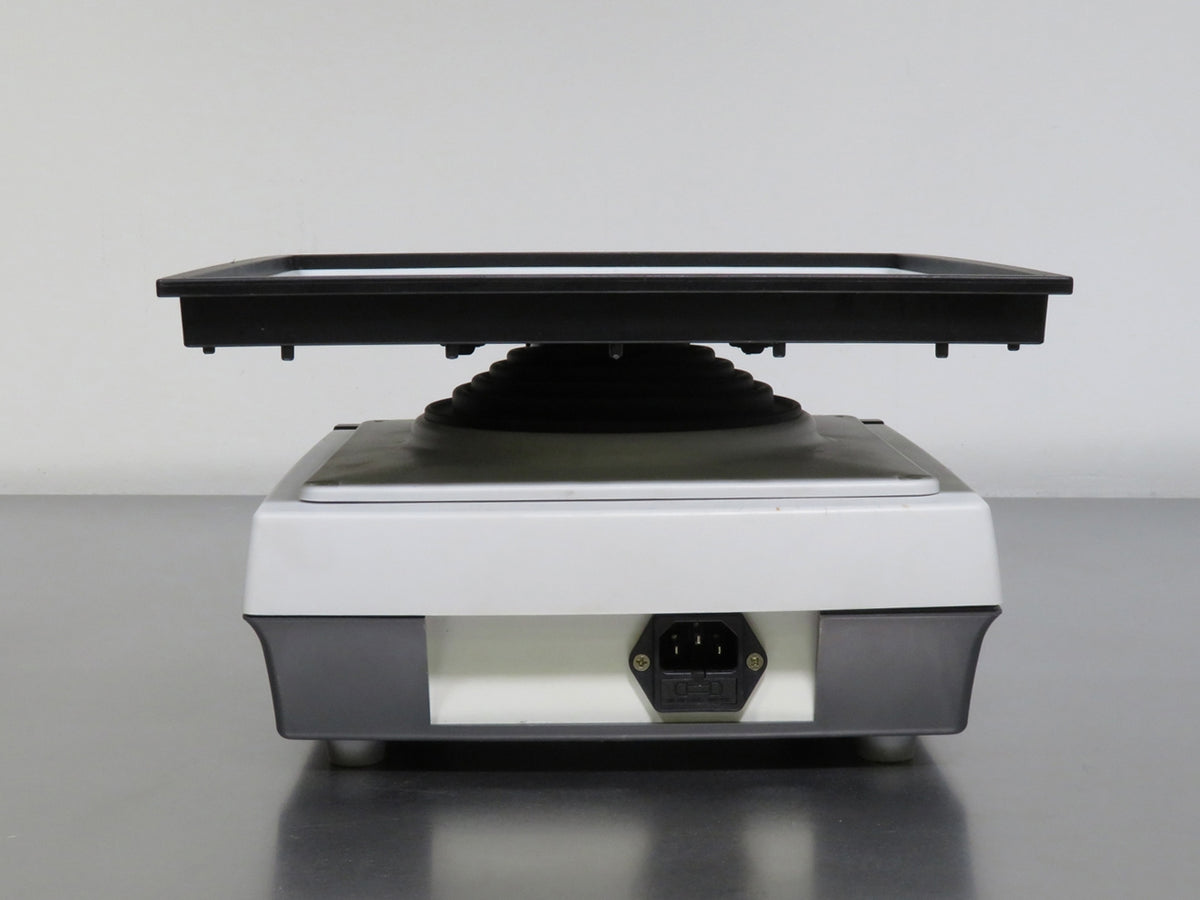

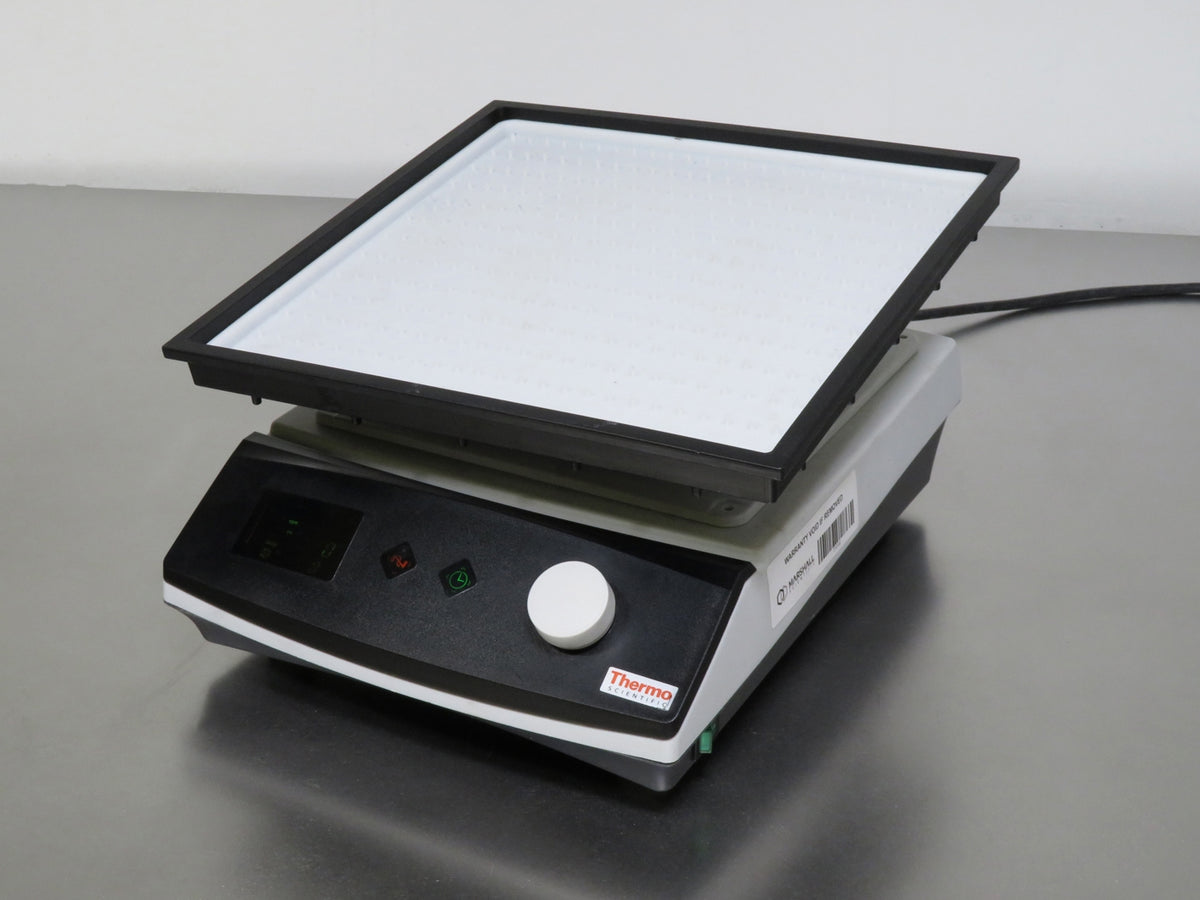

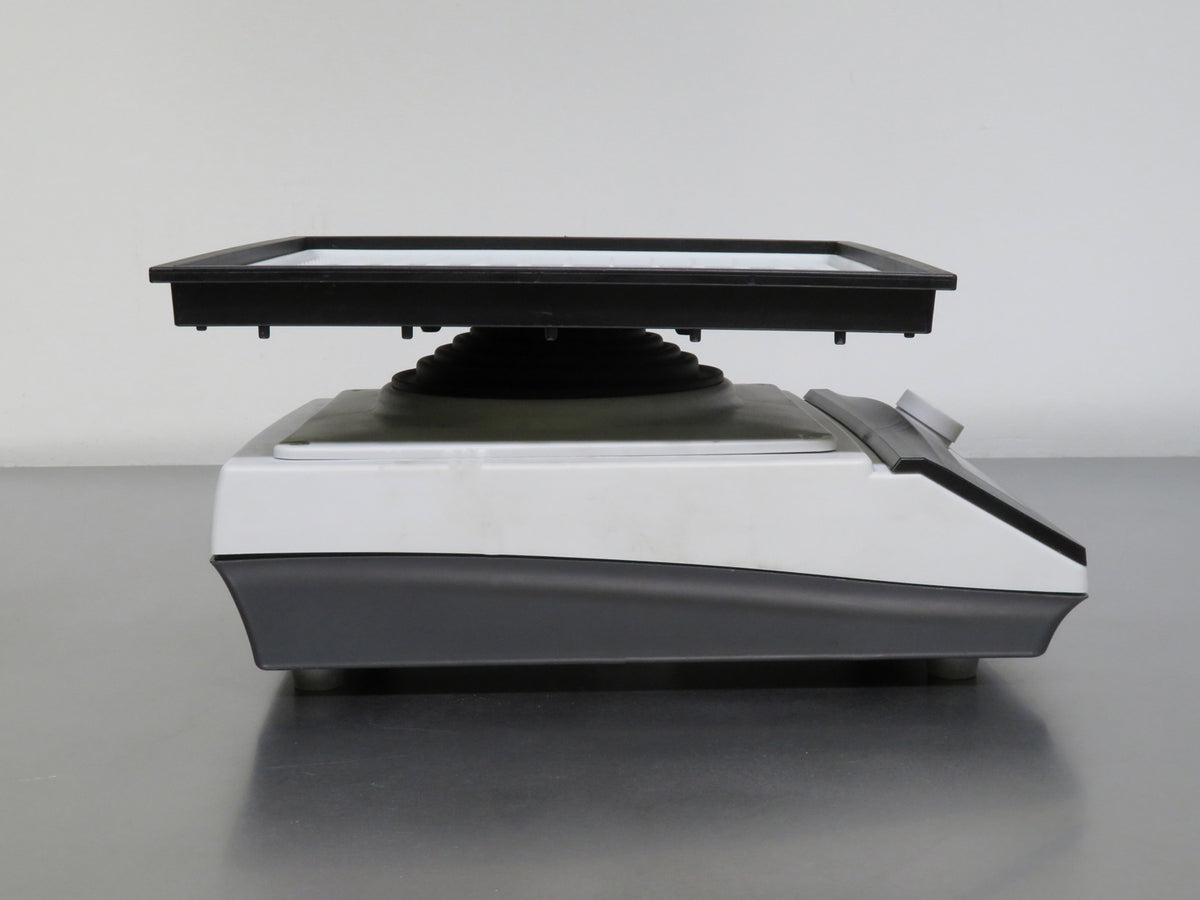

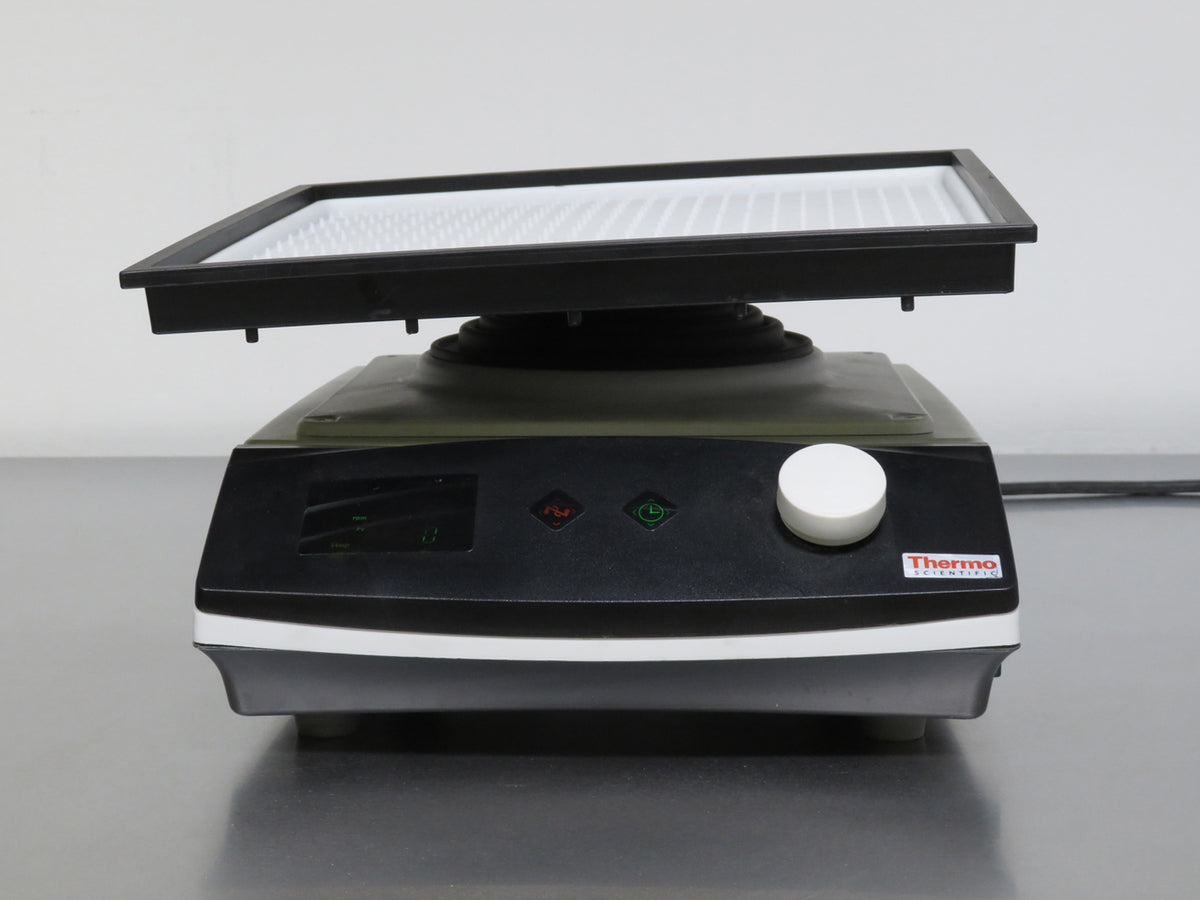

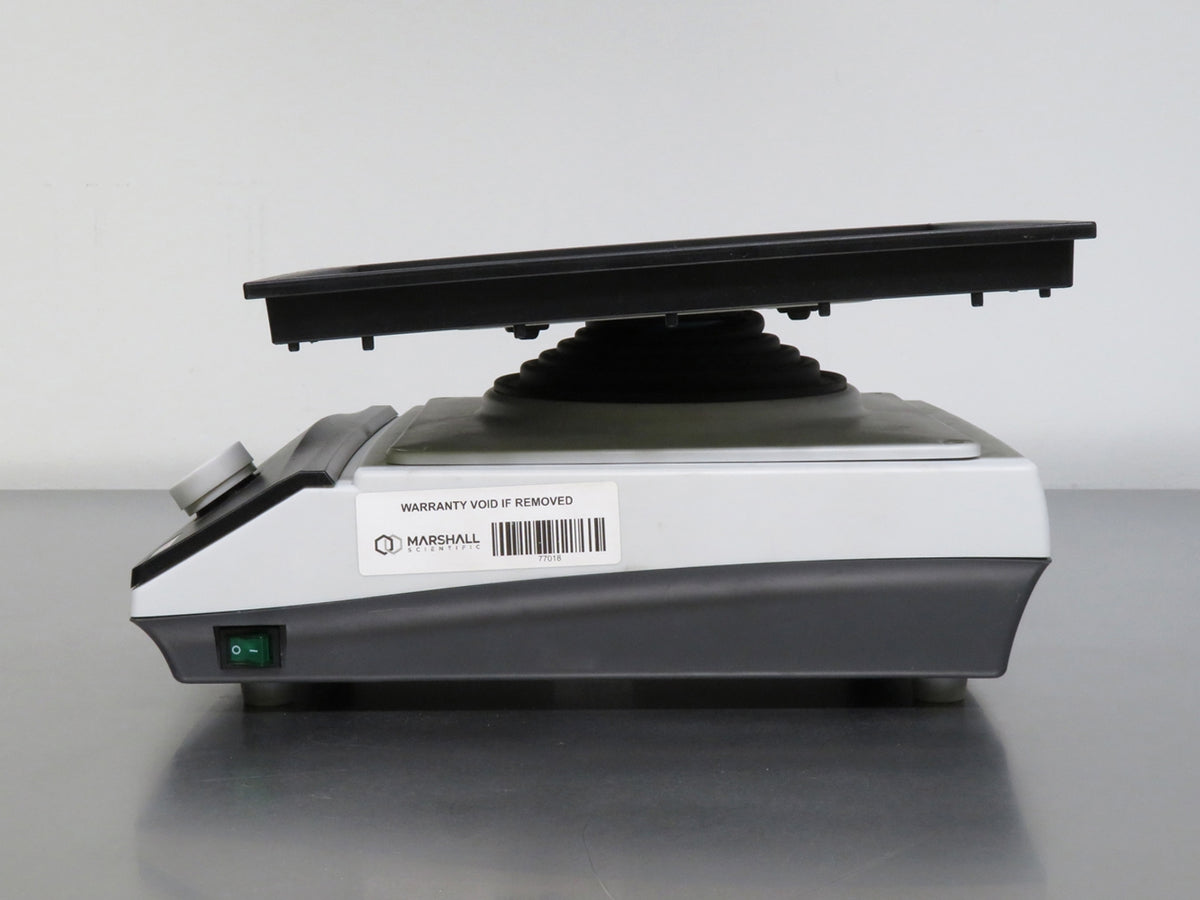

Thermo Scientific Compact Digital Waving Rotator, Cat. #: 88880021
The Thermo Scientific Compact Digital Waving Rotator (Cat. #: 88880021) is a versatile laboratory device engineered for optimal sample mixing efficiency in applications such as ELISA, protein synthesis, staining/de-staining of gels, and antibody staining. It features a speed range of 8 to 100 RPM with a precision of ±5 % RPM. The PID control ensures a consistent and smooth waving motion, crucial for sensitive time-dependent procedures. This rotator's tilt angle is adjustable from 0° to 13°, providing flexibility for various types of sample agitation. When set at 0°, it can also function as a small orbital shaker, adding to its versatility.

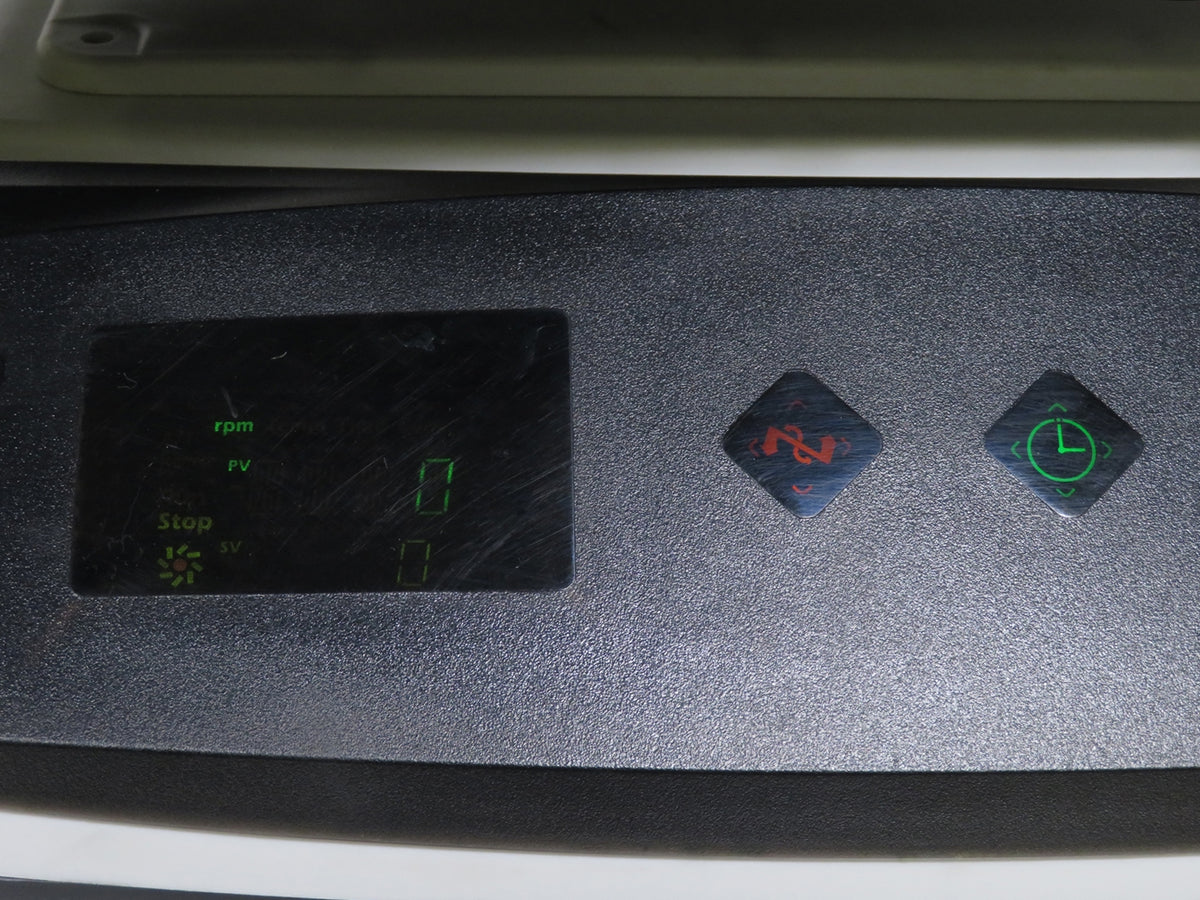

The compact design makes it suitable for use in incubators (non-CO2), chambers, and refrigerators up to 60°C. The platform size is 10.87 x 10.87 inches (27.6 x 27.6 cm), supporting a maximum load of 11.02 lbs (5 kg), which can accommodate up to six well-plates. It features a Vacuum Fluorescent Display (VFD) for clear monitoring and control of settings. The timer can be set to run continuously or from 1 minute to 99 hours and 59 minutes, catering to a variety of experimental durations. The Thermo Scientific Compact Digital Waving Rotator is an efficient and reliable tool for laboratories requiring precise and gentle sample agitation.
INCLUDED:
The Thermo Scientific Compact Digital Waving Rotator, Cat. #: 88880021 includes:
The Thermo Scientific Compact Digital Waving Rotator, Cat. #: 88880021 includes:
- > 10.87" x 10.87" Dimpled Rubber Mat Platform
- > NIST Calibration and Preventative Maintenance Report
- > Power Cord
- > Operator’s Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Compact Digital Waving Rotator, Cat. #: 88880021 Specifications
| Speed Range | 8 to 100 RPM |
| Speed Accuracy | ± 5% RPM |
| Tilt Angle Range | 0° to 13° |
| Timer | 1 min. to 99 hrs. 59 min. or continuous |
| Display |
Vacuum Fluorescent Display (VFD) |
| Maximum Load |
11.02 lb. (5 kg) |
| Platform Size (W x D) |
10.87 x 10.87 in. (27.6 x 27.6 cm) |
| Dimensions (W x D x H) |
10.87 x 12.6 x 5.91 in. (27.6 x 32 x 15 cm) |
| Weight |
8.16 lb. (3.7 kg) |
| Electrical Requirements | 100-240V, 50/60Hz |
Shaker Inspection and Recertification Checklist
- Confirm Power Supply and PCB Are Outputting the Correct Voltages
- Inspect Display and Replace Any Dim/Dead Pixels
- Confirm Button Functionality
- Inspect The Bearings and Bearing Housing for Any Worn/Damaged Bearings and Replace as Needed
- Inspect The Drive Belt for Cracks and Breakdown and Replace as Needed
- Confirm Proper Tension on The Motor Drive Belt
- Ensure Onboard Timer Is Working Properly and Replace as Needed
- Calibrate Shaker Rotation Speed with The Use of a Nist Traceable Tachometer
- Run The Shaker For 8-12 Hours to Ensure the Shaking Platform Is Moving Smoothly and Producing Error Indicators Such as Knocking, Skipping Etc.
- Ensure Cosmetics Are Acceptable
Click Here to View the Technical Specs for the Thermo Scientific Compact Digital Waving Rotator, Cat. #: 88880021
