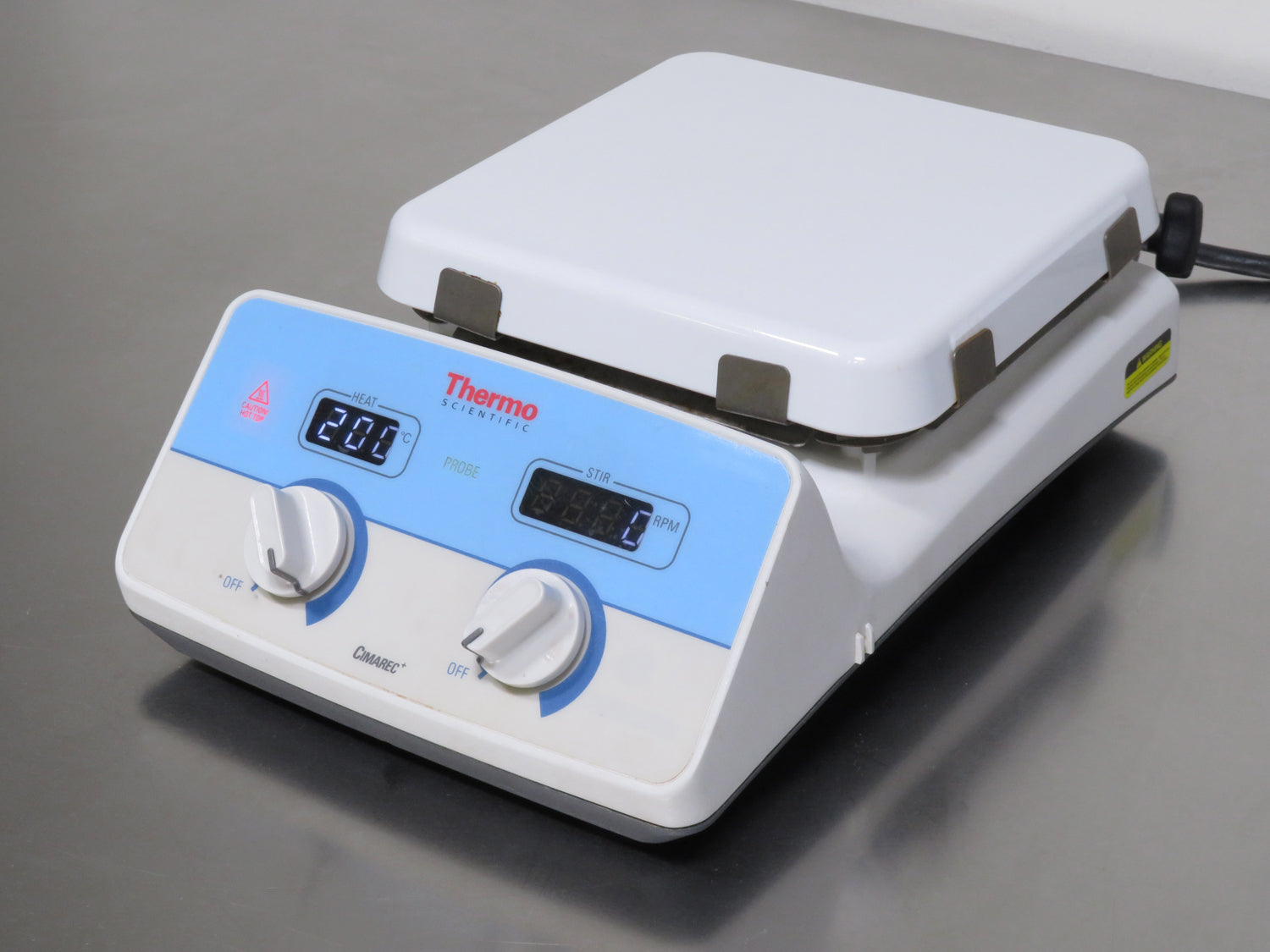

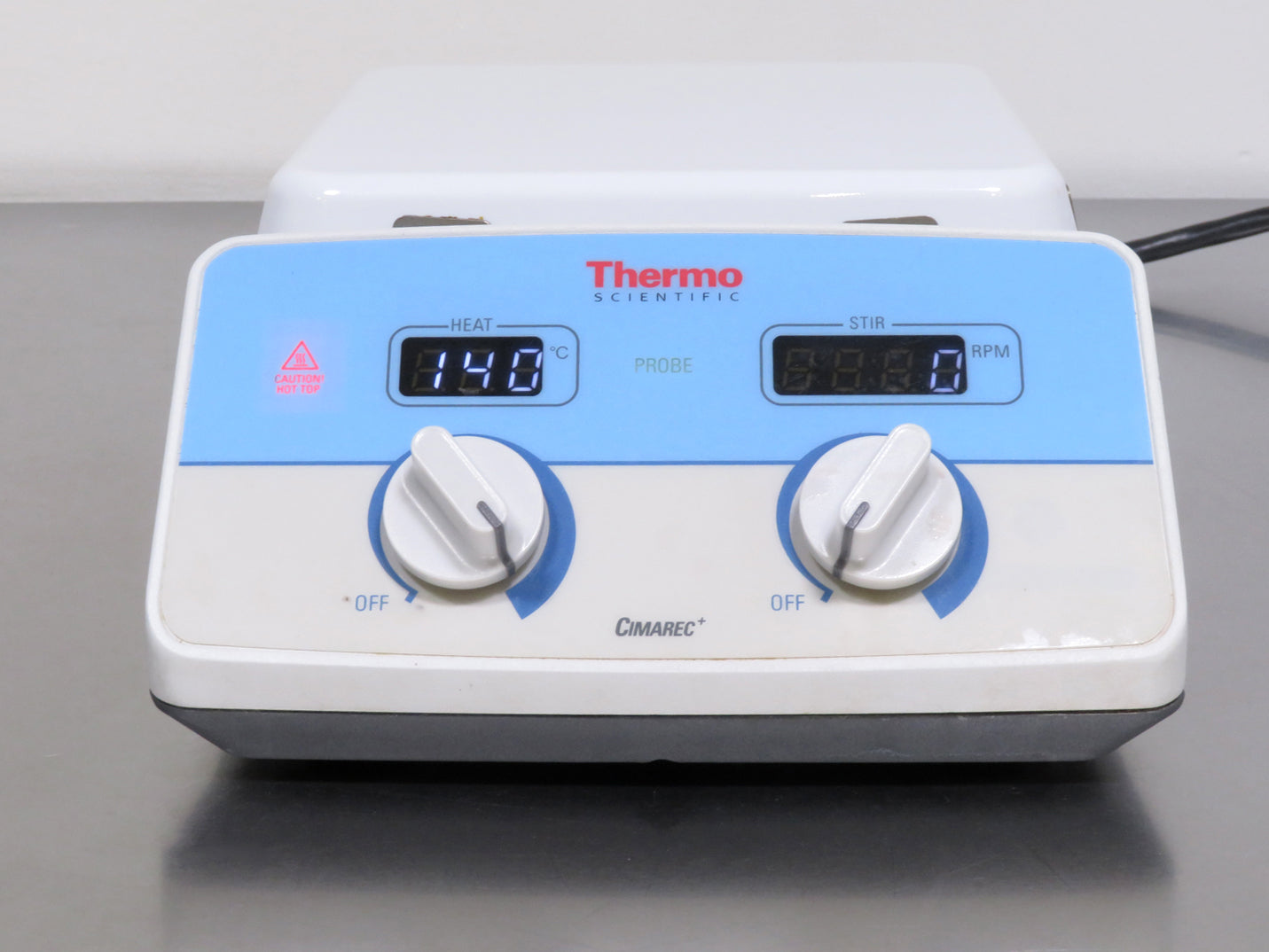

Thermo Scientific Cimarec Plus SP88857100 Hot Plate Stirrer
Maximum Temperature
540°C
Stirrer Speed
50 to 1,500 RPM
Platform Size
7 x 7 in (17.7 x 17.7 cm)
Features
- Advanced stirring system ensures consistent speed control and strong magnetic coupling
- Ceramic top plate provides excellent chemical resistance and durability
- Temperature adjustable in 1 degree increments for precise control

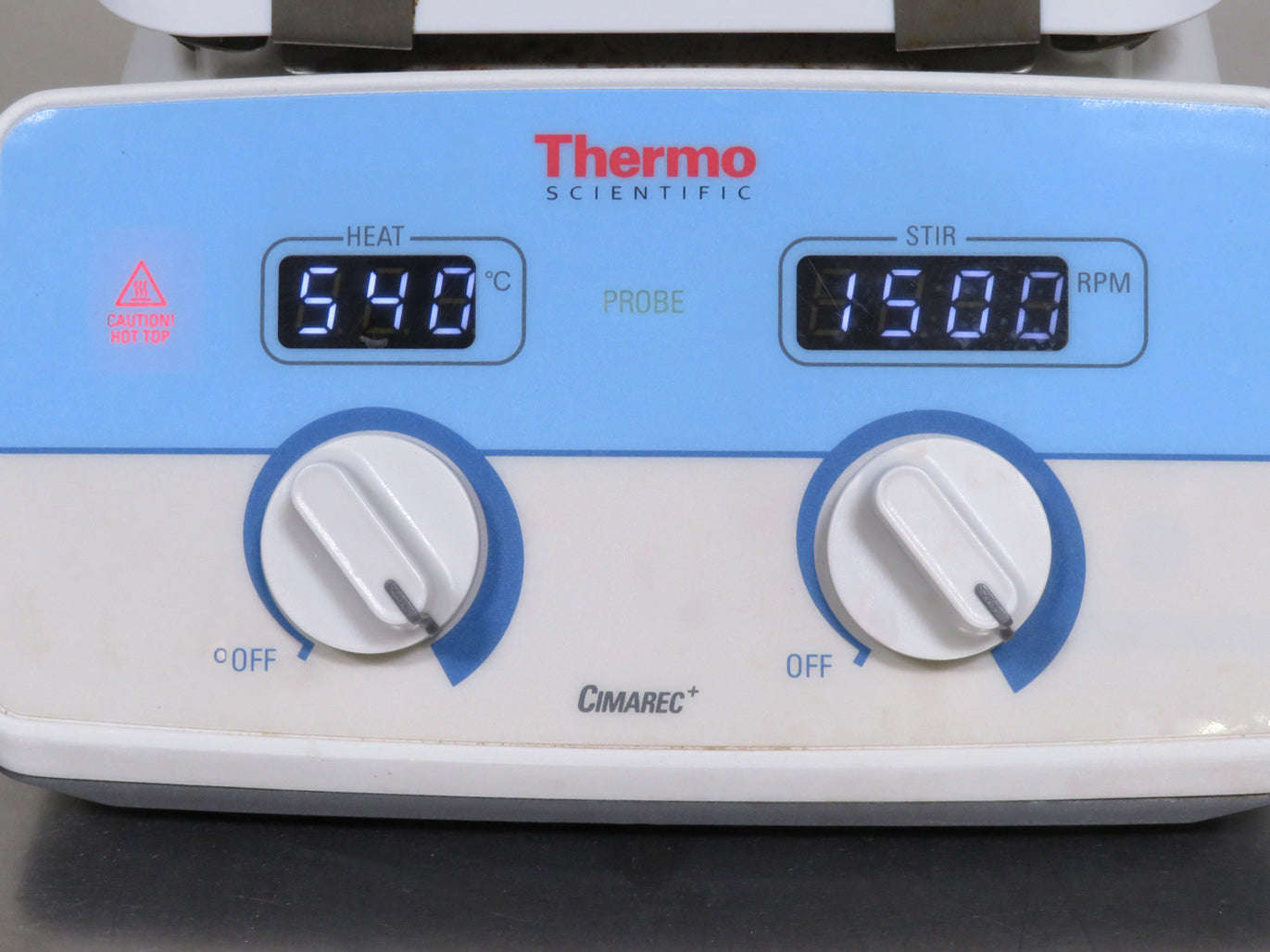

- Easy-to-read LED display shows heating and stirring parameters
- Raised control panel design helps protect electronics from spills
- HOT TOP warning system alerts users when surface is hot
- Compact, stable design supports reliable benchtop operation
- Suitable for a wide range of routine laboratory heating and stirring applications
An easy-to-read LED display clearly shows both heating and stirring parameters, while the raised control panel design helps protect internal electronics from spills. For added safety, the integrated HOT TOP warning system alerts users when the surface temperature exceeds 50C, reducing the risk of accidental contact. With a compact footprint and stable construction, the Thermo Scientific Cimarec Plus SP88857100 Hot Plate Stirrer provides dependable performance, user-friendly operation, and enhanced safety for everyday laboratory use.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Thermo Scientific Cimarec Plus SP88857100 Hot Plate Stirrer includes:
The Thermo Scientific Cimarec Plus SP88857100 Hot Plate Stirrer includes:
- > Power Cord
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
Thermo Scientific Cimarec Plus SP88857100 Hot Plate Stirrer Specifications
| Maximum Temperature | 540°C |
| Stirrer Speed | 50 to 1,500 RPM |
| Max. Stirring Volume | 4L |
| Platform Size | 7 x 7 in (17.7 x 17.7 cm) |
| Plate Material | Ceramic |
| Weight | 9.0 lb. (4.1 kg) |
| Dimensions (W x D x H) | 8.2 x 14.2 x 4.1 in. (20.8 x 36 x 10.5 cm) |
| Electrical Requirements | 100-120V, 50/60Hz, 13A |
Hot Plate Stirrers Inspection and Recertification Checklist
- Inspect Display and Replace Any Dim/Dead Pixels (If Applicable).
- Inspect Ceramic Top for Any Cracks and Replace If Necessary.
- Inspect Functionality of All Buttons/Knobs.
- Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable).
- Inspect Internal Wiring Inside Case.
- Clean Internal Parts and Vent Any Internal Debris.
- Check Feet to Confirm Plate Sits Properly Balanced.
- Replace All Parts That Were Removed on Internal Inspections.
- Confirm Temperature with NIST Traceable Temperature Probe (If Applicable).
- Ensure Cosmetics Are Acceptable.
Technician Inspection and Recertification Checklist: Hot Plate Stirrers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect Display and Replace Any Dim/Dead Pixels (If Applicable) | Completed | |
| Inspect Ceramic Top for Any Cracks and Replace If Necessary | Completed | |
| Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable) | Completed | |
| Inspect Internal Wiring Inside Case | Completed | |
| Clean Internal Parts and Vent Any Internal Debris | Completed | |
| Check Feet to Confirm Plate Sits Properly Balanced | Completed | |
| Replace All Parts That Were Removed on Internal Inspections | Completed | |
| Confirm Temperature with NIST Traceable Temperature Probe (If Applicable) | Completed |
102 Tide Mill Road, Hampton NH 03842
customerservice@marshallscientific.com | (603) 601-8511 |
www.marshallscientific.com
Copyright © 2024 by Marshall Scientific LLC. All rights reserved.
Downloads
Click Here to View the Technical Specs for the Thermo Scientific Cimarec Plus SP88857100 Hot Plate Stirrer
