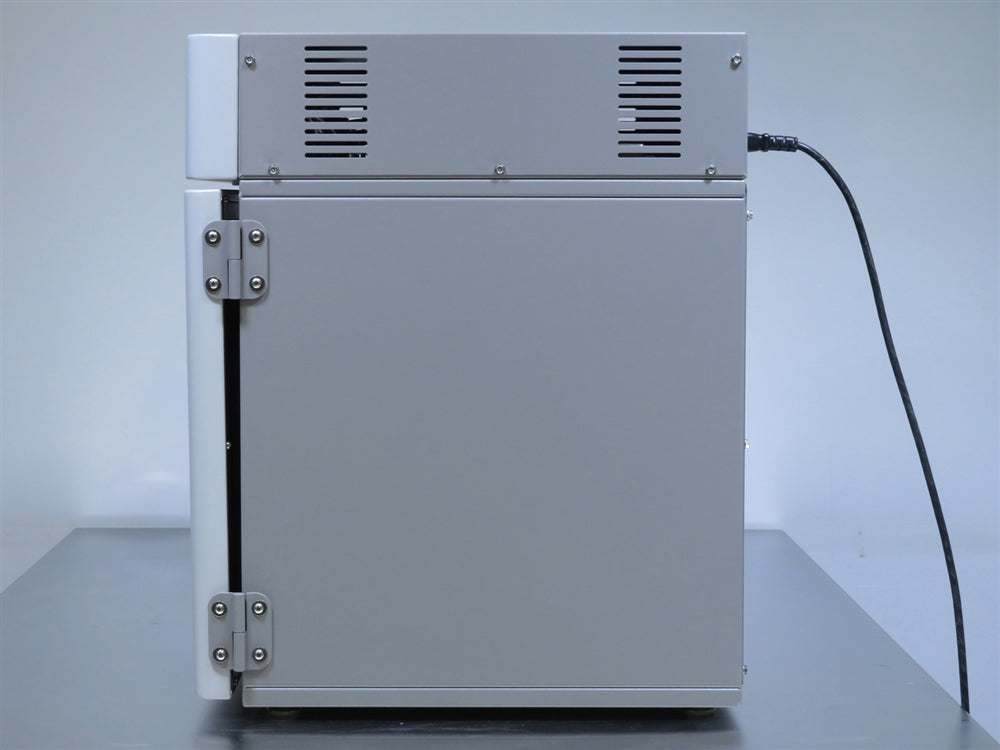

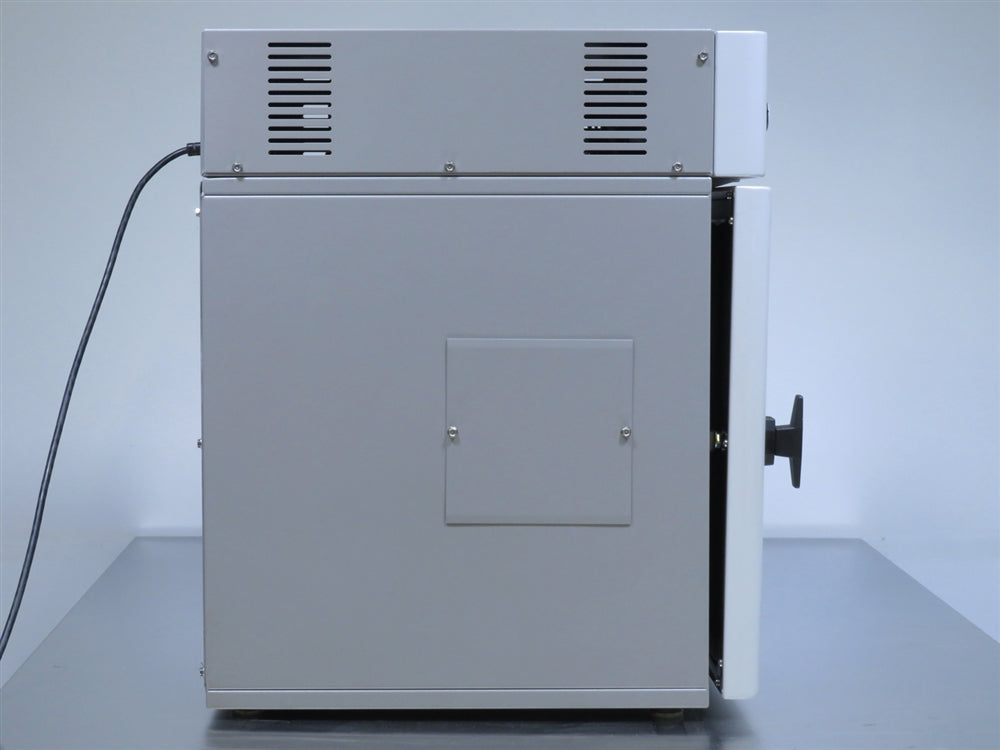

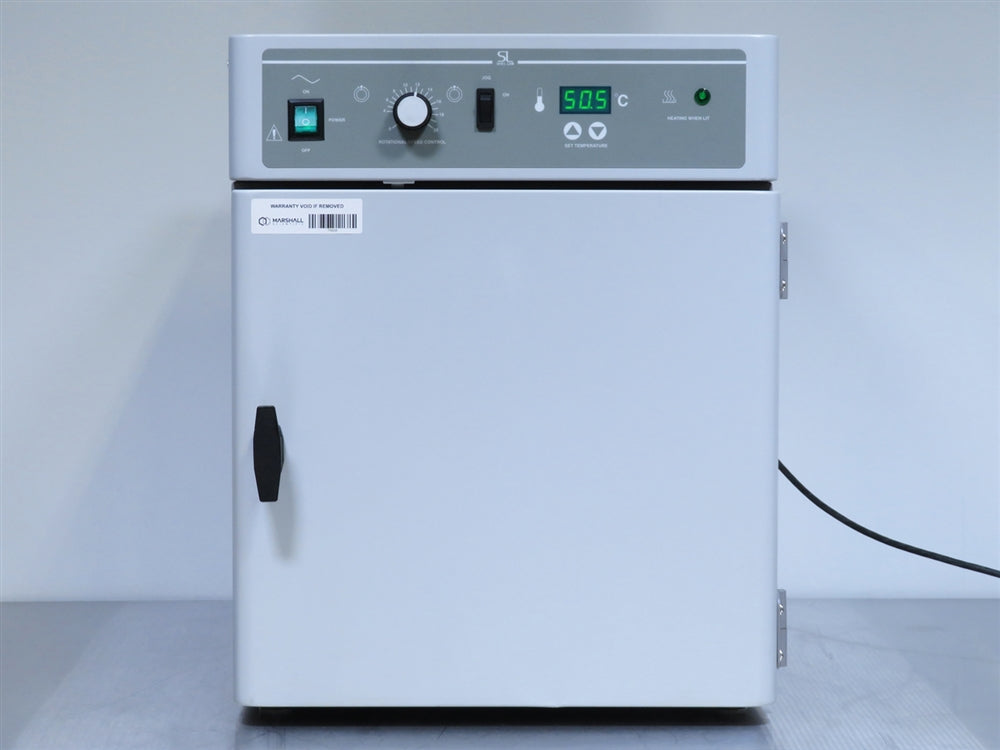

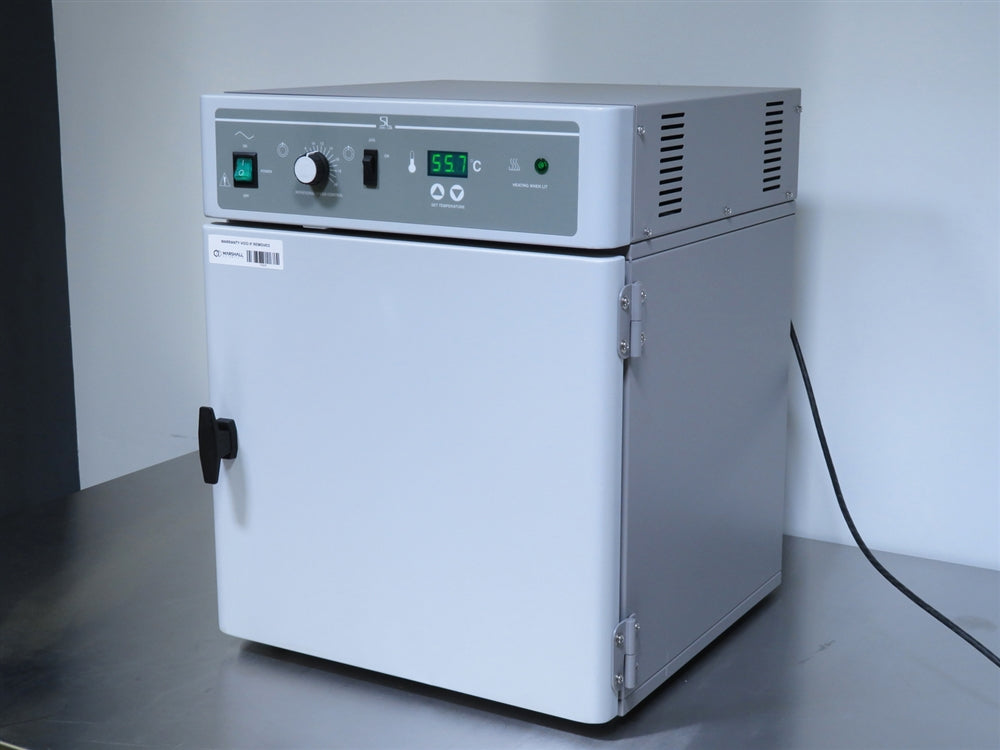

Shel Lab G2545A Hybridization Oven
Temperature Range
Ambient +5°C to 70°C
Maximum Capacity
24 x Hybridization Chambers
Temperature Uniformity
± 6% of set point
Features
- Designed for molecular biology workflows including DNA, RNA, and protein hybridization
- Fan-assisted airflow ensures consistent circulation throughout the chamber
- Digital microprocessor controller provides fast heat-up and precise user control
- Over-temperature safety control and thermal cutoff enhance operational safety
- Jogging switch enables incremental carousel rotation for easier sample access
- Durable stainless-steel chamber built for long-term, high-use laboratory environments
- Compact footprint with 1.5 cu. ft. internal volume for efficient space utilization

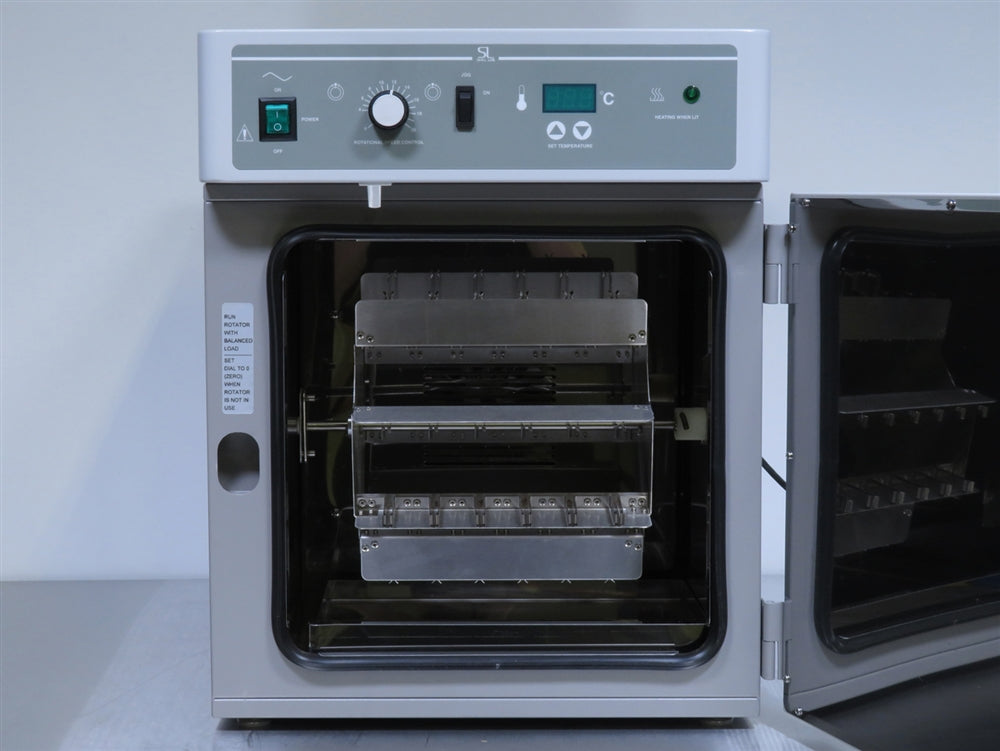

The Shel Lab G2545A Hybridization Oven is a stainless-steel oven designed for microarray hybridization in applications such as molecular biology assays, southern (DNA) hybridization, northern (RNA) hybridization, and western blotting. This hybridization oven's unique fan assisted airflow system circulates air evenly and continuously, delivering excellent temperature uniformity throughout the oven chamber with a range from Ambient +5°C to 70°C. This system ensures fast recovery of chamber temperature after a door opening.

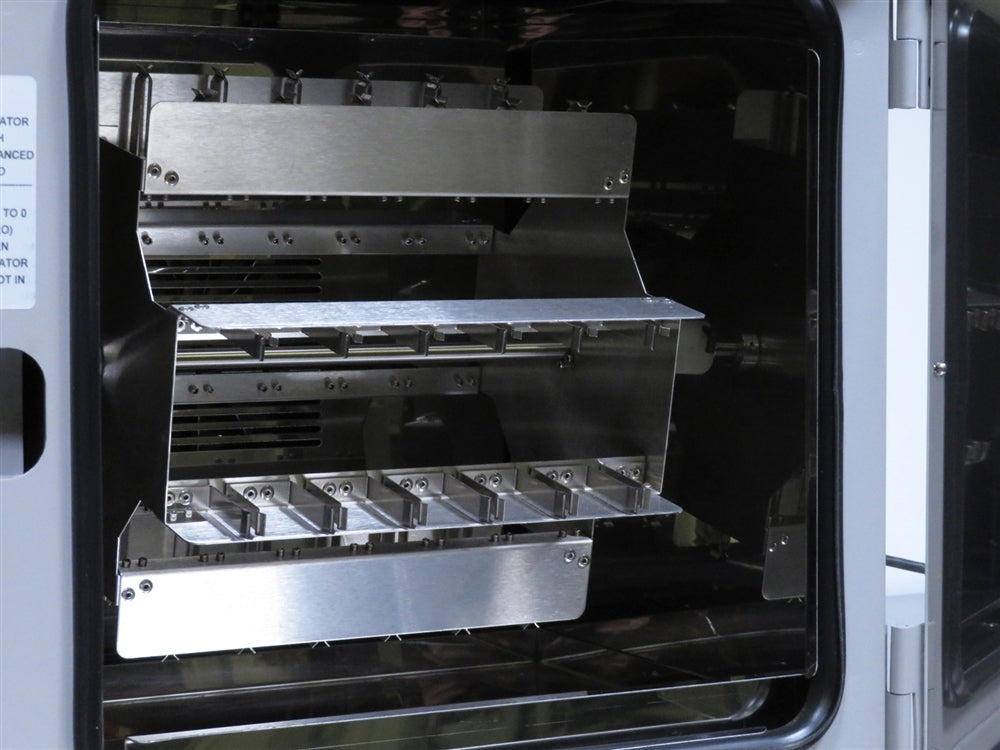

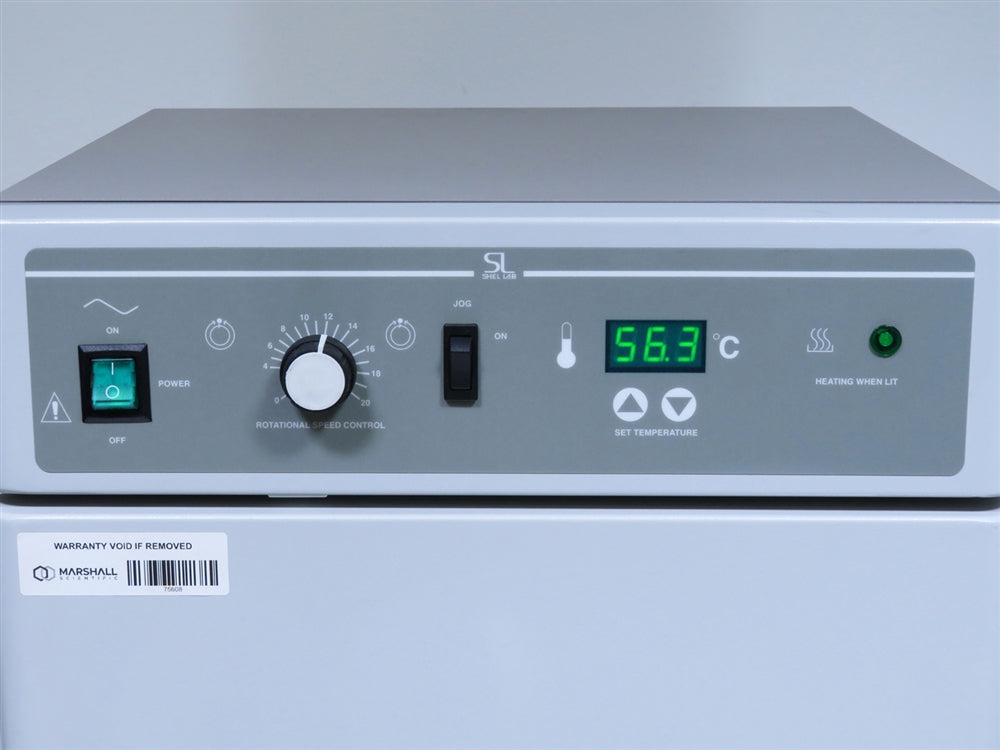

The digital set/digital read microprocessor temperature controller maximizes rapid heat-up of the oven. An over temperature safety control is automatically set by the microprocessor at 1.0°C above the setpoint. In the unlikely event of a microprocessor failure, a thermal cutoff will shut off the power to the heating elements. The 2 to 20 RPM rotation speed range permits hybridization and washing at different speeds at the touch of a dial. A separate jogging switch has been included to allow incremental rotation of the carousel for easy loading and unloading.
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Shel Lab G2545A Hybridization Oven includes:
The Shel Lab G2545A Hybridization Oven includes:
- > 24 Place Hybridization Chamber Carousel
- > Operator's Manual
- > Power Cord
- > Full 180 Day Parts and Labor Warranty
Shel Lab G2545A Hybridization Oven Specifications
| Temperature Range | Ambient +5°C to 70°C |
| Temperature Uniformity | ± 6% of set point |
| Temperature Stability | ± 0.1°C at 150°C |
| Speed Range | 2 to 20 RPM |
| Maximum Capacity | 24 x Hybridization Chambers |
| Volume | 1.5 cu. ft. (41.3L) |
| Chamber Dimensions (W x D x H) | 14.5 x 12 x 10 in. (34.3 x 23.5 x 25.4 cm) |
| Overall Dimensions (W x D x H) | 18.5 x 20.5 x 21.8 in. (47 x 52.1 x 55.3 cm) |
| Weight | 75 lb. (34 kg) |
| Electrical Requirements | 100-120V, 50/60Hz, 5A |
Oven Inspection and Recertification Checklist
- Verify power supply and PCB outputs are within specified voltage ranges
- Inspect display for any dim or dead pixels, replacing as needed to ensure visibility
- Confirm full functionality and responsiveness of all control buttons
- Examine all internal wiring for frays, cuts, or damage, ensuring secure and reliable connections
- Inspect door seals and gaskets for integrity, replacing any compromised components
- Evaluate door handle and locking mechanism for wear or issues, replacing if performance is impaired
- Inspect and clean internal fan; replace if performance does not meet requirements
- Calibrate set temperature using a NIST-traceable probe for precise accuracy
- Confirm functionality of over-temperature alarm and indicator light
- Verify internal outlet functionality, if applicable, to ensure it meets operational standards
- Inspect internal lighting for full functionality and brightness, if applicable
- Perform a cosmetic inspection to confirm the oven’s exterior and interior meet quality standards
Technician Inspection and Recertification Checklist: Ovens
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB outputs are within specified voltage ranges | Completed | |
| Inspect display for dim or dead pixels; replace if needed | Completed | |
| Confirm full functionality of all control buttons | Completed | |
| Examine internal wiring for damage; ensure secure connections | Completed | |
| Inspect door seals and gaskets, replacing any compromised components | Completed | |
| Evaluate door handle and locking mechanism, replacing if worn | Completed | |
| Inspect and clean internal fan; replace if performance is insufficient | Completed | |
| Calibrate set temperature using a NIST-traceable probe | Completed | |
| Confirm over-temperature alarm and indicator light functionality | Completed | |
| Verify internal outlet functionality, if applicable | Completed | |
| Inspect internal lighting for full functionality and brightness | Completed | |
| Perform cosmetic inspection to confirm quality standards of exterior and interior | Completed |
