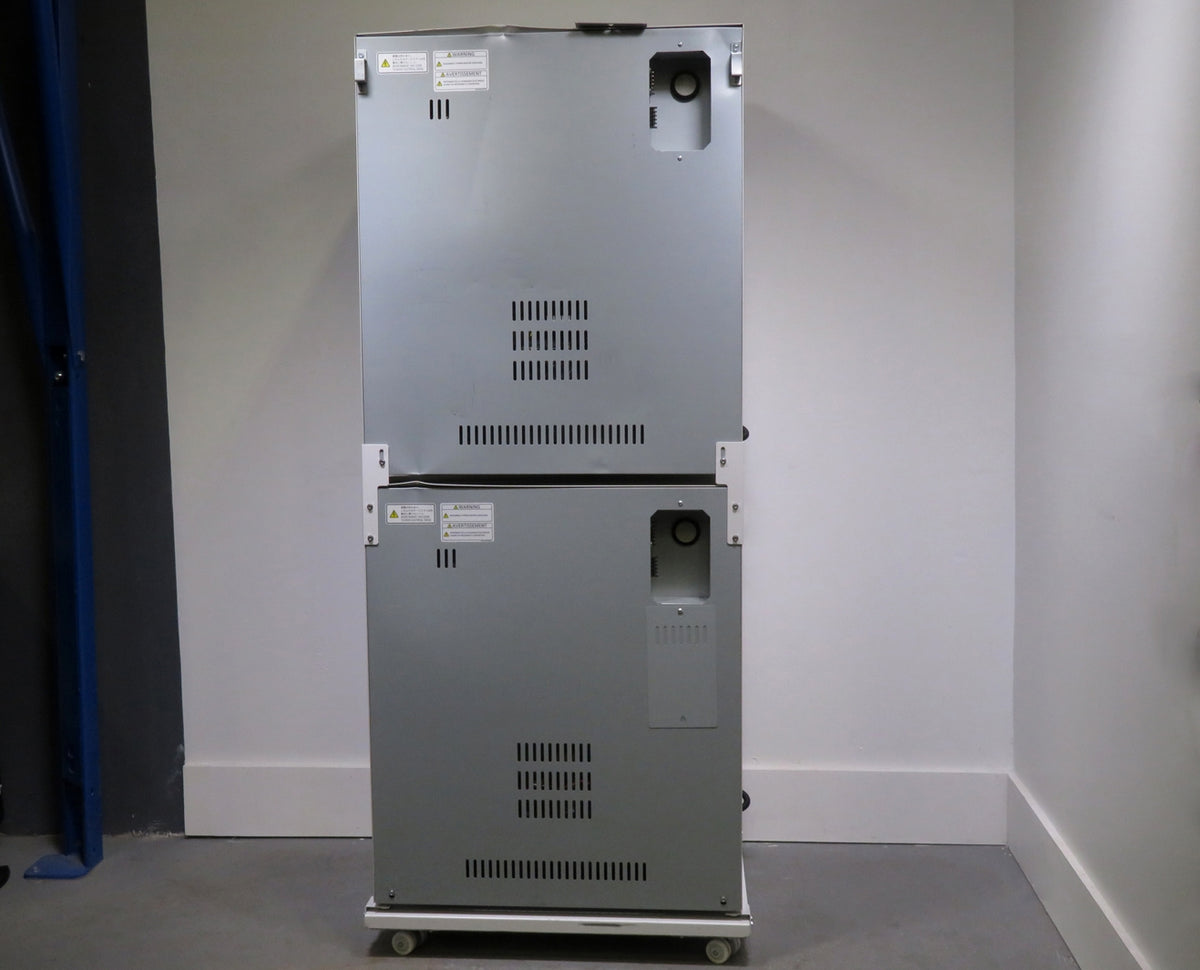

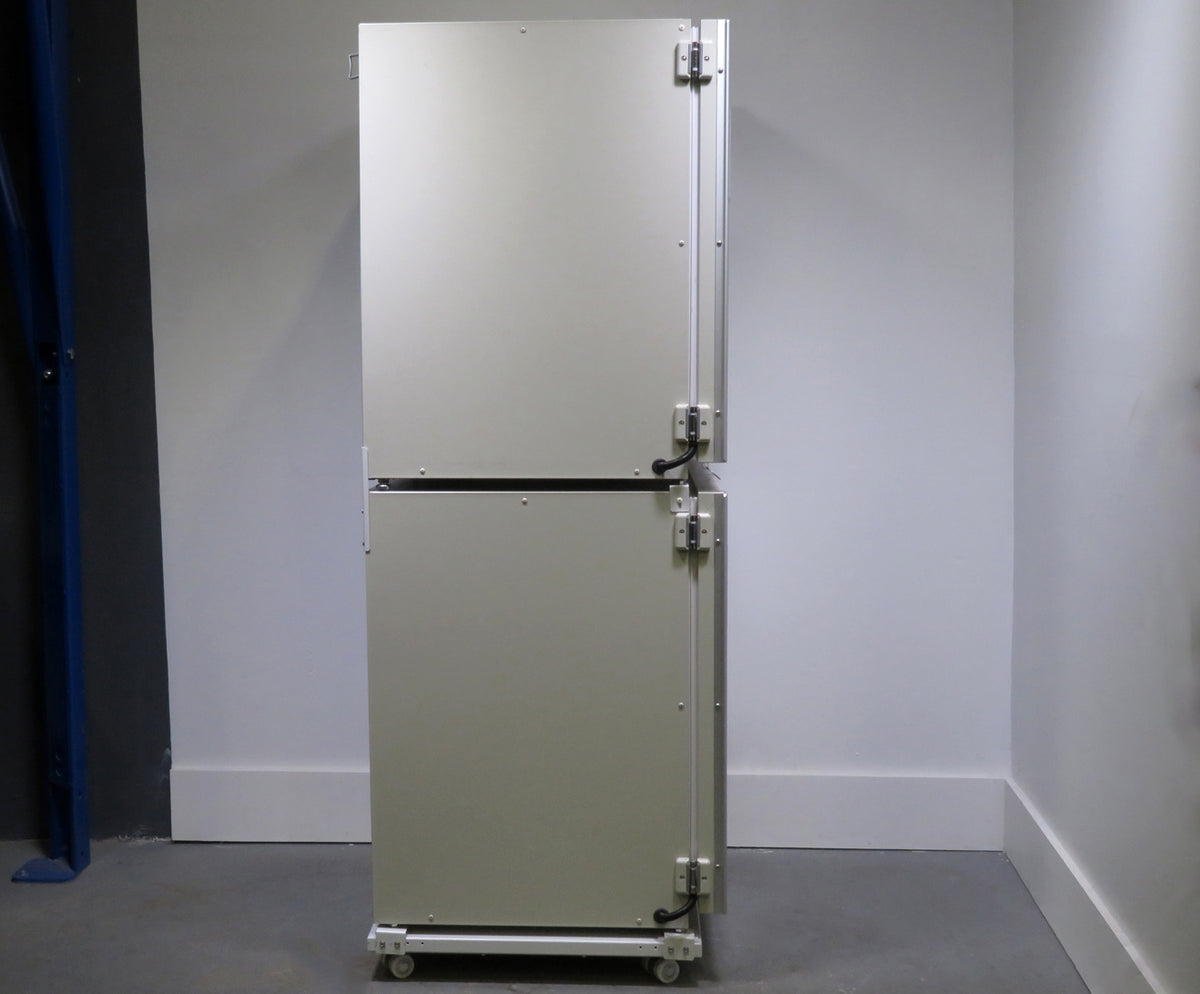

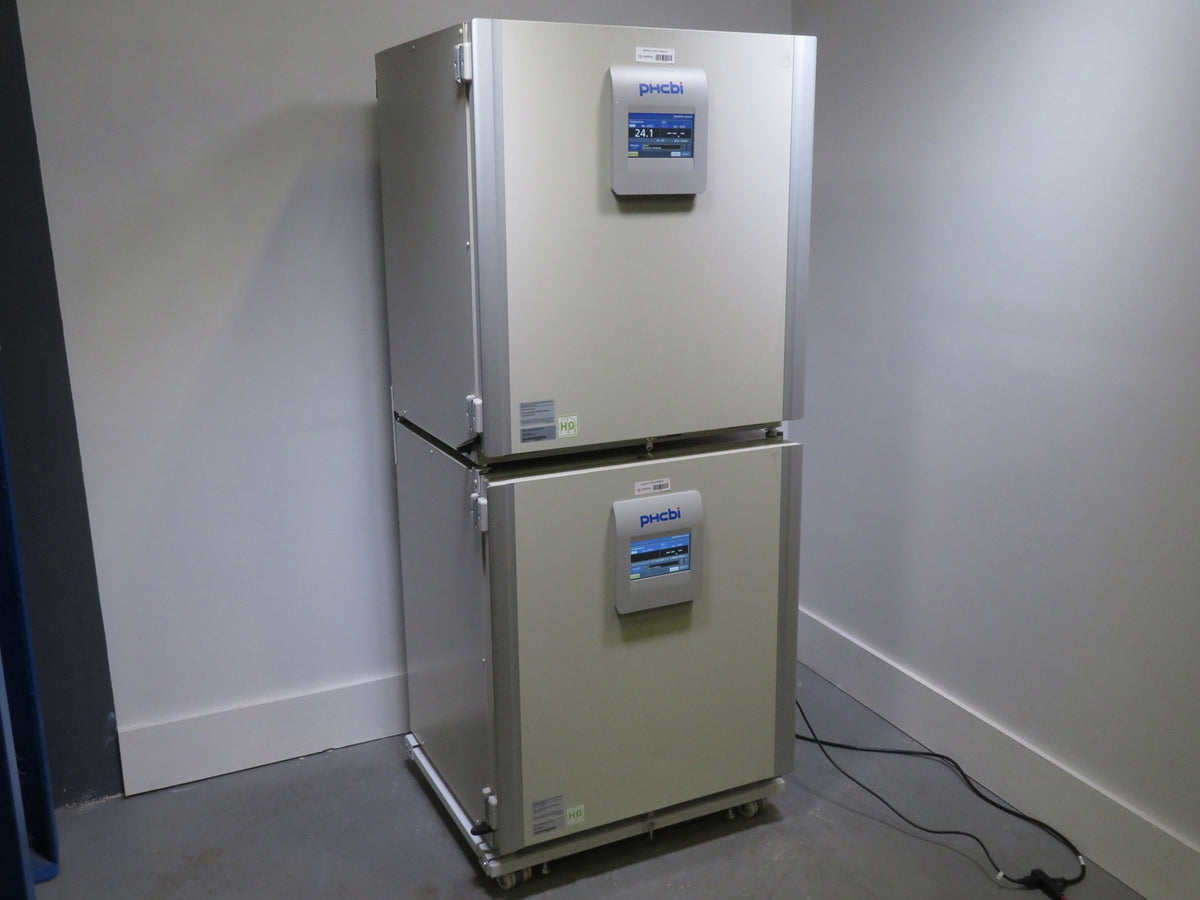

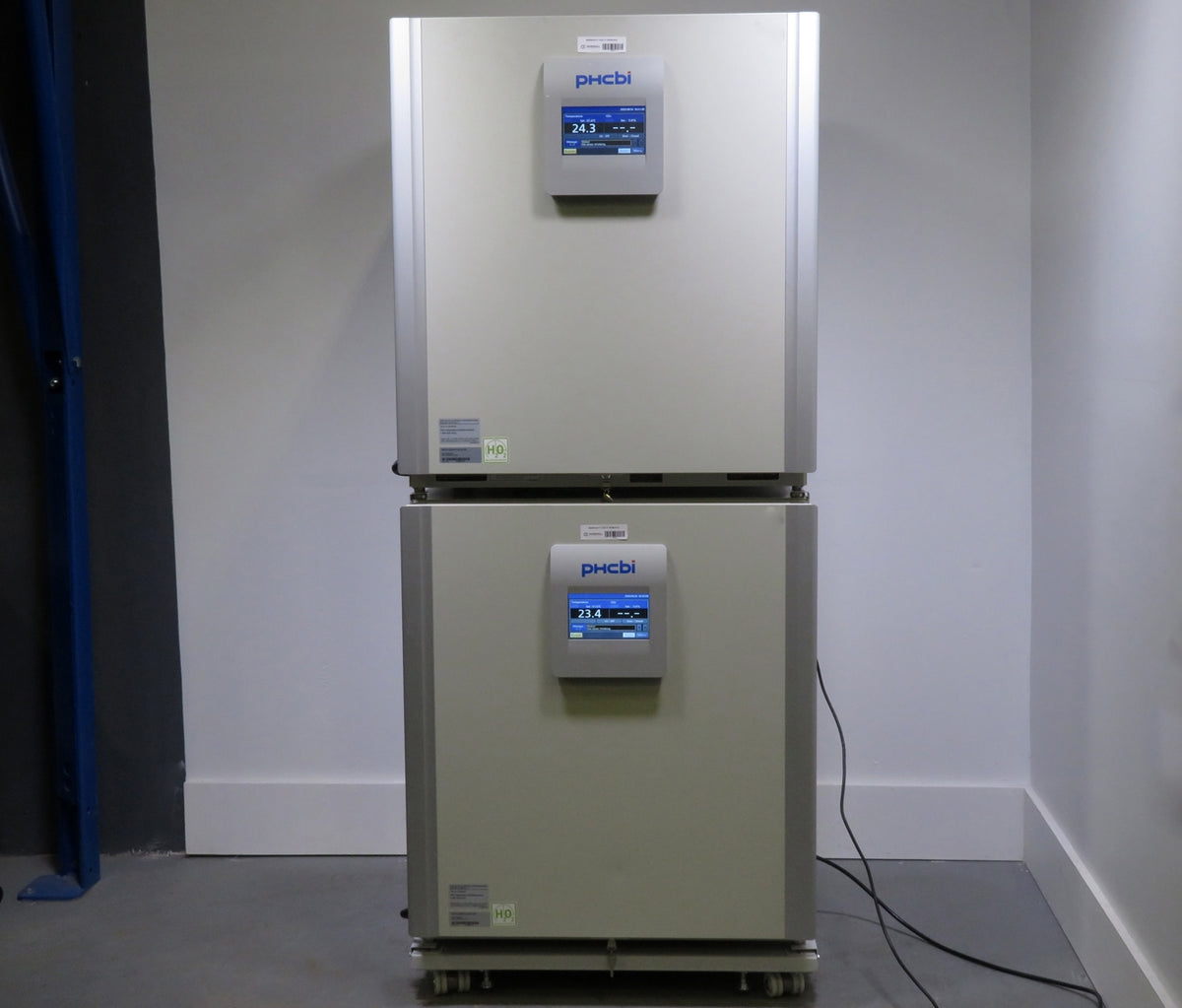

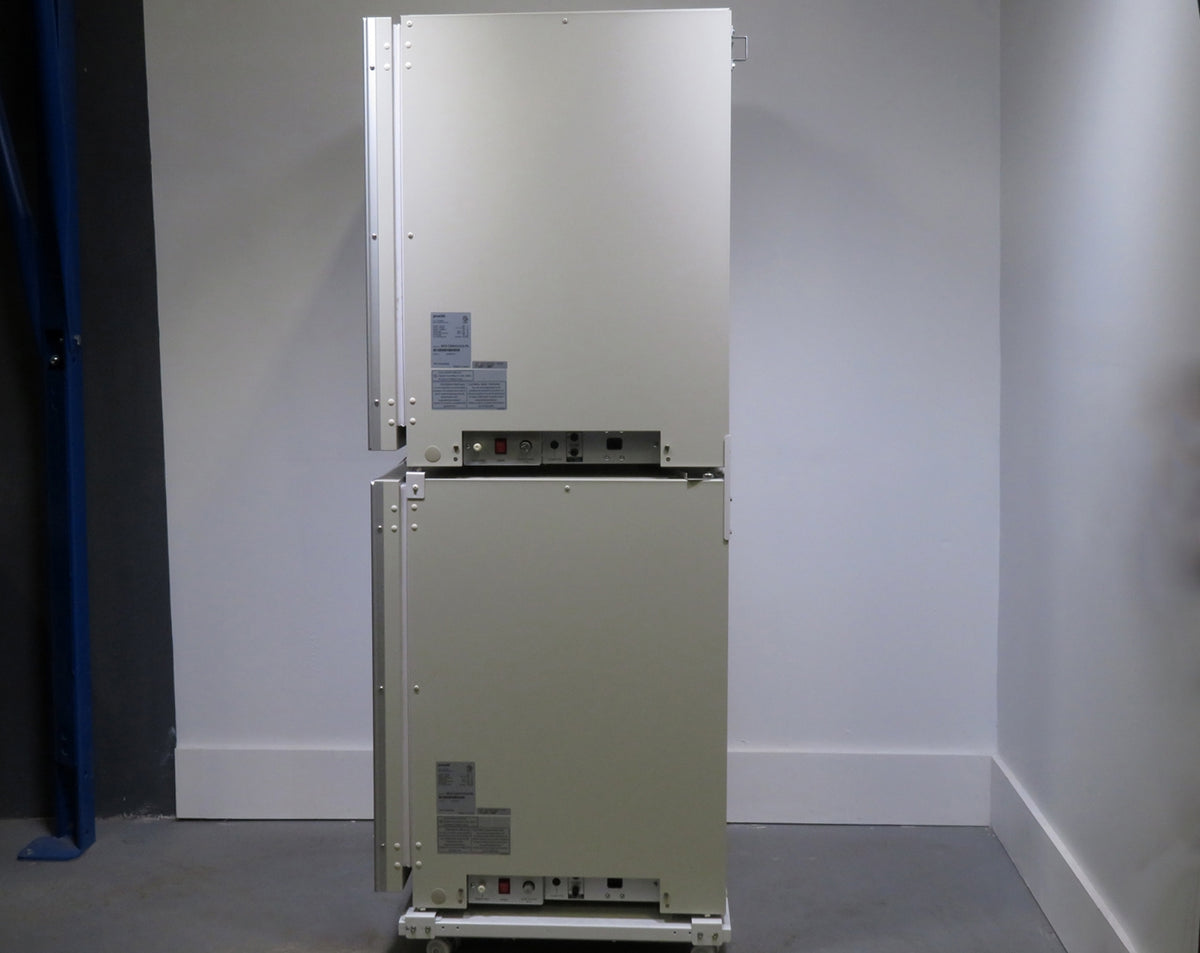

PHCbi MCO-230AICUVLG-PA CO2 Incubator Dual Stack
Temperature Range
Ambient +5°C to 50°C
Temperature Uniformity
± 0.25°C at 37°C
CO2 Range
0 to 20%
Features
- Dual stack configuration maximizes chamber capacity while conserving floor space
- Each chamber provides 8.1 cu. ft. of reliable culturing volume
- Direct Heat and Air Jacket system ensures uniform, stable conditions
- Proprietary IR2 sensor delivers rapid CO2 recovery without overshoot

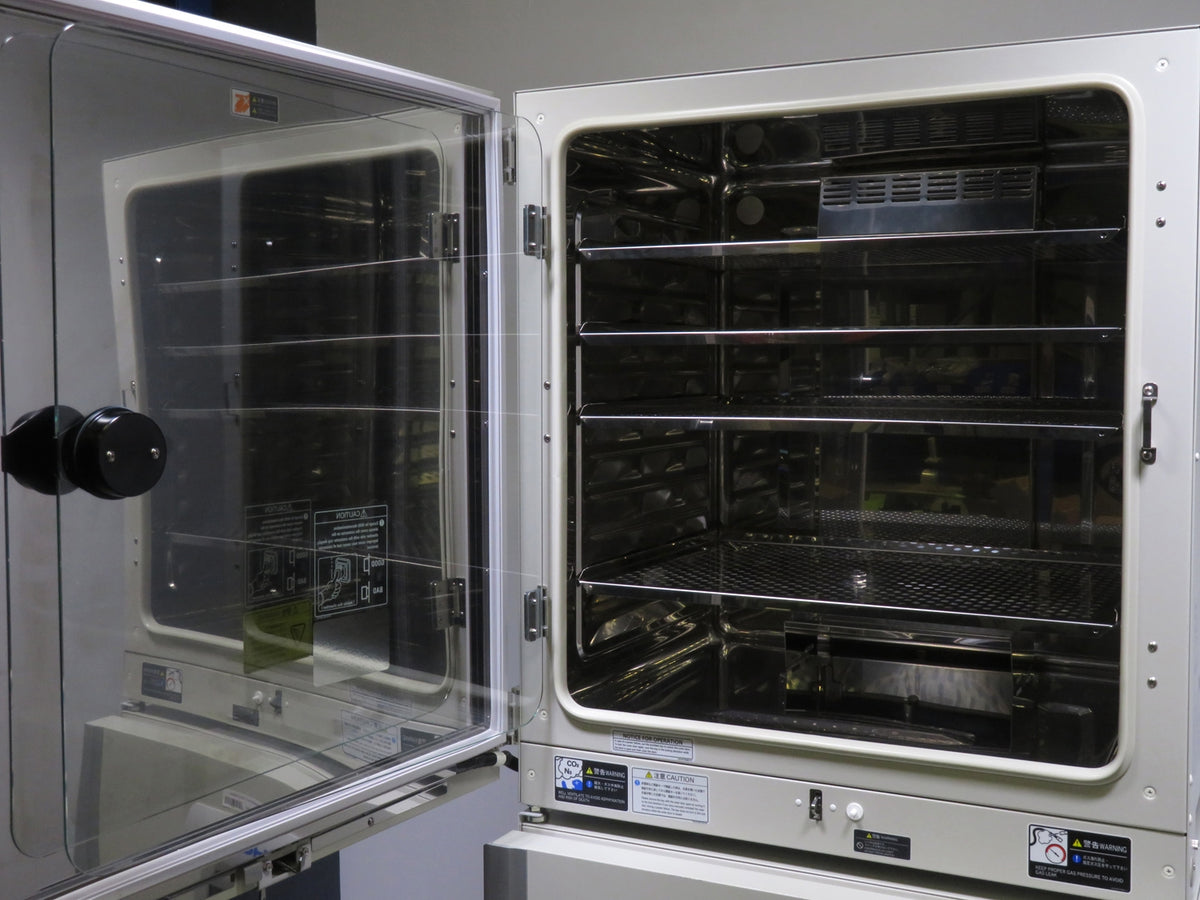

- InCu-saFe copper-enriched stainless steel interior provides passive contamination protection
- SafeCell UV lamp decontaminates circulated air and the humidity reservoir without harming cultures

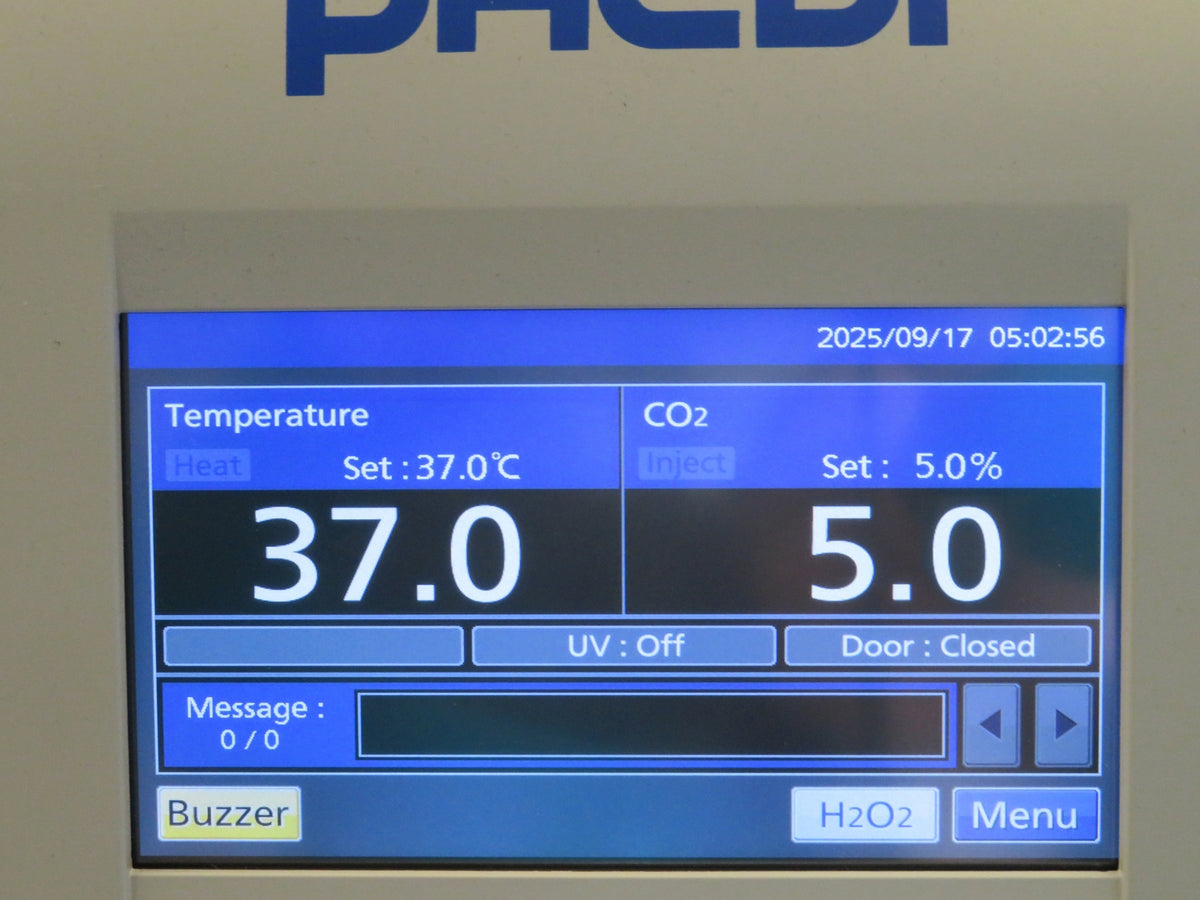

- Color LCD touchscreen interface enables intuitive programming and monitoring in each chamber
- USB port supports convenient data logging and secure record transfer
Contamination control is built in through the inCu-saFe copper-enriched stainless steel interior and the SafeCell UV lamp, which continuously decontaminate circulated air and the humidity reservoir without harming cultures. Each chamber includes a color LCD touchscreen for intuitive programming, integrated shelf channels for easy cleaning and optimized capacity, and a USB port for data logging and transfer. Designed for laboratories requiring expanded capacity without additional footprint, the dual stack configuration provides the same trusted precision, contamination control, and usability as the stand-alone model
All of our equipment is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The PHCbi MCO-230AICUVLG-PA CO2 Incubator Dual Stack includes:
The PHCbi MCO-230AICUVLG-PA CO2 Incubator Dual Stack includes:
- > 3 x Shelves Per Unit
- > 2 x Humidity Pans
- > Stacking Kit
- > NIST Calibration and Preventative Maintenance Report
- > 2 x Power Cords
- > Operator's Manual
- > Full 180 Day Parts and Labor Warranty
PHCbi MCO-230AICUVLG-PA CO2 Incubator Dual Stack Specifications
| Temperature Range | Ambient +5°C to 50°C |
| Temperature Uniformity | ± 0.25°C at 37°C |
| Temperature Control | ± 0.1°C |
| Volume | 8.1 cu. ft. (230L) [Per Unit] |
| CO2 Range | 0 to 20% |
| CO2 Control | ± 0.15% |
| CO2 Sensor Type | IR2 dual filter |
| Relative Humidity | 95% at 37°C, ± 5% |
| Access Port | 1.2 in. (3.0 cm), rear upper left with silicone stopper |
| Shelf Dimensions (W x D x H) | 24.4 x 17.7 x 0.5 in. (62.0 x 45.0 x 1.2 cm) [Per Unit] |
| Internal Dimensions (W x D x H) | 25.3 x 20.6 x 27.6 in. (64.3 x 52.3 x 70.0 cm) [Per Unit] |
| External Dimensions (W x D x H) | 30.3 x 28.7 x 35.6 in. (77.0 x 73.0 x 90.5 cm) [Per Unit] |
| Weight | 198 lb. (90 kg.) [Per Unit] |
| Electrical Requirements | 115V, 60 Hz, 1Ph, NEMA 5-15P |
Incubator Inspection and Recertification Checklist
- Inspect the display for any dim, flickering, or dead pixels, replacing any affected areas to maintain full readability and operational clarity
- Thoroughly examine external regulators for any signs of damage, wear, or malfunction (if applicable), replacing any compromised parts
- Inspect temperature, CO₂, and H₂O sensors (if applicable), ensuring each sensor is functioning correctly and accurately reporting conditions
- Conduct a detailed inspection of all internal wiring for frays, tears, or breakages; replace any compromised wires to ensure safe and reliable connections
- Verify that software settings align with the internal components and calibration specifications, adjusting configurations as needed for accurate operation
- Inspect and clean the fan, ensuring it is free from dust or obstructions; replace if performance is below required standards
- Examine wheels and leveling mounts for structural integrity, ensuring proper balance and stability for safe operation
- Inspect door gaskets and latches for any signs of wear or damage, replacing if necessary to maintain a secure seal and optimal environmental control
- Calibrate temperature accuracy at 37°C using a NIST-traceable probe, confirming it meets required tolerances
- Calibrate CO₂ level to 5% using a Fyrite combustion test kit (if applicable), ensuring precise atmospheric conditions
- Monitor temperature and CO₂ stability over a 24-hour period, verifying consistent operation within specified ranges
- Conduct a thorough cosmetic inspection to confirm all external surfaces and components meet quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Incubator
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Inspect display for dim, flickering, or dead pixels; replace for readability | Completed | |
| Examine external regulators for damage or malfunction; replace compromised parts | Completed | |
| Inspect temperature, CO₂, and H₂O sensors for correct function and accuracy | Completed | |
| Inspect internal wiring for frays, tears, or breakages; replace compromised wires | Completed | |
| Verify software settings align with components and calibration specs; adjust if needed | Completed | |
| Clean fan and remove dust/obstructions; replace if performance is substandard | Completed | |
| Examine wheels and leveling mounts for structural integrity and balance | Completed | |
| Inspect door gaskets and latches for wear or damage; replace to maintain seal | Completed | |
| Calibrate temperature at 37°C with NIST-traceable probe to confirm accuracy | Completed | |
| Calibrate CO₂ level to 5% with Fyrite test kit for atmospheric precision | Completed | |
| Monitor temperature and CO₂ stability over 24-hour period to verify consistency | Completed | |
| Conduct cosmetic inspection to confirm quality of external surfaces and components | Completed |
