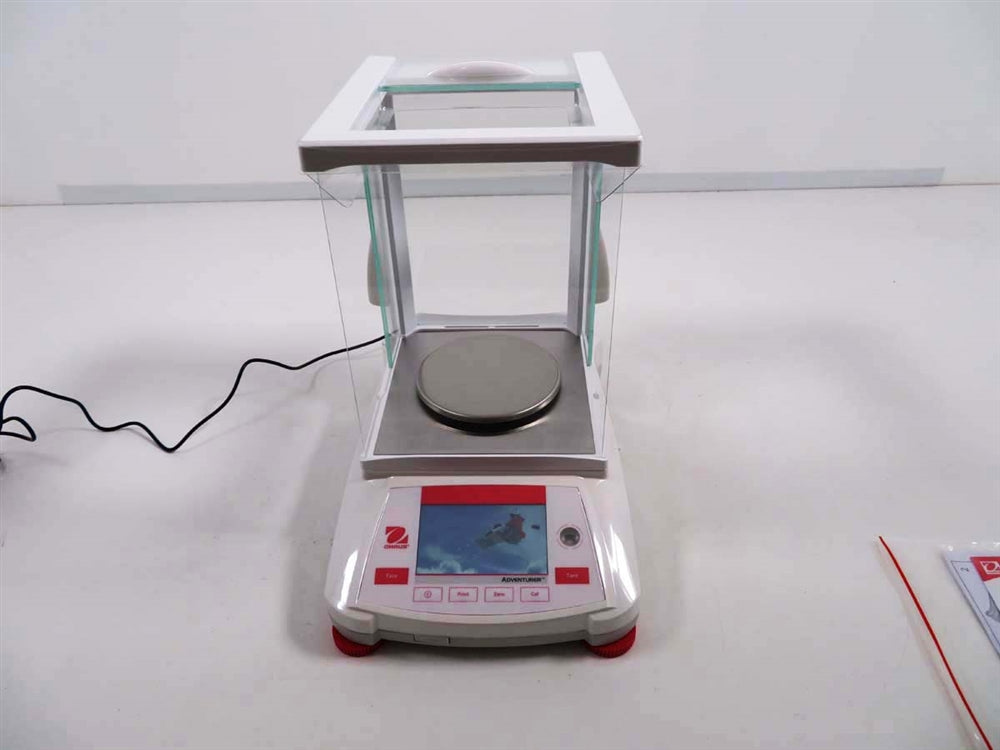

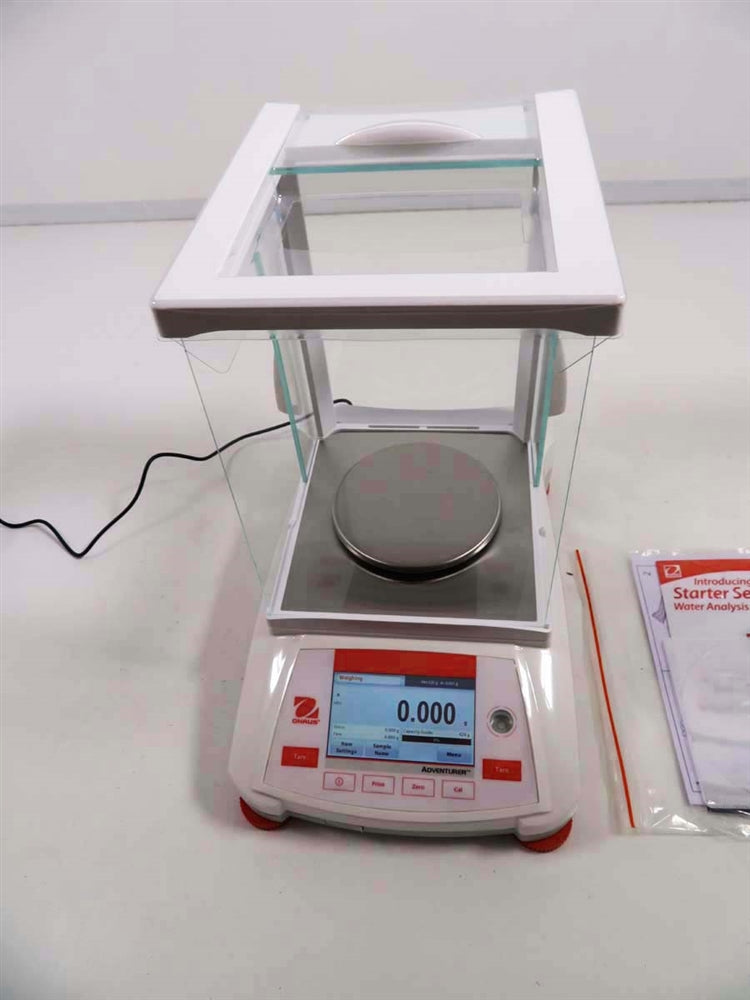

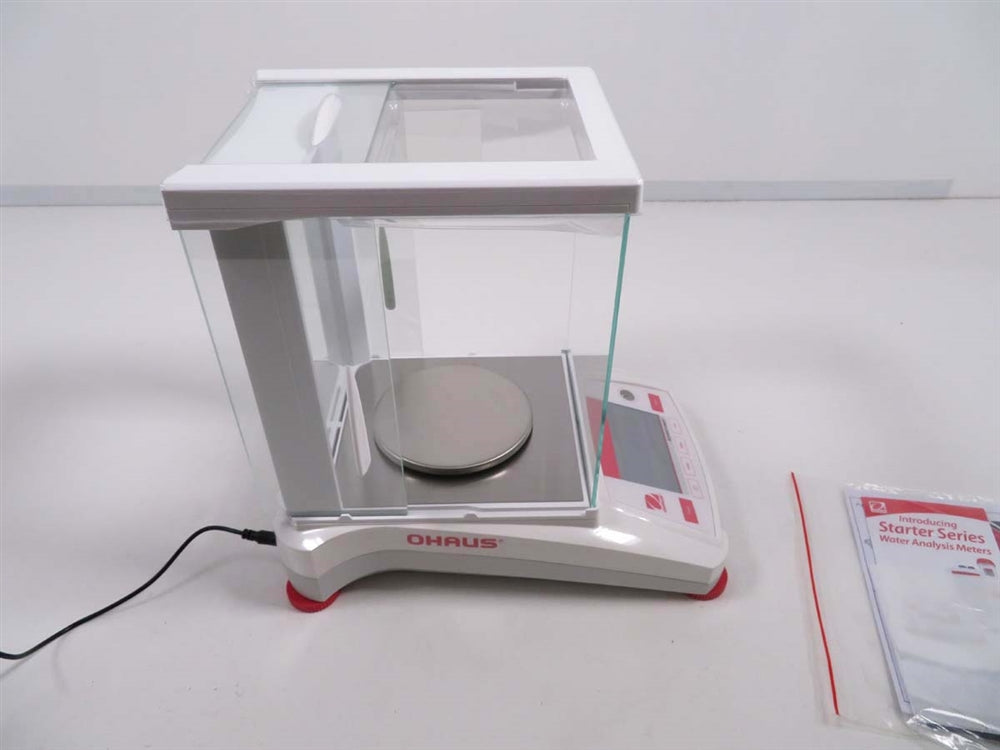

Ohaus AX423 Adventurer Analytical Balance
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer AX423 incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer AX423 is the most complete balance in its class.
Features:
- 420 g capacity, 1 mg readability
- 130 mm platform
- Internal calibration

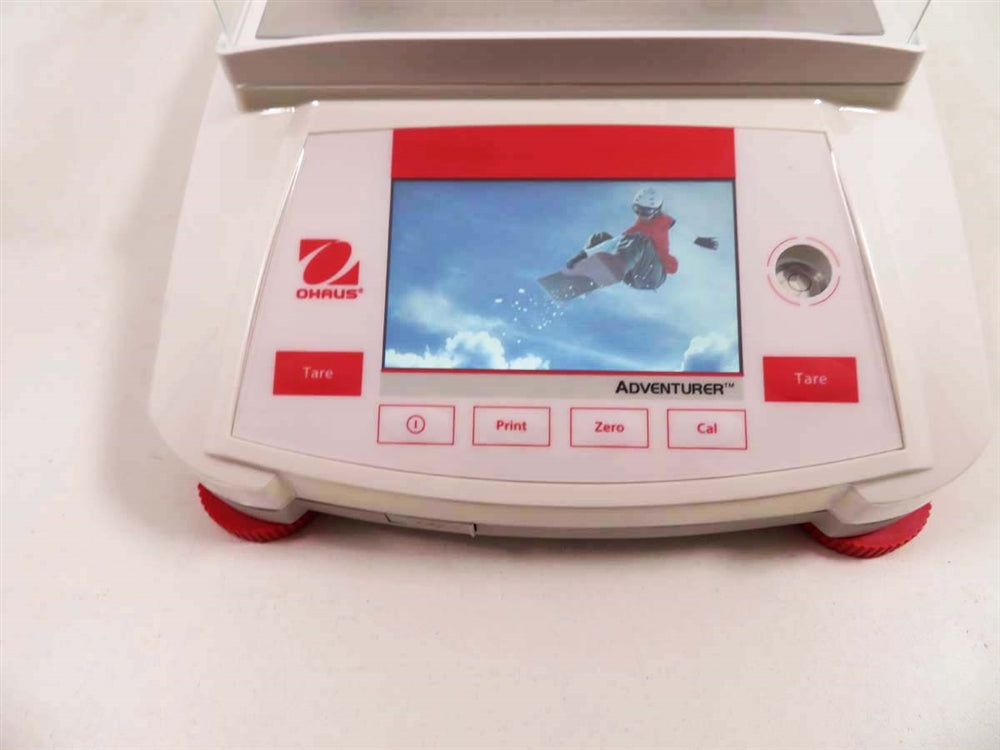

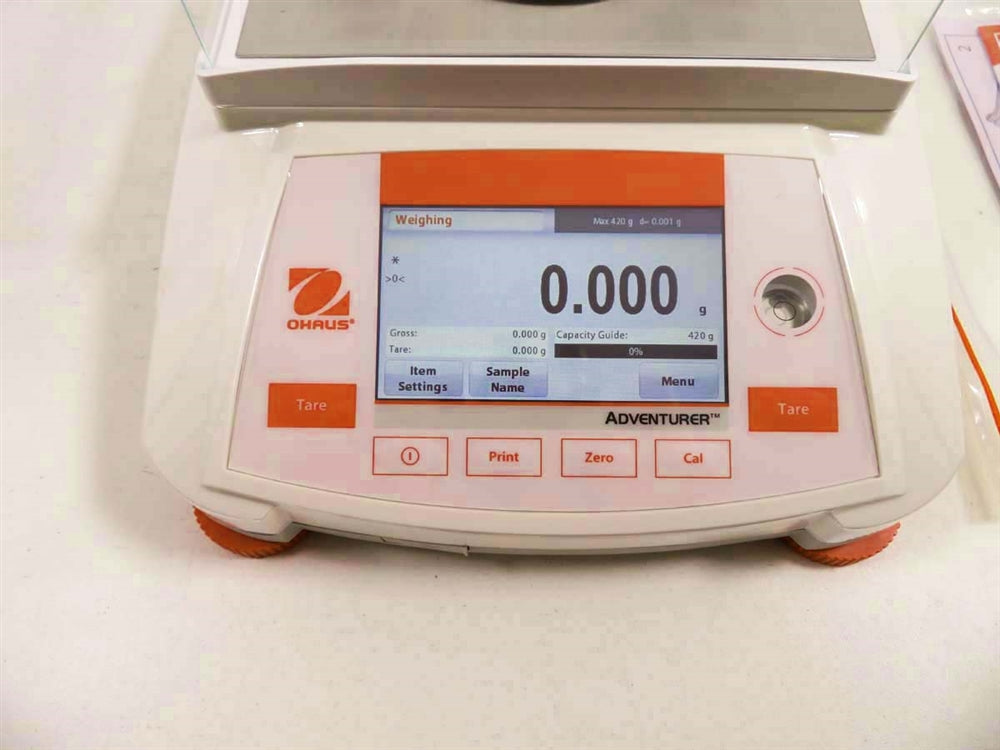

- 4.3 inch Full-color VGA graphic touchscreen with user-controlled brightness

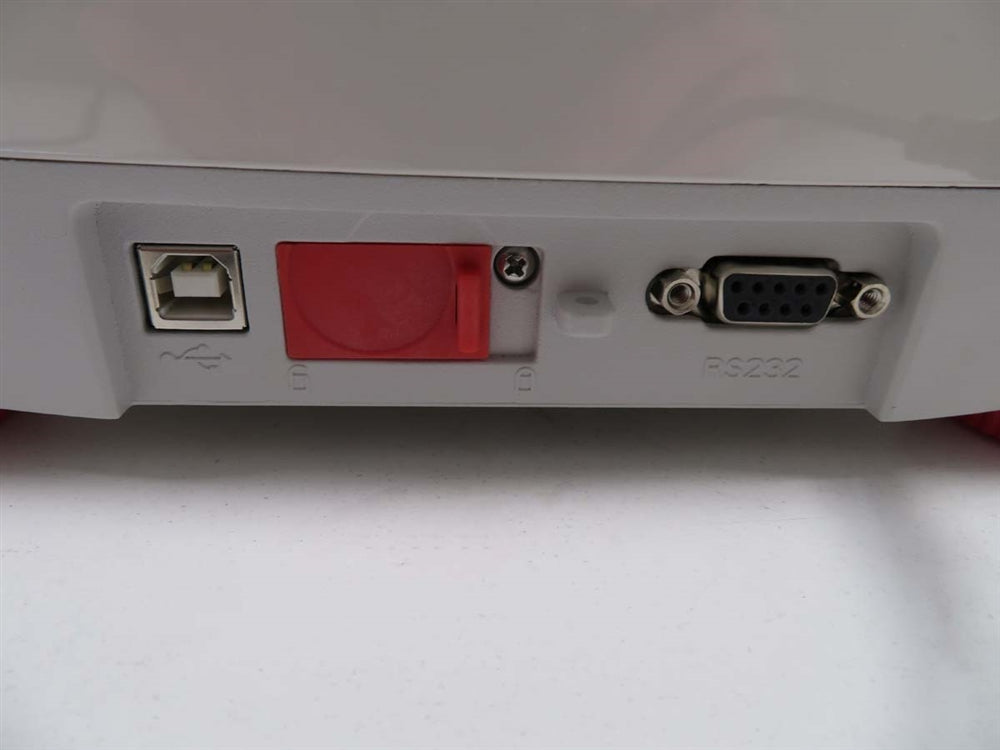

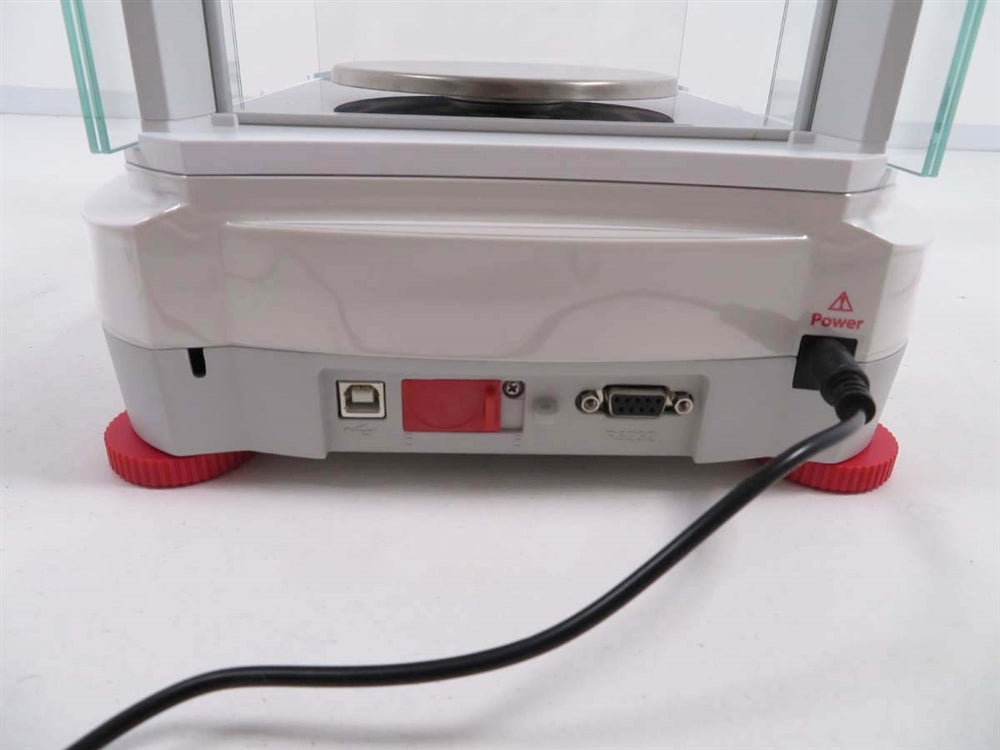

- RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock
- Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu
- User selectable communication settings and data print options
- User definable project and user IDs
- Up to 9 operating languages

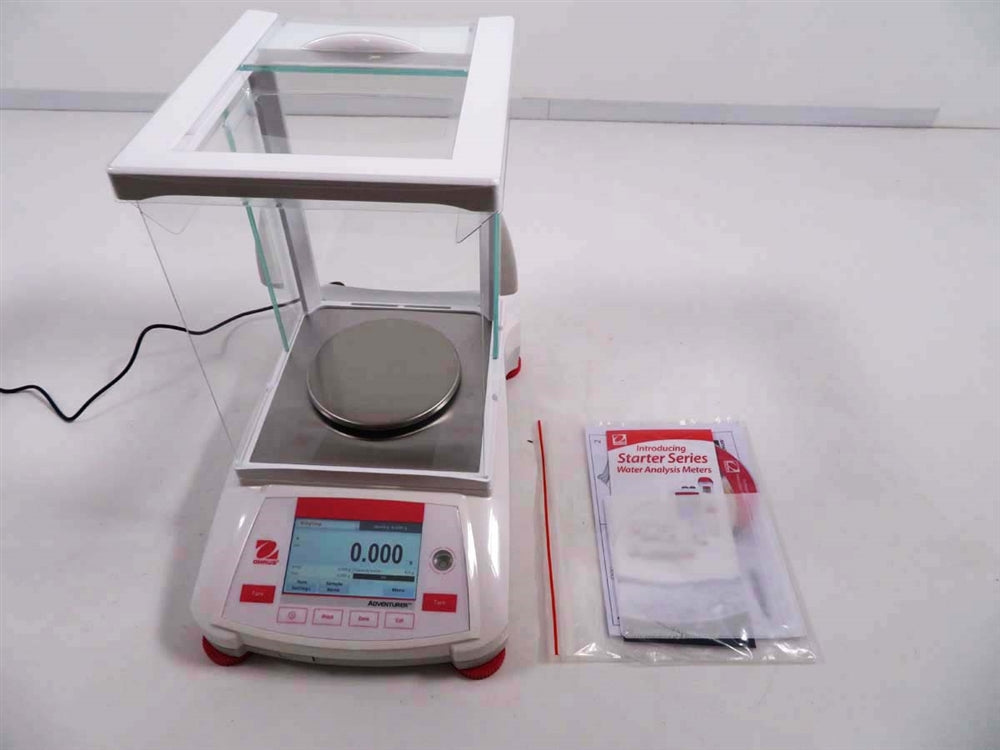

Included with the Ohaus AX423 Adventurer Analytical Balance:
Includes: > Power Cord
> Calibration Report
> Operator's Guide
> Full 180 Day Parts and Labor Warranty
Ohaus AX423 Adventurer Analytical Balance Specifications
|
Max. Capacity |
420 g |
|
Readability |
0.001 g |
|
Repeatability (sd) |
0.001 g |
|
Linearity |
0.002 g |
|
Calibration Type |
Internal |
|
RS-232 |
Yes |
|
Stabilization Time |
? 2 Seconds |
|
Electrical Requirements |
100-240V, 50/60Hz, 0.3A |
| Weighing Pan Size | 5.1 in (130 mm) |
| Display | High resolution full color VGA touch display |
| Operating Temperature Range | 10C to 30C / 80% RH |
Balance Inspection and Recertification Checklist
- Verify power supply output for precise voltage delivery in accordance with equipment specifications
- Assess full functionality of display and control buttons, replacing any defective or deteriorating components as necessary
- Confirm balance is properly leveled to ensure measurement accuracy and stability
- Examine windscreen glass for cracks or chips, replacing if structural integrity is compromised
- Inspect all internal wiring and electrical connections for secure attachment and check for any loose connections or damaged connectors
- Check power cord integrity, ensuring there are no frays, cuts, or damage affecting function or safety
- Execute internal or external calibration to confirm accuracy of weighing measurements
- Review cosmetic condition, confirming no visible damage or wear that affects functionality
- Verify successful taring of the weighing pan to zero out prior measurements accurately
- Ensure RS232/printer communication functions correctly, validating connection and data transmission (if applicable)
Technician Inspection and Recertification Checklist: Balances
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Verify power supply output voltage | Completed | |
| Assess display and control button functionality, replacing faulty components | Completed | |
| Confirm balance leveling for measurement accuracy | Completed | |
| Inspect windscreen glass for cracks, replace if necessary | Completed | |
| Check internal wiring and electrical connections for security | Completed | |
| Inspect power cord for frays or damage | Completed | |
| Execute internal/external calibration for measurement accuracy | Completed | |
| Review cosmetic condition for visible damage | Completed | |
| Verify weighing pan tares successfully | Completed | |
| Ensure RS232/printer communication is functional (if applicable) | Completed |
