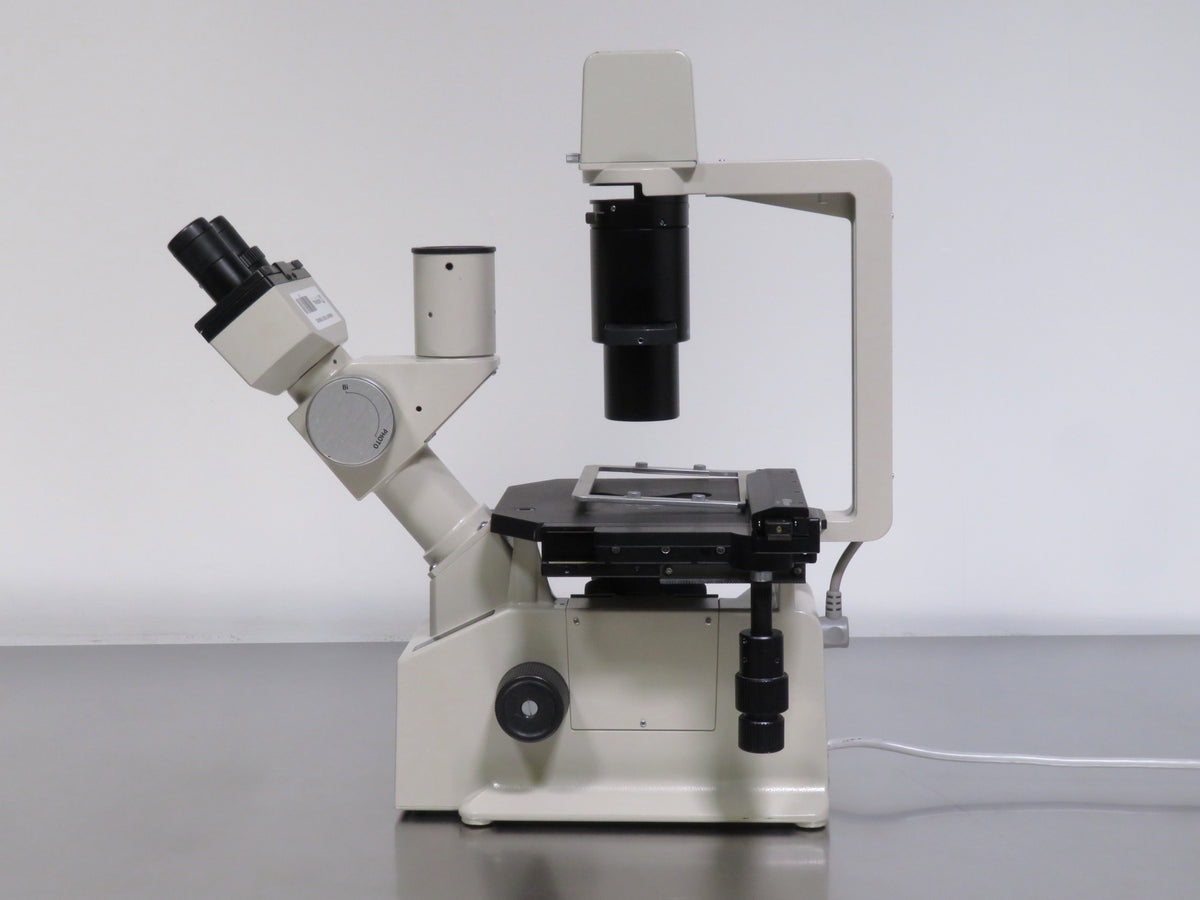

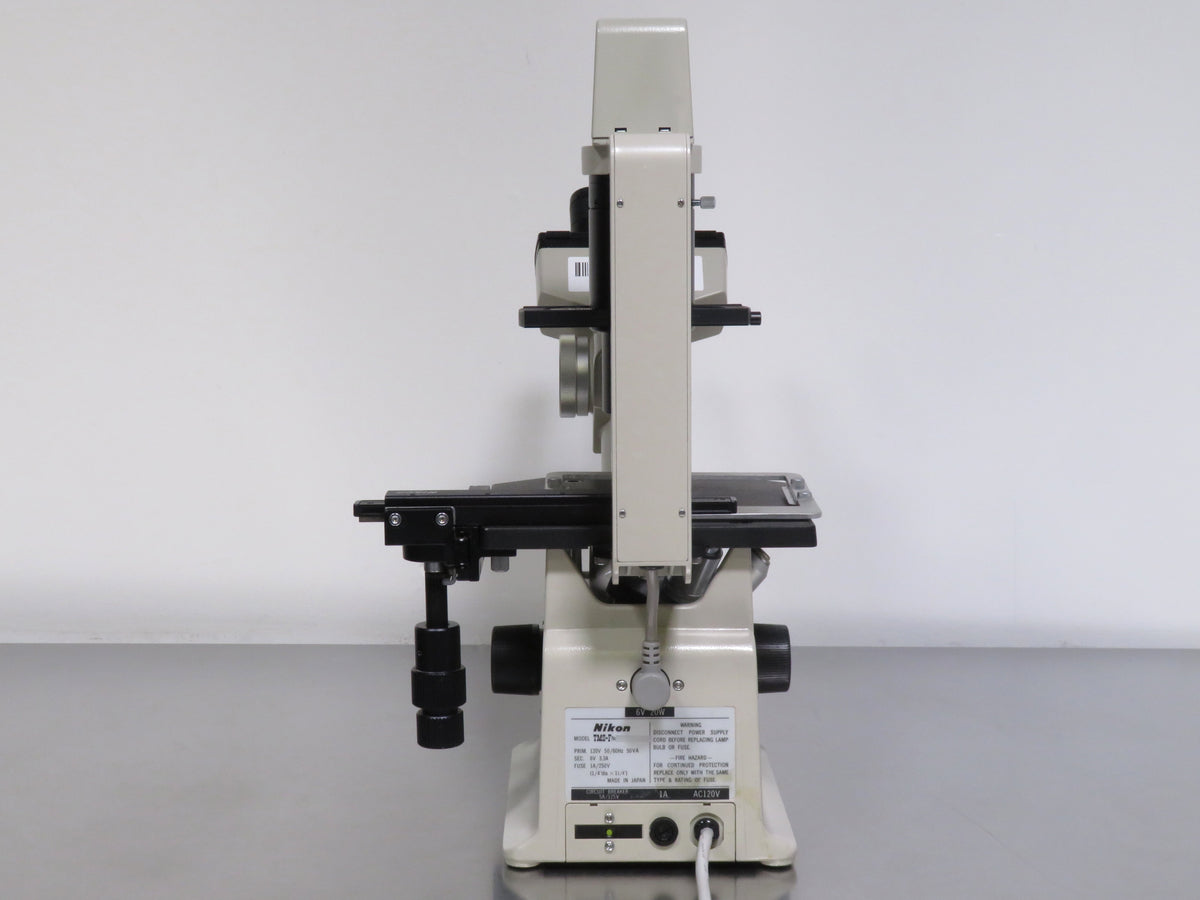

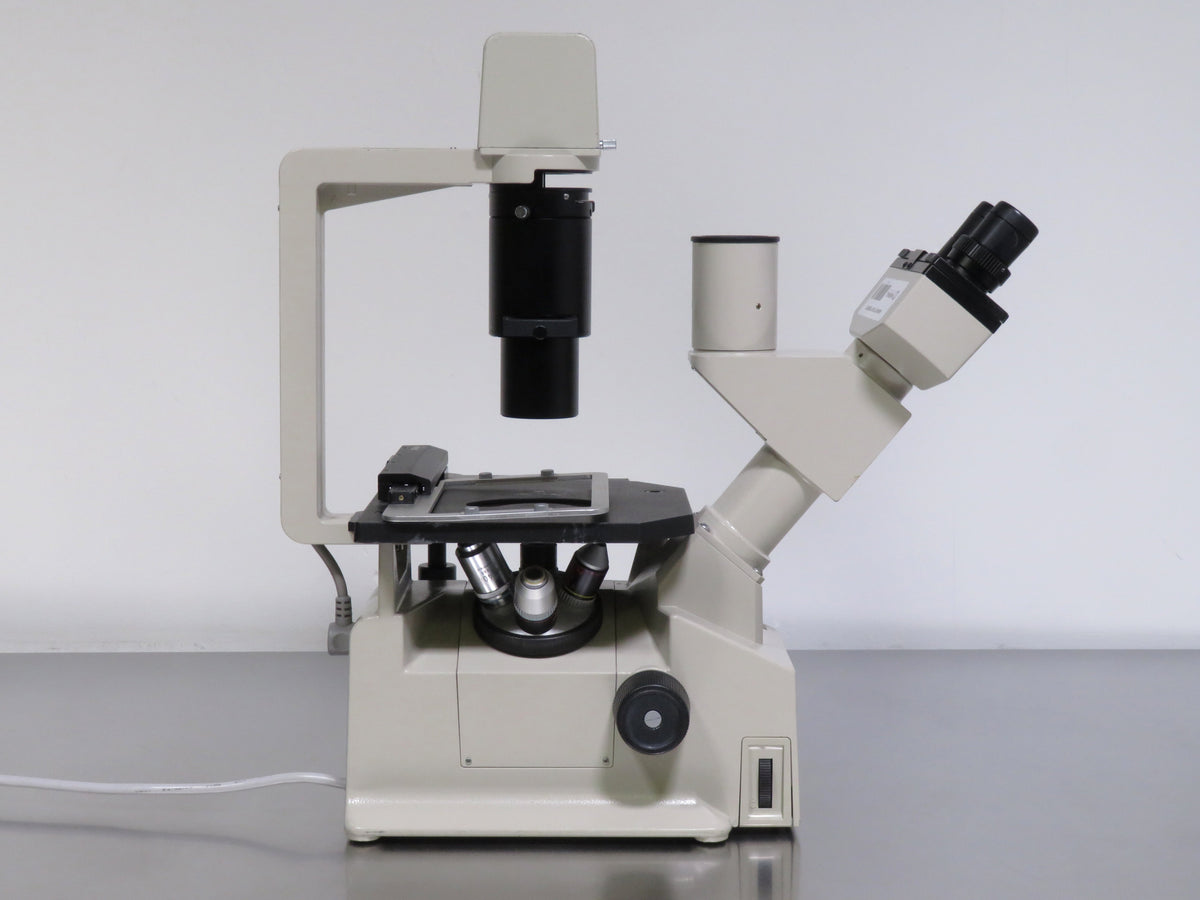

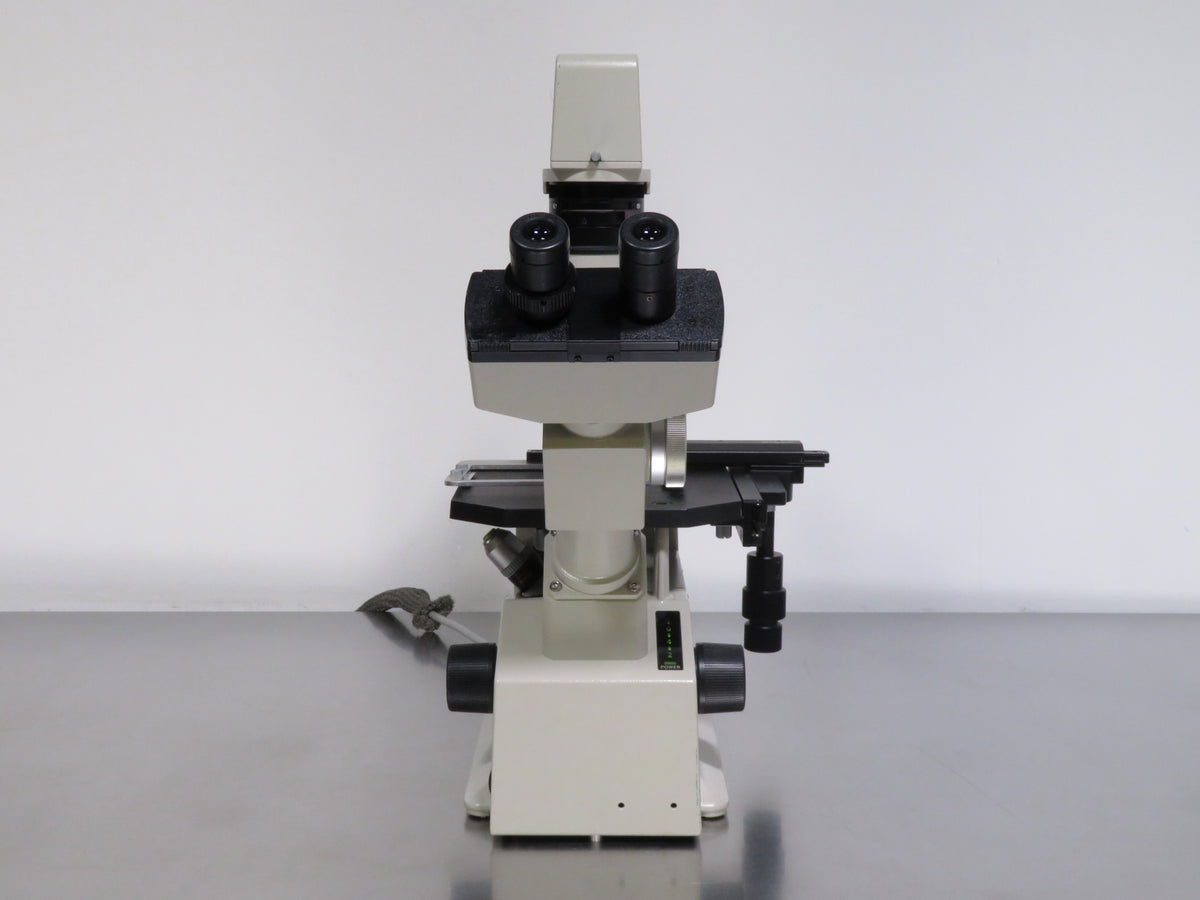

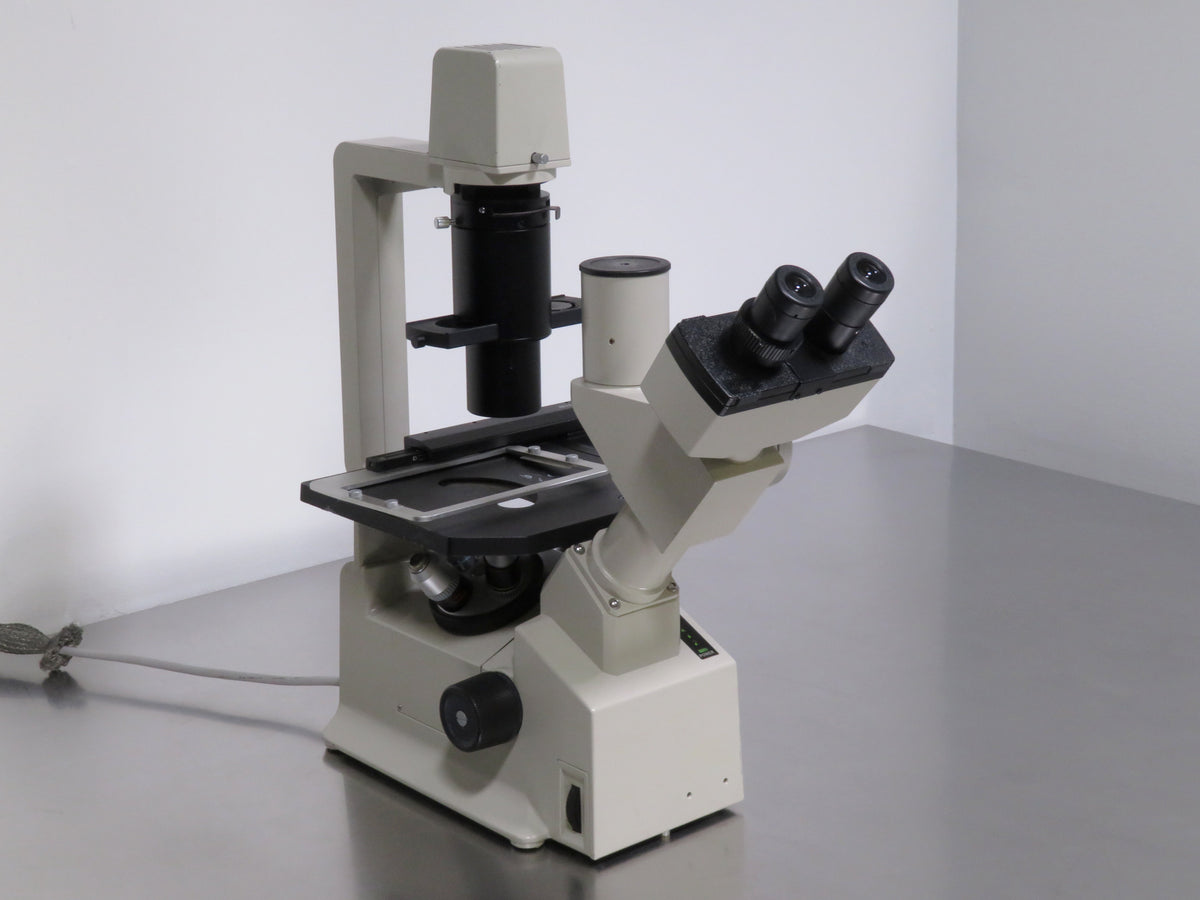

Nikon TMS-F Inverted Phase Contrast Microscope
Head Type
Trinocular
Eyepieces
CFWE 10XA/18
Objectives
4x, 10x, 40x
- Inverted optical design allows convenient observation of specimens in culture vessels and containers
- Phase contrast capability enhances visualization of transparent and unstained specimens
- Binocular viewing head with integrated photo tube supports both direct observation and photomicrography

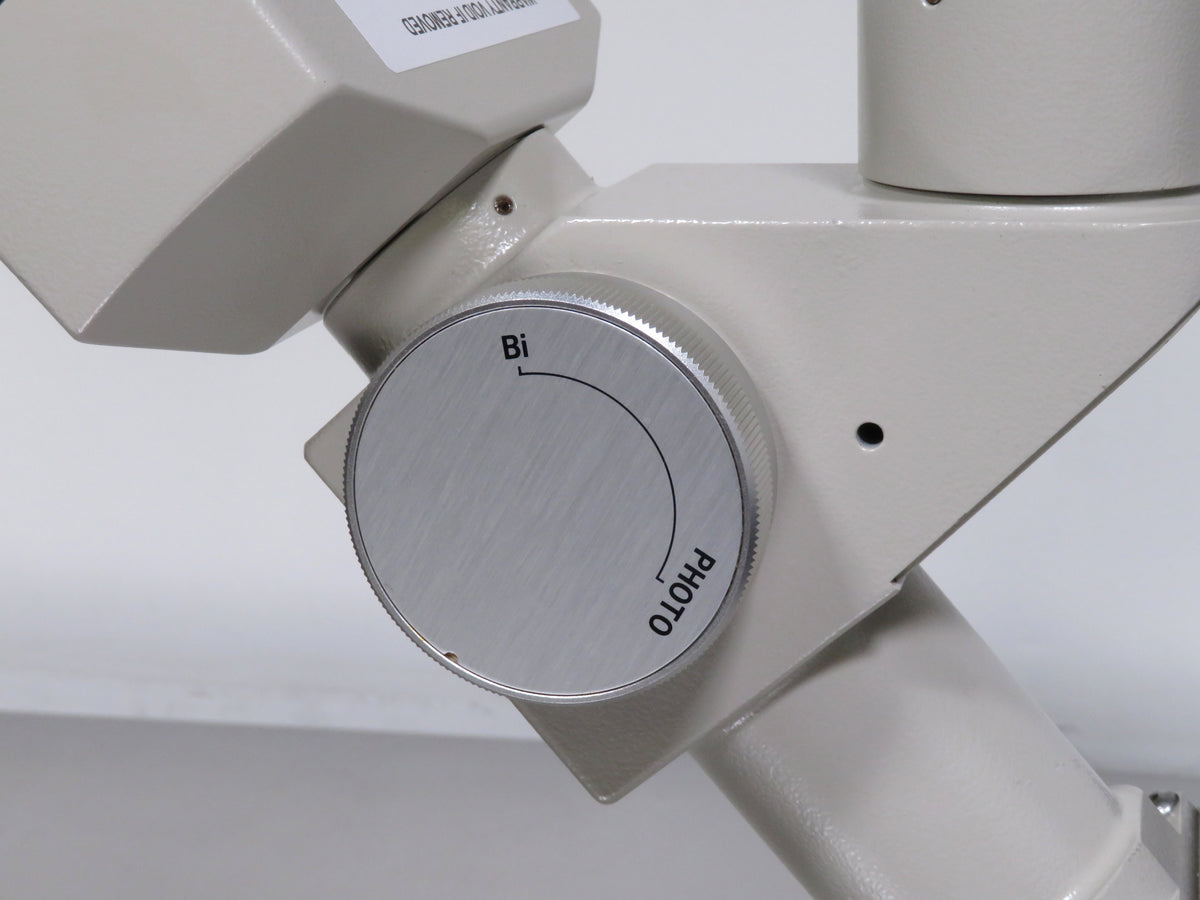

- BI/PHOT changeover mechanism allows the optical path to be switched between binocular viewing and photography
- CFWE 10XA/18 eyepieces provide a wide field of view for routine specimen observation

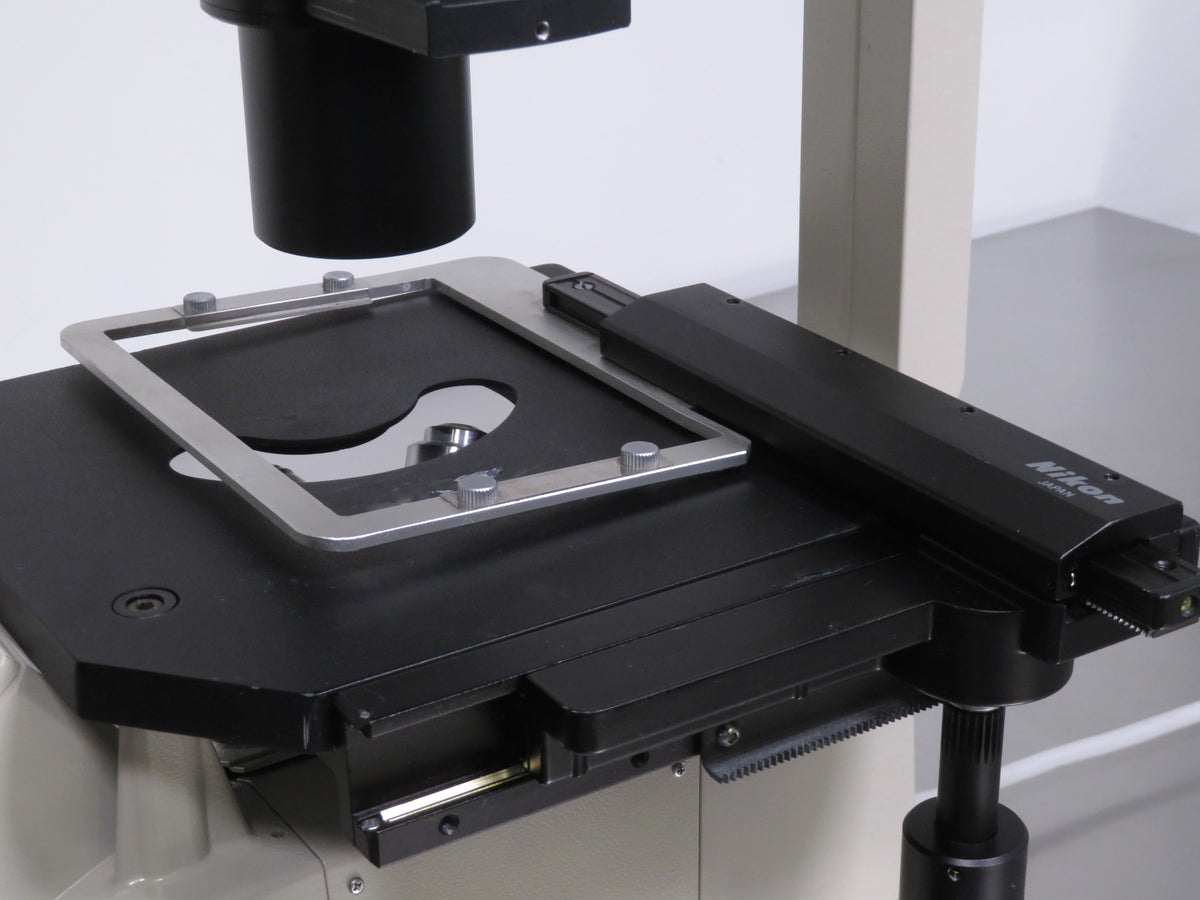

- Mechanical stage controls provide precise positioning of specimens during observation
- Adjustable interpupillary distance accommodates individual viewing preferences
- Diopter adjustment allows independent focusing to accommodate differences between the user's eyes
- Adjustable condenser system supports proper illumination and phase contrast alignment
- Revolving objective nosepiece provides convenient switching between installed objectives

The Nikon TMS-F Inverted Phase Contrast Microscope is designed for routine observation of living cells, tissue cultures, and other transparent specimens in culture vessels. Its inverted optical configuration allows specimens to remain in their culture containers, while phase contrast enhances the visibility of transparent, unstained samples. The system incorporates a revolving objective nosepiece, adjustable condenser system, mechanical stage controls, interpupillary adjustment, and individual diopter adjustment for precise and comfortable observation.
Unlike the standard TMS, the TMS-F incorporates an integrated photo tube and optical changeover system for photomicrography, allowing the optical path to be switched between direct observation and photography. This added imaging capability makes the TMS-F well suited for routine culture monitoring, specimen evaluation, and image documentation.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Nikon TMS-F Inverted Phase Contrast Microscope includes:
- 10x Eyepieces
- 4x, 10x, and 40x objectives
- Halogen Lamp
- Power Cord
- Full 180 Day Parts and Labor Warranty
Nikon TMS-F Inverted Phase Contrast Microscope Specifications
| Head Type | Trinocular |
| Eyepieces | CFWE 10XA/18 |
| Electrical Requirements | 120V, 50/60Hz, 50VA |
- Verify that power supply output provides stable and precise voltage as per specifications

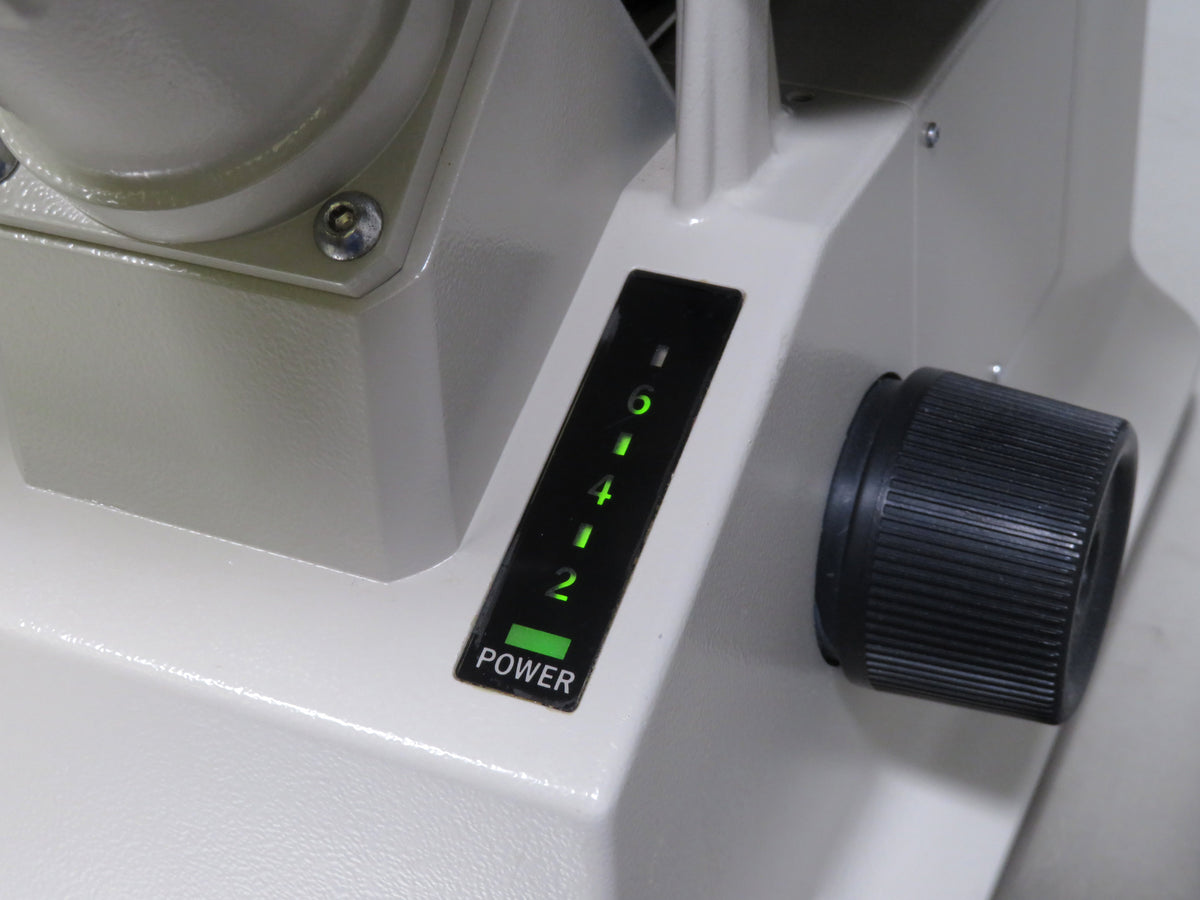

- Check the power level indicator to ensure accurate power status readings
- Assess all moving components for smooth operation, confirming they are free from obstructions and foreign contaminants
- Test lamp functionality and replace if illumination falls below optimal standards
- Examine internal wiring and electrical connections for continuity, identifying any breaks, tears, or wear
- Inspect and clean internal mirrors, objective lenses, and eyepieces to ensure clear optical performance
- Apply lubrication to the eyepiece distance adjuster to maintain smooth adjustment functionality
- Validate the clarity and resolution of specimen slides viewed through eyepieces for precise visualization
- Conduct a detailed cosmetic inspection to confirm the microscope meets visual and cleanliness standards
Technician Inspection and Recertification Checklist: Microscopes
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Confirm power supply output provides stable and accurate voltage | Completed | |
| Check power level indicator for accurate status display | Completed | |
| Verify smooth operation and cleanliness of moving components | Completed | |
| Test lamp functionality and replace if illumination is suboptimal | Completed | |
| Inspect internal wiring and connections for continuity and integrity | Completed | |
| Clean internal mirrors, objectives, and eyepieces thoroughly | Completed | |
| Lubricate eyepiece distance adjuster for optimal functionality | Completed | |
| Confirm clarity and resolution of specimen slide visualization | Completed | |
| Conduct cosmetic inspection to ensure visual acceptability | Completed |
