Memmert UF110plus Forced Circulation Oven
Working Temperature Range
Min. 10°C above ambient up to +300°C
Oven Type
Forced Air Circulation
Chamber Volume
108 L (3.8 cu.ft.)

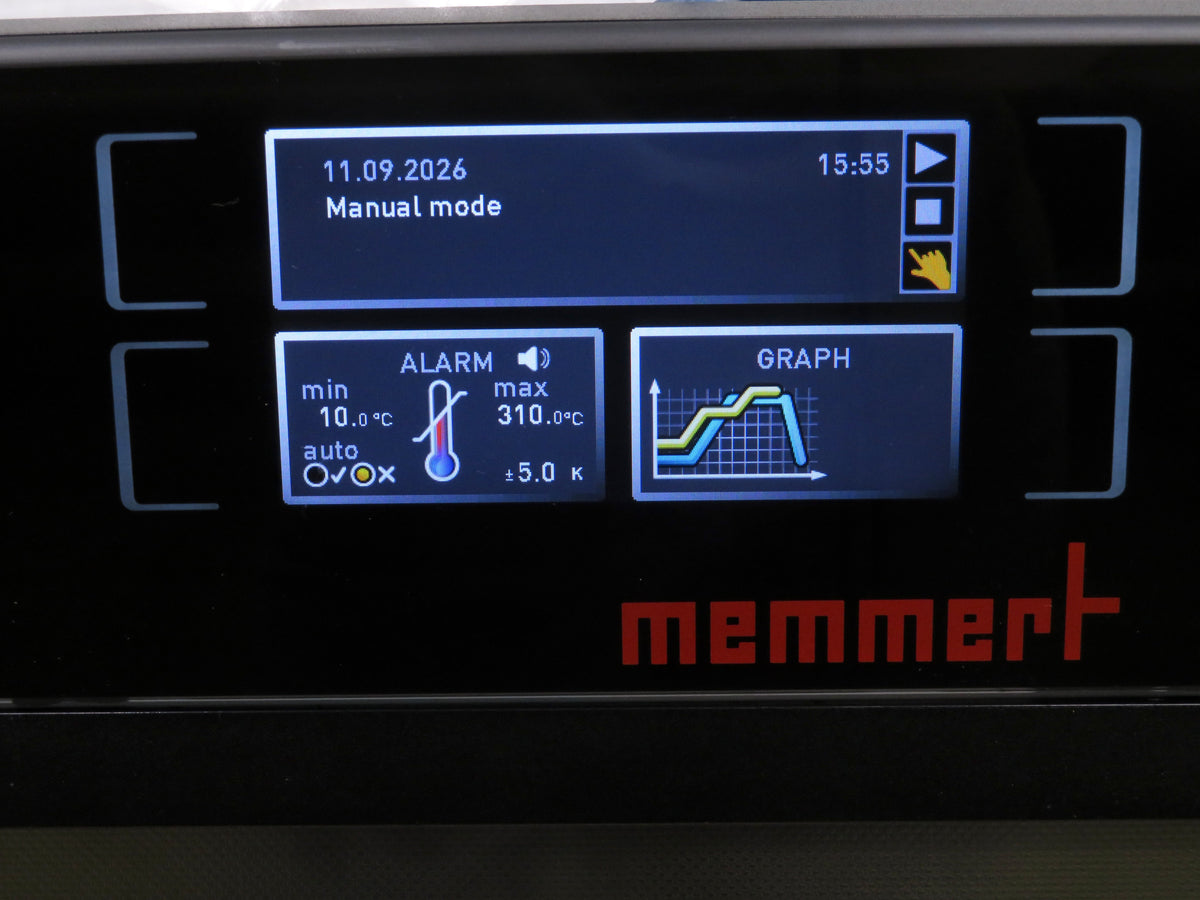

- TwinDISPLAY with multifunctional digital PID-microprocessor controller and dual high-definition TFT-color displays
- Comprehensive safety mechanisms including overtemperature monitor TWW, adjustable temperature limiter TWB, and mechanical temperature limiter TB
- Function SetpointWAIT ensures processing only begins once the target temperature is reached
- AtmoCONTROL software on a USB stick allows for advanced programming, management, and data transfer via Ethernet or USB port
- AutoSAFETY features integrated over- and undertemperature monitoring "ASF", automatically adjusting and providing alarms for any temperature deviations
- Stainless steel interior with deep drawn ribbing and integrated heating on four sides, designed for easy cleaning and durability

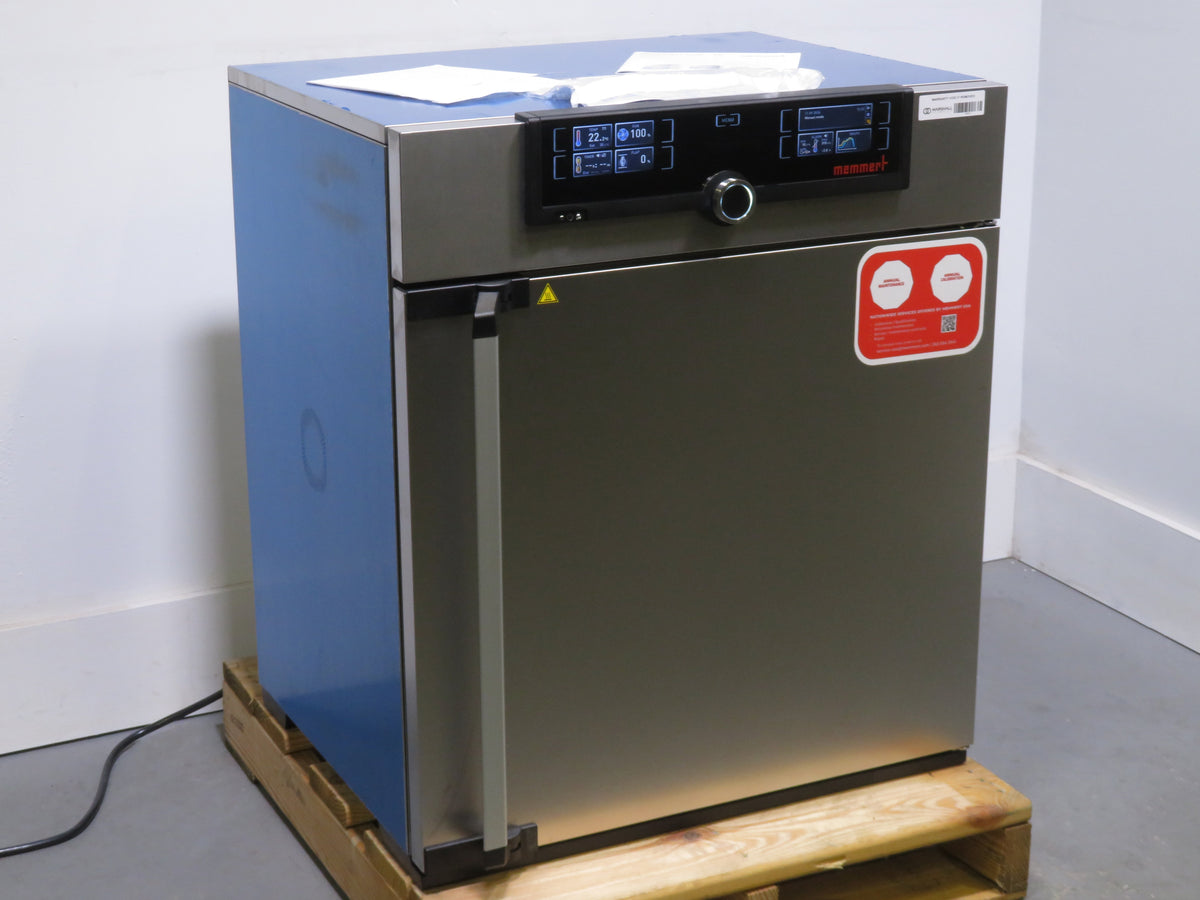

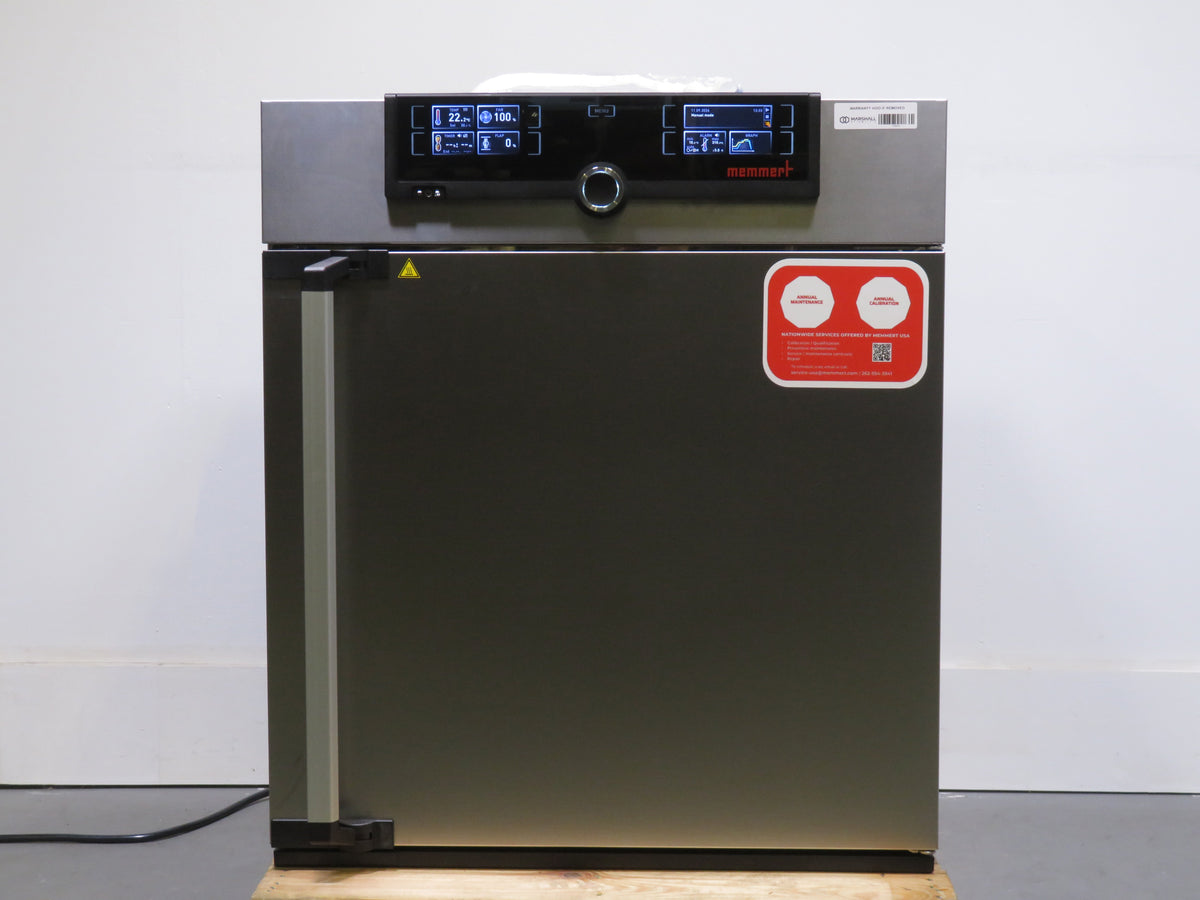

The Memmert UF110plus Forced Circulation Oven is a 108 L (3.8 cu. ft.) laboratory oven designed for controlled heating and thermal processing applications requiring dependable temperature performance. Forced air circulation from an adjustable air turbine promotes consistent conditions throughout the chamber, while the TwinDISPLAY control system provides two high definition TFT color displays for convenient programming and monitoring. The working temperature range extends from a minimum of 10°C above ambient up to 300°C, providing flexibility for a broad variety of laboratory heating requirements.
Advanced programming and monitoring capabilities give users greater control over temperature, fan speed, air flap position, and process timing. The SetpointWAIT function delays the programmed process time until the required temperature has been reached, while AtmoCONTROL software supports program creation, management, and data transfer through USB or Ethernet. Integrated AutoSAFETY monitoring follows the selected temperature setpoint and provides alarms if conditions move outside the established tolerance range. Additional temperature protection is provided through selectable TWW or TWB monitoring along with a mechanical temperature limiter.

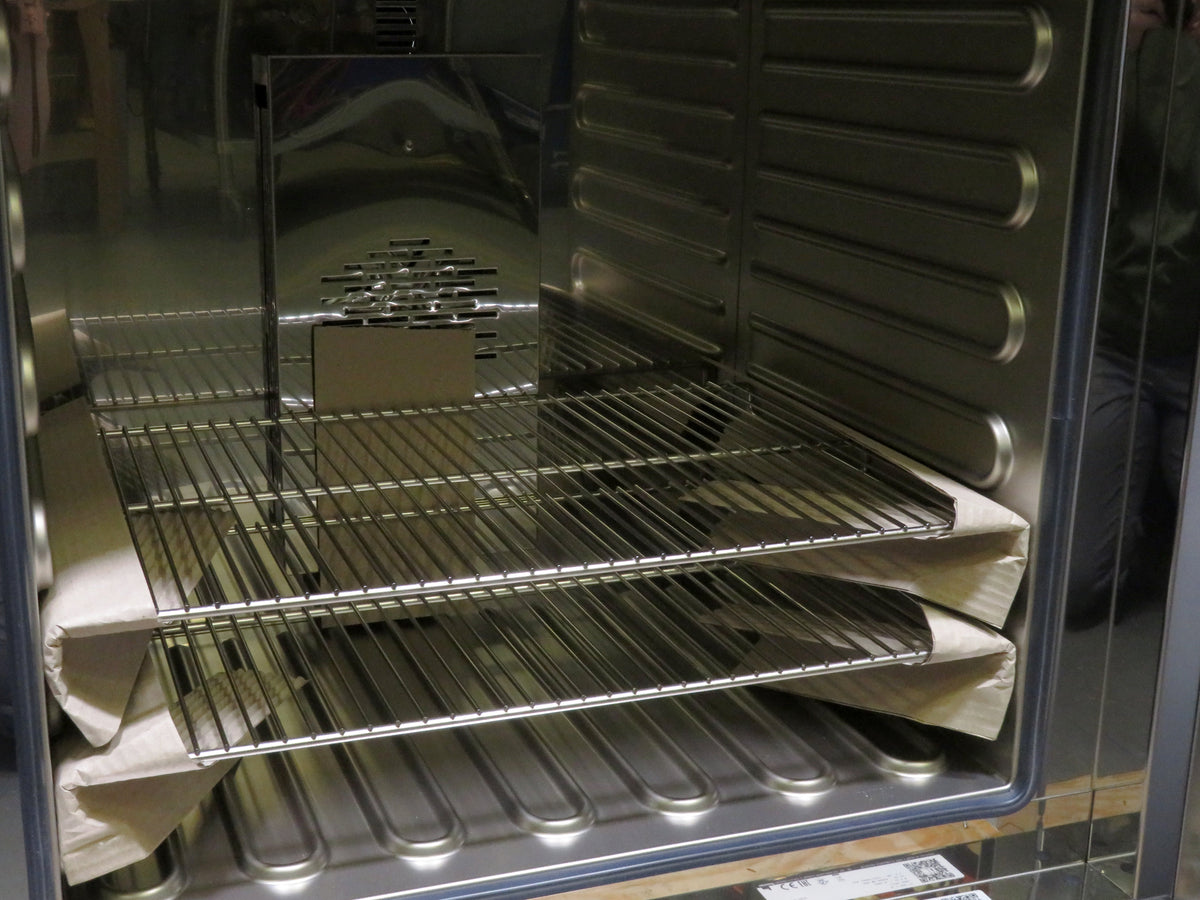

The stainless steel chamber combines deep drawn ribbing with protected large area heating on four sides for durability and straightforward cleaning. A fully insulated stainless steel door with two point locking helps maintain a secure chamber environment during operation. With capacity for up to five shelves and a maximum chamber load of 386.5 lb., the UF110plus provides a versatile platform for demanding laboratory heating workflows.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Memmert UF110plus Forced Circulation Oven includes:
- 2 x Shelves
- Power Cord

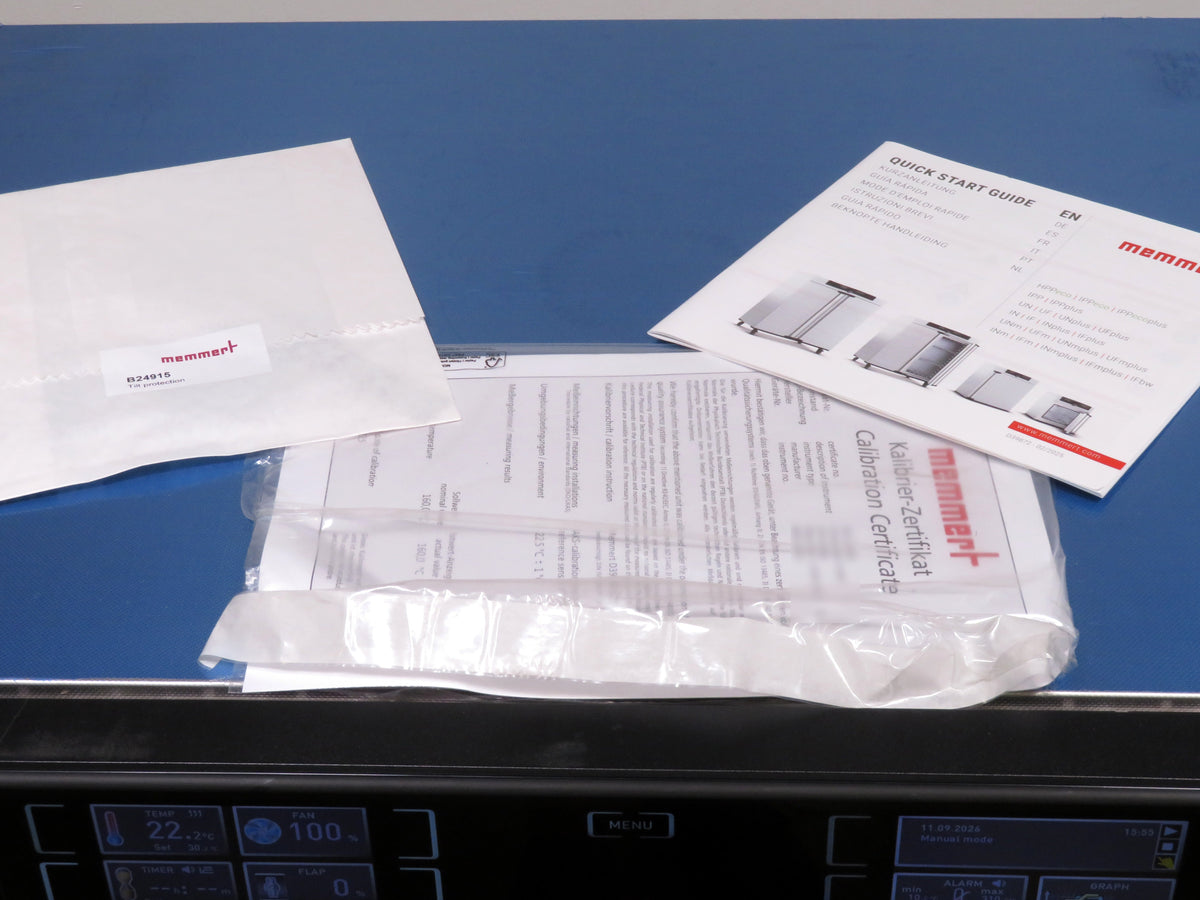

- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Memmert UF110plus Forced Circulation Oven Specifications
| Setting Temperature Range | +20 to +300°C |
| Working Temperature Range | Min 10°C above ambient up to +300°C |
| Volume | 108 L (3.8 cu.ft.) |
| Setting Resolution (temperature) | 0.1°C up to 99.9°C, 0.5°C from 100°C, and for actual values 0.1°C (LED) |
| Control Panel | TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. |
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
| Function SetpointWAIT | The process time does not start until the set temperature is reached |

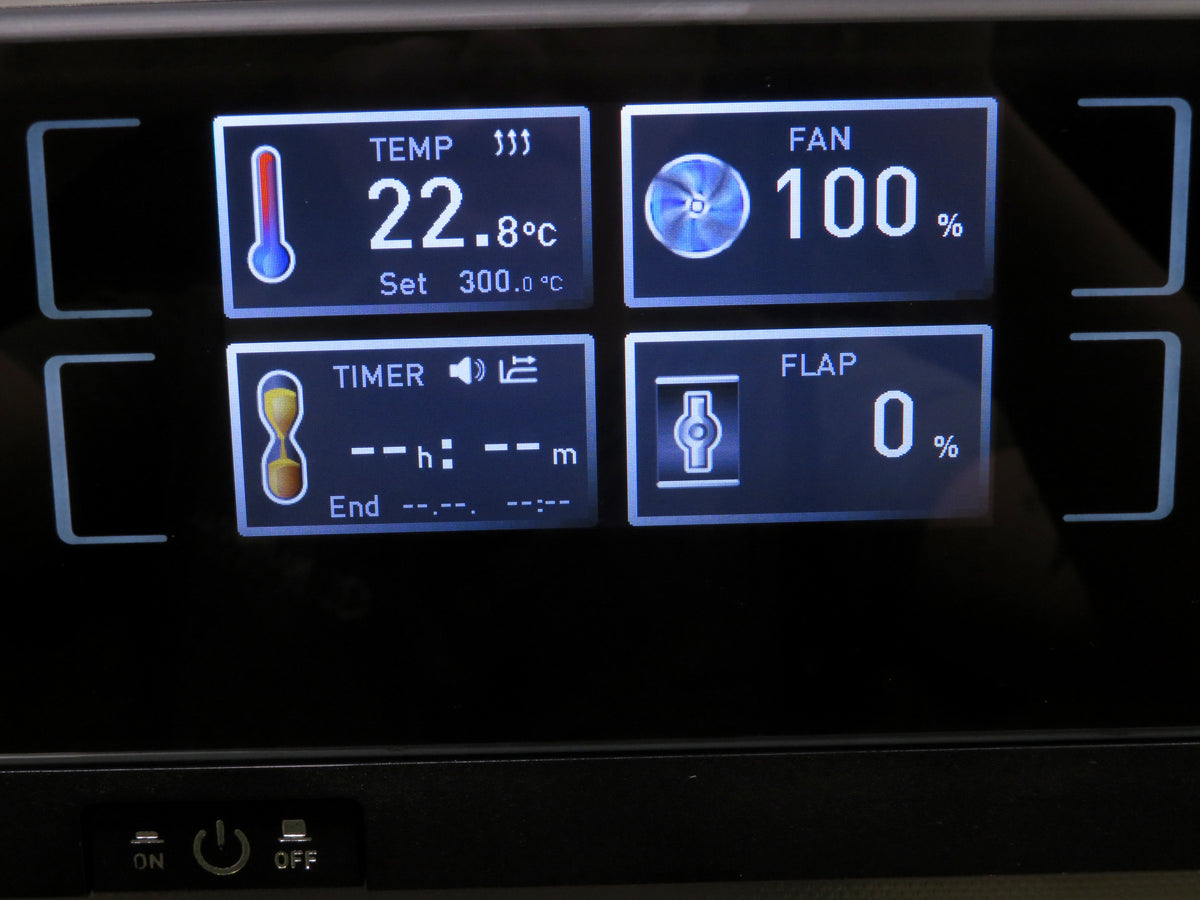

| Adjustable Parameters | Temperature (Celsius or Fahrenheit), fan speed, air flap position, program time, time zones, daylight savings time |
| Fan | Forced air circulation by quiet air turbine, adjustable in 10% steps for each segment individually |
| Fresh Air Admixture | Adjustment of pre-heated fresh air admixture by air flap control in 10% steps for each segment individually |

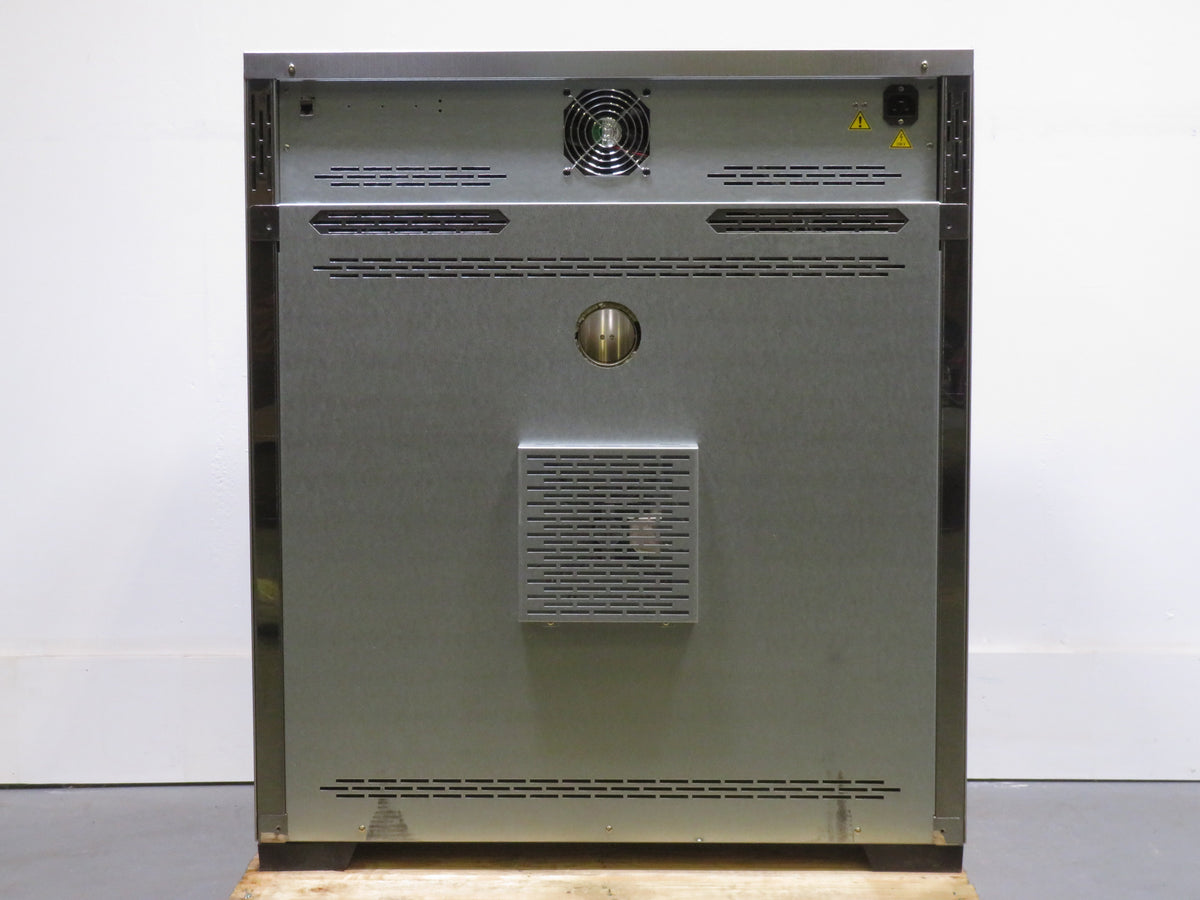

| Vent | Vent connection with restrictor flap |
| Temperature Control | Overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display |
| AutoSAFETY | Integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature |
| Interior | easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides |
| Max. Number of Shelves | 5 |
| Max. Loading of Chamber | 386.5 lbs |
| Max. Loading Per Shelf | 44 lbs |
| Interior Dimensions (WxHxD) | 22” x 18.9” x 15.8” (55.9 x 48.0 x 40.1 cm) |
| Exterior Dimensions (WxHxD) | 29.3” x 34.1” x 23” (74.4 x 86.6 x 58.4 cm) |
| Net Weight | Approx. 172 lbs |
| Electrical Data | 115 V, 50/60 Hz, approx. 1800 W |
- Verify power supply and PCB outputs are within specified voltage ranges
- Inspect display for any dim or dead pixels, replacing as needed to ensure visibility
- Confirm full functionality and responsiveness of all control buttons
- Examine all internal wiring for frays, cuts, or damage, ensuring secure and reliable connections
- Inspect door seals and gaskets for integrity, replacing any compromised components
- Evaluate door handle and locking mechanism for wear or issues, replacing if performance is impaired
- Inspect and clean internal fan; replace if performance does not meet requirements
- Calibrate set temperature using a NIST-traceable probe for precise accuracy
- Confirm functionality of over-temperature alarm and indicator light
- Verify internal outlet functionality, if applicable, to ensure it meets operational standards
- Inspect internal lighting for full functionality and brightness, if applicable
- Perform a cosmetic inspection to confirm the oven’s exterior and interior meet quality standards
Technician Inspection and Recertification Checklist: Ovens
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Verify power supply and PCB outputs are within specified voltage ranges | Completed | |
| Inspect display for dim or dead pixels; replace if needed | Completed | |
| Confirm full functionality of all control buttons | Completed | |
| Examine internal wiring for damage; ensure secure connections | Completed | |
| Inspect door seals and gaskets, replacing any compromised components | Completed | |
| Evaluate door handle and locking mechanism, replacing if worn | Completed | |
| Inspect and clean internal fan; replace if performance is insufficient | Completed | |
| Calibrate set temperature using a NIST-traceable probe | Completed | |
| Confirm over-temperature alarm and indicator light functionality | Completed | |
| Verify internal outlet functionality, if applicable | Completed | |
| Inspect internal lighting for full functionality and brightness | Completed | |
| Perform cosmetic inspection to confirm quality standards of exterior and interior | Completed |
