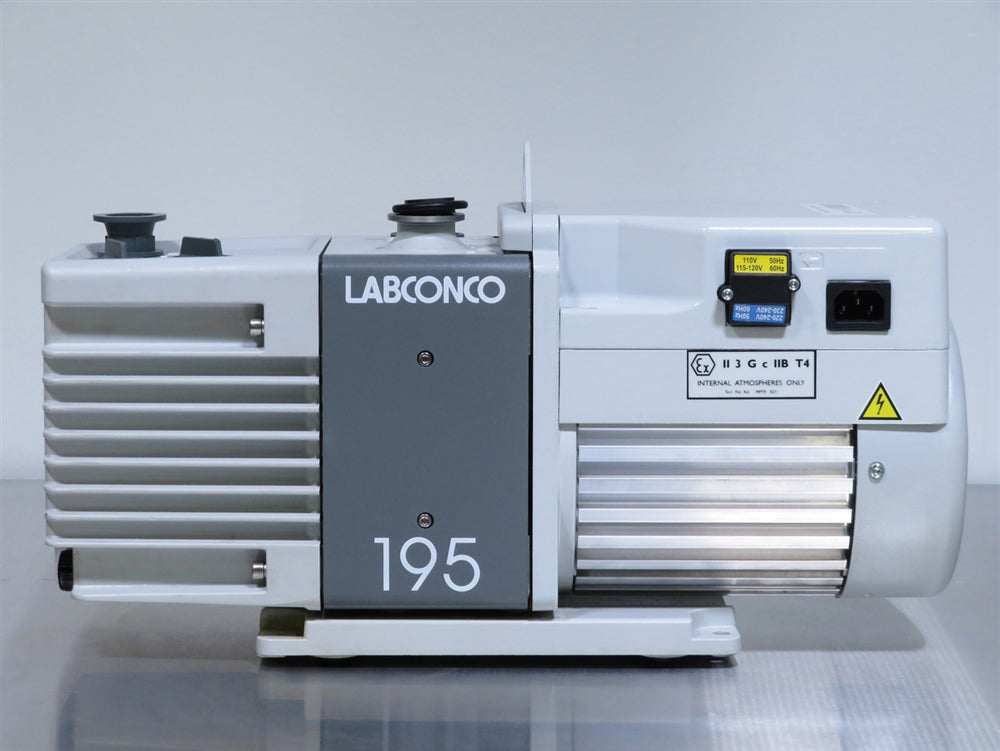

Labconco 195L Vacuum Pump
The Labconco 195L/m Vacuum Pump features 6.9 cfm (195L/min) displacement, 1.5x10-3 torr, Max. inlet pressure for water vapor: 29 torr, Max. water vapor pumping rate 0.48 lb/h, Oil capacity Max/Min: 0.75L/0.43L, Low noise level: 48 dbA. 115V.
All of our equipment is in excellent condition and is fully tested to perform at factory specifications before being shipped.
The Labconco 195L Vacuum Pump includes:
- Pump Oil
- Operator's Guide
- Power Cord
- Full 180 Day Parts and Labor Warranty
Labconco 195L Vacuum Pump Specifications
|
Displacement
|
6.9 cfm (195L/min)
|
|
Max vacuum
|
1.5 x 10^-3 torr
|
|
Inlet pressure for water vapor
|
29 torr
|
|
Max water vapor pumping rate
|
0.48 lb/h
|
|
Oil capacity Max/Min
|
0.75L/0.43L
|
|
Noise Level
|
48 dbA |
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
