Popular Alternative Choice
Edwards RV5 Rotary Vane Vacuum Pump
- RV series excels in vapor handling, ideal for wet pumping.
- Anti-suck back protection with 0.4s inlet valve response.
- Universal motor covers vast voltage and frequency ranges.
- Maintenance is easy: parts self-align without dismantling.
Brand New and 1 Year Warranty!

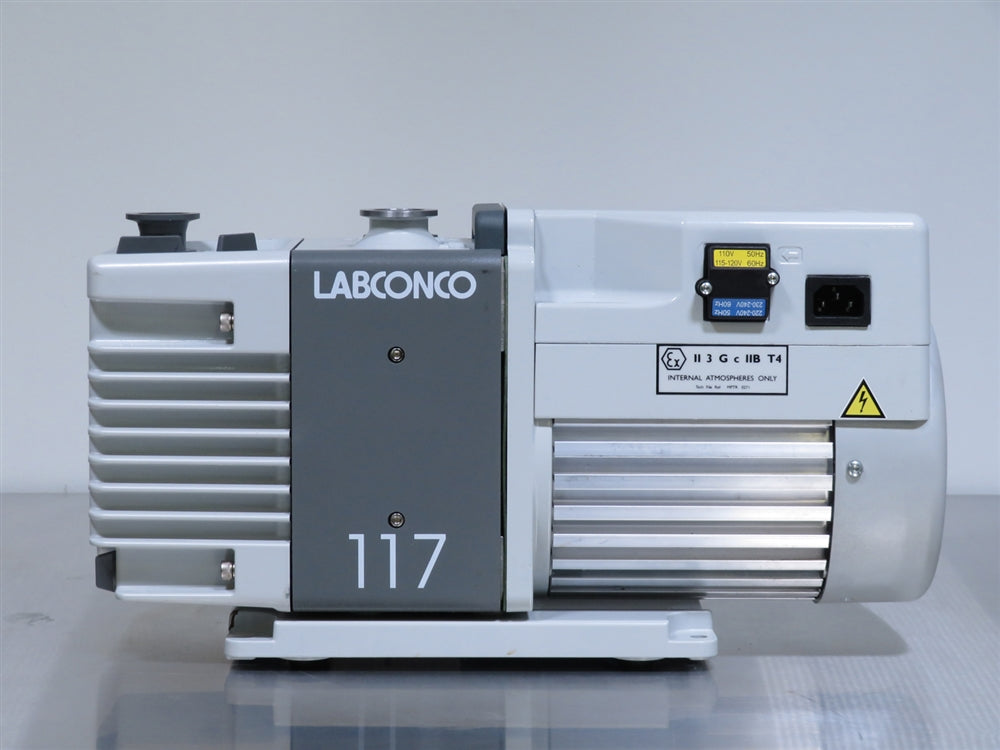

Labconco 117L Vacuum Pump
The Labconco 117L/m Vacuum Pump provides a reliable vacuum source with switchable high-throughput and high-vacuum modes. These two-stage, oil-sealed pumps with sliding vanes feature a three-position gas ballast for ultimate pressure control through closed, low flow, and high flow positioning. The pump is protected from thermal overload with enclosed fans for the electric motor and automatic restart function. The 117's inlet valve can prevent oil and/or air suckback in the event of system emergency oil or power loss.
All of our equipment is in excellent condition and is fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Labconco 117L Vacuum Pump includes:
The Labconco 117L Vacuum Pump includes:
- Pump Oil
- Operator's Guide
- Power Cord
- Full 180 Day Parts and Labor Warranty
Labconco 117L Vacuum Pump Specifications
|
Flow Rate |
117L/min (4.1 cfm) |
|
Horsepower |
0.37hp |
|
Dimensions (H x L x W) |
10.375 x 17 x 6.5 in |
|
Weight (without oil) |
21.5 kg (47.5 lbs) |
|
Oil Capacity |
0.7 L |
|
Recommended Oil |
Ultragrade 19 |
|
Inlet Flange |
NW25 |
|
Noise Level |
48 dBA @ 50Hz |
|
Operating Temperature |
12 to 40C |
|
Electrical Requirements |
115V, 50/60Hz |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
