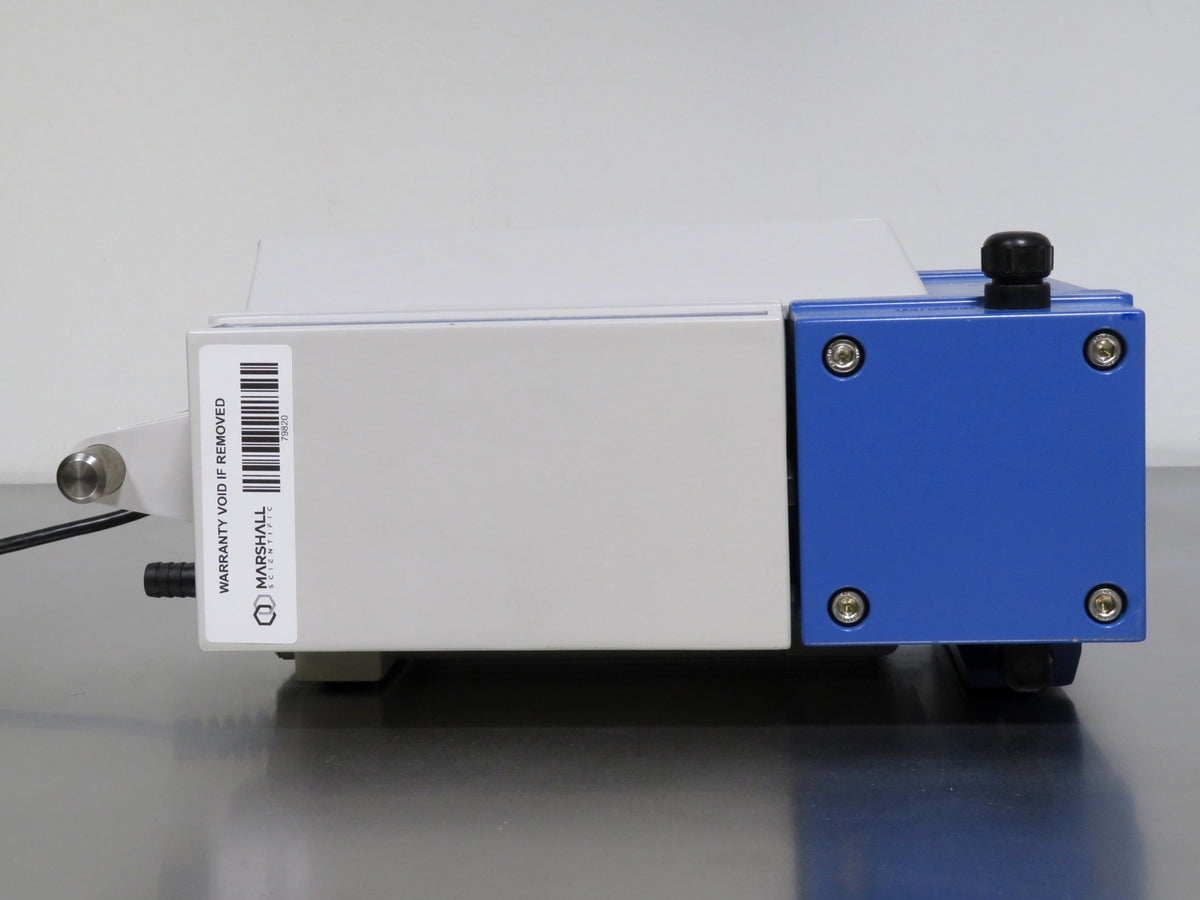

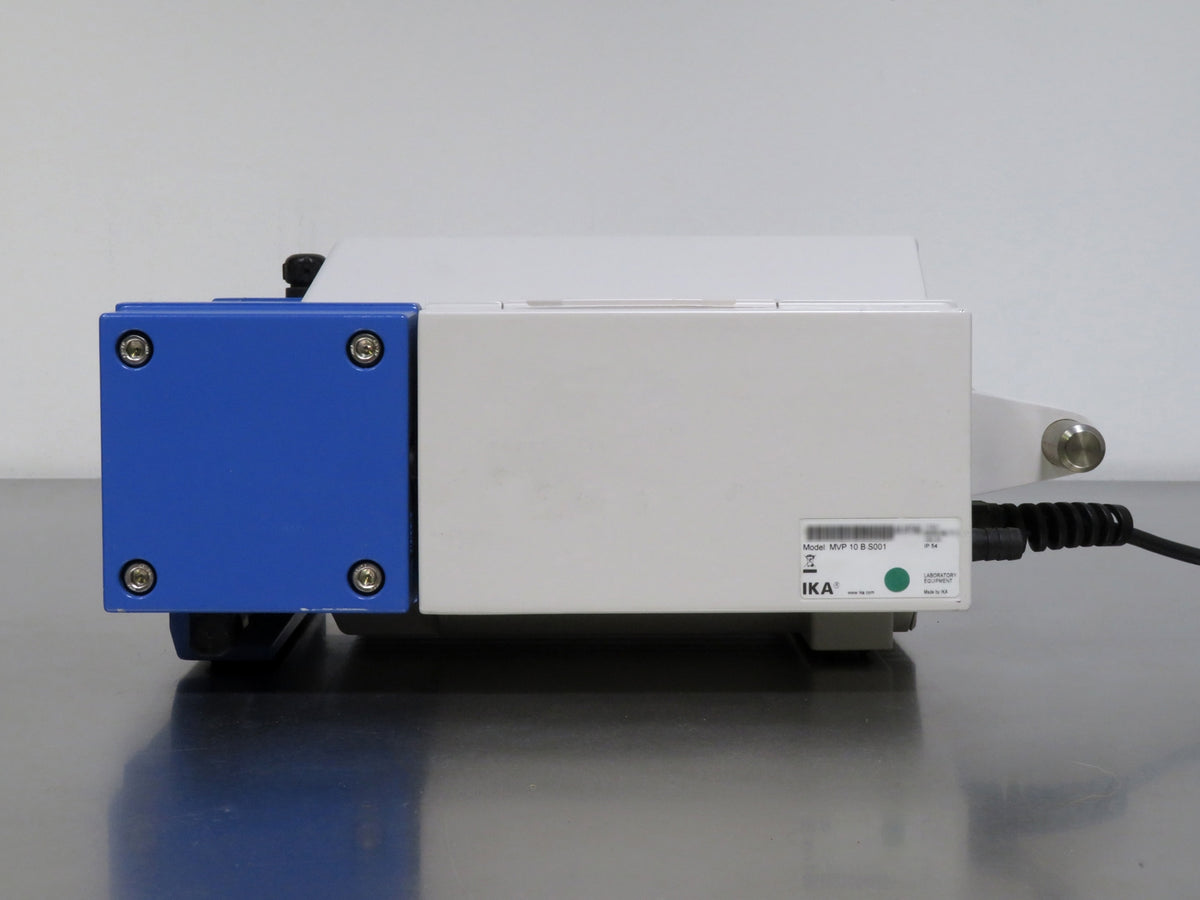

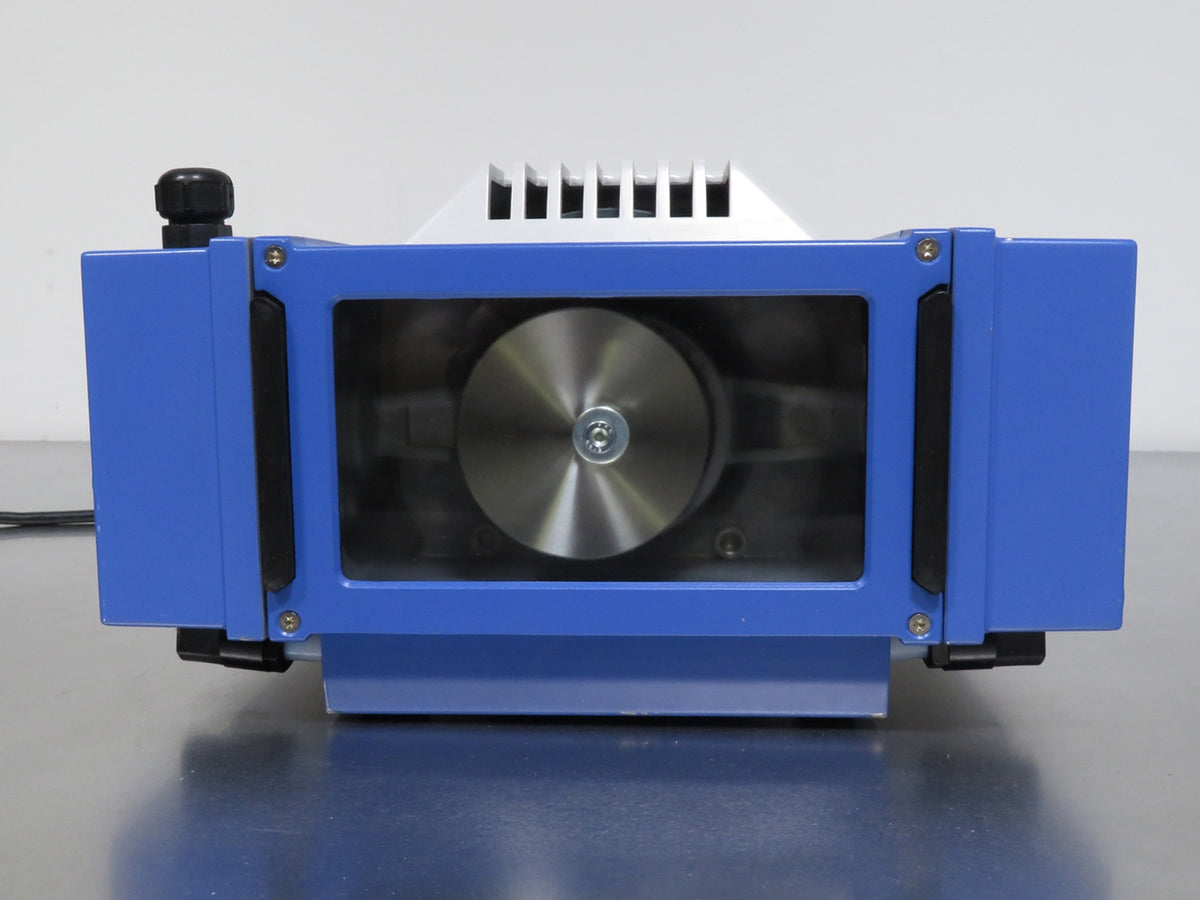

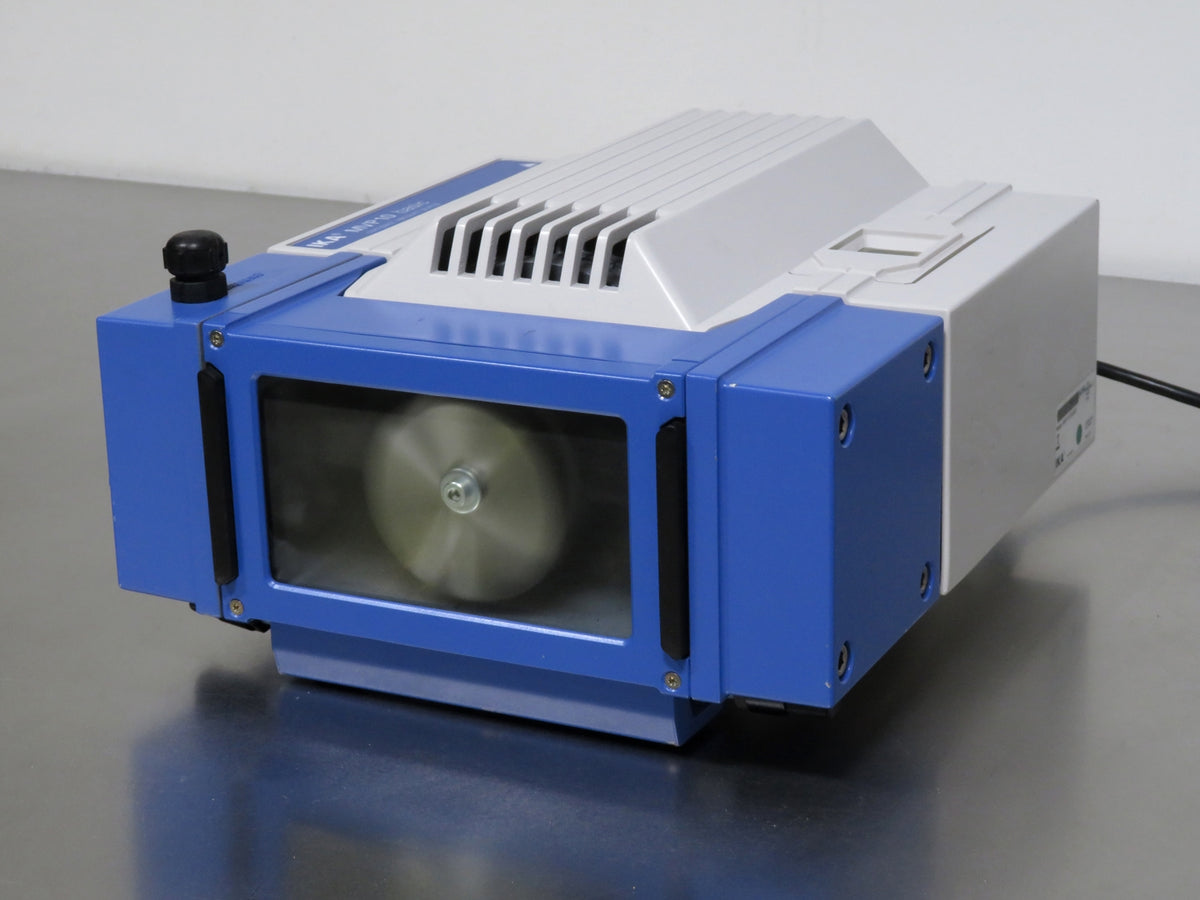

IKA MVP 10 Basic Diaphragm Vacuum Pump

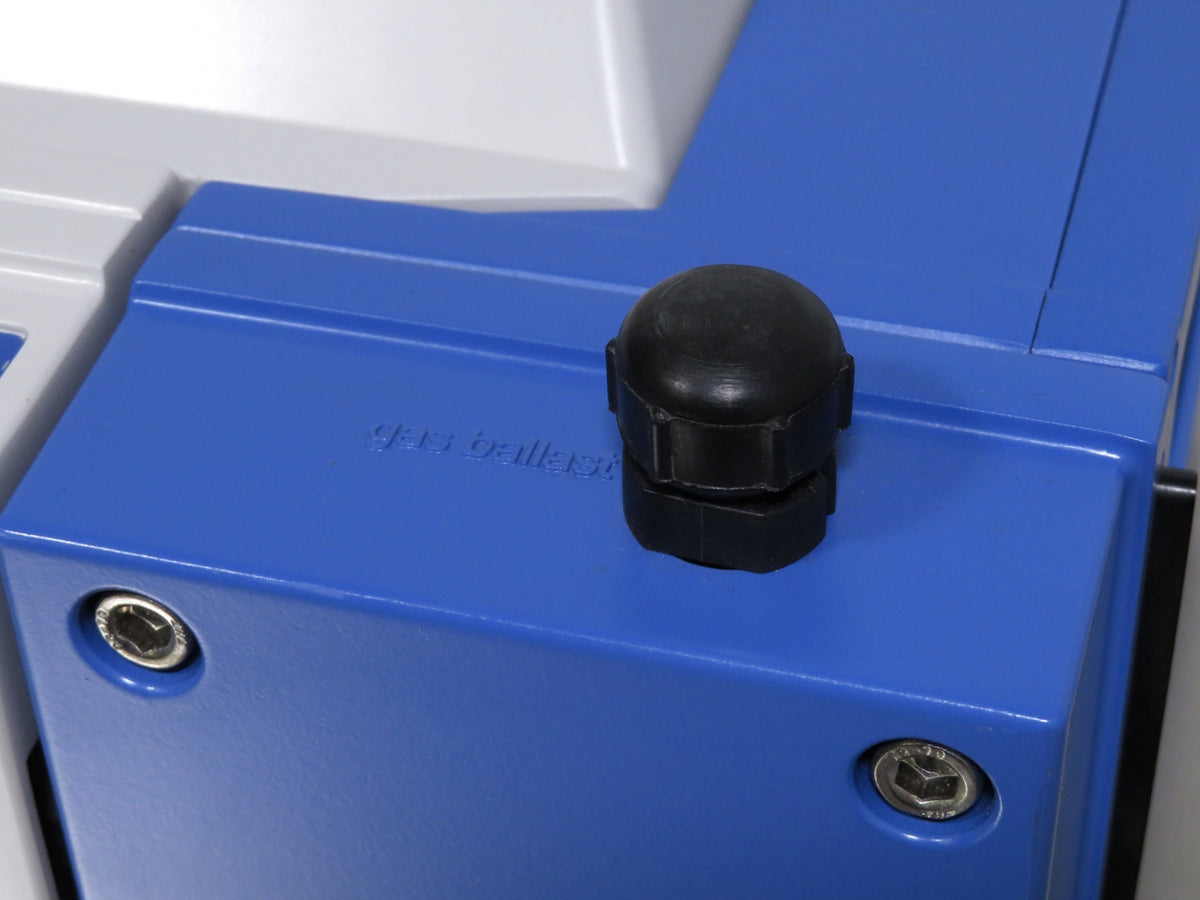

The IKA MVP 10 Basic Diaphragm Vacuum Pump is designed for dry, oil-free applications, offering a slimline and compact structure that ensures a long service life. It features easy servicing and simple maintenance, making it highly efficient for regular use. This pump is particularly resistant to chemicals, thanks to its construction with all gas-contacting parts made from PTFE or PTFE compounds. It boasts a maximum pumping speed of 28.3 L/min (1.7 m³/h) and achieves an ultimate vacuum of 7 mbar (5.25 Torr), which can extend to 15 mbar (11.25 Torr) with gas ballast. Additionally, the pump has two suction levels, utilizes two cylinders, and operates within an input pressure range of 7 to 1050 mbar. Connections for inlet and outlet are both 10 mm, and it operates at a maximum motor speed of 1,680 RPM with a noise level of 65 dBA, ensuring quiet operation.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The IKA MVP 10 Basic Diaphragm Vacuum Pump includes:
The IKA MVP 10 Basic Diaphragm Vacuum Pump includes:
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
IKA MVP 10 Basic Diaphragm Vacuum Pump Specifications
| Maximum Pumping Speed | 28.3 L/min (1.7 m 3h) |
| Ultimate Vacuum | 7 mbar (5.25 Torr) |
| Ultimate Vacuum with Gas Ballast | 15 mbar (11.25 Torr) |
| Suction Levels | 2 |
| Cylinders | 2 |
| Input Pressure | 7 to 1050 mbar |

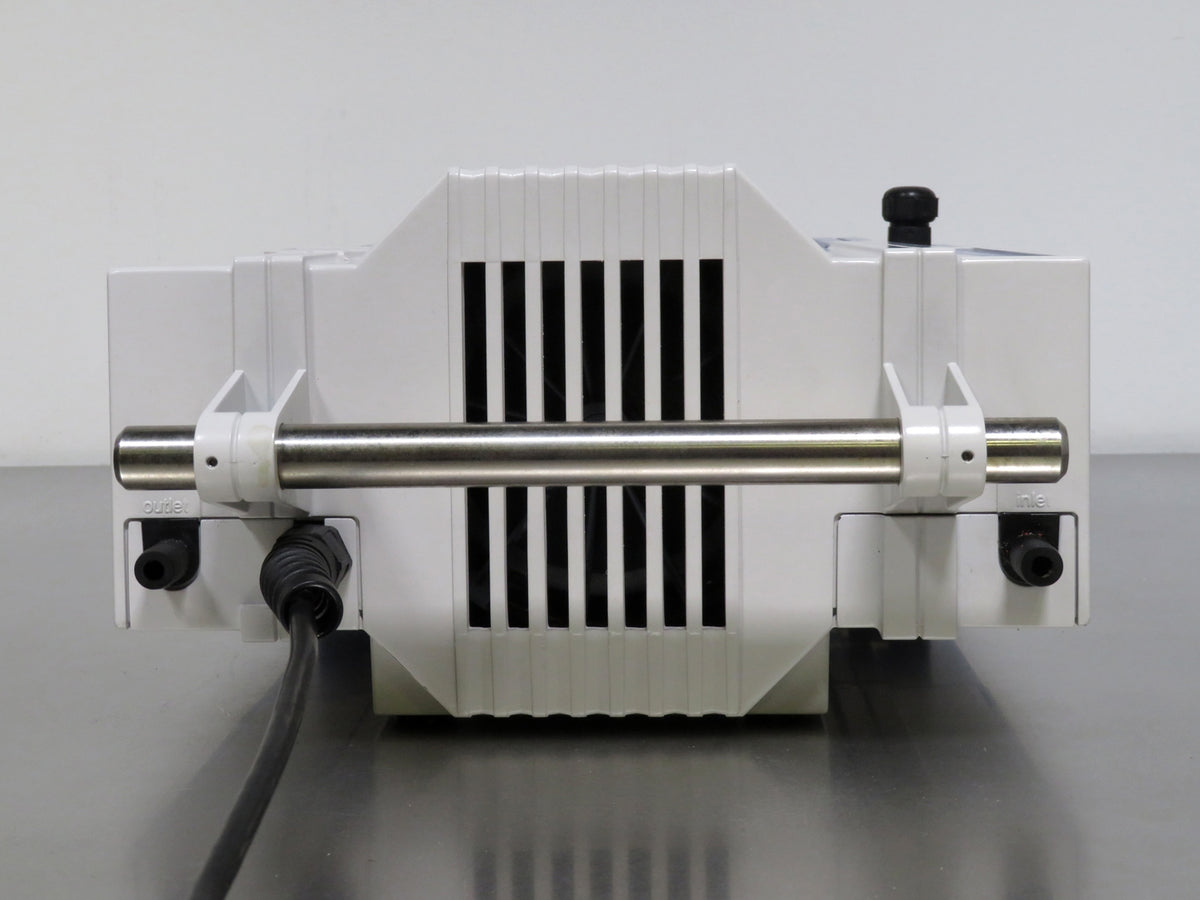

| Inlet Connection | 10 mm |
| Outlet Connection | 10 mm |
| Maximum Motor Speed | 1,680 RPM |
| Sound Level | 65 dBA |
| Dimensions (W x H x D) | 9.6 x 6.1 x 12.6 in. (24.5 x 15.5 x 32 cm) |
| Weight | 25.4 lb. (11.5 kg) |
| Electrical Requirements | 115V, 50/60Hz, 180W |
Vacuum Pump Inspection and Recertification Checklist
- Confirm Power Supply and Pcb Are Outputting Correct Voltages
- Empty Existing Oil in Unit and Inspect for Particulates (If Applicable)
- Confirm Relays Are Functioning and Replace as Needed
- Fill With New Pump Oil (If Applicable)
- Clean Internal Diaphragms and Check Valves. Replace as Needed (If Applicable)
- Confirm Appropriate Noise Levels for Pump and Test with A Decibel-Meter
- Evaluate Pump Oil Through Viewing Glass (If Applicable)
- Confirm Pump Is Able to Reach Absolute Vacuum with Independent Vacuum Gauge
- Confirm Pump Interfaces with External Controllers (If Applicable)
- Ensure Cosmetics Are Acceptable
Click Here to View the Technical Specs for the IKA MVP 10 Basic Diaphragm Vacuum Pump
