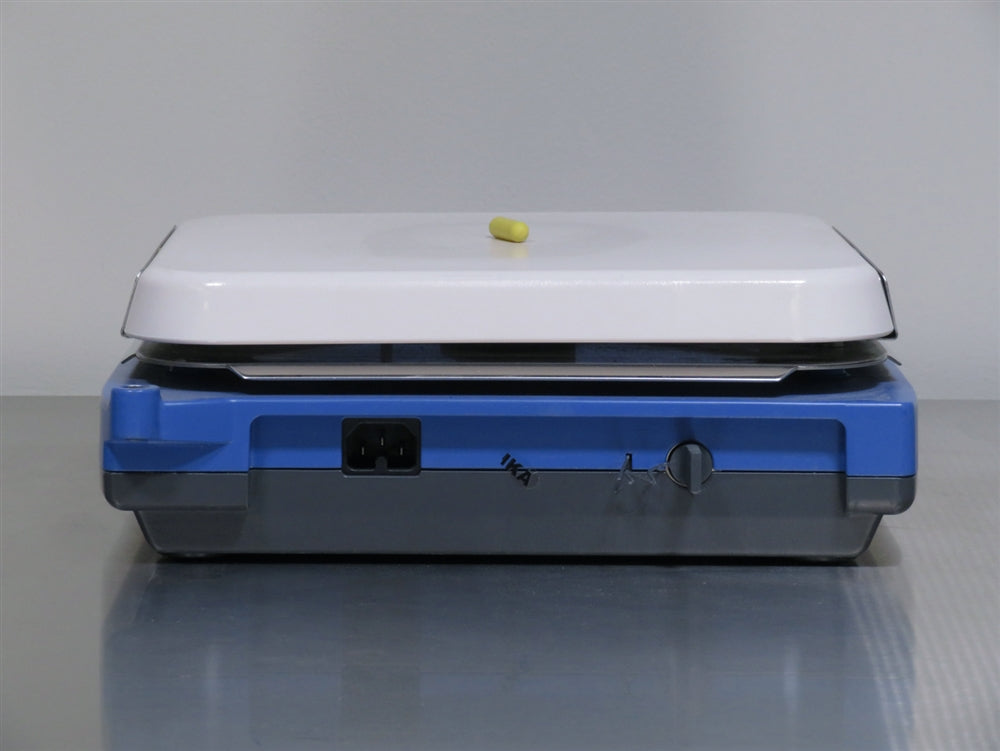

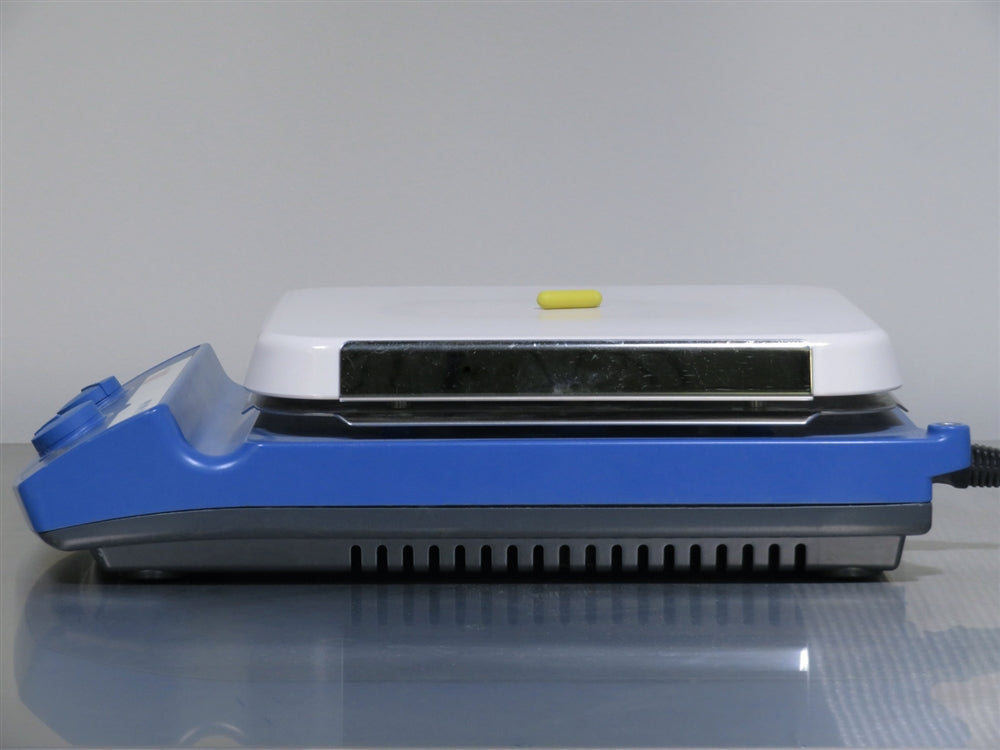

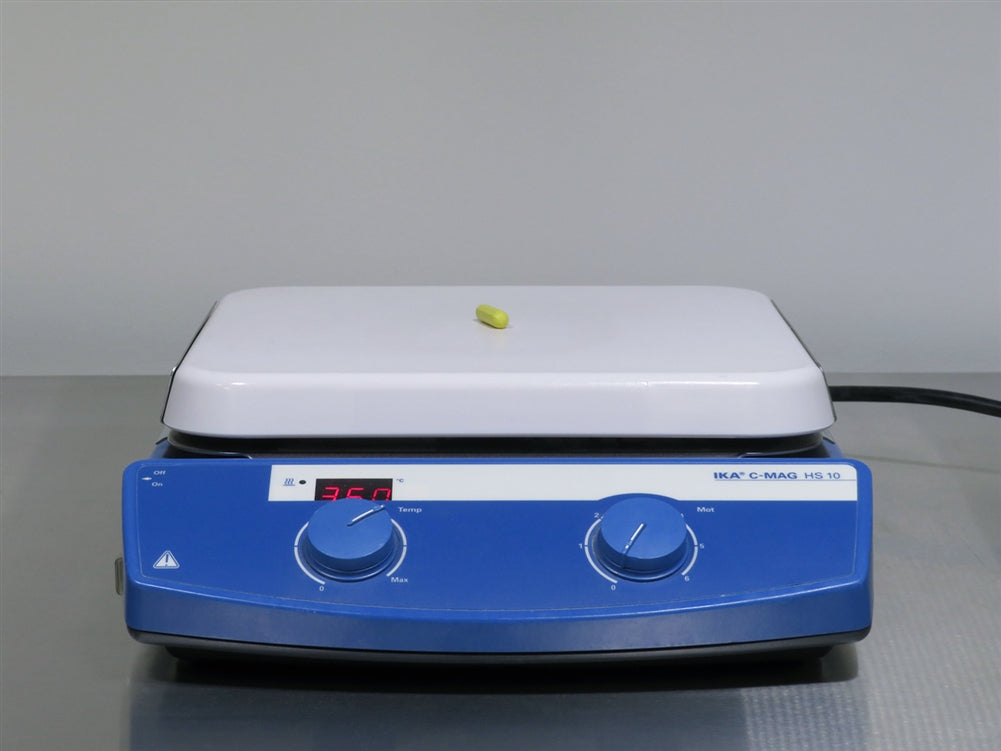

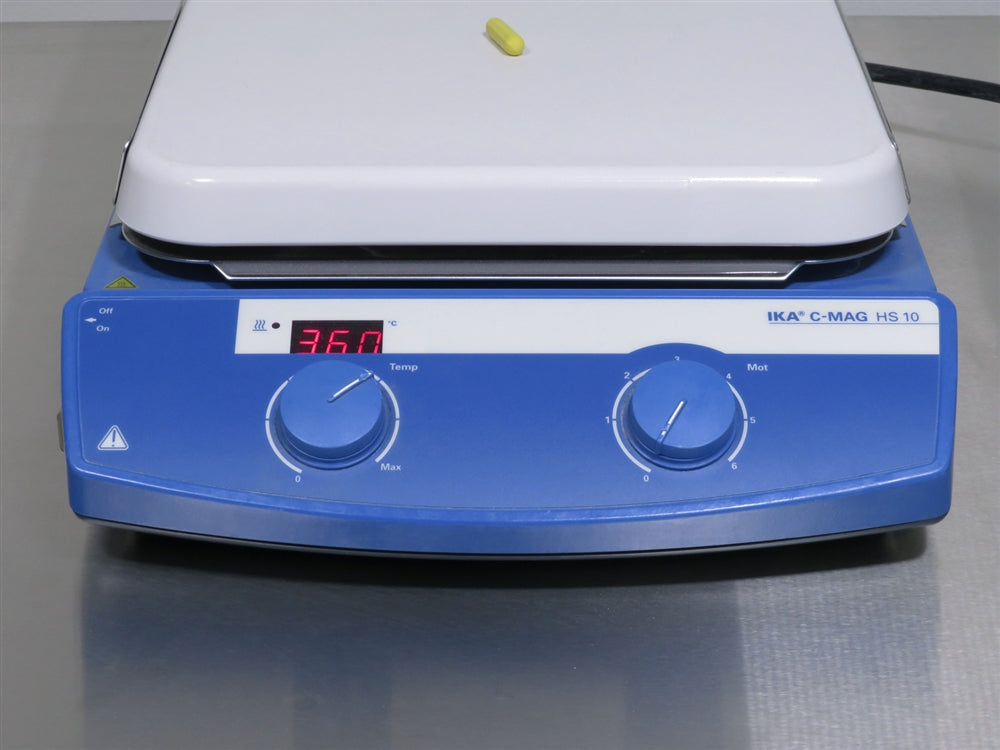

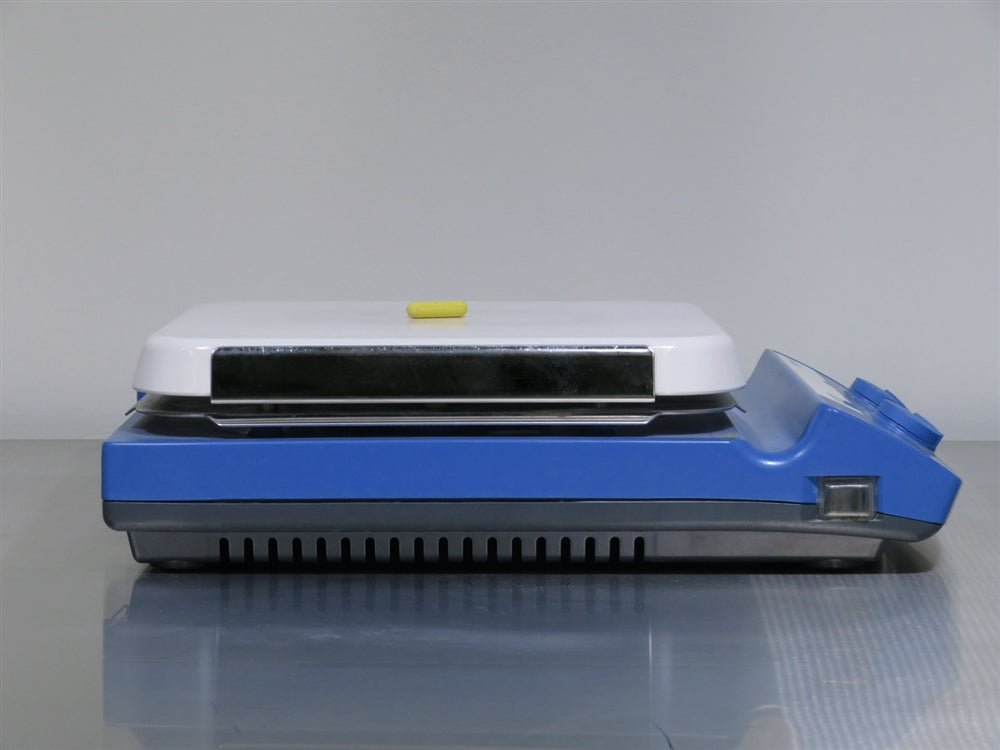

IKA C-MAG HS 10 Hot Plate Stirrer
The IKA C-MAG HS 10 Hot Plate Stirrer is a powerful magnetic hot plate stirrer equipped with a high-performance motor for stirring quantities of up to 15L (H2O). The C-MAG HS 10 features a temperature setting range from 50C to 550C, and includes a digital LED display for the set temperature as well any error codes that may appear. The top plate is also comprised of a ceramic material, providing excellent chemical resistance for a multitude of different applications. The C-MAG HS 10 is also equipped with a fixed safety circuit, which shuts off the heater if temperature rises above 550C. Users may also utilize the DIN 12878 bushing for connecting a contact thermometer, enabling precise temperature control.
All of our equipment is in excellent condition and fully tested before shipping.
INCLUDED:
The IKA C-MAG HS 10 Hot Plate Stirrer includes:
The IKA C-MAG HS 10 Hot Plate Stirrer includes:
- Operator's Guide
- Power Cord
- Full 180 Day Parts and Labor Warranty
IKA C-MAG HS 10 Hot Plate Stirrer Specifications
|
Temperature Range |
50C to 500C |
|
Stirrer Speed |
100 to 1,500 RPM |
|
Platform Size |
10.2 x 10.2 in (26 x 26 cm) |
| Stirring Quantity (H2O) | 15L |
| Platform Material | Ceramic |
| Stirring Bar Maximum Length | 3.14 in. (8 cm) |
| Temperature Display | LED |
| Overall Dimensions (W x H x D) | 11.8 x 4.1 x 16.3 in. (30 x 10.5 x 41.5 cm) |
| Weight | 13.2 lbs (6 kg) |
|
Electrical Requirements |
120V, 50/60Hz, 1520W |
Hot Plate Stirrers Inspection and Recertification Checklist
- Inspect Display and Replace Any Dim/Dead Pixels (If Applicable).
- Inspect Ceramic Top for Any Cracks and Replace If Necessary.
- Inspect Functionality of All Buttons/Knobs.
- Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable).
- Inspect Internal Wiring Inside Case.
- Clean Internal Parts and Vent Any Internal Debris.
- Check Feet to Confirm Plate Sits Properly Balanced.
- Replace All Parts That Were Removed on Internal Inspections.
- Confirm Temperature with NIST Traceable Temperature Probe (If Applicable).
- Ensure Cosmetics Are Acceptable.
Technician Inspection and Recertification Checklist: Hot Plate Stirrers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect Display and Replace Any Dim/Dead Pixels (If Applicable) | Completed | |
| Inspect Ceramic Top for Any Cracks and Replace If Necessary | Completed | |
| Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable) | Completed | |
| Inspect Internal Wiring Inside Case | Completed | |
| Clean Internal Parts and Vent Any Internal Debris | Completed | |
| Check Feet to Confirm Plate Sits Properly Balanced | Completed | |
| Replace All Parts That Were Removed on Internal Inspections | Completed | |
| Confirm Temperature with NIST Traceable Temperature Probe (If Applicable) | Completed |
