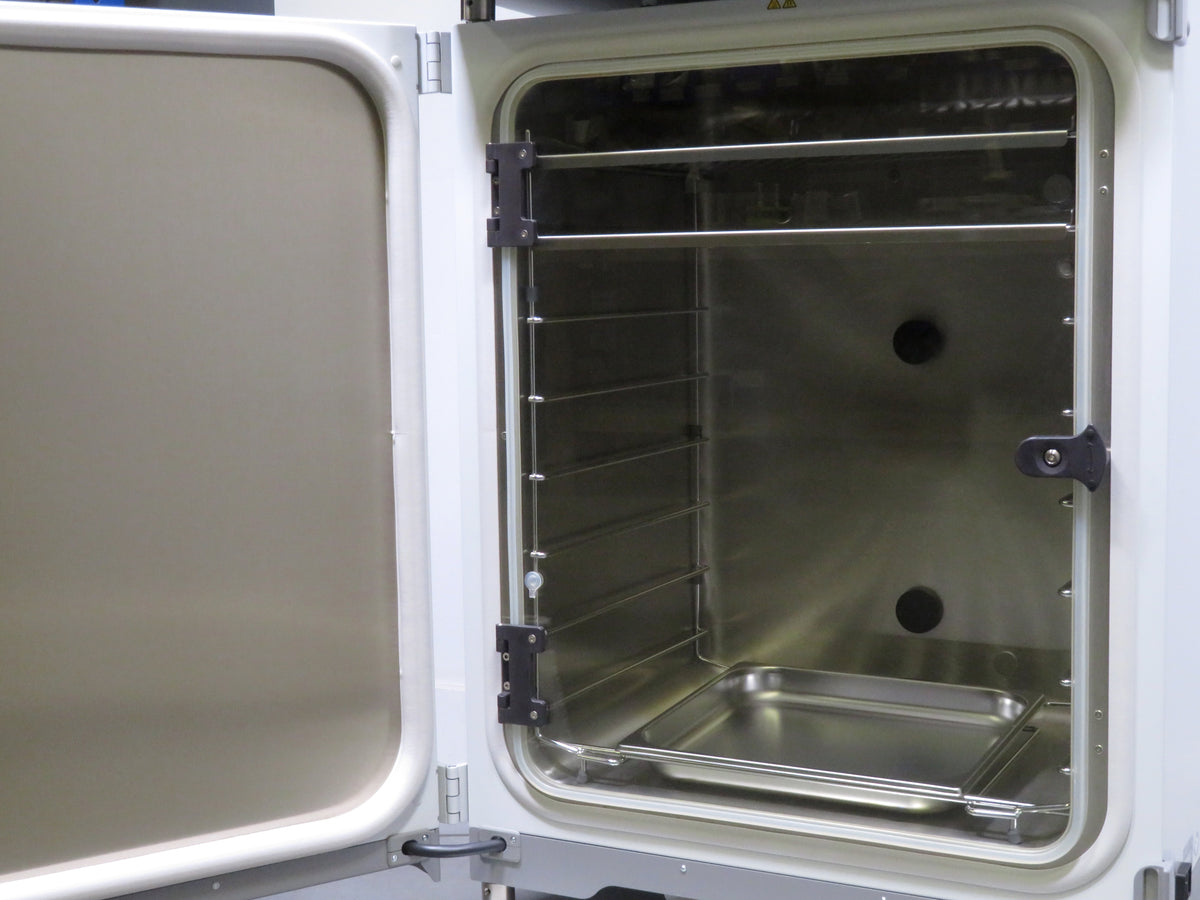

Eppendorf CellXpert C170i Incubator Dual Stack
Capacity
167 L (5.9 cu. ft.) per Incubator
Temperature Range
4°C above ambient to 50°C
Temperature Uniformity
±0.3°C at 37°C and 22°C ambient
- Dual-stack configuration provides two independently operated incubators while maximizing cell culture capacity within a compact laboratory footprint
- Fanless chamber design promotes a uniform atmosphere while eliminating internal fans, ducts, and covers that can complicate cleaning
- Dual-channel infrared CO₂ sensing provides reliable atmosphere control for demanding and sensitive cell culture workflows
- Rapid temperature and CO₂ recovery following door openings helps quickly restore stable culture conditions
- 180°C sterilization routine and seamless stainless-steel chambers support effective contamination prevention and straightforward decontamination
- Low CO₂ consumption and fanless construction help reduce ongoing operating costs and eliminate replaceable fan-associated HEPA filters

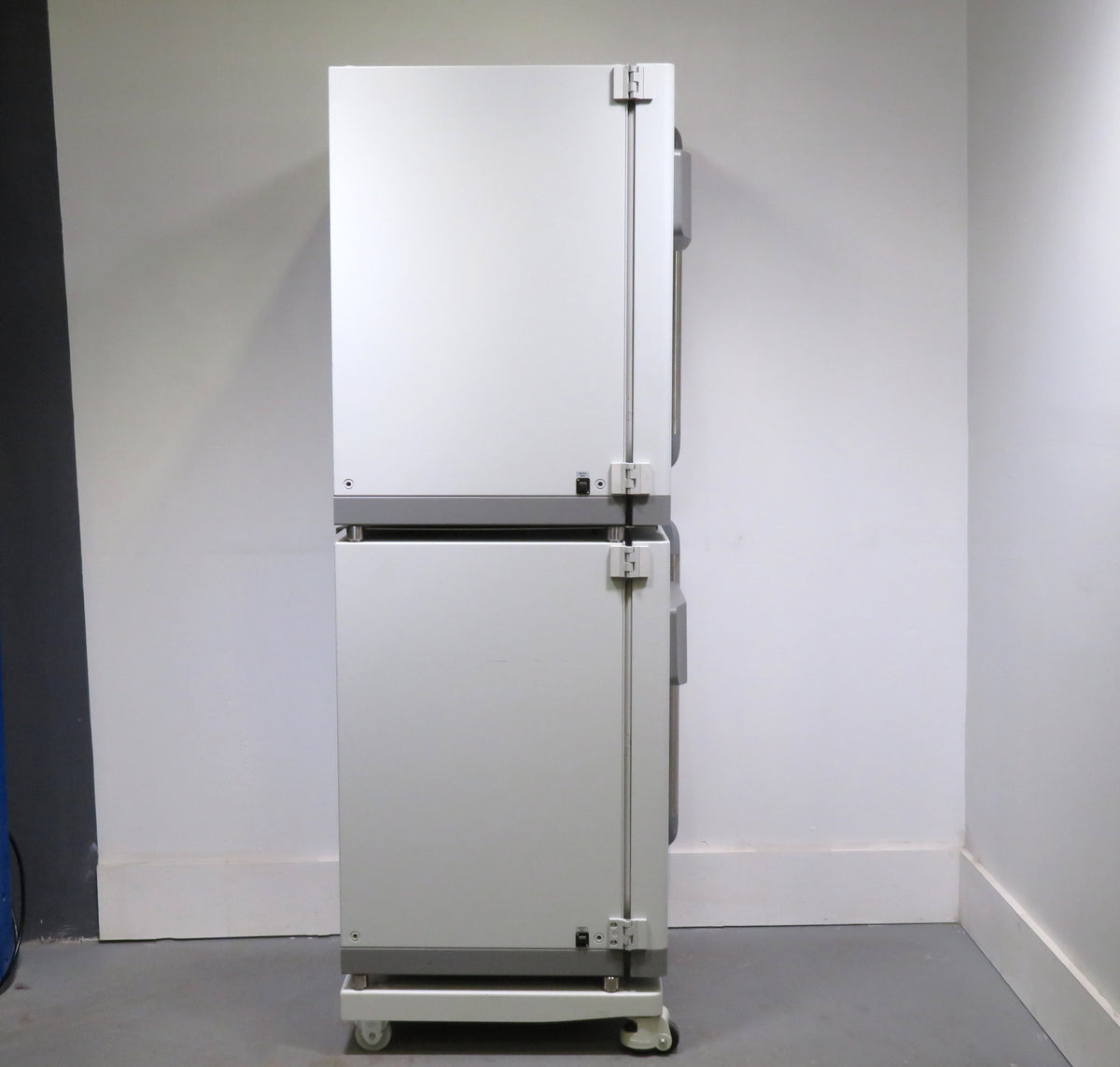

The Eppendorf CellXpert C170i Incubator Dual Stack combines two CellXpert C170i CO₂ incubators in a stacked configuration, providing increased cell culture capacity while making efficient use of laboratory floor space. Each incubator operates independently, allowing separate cultures or workflows to be maintained within the same footprint. The fanless chamber design promotes a uniform atmosphere while eliminating internal fans, ducts, and covers that can complicate cleaning, while dual-channel infrared CO₂ sensors provide reliable atmosphere control.
Designed for demanding cell culture environments, each C170i features a 180°C sterilization routine, and seamless stainless-steel chamber to support effective contamination prevention and straightforward routine cleaning. Rapid temperature and CO₂ recovery following door openings helps maintain stable culture conditions during frequent access, while the fanless design maximizes usable interior space and eliminates the need for replaceable fan-associated HEPA filters. The dual-stack configuration is well suited for laboratories looking to expand cell culture capabilities without dedicating additional floor space to separate incubators. Low CO₂ consumption helps control ongoing operating costs.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Eppendorf CellXpert C170i Incubator Dual Stack includes:
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Eppendorf CellXpert C170i Incubator Dual Stack Specifications
| Capacity | 167 L (5.9 cu. ft.) per Incubator |
| Temperature Range | 4°C above ambient to 50°C |
| Temperature Accuracy | ±0.4°C at 37°C and 22°C ambient |
| Temperature Stability | ±0.1°C at 37°C and 22°C ambient |
| Temperature Uniformity | ±0.3°C at 37°C and 22°C ambient |
| Temperature Control Increment | 0.1°C |
| CO₂ Range | 0.1–20% |
| CO₂ Accuracy | ±0.3% at 5% CO₂, 37°C, and 22°C ambient |
| CO₂ Stability | ±0.1% at 5% CO₂, 37°C, and 22°C ambient |
| CO₂ Uniformity | ±0.1% at 5% CO₂, 37°C, and 22°C ambient |
| CO₂ Control Increment | 0.1% |
| CO₂ Sensor Type | NDIR sensor |
| Required Gas Pressure | 0.1 MPa (1 bar, 14.5 psi), operating range 0.05–0.15 MPa (0.5–1.5 bar, 7.2–21.8 psi) |
| High-Temperature Disinfection | 180°C for 2 hours |
| High-Temperature Disinfection Cycle Duration | Approx. 14 hours |
| Dimensions (W × D × H) | 28.3 x 28.1 x 76.7 in. (71.8 x 71.5 x 194.6 cm) |
| Weight | 472 (214), plus stacking hardware |
| Electrical Requirements | 100–127 V, 50/60 Hz, 11.5 A, 1150 W per incubator |
- Inspect the display for any dim, flickering, or dead pixels, replacing any affected areas to maintain full readability and operational clarity
- Thoroughly examine external regulators for any signs of damage, wear, or malfunction (if applicable), replacing any compromised parts
- Inspect temperature, CO₂, and H₂O sensors (if applicable), ensuring each sensor is functioning correctly and accurately reporting conditions
- Conduct a detailed inspection of all internal wiring for frays, tears, or breakages; replace any compromised wires to ensure safe and reliable connections
- Verify that software settings align with the internal components and calibration specifications, adjusting configurations as needed for accurate operation
- Inspect and clean the fan, ensuring it is free from dust or obstructions; replace if performance is below required standards
- Examine wheels and leveling mounts for structural integrity, ensuring proper balance and stability for safe operation
- Inspect door gaskets and latches for any signs of wear or damage, replacing if necessary to maintain a secure seal and optimal environmental control
- Calibrate temperature accuracy at 37°C using a NIST-traceable probe, confirming it meets required tolerances
- Calibrate CO₂ level to 5% using a Fyrite combustion test kit (if applicable), ensuring precise atmospheric conditions
- Monitor temperature and CO₂ stability over a 24-hour period, verifying consistent operation within specified ranges
- Conduct a thorough cosmetic inspection to confirm all external surfaces and components meet quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Incubator
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Inspect display for dim, flickering, or dead pixels; replace for readability | Completed | |
| Examine external regulators for damage or malfunction; replace compromised parts | Completed | |
| Inspect temperature, CO₂, and H₂O sensors for correct function and accuracy | Completed | |
| Inspect internal wiring for frays, tears, or breakages; replace compromised wires | Completed | |
| Verify software settings align with components and calibration specs; adjust if needed | Completed | |
| Clean fan and remove dust/obstructions; replace if performance is substandard | Completed | |
| Examine wheels and leveling mounts for structural integrity and balance | Completed | |
| Inspect door gaskets and latches for wear or damage; replace to maintain seal | Completed | |
| Calibrate temperature at 37°C with NIST-traceable probe to confirm accuracy | Completed | |
| Calibrate CO₂ level to 5% with Fyrite test kit for atmospheric precision | Completed | |
| Monitor temperature and CO₂ stability over 24-hour period to verify consistency | Completed | |
| Conduct cosmetic inspection to confirm quality of external surfaces and components | Completed |
