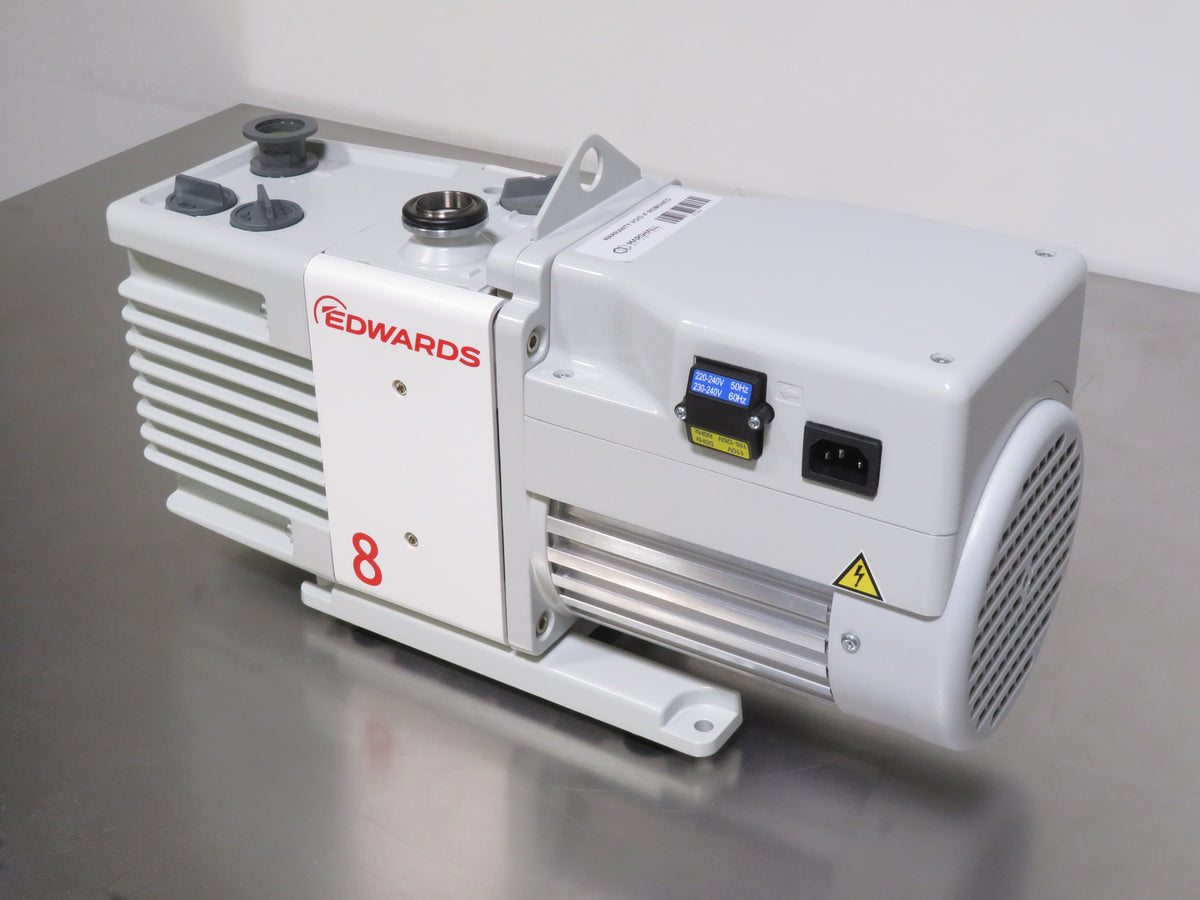

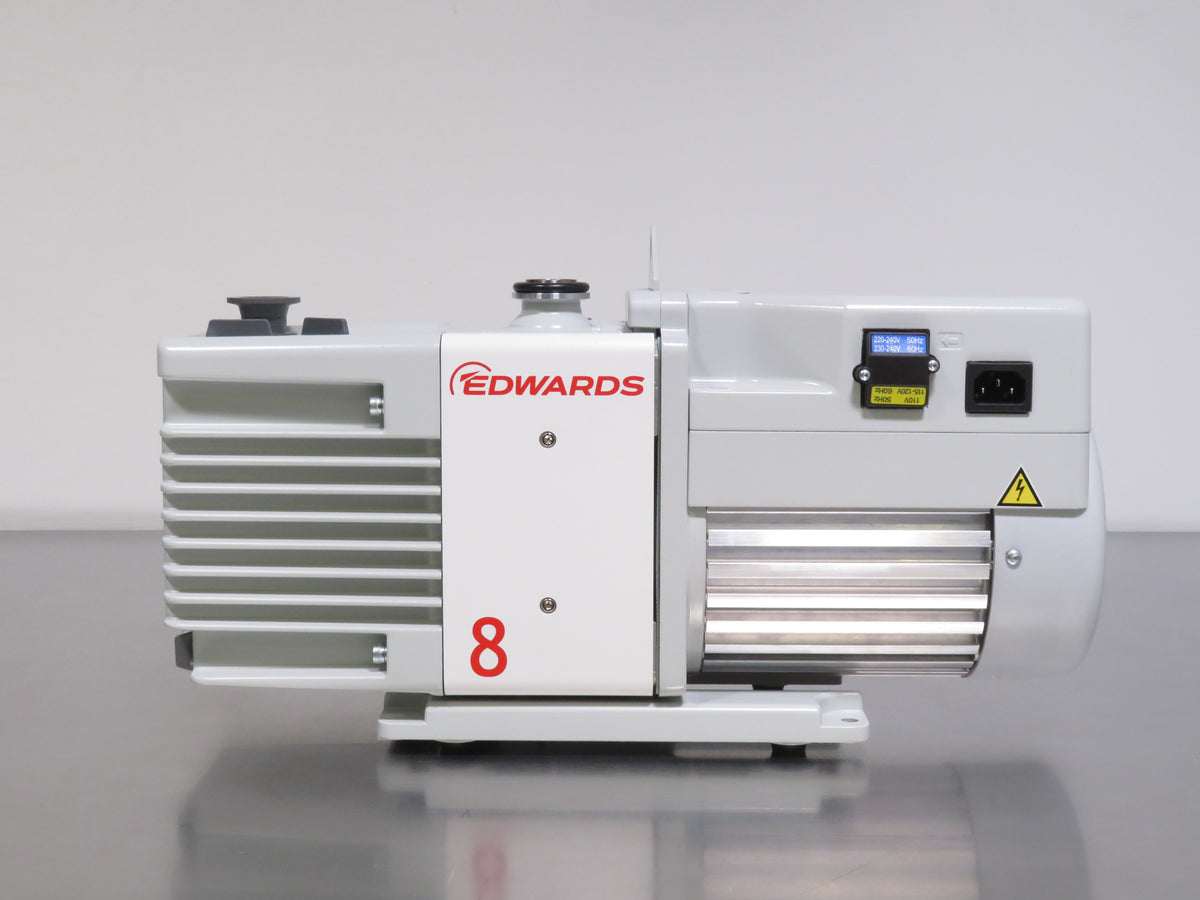

Edwards RV8 Rotary Vane Vacuum Pump
Displacement
60 Hz: 1.7 m3h-1 / 6.9ft3min-1
Speed (Pneurop 6602)
60Hz: 10 m3h-1 / 5.9 ft 3min-1
Ultimate pressure
2 x 10-3 mbar / 1.5 x 10-3 Torr
- The RV is a truly versatile pump for operation throughout for your operations, perfect for wet applications, dusty applications and clean dry applications.
- The RV series of pumps has the highest vapour handling capacity of any rotary vane pump. This is ideally suited for your wet pumping applications such as freeze drying, extraction, filtration and gel drying.
- The best-in-class anti-suck back protection prevents dust or oil mist from entering your system. The fast-acting automatic inlet valve acts within 0.4 seconds.
- The universal motor in the pump covers the widest possible voltage and frequency range from a single motor.
- You can service and replace parts without dismantling the pump mechanism. All parts self-align, eliminating the need for special assembly.

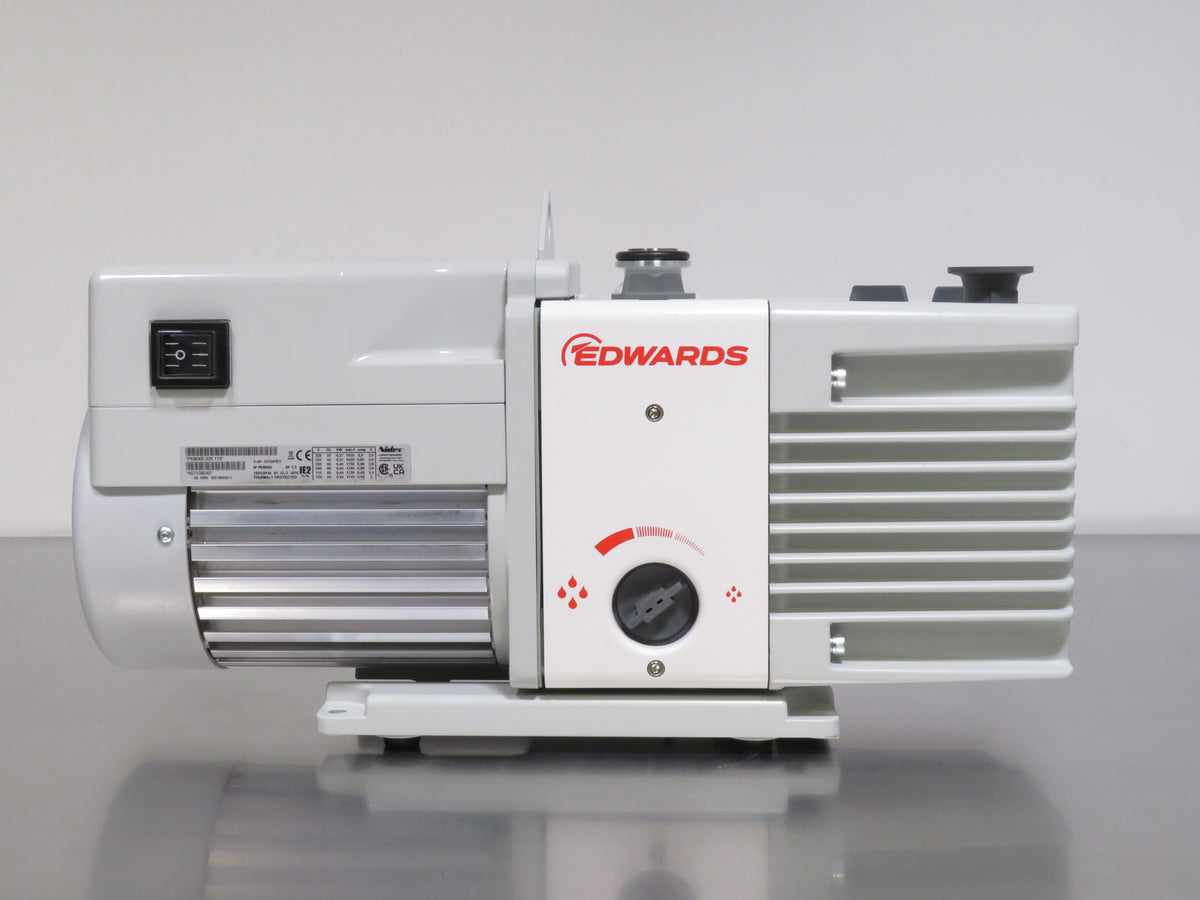

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With over 300,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications. All RV pumps are approved to UL and CSA standards by an external test house and feature our unique mode selector switch, meaning one model is suitable for both high vacuum or high throughput applications. If you require a different voltage or model, please inquire with our customer service team.
The Edwards RV8 Rotary Vane Vacuum Pump includes:
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Edwards RV8 Rotary Vane Vacuum Pump Specifications
| Displacement | 50Hz: 9.7 m3h-1 / 5.7 ft 3min-1 60 Hz: 1.7 m3h-1 / 6.9ft3min-1 |
| Speed (Pneurop 6602) | 50Hz: 8.5 m3h-1 / 5 ft 3min-1 60Hz: 10 m3h-1 / 5.9 ft 3min-1 |
| Ultimate pressure | 2 x 10-3 mbar / 1.5 x 10-3 Torr |
| Ultimate pressure GB I | 3 x 10-2 mbar / 2.3 x 10-2 Torr |
| Ultimate pressure GB II | 6 x 10-2 mbar / 4.6 x 10-2 Torr |
| Ultimate pressure with Fomblin® | 2 x 10-2 mbar / 1.5 x 10-2 Torr |
| Max inlet pressure for water vapour | 38 mbar / 28.5 Torr |
| Max water vapour pumping rate – GB I | 60 gh-1 |
| Max water vapour pumping rate – GB II | 220 gh-1 |
| Max allowed outlet pressure | 0.2 bar gauge / 2.8 psig |
| Max allowed inlet and gas ballast pressure | 0.5 bar gauge / 7 psig |
| Motor power 50/60Hz | 450 / 550W |
| Power connector 1-ph | IEC EN60320 C13 |
| Nominal rotation speed 50/60Hz | 1500 / 1800rpm |
| Oil capacity min/max | 0.45 / 0.75 litres |
| Recommended oil | Ultragrade 19 |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
| Noise level | 48 dB(A) @ 50 Hz |
| Operating temperature range | 12 – 40 °C |
| Weight (without oil) | 28 kg / 61.6 lb |
| Electrical Requirements | 100-120/200-230 VAC 50/60Hz, 1Ph |
Downloads
Click Here to View the Technical Specs for the Edwards RV8 Rotary Vane Vacuum Pump
