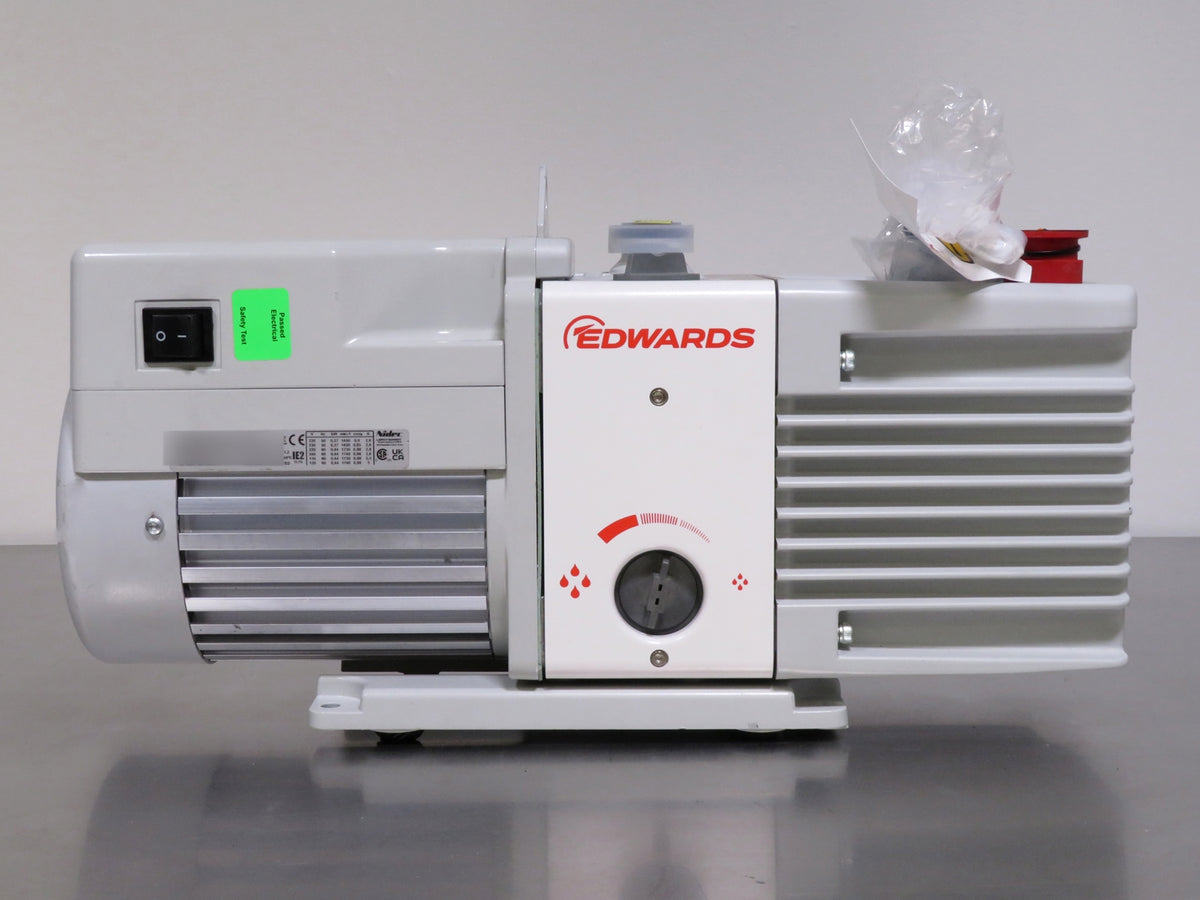

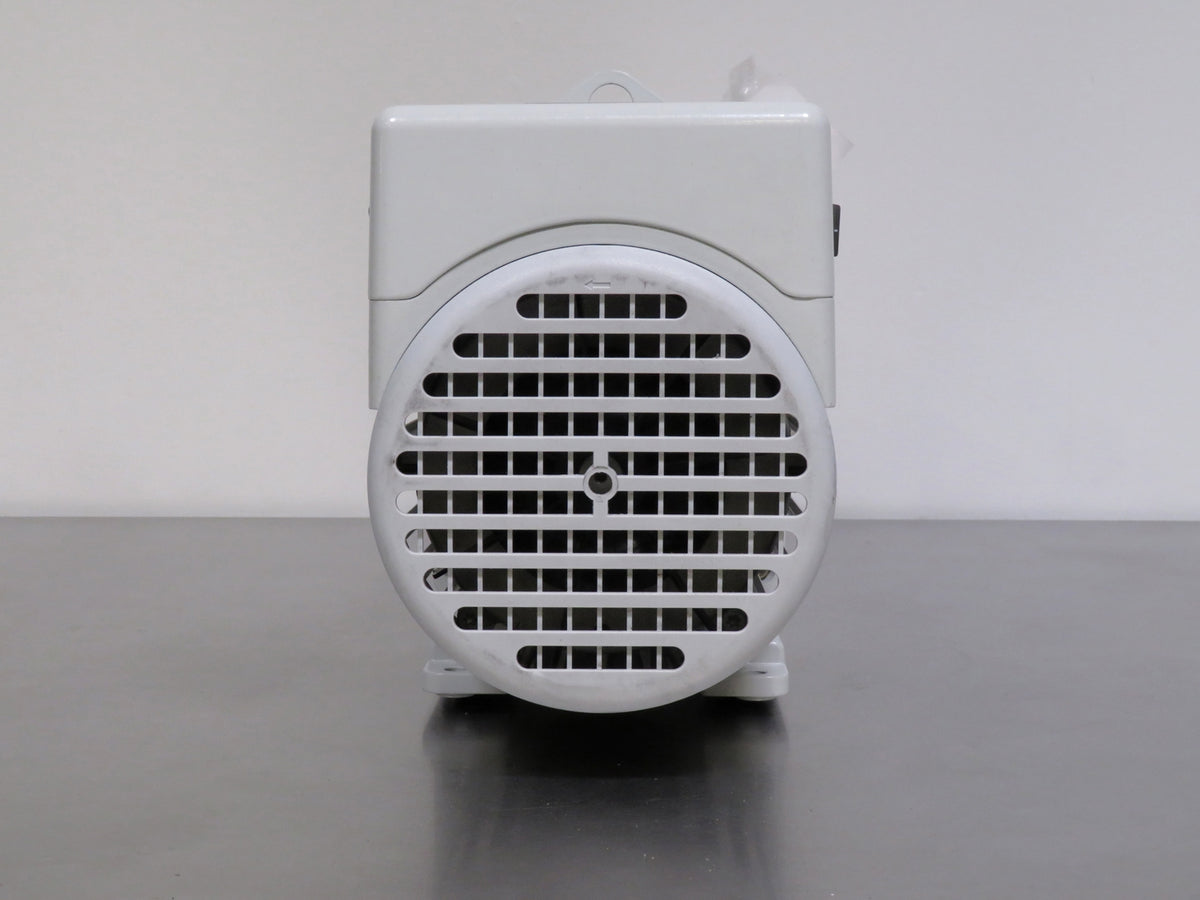

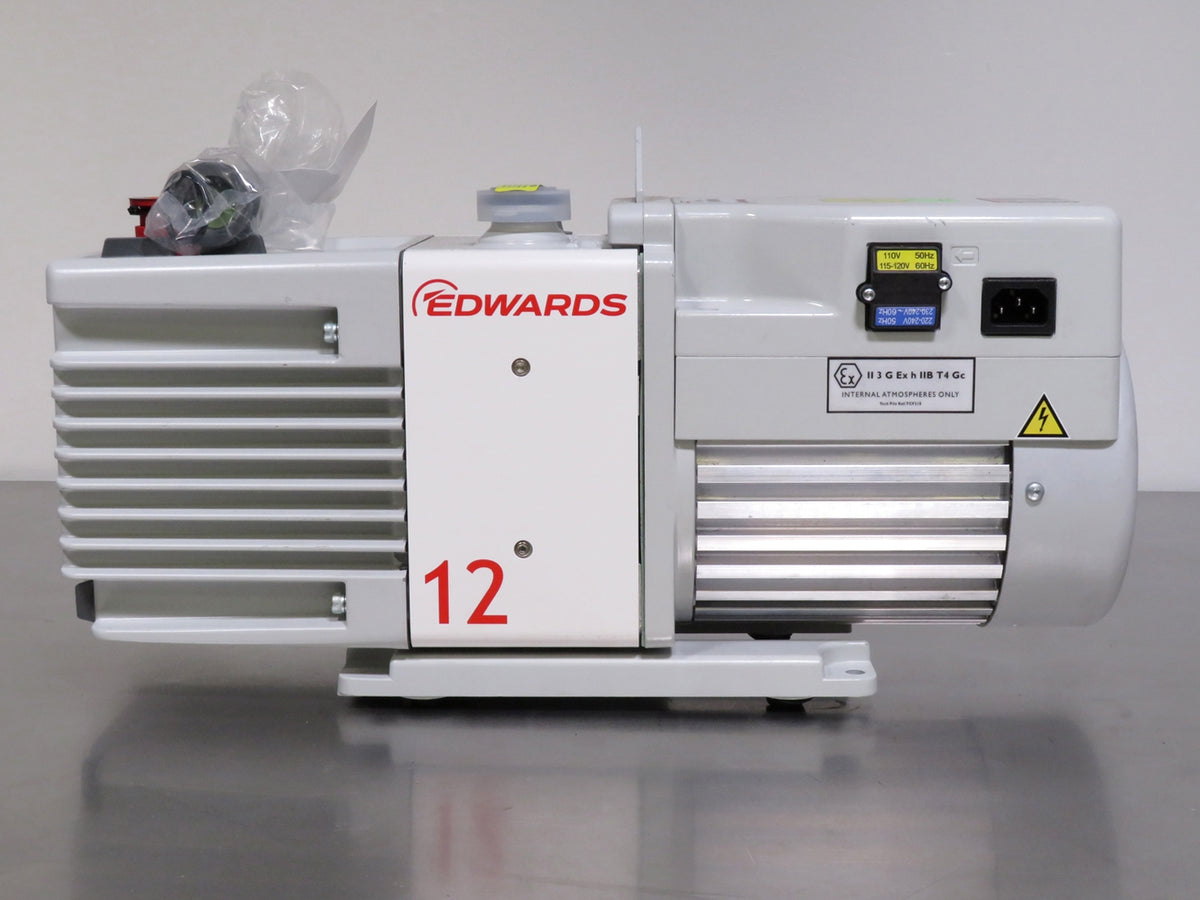

Edwards RV12 Rotary Vane Vacuum Pump, Rebuilt
Ultimate Pressure
2 x 10-3 mbar
Peak Pumping Speed
8.4 CFM at 60Hz
Inlet/Exhaust Flange
NW25
- High vapour handling capacity, suited for wet pumping applications like freeze drying and extraction
- Best-in-class anti-suck back protection safeguards system integrity
- Universal motor accommodates a wide range of voltages and frequencies
- Easy maintenance with self-aligning parts and no need for complete disassembly
- Fast-acting automatic inlet valve prevents pressure surges on startup
- Quiet operation enhances the work environment
- Approved to UL and CSA standards, ensuring safety and quality
- Mode selector switch allows for operation in high vacuum or high throughput modes
- High gas ballast flow rate supports up to 220 gh-1 water vapour capacity
- Superior particulate handling for increased reliability
- One-size Allen key for convenient disassembly of all parts
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.

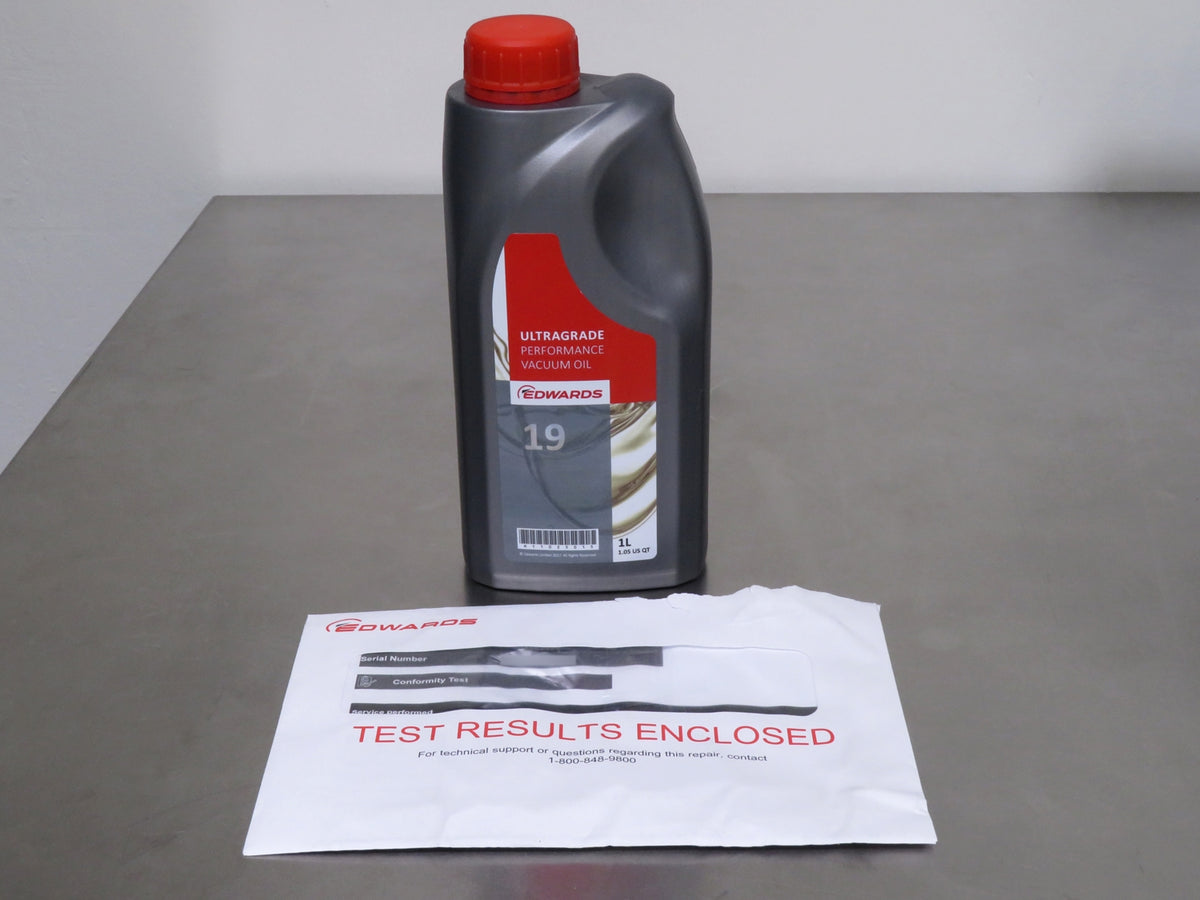

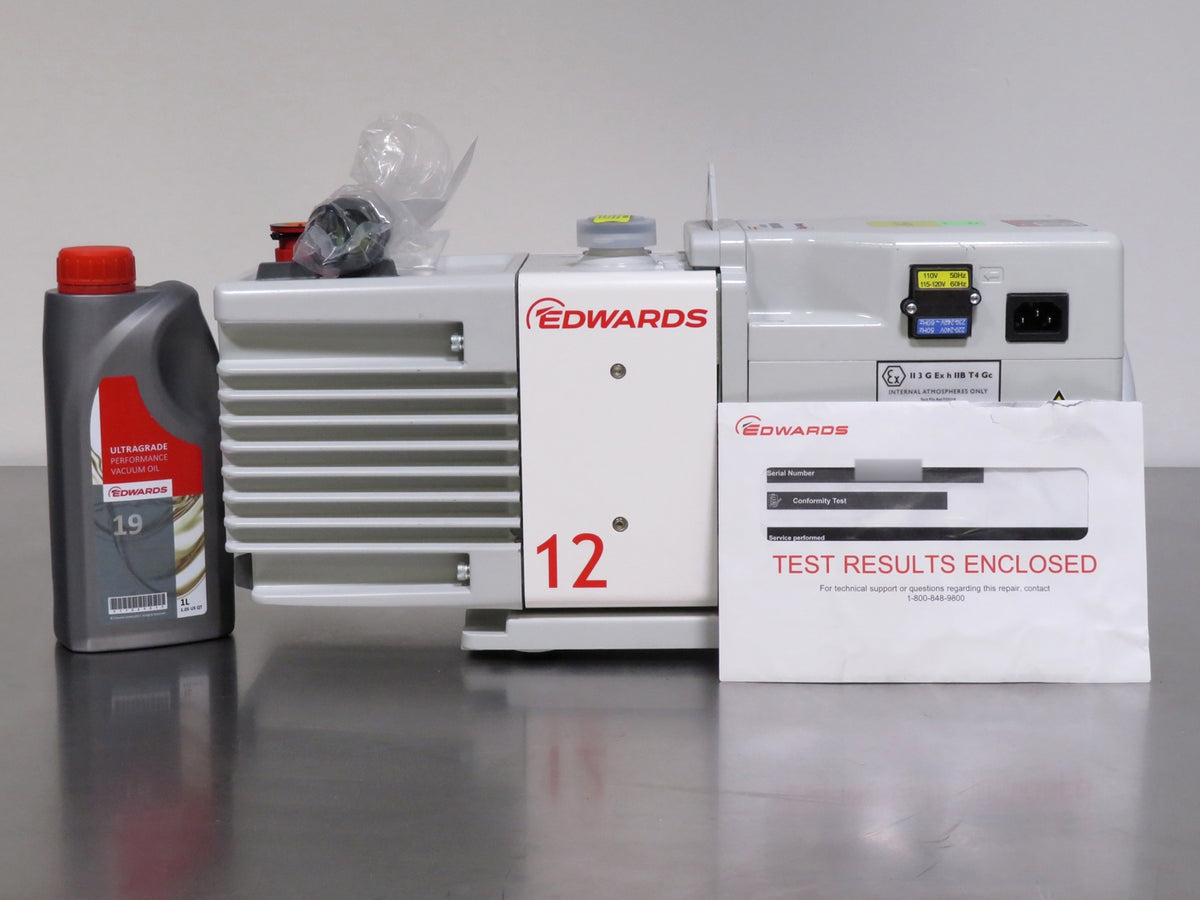

The Edwards RV12 Rotary Vane Vacuum Pump, Rebuilt includes:
- Vacuum Pump Rebuild Report
- Ultragrade 19 Pump Oil
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Edwards RV12 Rotary Vane Vacuum Pump, Rebuilt Specifications
|

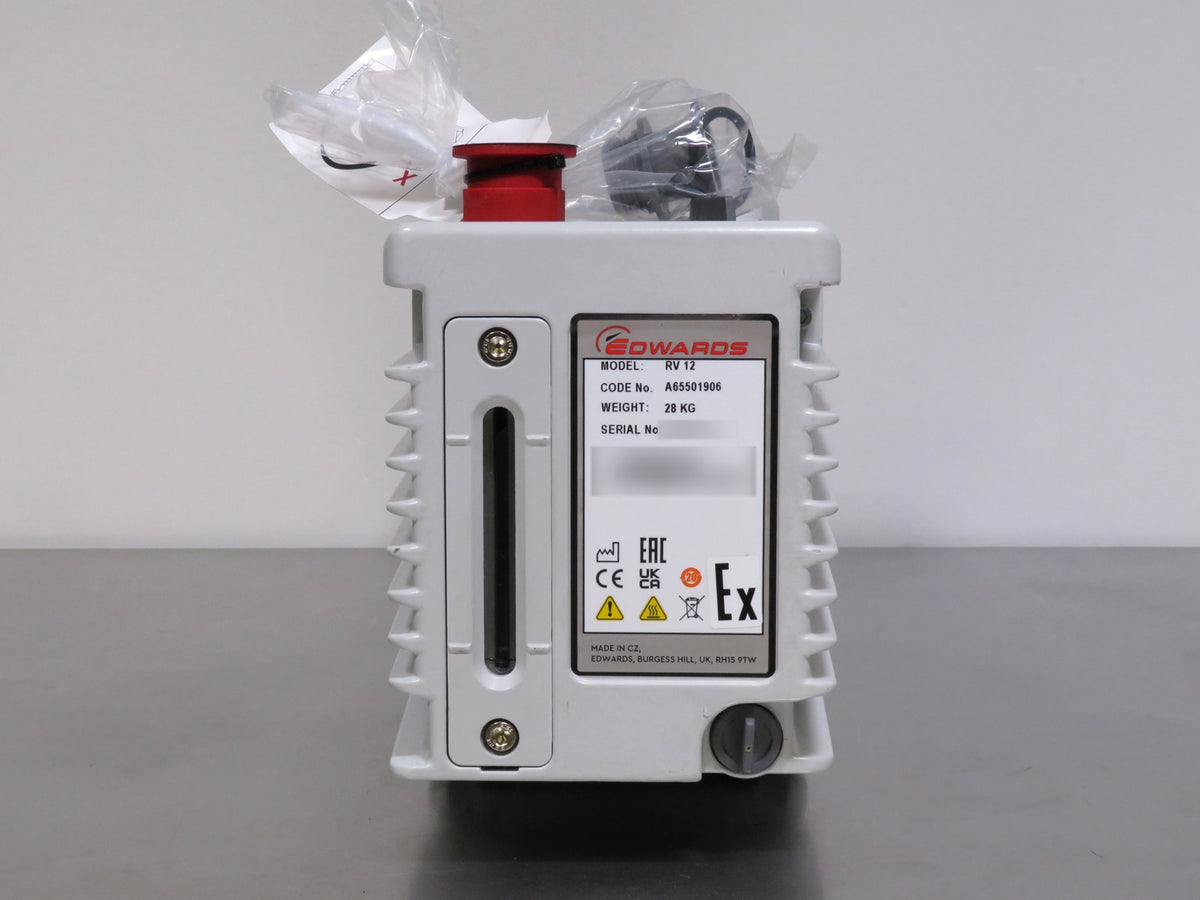

Catalog Number |
A65501906 |
|
Displacement |
|
|
50Hz |
14.2 m3h-1 / 8.4 ft 3min-1 |
|
60Hz |
17 m3h-1 / 10 ft3min-1 |
|
Speed (Pneurop 6602) |
|
|
50Hz |
12 m3h-1 / 7.1 ft 3min-1 |
|
60Hz |
14.2 m3h-1 / 8.4 ft 3min-1 |
|
Ultimate pressure |
2 x 10-3 mbar / 1.5 x 10-3 Torr |
|
Ultimate pressure GB I |
3 x 10-2 mbar / 2.3 x 10-2 Torr |
|
Ultimate pressure GB II |
6 x 10-2 mbar / 4.6 x 10-2 Torr |
|
Ultimate pressure with Fomblin® |
2 x 10-2 mbar / 1.5 x 10-2 Torr |
|
Max inlet pressure for water vapour |
32 mbar / 24 Torr |
|
Max water vapour pumping rate – GB I |
60 gh-1 |
|
Max water vapour pumping rate – GB II |
220 gh-1 |
|
Max allowed outlet pressure |
0.2 bar gauge / 2.8 psig |
|
Max allowed inlet and gas ballast pressure |
0.5 bar gauge / 7 psig |
|
Motor power 50/60Hz |
450 / 550W |
|
Power connector 1-ph |
IEC EN60320 C13 |
|
Nominal rotation speed 50/60Hz |
1500 / 1800rpm |
|
Weight (without oil) |
29 kg / 63.8 lb |
|
Oil capacity min/max |
0.65 / 1 litres |
|
Recommended oil |
Ultragrade 19 |
|
Inlet flange |
NW25 |
|
Exhaust flange |
NW25 |
|
Noise level |
48 dB(A) @ 50 Hz |
|
Electrical Supply |
1 Ph, 100-120/200-230 VAC 50/60 Hz |
|
Operating temperature range |
12 – 40 °C |
Click Here to View the Technical Specs for the Edwards RV12 Rotary Vane Vacuum Pump, Rebuilt
