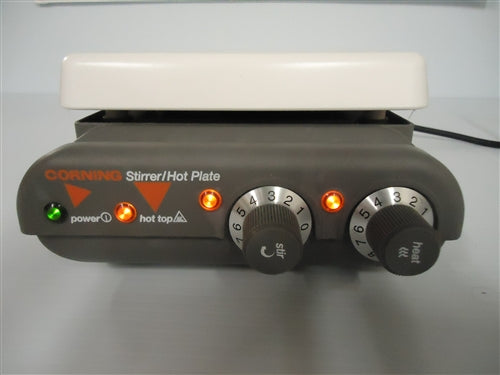

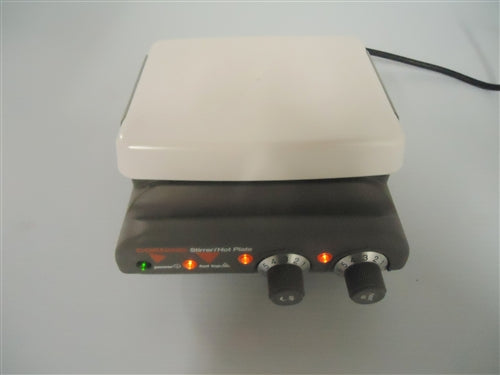

Corning PC 420 Hot Plate Stirrer
Temperature Range
25°C to 500°C
Stirrer Speed Range
60 to 1,100 RPM
Platform Size
5 x 7 in (12.7 x 17.8 cm)
Features
- Offers both stirring and heating capabilities, streamlining your lab processes.
- Dial controls for easy adjustment of stirring and heating settings.
- Wide temperature range from 25°C to 500°C, catering to diverse experimental needs.
- Features a 5 x 7 inch platform, perfect for different sizes of flasks and beakers.
- Ensures precise control for consistent heating and stirring performance.
- Enclosed control system safeguards sensitive components from environmental factors, reducing maintenance.
The Corning PC 420 Stirrer/Hotplate features dial controls for stir and heat, an indicator light for power and hot top, and a 6" X 7-1/2" platform. Power: 120V, 60Hz, 5.9A.
All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Corning PC 420 Hot Plate Stirrer includes:
The Corning PC 420 Hot Plate Stirrer includes:
- Power Cord
- Operator's Guide
- Full 180 Day Parts and Labor Warranty
Corning PC 420 Hot Plate Stirrer Specifications
|
Temperature Range |
25°C to 500°C |
|
Stirrer Speed |
60 to 1,100 RPM |
|
Platform Size |
5 x 7 in (12.7 x 17.8 cm) |
|
Electrical Requirements |
120V, 60Hz, 5.9A, 698W |
Hot Plate Stirrers Inspection and Recertification Checklist
- Inspect Display and Replace Any Dim/Dead Pixels (If Applicable).
- Inspect Ceramic Top for Any Cracks and Replace If Necessary.
- Inspect Functionality of All Buttons/Knobs.
- Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable).
- Inspect Internal Wiring Inside Case.
- Clean Internal Parts and Vent Any Internal Debris.
- Check Feet to Confirm Plate Sits Properly Balanced.
- Replace All Parts That Were Removed on Internal Inspections.
- Confirm Temperature with NIST Traceable Temperature Probe (If Applicable).
- Ensure Cosmetics Are Acceptable.
Technician Inspection and Recertification Checklist: Hot Plate Stirrers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect Display and Replace Any Dim/Dead Pixels (If Applicable) | Completed | |
| Inspect Ceramic Top for Any Cracks and Replace If Necessary | Completed | |
| Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable) | Completed | |
| Inspect Internal Wiring Inside Case | Completed | |
| Clean Internal Parts and Vent Any Internal Debris | Completed | |
| Check Feet to Confirm Plate Sits Properly Balanced | Completed | |
| Replace All Parts That Were Removed on Internal Inspections | Completed | |
| Confirm Temperature with NIST Traceable Temperature Probe (If Applicable) | Completed |
