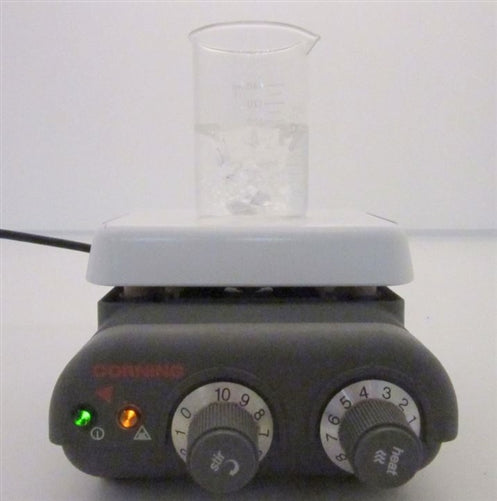

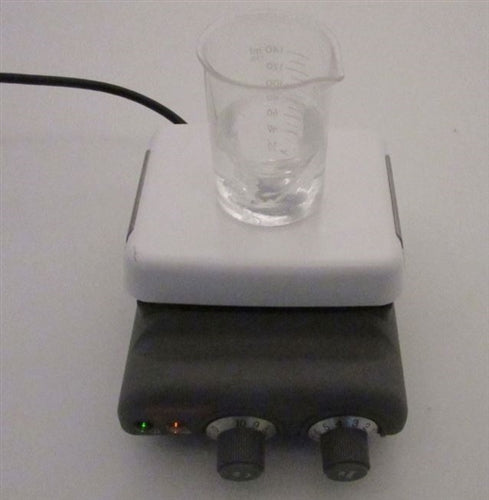

Corning PC 220 Hot Plate Stirrer
The Corning PC 220 Hot Plate Stirrer features dial controls for stir and heat, digital display for heat and stir levels light for power and a 4" X 5" platform.
All of our equipment will be fully tested to perform at factory specifications before being shipped.
INCLUDED:
The Corning PC 420D Digital Hot Plate Stirrer includes:
The Corning PC 420D Digital Hot Plate Stirrer includes:
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Corning PC 220 Hot Plate Stirrer Specifications
| Temperature Range | 25°C to 550°C |
| Stirrer Speed | 60 to 1,100 RPM |
| Platform Size | 4 x 5 in (10.2 x 12.7 cm) |
| Electrical Requirements | 120V, 60Hz, 2.4A, 283W |
Hot Plate Stirrers Inspection and Recertification Checklist
- Inspect Display and Replace Any Dim/Dead Pixels (If Applicable).
- Inspect Ceramic Top for Any Cracks and Replace If Necessary.
- Inspect Functionality of All Buttons/Knobs.
- Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable).
- Inspect Internal Wiring Inside Case.
- Clean Internal Parts and Vent Any Internal Debris.
- Check Feet to Confirm Plate Sits Properly Balanced.
- Replace All Parts That Were Removed on Internal Inspections.
- Confirm Temperature with NIST Traceable Temperature Probe (If Applicable).
- Ensure Cosmetics Are Acceptable.
Technician Inspection and Recertification Checklist: Hot Plate Stirrers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Inspect Display and Replace Any Dim/Dead Pixels (If Applicable) | Completed | |
| Inspect Ceramic Top for Any Cracks and Replace If Necessary | Completed | |
| Use Magnetic Stir Bar Alongside NIST Tachometer to Confirm RPM of Internal Motor (If Applicable) | Completed | |
| Inspect Internal Wiring Inside Case | Completed | |
| Clean Internal Parts and Vent Any Internal Debris | Completed | |
| Check Feet to Confirm Plate Sits Properly Balanced | Completed | |
| Replace All Parts That Were Removed on Internal Inspections | Completed | |
| Confirm Temperature with NIST Traceable Temperature Probe (If Applicable) | Completed |
