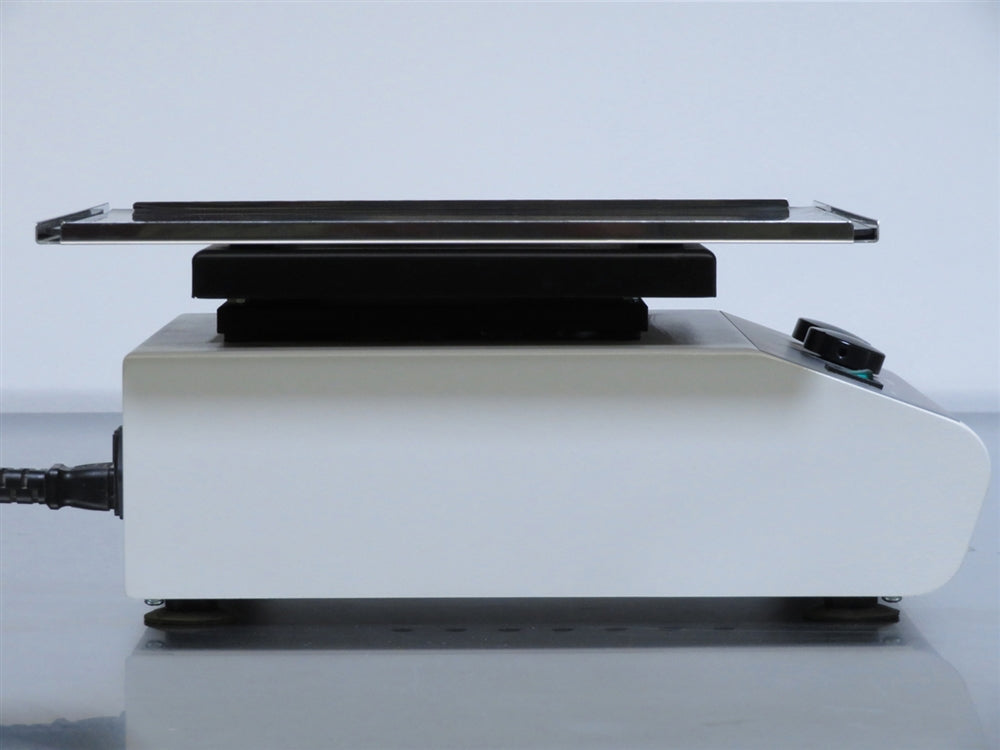

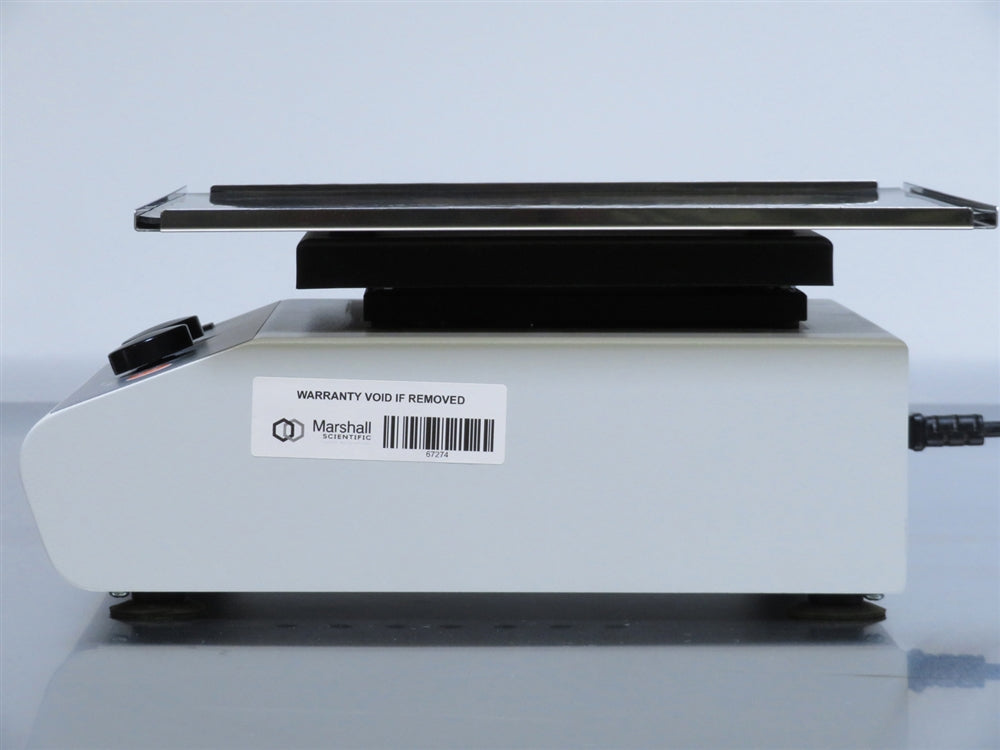

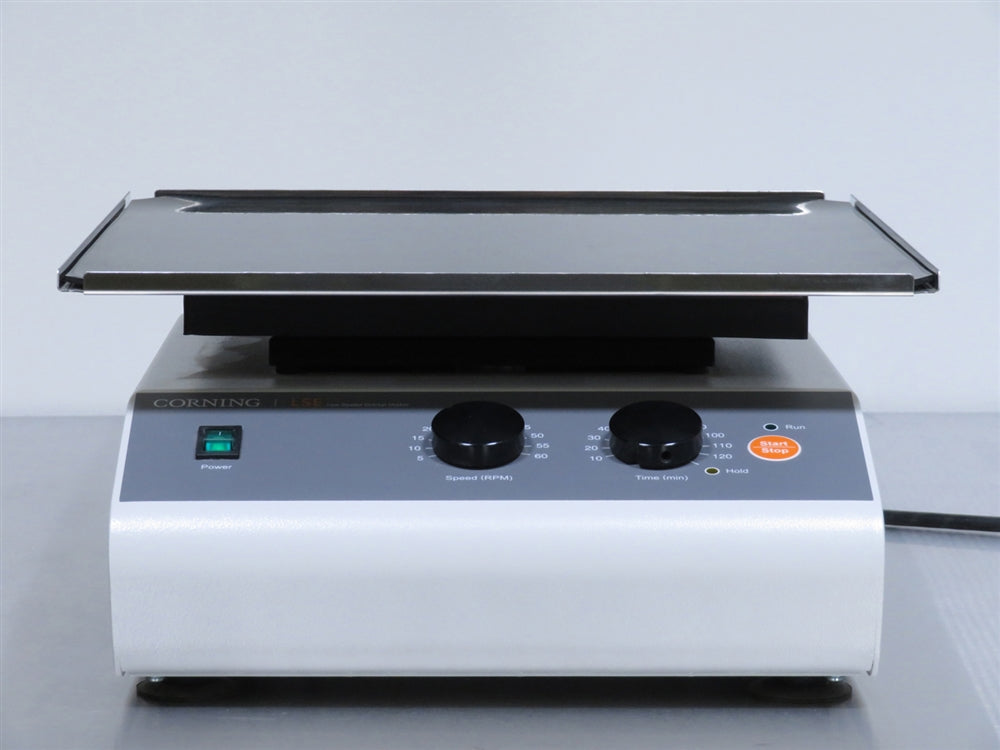

Corning LSE Low Speed Orbital Shaker

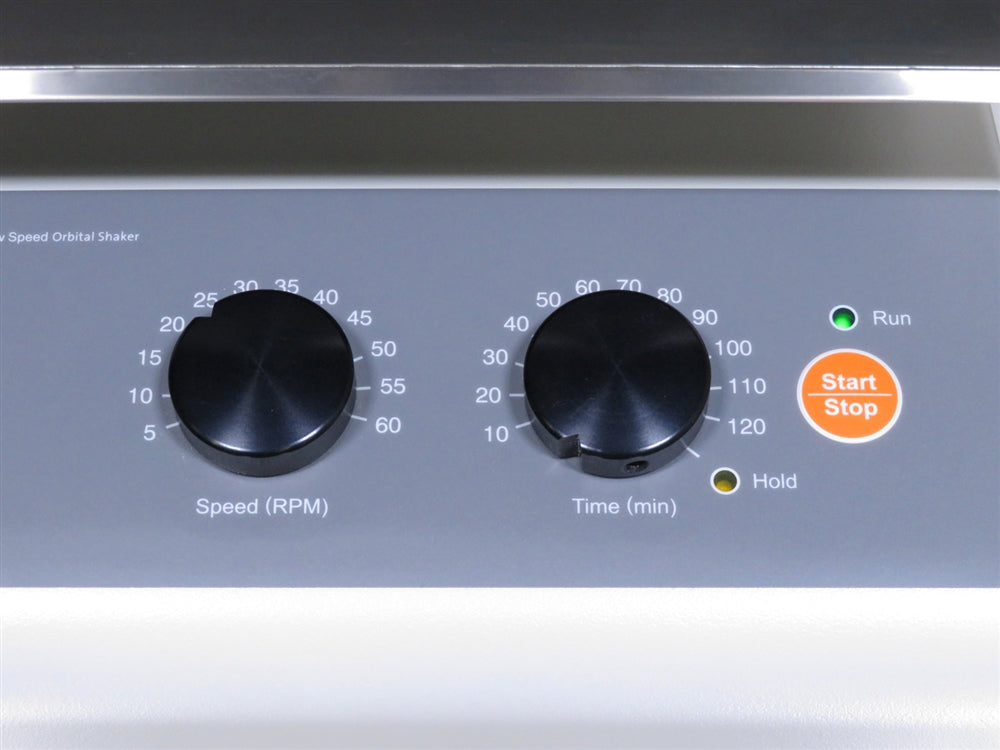

The Corning LSE Low Speed Orbital Shaker (Cat. #: 6780-FP) features a 11.6 x 11.6 inch platform and is ideal for staining and destaining gels, washing blots, and other general mixing applications. The Corning LSE features a speed range from 3 to 60 RPM, as well as an adjustable timer from 20 to 120 minutes or for continuous operation. These functions are adjusted via analog control with the easy-turn dials featured on the front of the shaker. This shaker is also safe for cold room and incubator use, with an operating temperature from 4°C up to 65°C and up to 85% relative humidity.
INCLUDED:
The Corning LSE Low Speed Orbital Shaker includes:
The Corning LSE Low Speed Orbital Shaker includes:
- 11.6" x 11.6" Platform
- NIST Calibration and Preventative Maintenance Report
- Power Cord
- Operator’s Manual
- Full 180 Day Parts and Labor Warranty
Corning LSE Low Speed Orbital Shaker Specifications
|
Speed Range |
3 to 60 RPM |
|
Platform Size |
11.6 x 11.6 in. |
|
Timer |
20 to 120 minutes in 10 minute steps, HOLD function |
|
Analog or Digital Control |
Analog |
|
Orbit |
0.75 in. (1.9 cm) |
|
Overall Dimensions |
11.6 x 13.4 x 6.3 in. (29.5 x 34 x 16 cm) |
| Weight | 14.5 lb. (6.6 kg.) |
| Electrical Requirements | 115V, 50/60Hz, 0.3A |
Shaker Inspection and Recertification Checklist
- Validate that the power supply and PCB deliver stable, correct voltage outputs across all necessary connections, ensuring reliable operation
- Thoroughly inspect the display for any dim, flickering, or dead pixels; replace affected elements to maintain full readability and operational clarity
- Test the full range of button functionality, confirming responsive, accurate input recognition across all settings
- Conduct a detailed inspection of bearings and bearing housing, identifying any worn or damaged bearings, and replace as needed to prevent operational disruption
- Examine the drive belt for signs of cracking, fraying, or material breakdown; replace as required to ensure sustained performance
- Measure and adjust motor drive belt tension to optimal specifications, securing reliable and efficient power transmission
- Verify accuracy of the onboard timer, confirming proper functionality and replacing if it deviates from expected performance
- Calibrate shaker rotation speed with a NIST-traceable tachometer, validating precision within specified operational limits
- Run the shaker continuously for an 8-12 hour testing period, closely observing the shaking platform for smooth, consistent motion, while monitoring for any error indicators such as knocking, skipping, or unusual vibrations
- Perform a comprehensive cosmetic inspection to confirm the device’s exterior meets aesthetic and quality standards, free from visible damage or wear
Technician Inspection and Recertification Checklist: Shakers
The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment| Task | Completed? | Remarks? |
| Validate stable, correct voltage outputs from power supply and PCB | Completed | |
| Inspect display for dim, flickering, or dead pixels; replace as needed | Completed | |
| Test button functionality for responsiveness and accuracy across all settings | Completed | |
| Inspect bearings and housing for wear; replace as needed to prevent disruption | Completed | |
| Examine drive belt for cracking, fraying, or material breakdown; replace as required | Completed | |
| Measure and adjust motor drive belt tension to optimal specifications | Completed | |
| Verify onboard timer accuracy; replace if it deviates from expected performance | Completed | |
| Calibrate shaker rotation speed using a NIST-traceable tachometer | Completed | |
| Run 8-12 hour continuous test; observe platform for smooth, consistent motion | Completed | |
| Perform comprehensive cosmetic inspection for quality standards compliance | Completed |
