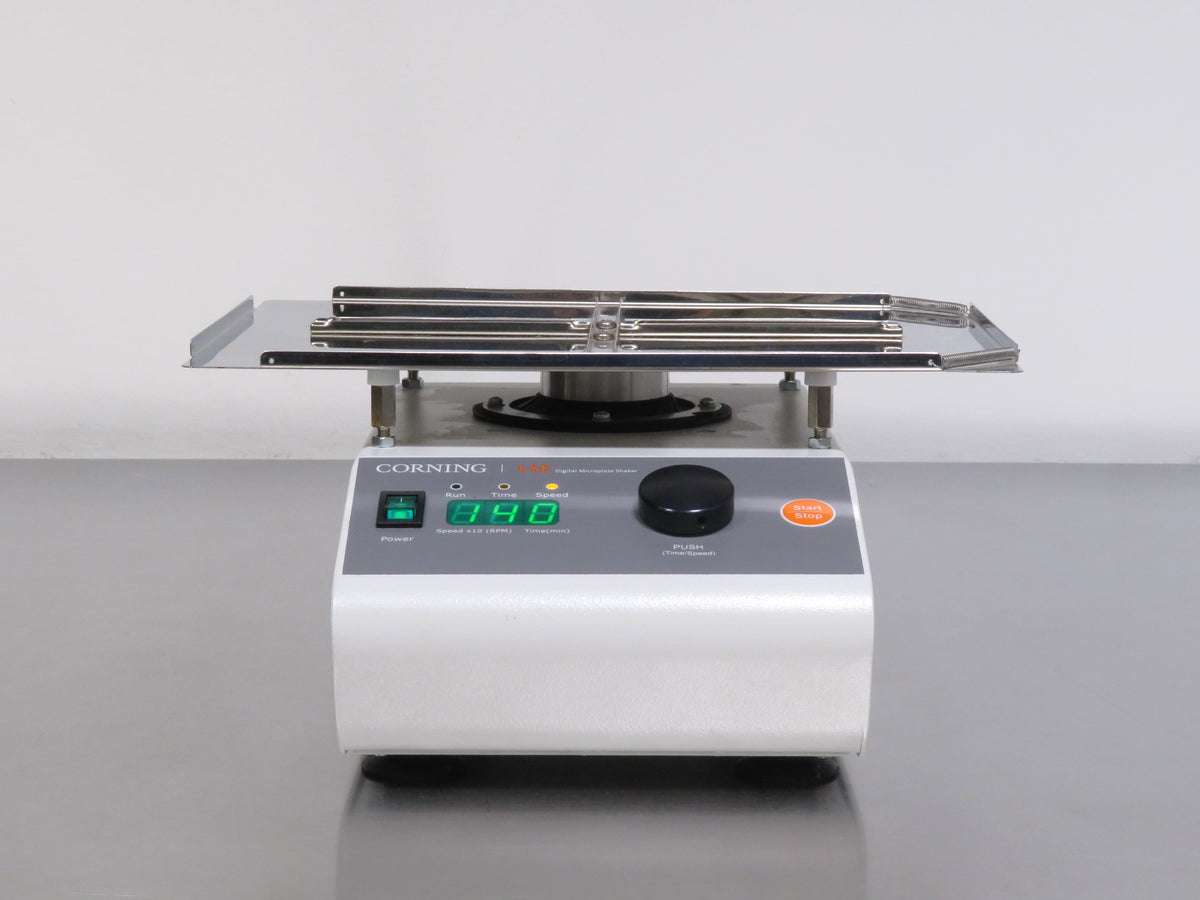

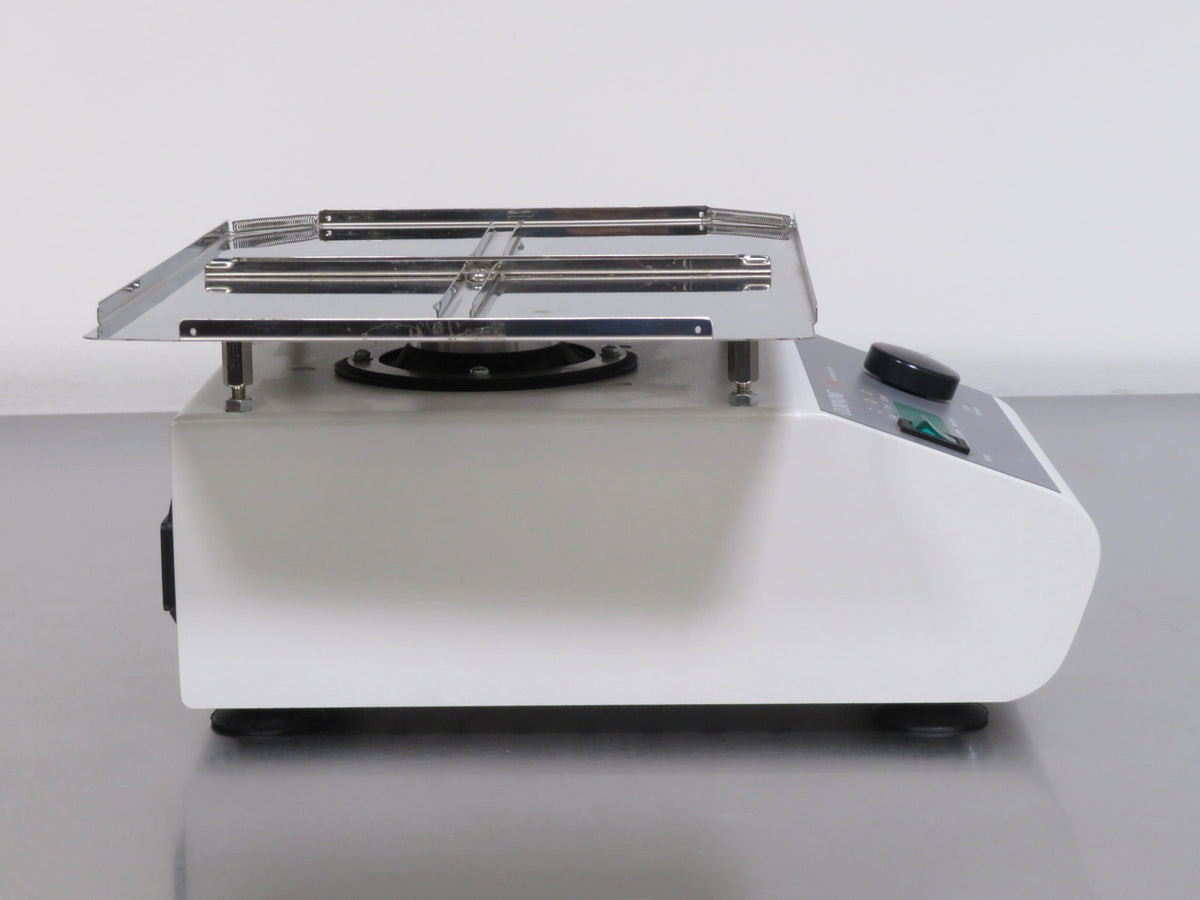

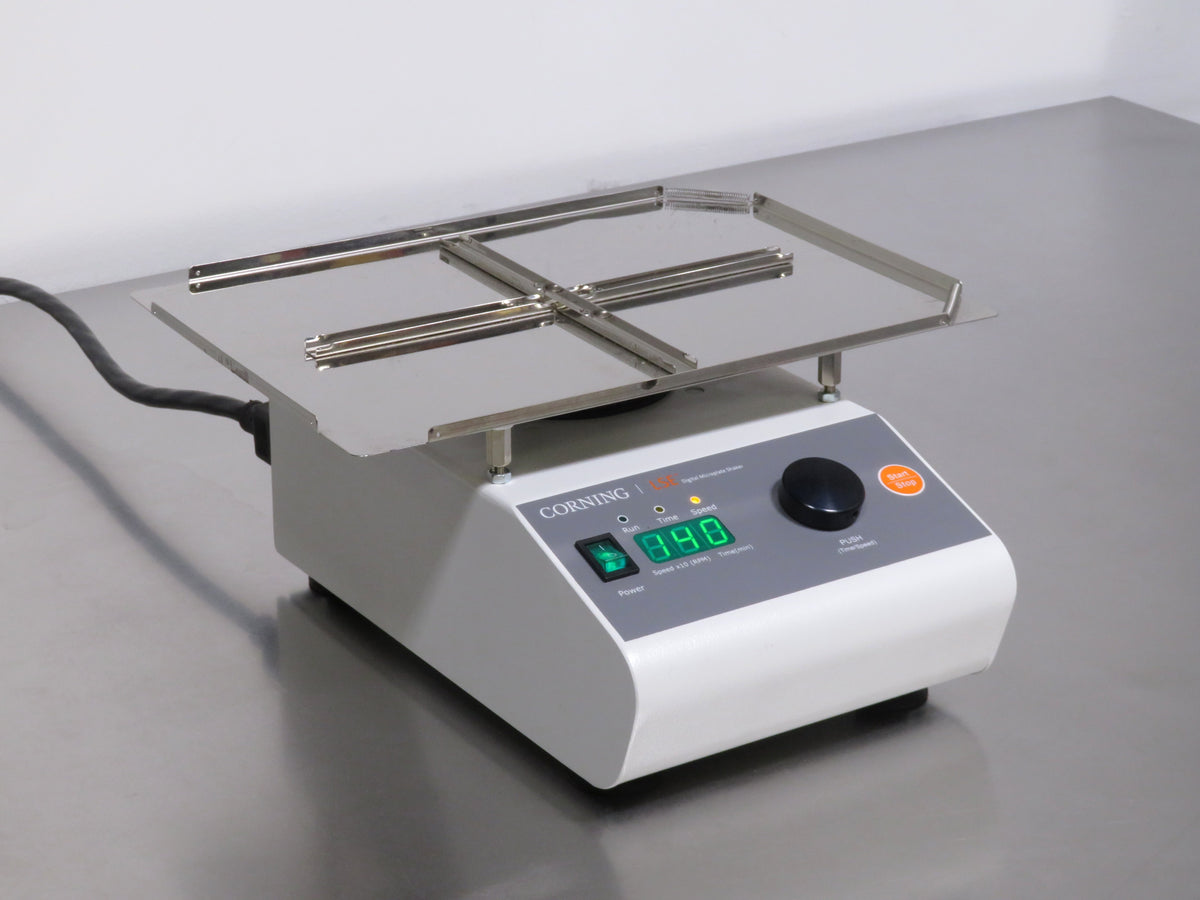

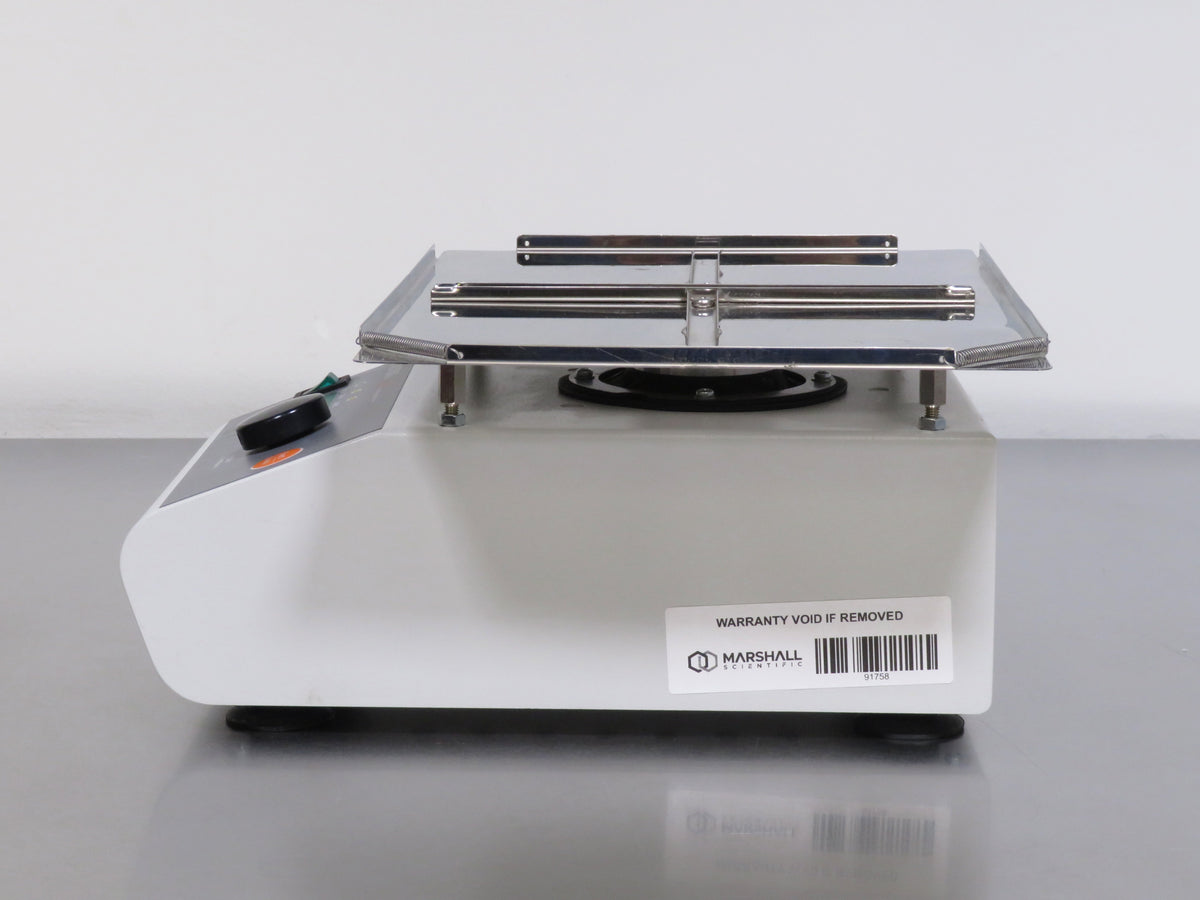

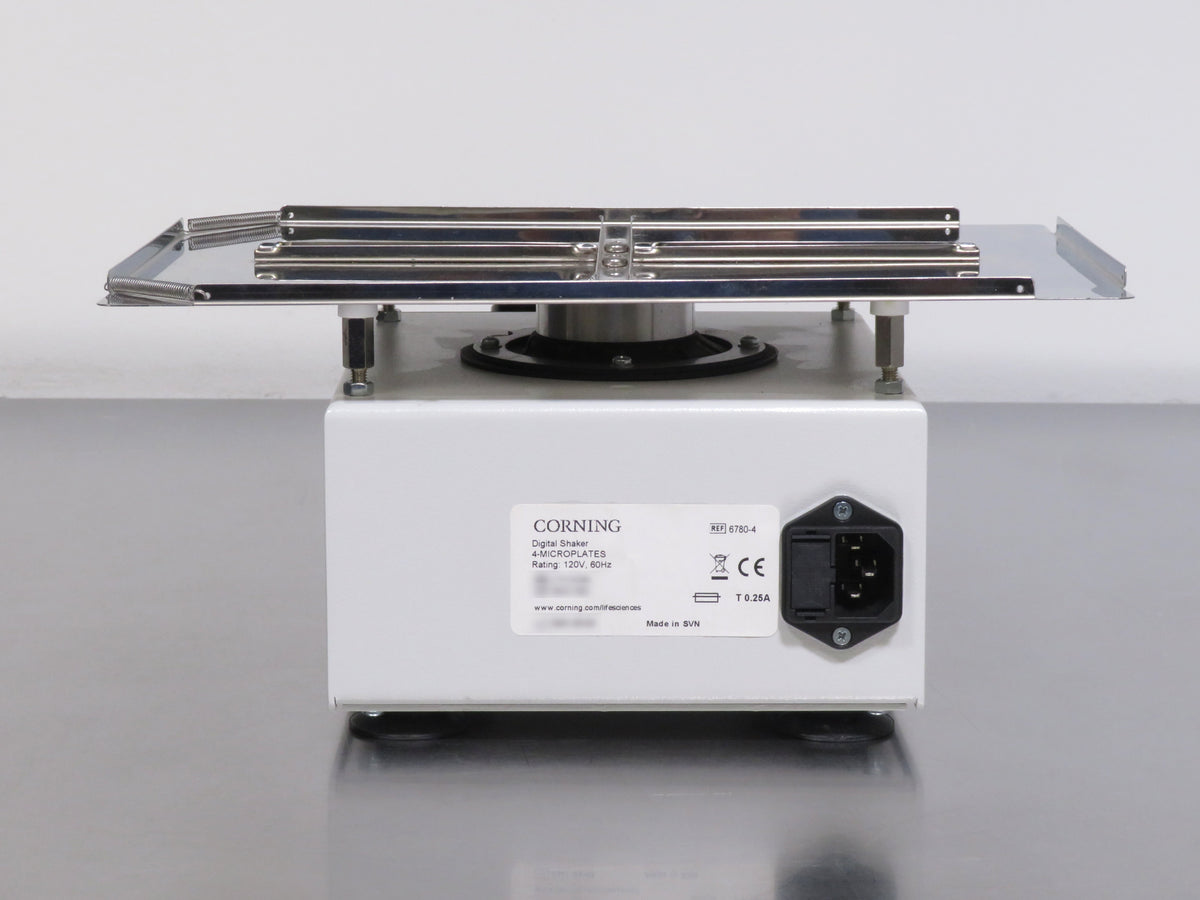

Corning LSE Digital Microplate Shaker

Features

• Digital speed and timer controls provide precise, repeatable operation
• Adjustable speed range from 100 to 1,400 RPM
• 3 mm orbital motion provides effective mixing for microplate applications
• Accommodates up to four standard or deep well microplates

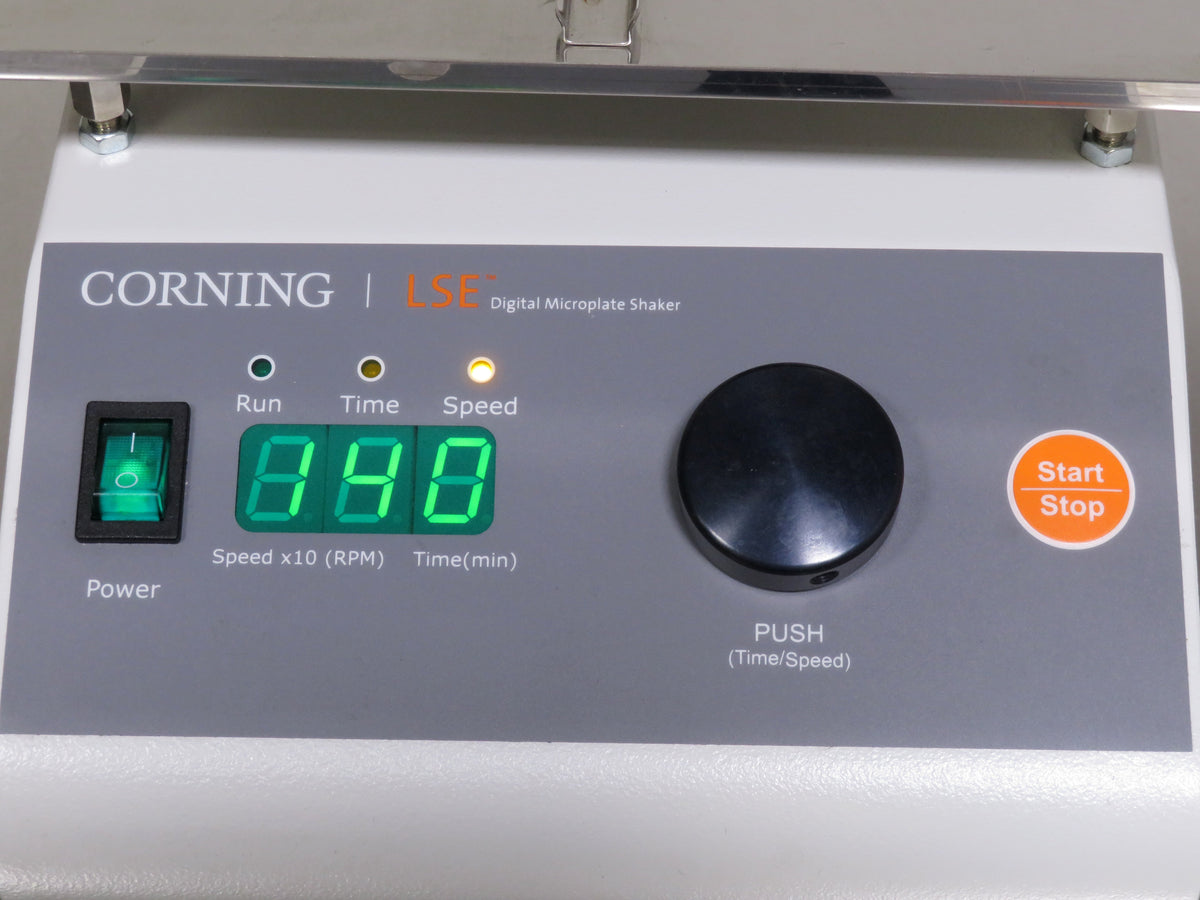

• Large 3-digit display provides clear viewing of operating parameters
• Single control knob simplifies speed and timer adjustments
• Load-independent speed regulation helps maintain consistent shaking performance
• HOLD function supports continuous operation
• Sturdy enclosed motor design promotes quiet, vibration-free operation
• Suitable for use in temperature-controlled environments from 5°C to 40°C

The Corning LSE Digital Microplate Shaker provides controlled, consistent shaking for microplate-based laboratory applications, including resuspending, homogenizing, and vortexing samples. The included stainless steel platform accommodates up to four standard or deep well microplates, while the 3 mm orbital motion provides effective mixing across each plate. A sturdy base encloses the motor to promote quiet, vibration-free operation during routine use.

Digital control of shaking speed and run time makes operating the shaker straightforward, with a single control knob used to adjust parameters and a large 3-digit display for easy monitoring. Designed for added workflow flexibility, the LSE Digital Microplate Shaker can also be operated in temperature-controlled environments from 4°C to 65°C, making it suitable for use in cold rooms and incubators.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Corning LSE Digital Microplate Shaker Specifications

Shaker Inspection and Recertification Checklist

• Validate that the power supply and PCB deliver stable, correct voltage outputs across all necessary connections, ensuring reliable operation
• Thoroughly inspect the display for any dim, flickering, or dead pixels; replace affected elements to maintain full readability and operational clarity
• Test the full range of button functionality, confirming responsive, accurate input recognition across all settings
• Conduct a detailed inspection of bearings and bearing housing, identifying any worn or damaged bearings, and replace as needed to prevent operational disruption
• Examine the drive belt for signs of cracking, fraying, or material breakdown; replace as required to ensure sustained performance
• Measure and adjust motor drive belt tension to optimal specifications, securing reliable and efficient power transmission
• Verify accuracy of the onboard timer, confirming proper functionality and replacing if it deviates from expected performance
• Calibrate shaker rotation speed with a NIST-traceable tachometer, validating precision within specified operational limits
• Run the shaker continuously for an 8-12 hour testing period, closely observing the shaking platform for smooth, consistent motion, while monitoring for any error indicators such as knocking, skipping, or unusual vibrations
• Perform a comprehensive cosmetic inspection to confirm the device’s exterior meets aesthetic and quality standards, free from visible damage or wear

Technician Inspection and Recertification Checklist: Shakers

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Validate stable, correct voltage outputs from power supply and PCB	Completed
Inspect display for dim, flickering, or dead pixels; replace as needed	Completed
Test button functionality for responsiveness and accuracy across all settings	Completed
Inspect bearings and housing for wear; replace as needed to prevent disruption	Completed
Examine drive belt for cracking, fraying, or material breakdown; replace as required	Completed
Measure and adjust motor drive belt tension to optimal specifications	Completed
Verify onboard timer accuracy; replace if it deviates from expected performance	Completed
Calibrate shaker rotation speed using a NIST-traceable tachometer	Completed
Run 8-12 hour continuous test; observe platform for smooth, consistent motion	Completed
Perform comprehensive cosmetic inspection for quality standards compliance	Completed

102 Tide Mill Road, Hampton NH 03842
customerservice@marshallscientific.com | (603) 601-8511 |
www.marshallscientific.com
Copyright © 2024 by Marshall Scientific LLC. All rights reserved.

To View More of Our Recertification Protocol Click Here
