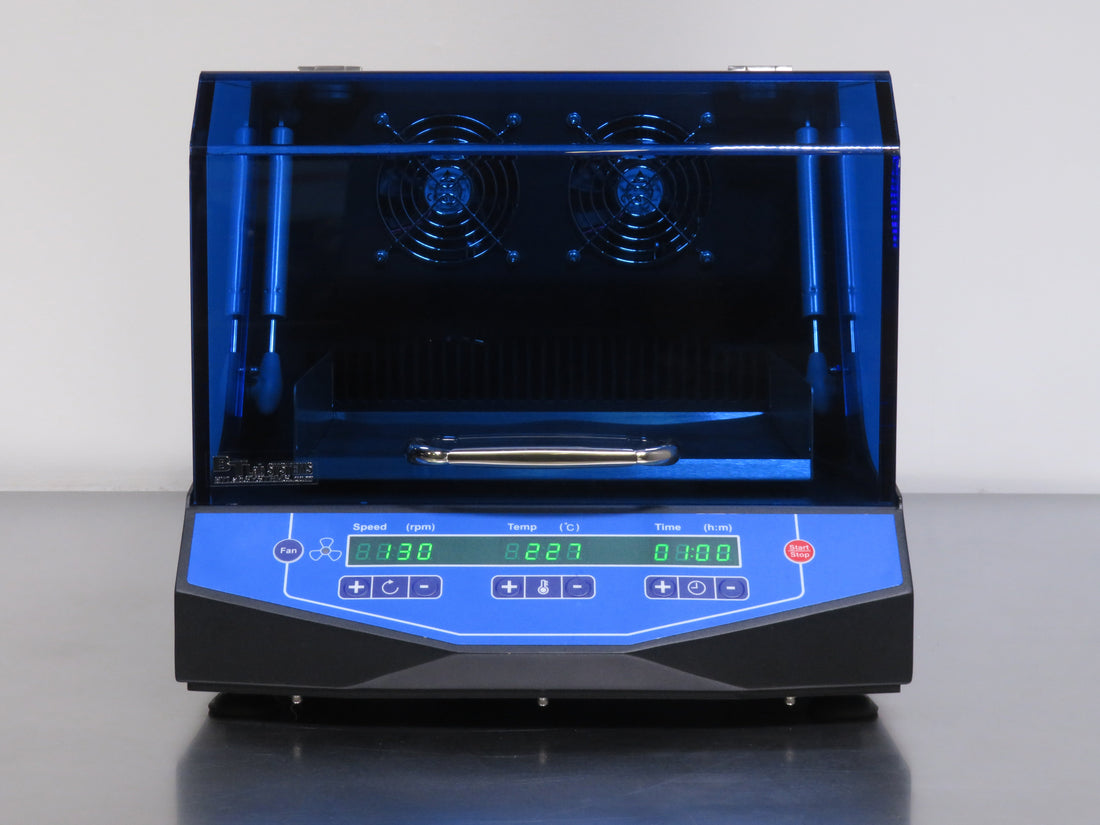

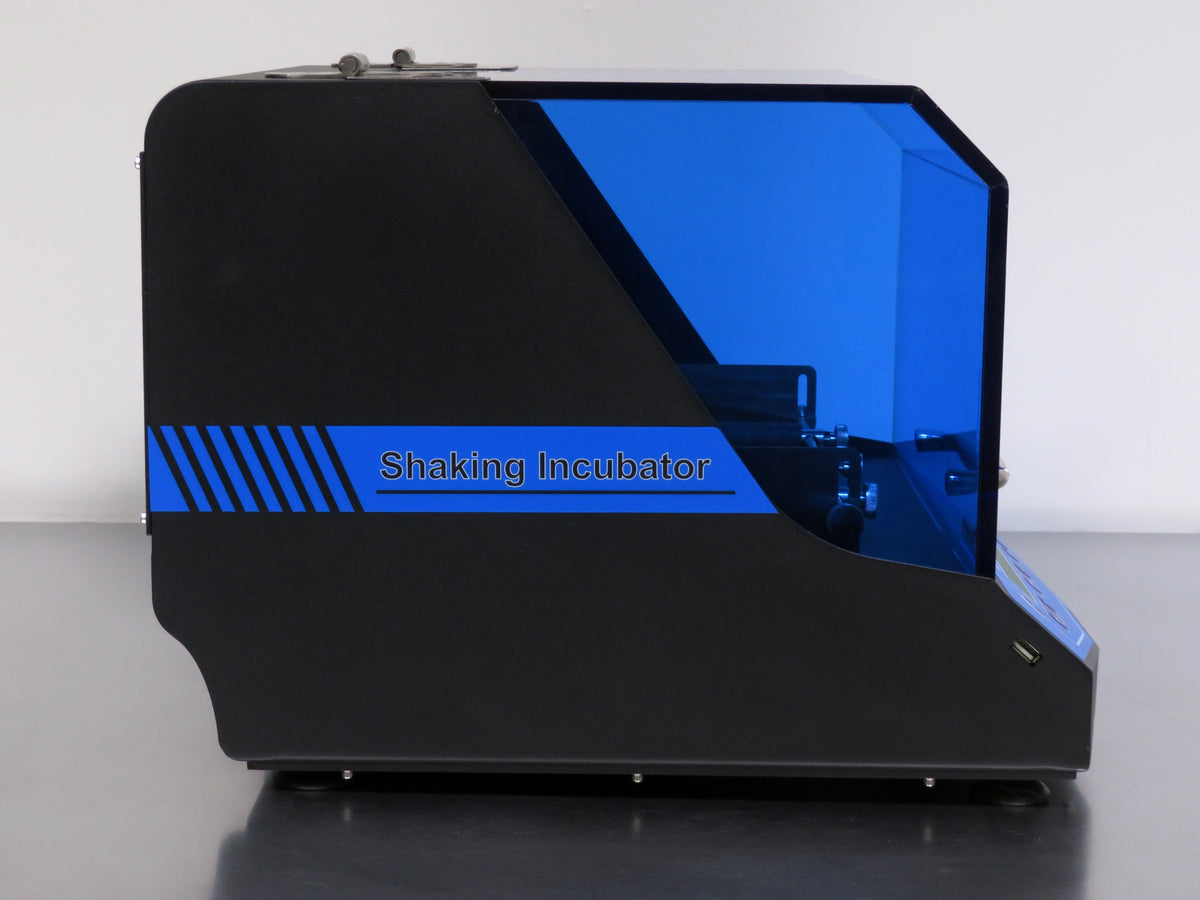

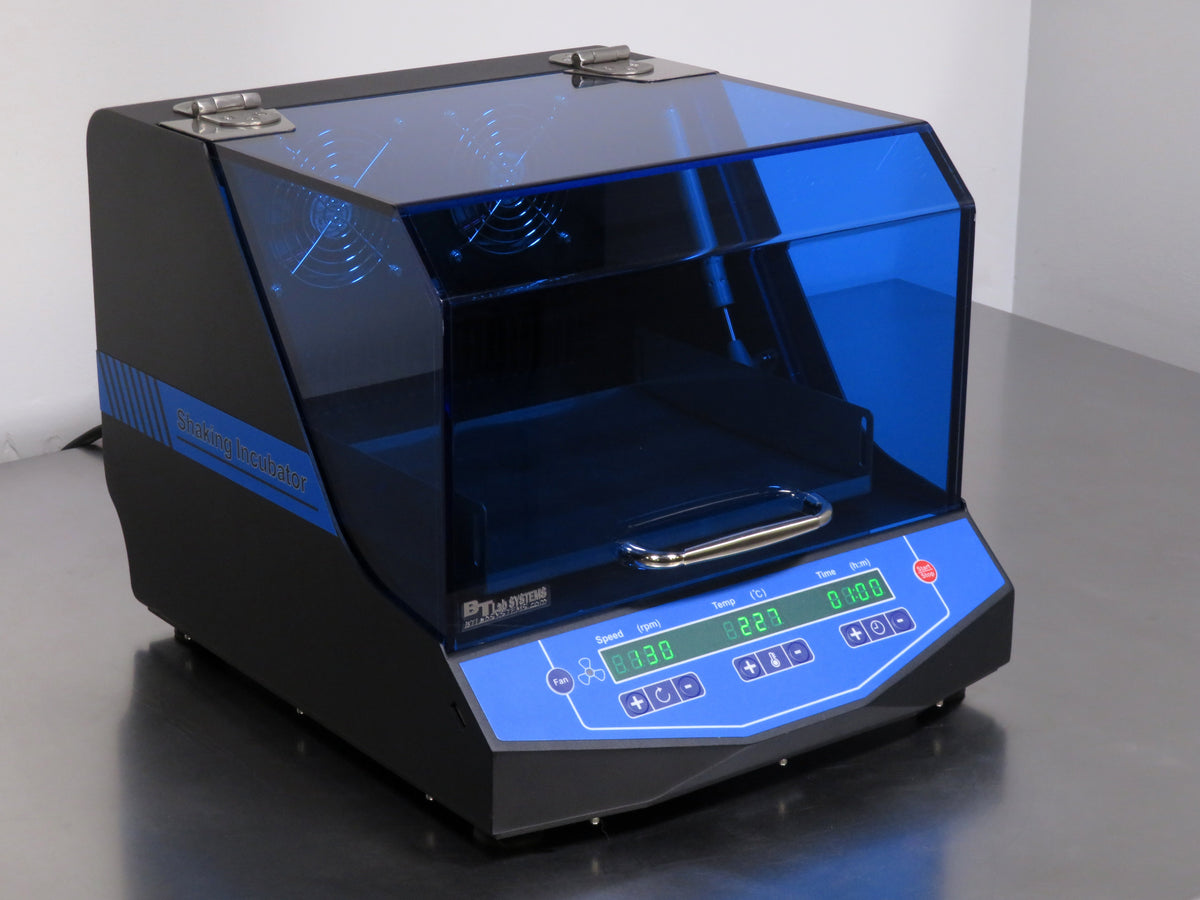

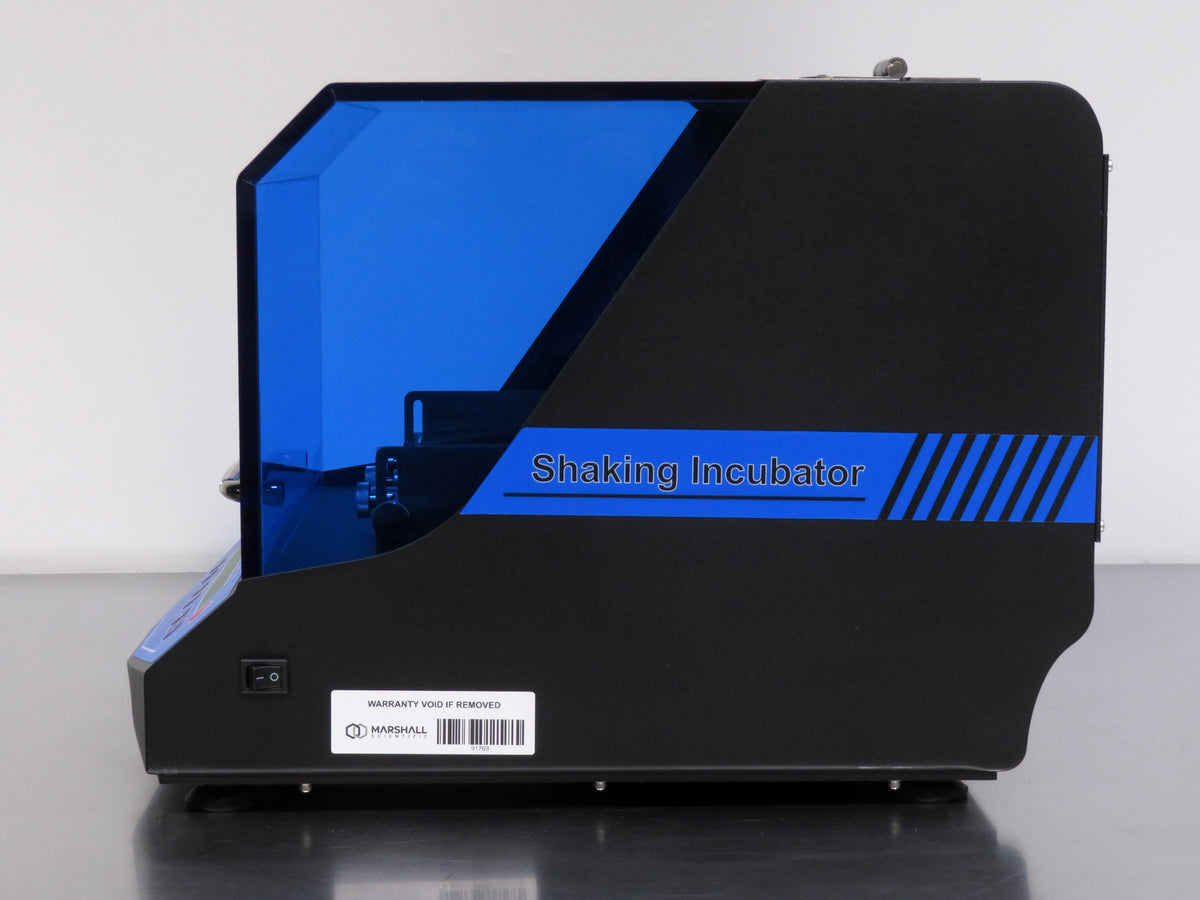

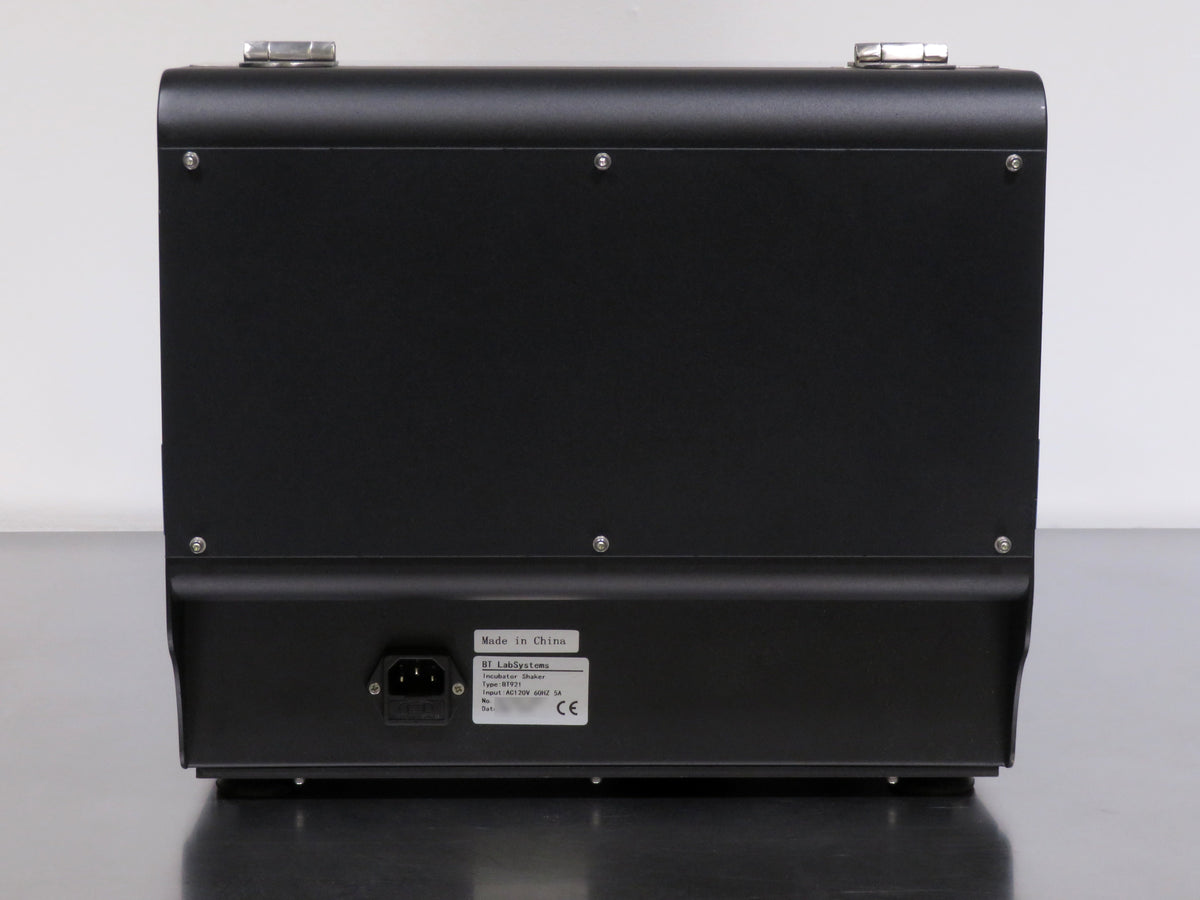

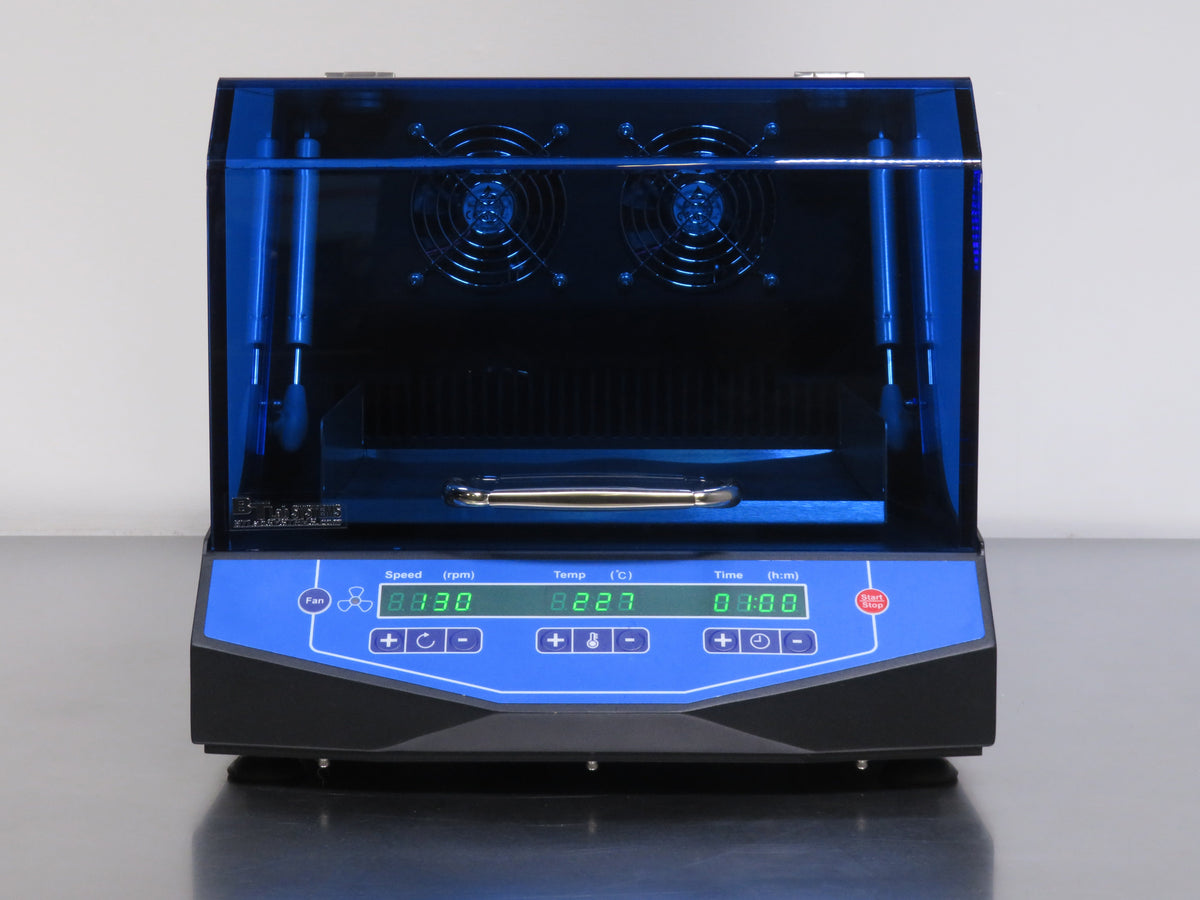

BT Lab Systems BT921 Incubator Shaker
Temperature Control Range
Ambient +5°C to 60°C
Temperature Display Accuracy
0.1°C
Shaking Speed
50 to 300 RPM

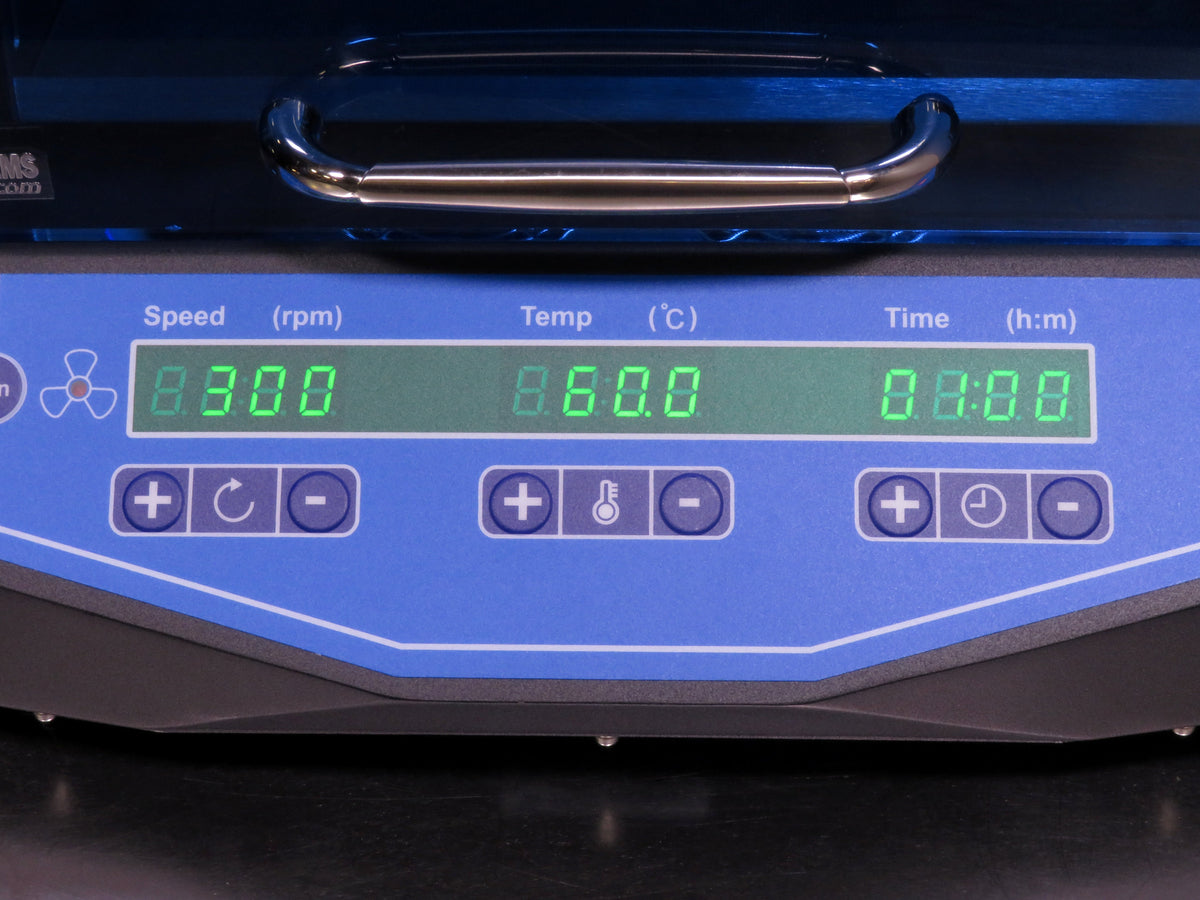

- Microprocessor control provides precise management of both temperature and shaking speed
- 20 mm horizontal orbit provides consistent agitation for laboratory samples
- Adjustable circulation fan helps promote uniform temperature conditions throughout the chamber
- Smooth speed control allows shaking to start gradually to help prevent liquid from spilling
- Wide-opening cover provides convenient access and improved visibility of samples
- Integrated cover switch automatically stops shaking, heating, and air circulation when the cover is opened
- Independent temperature alarm system shuts off heating if the temperature exceeds the set limit
- Built-in timer supports programmed operation up to 99 hours and 59 minutes with an audible completion alarm
- Brushless DC motor provides low-noise operation, long service life, and maintenance-free performance
The BT Lab Systems BT921 Incubator Shaker combines controlled incubation and orbital shaking in a compact benchtop instrument, providing a convenient solution for laboratory applications requiring both precise temperature control and consistent agitation. Designed for cell culture, fermentation, hybridization, biochemistry, and enzyme and cell tissue research, the BT921 can be used to cultivate microbial cells and a variety of strains while reducing the need for separate incubation and shaking equipment
Microprocessor controls manage both temperature and shaking speed, while an integrated timing function supports controlled experimental workflows. The system is designed for smooth startup to help prevent liquid from spilling and incorporates an adjustable circulation fan to promote uniform temperature conditions. A wide-opening cover provides convenient access and visibility, while an integrated cover switch automatically stops air circulation, heating, and shaking when the cover is opened. Additional protection is provided by an independent temperature alarm system that shuts off heating if the temperature exceeds the set limit, along with an audible alarm when a programmed run is complete

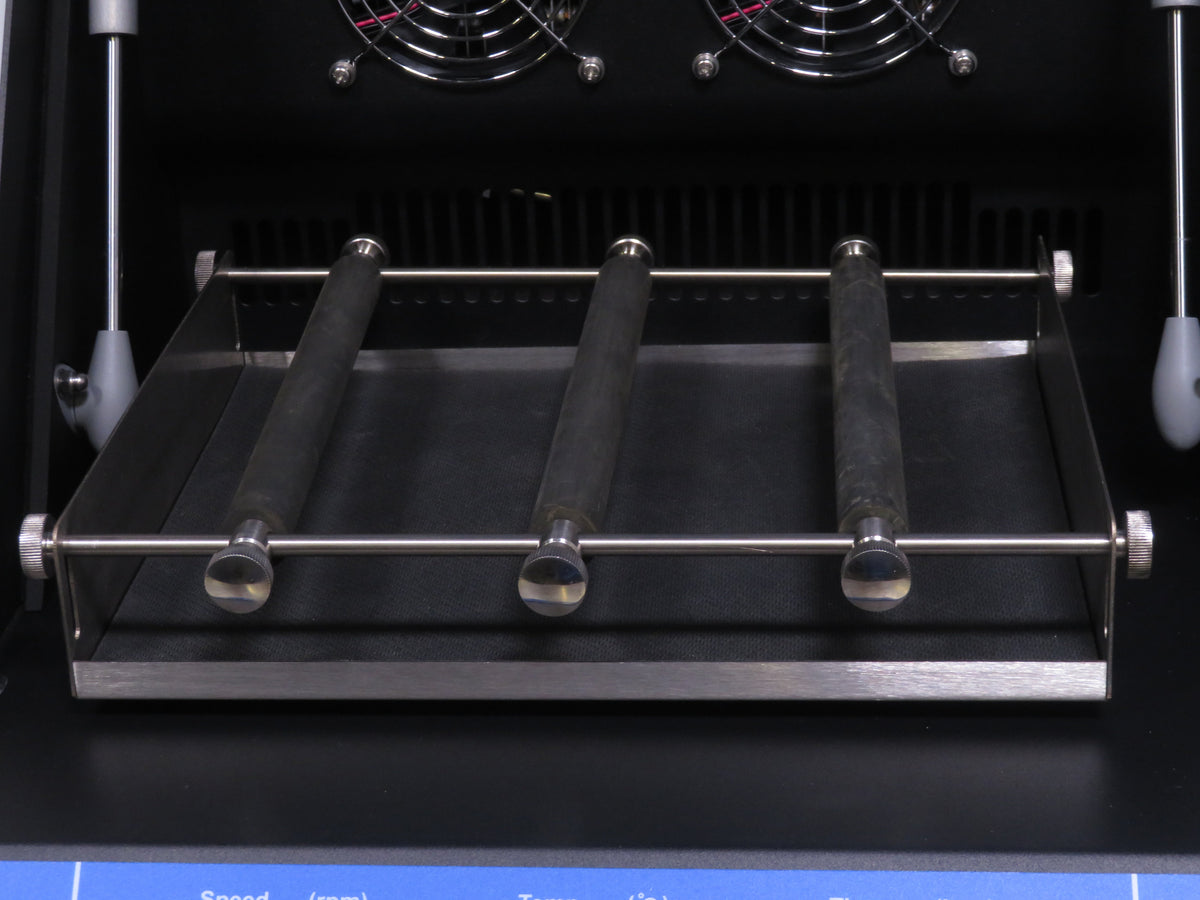

The BT921 utilizes a maintenance-free brushless DC motor designed for long service life and low-noise operation. This unit is supplied with the BT909-C Universal Platform with Adjustable Bars, while additional optional platforms are available to accommodate different laboratory applications
All of our equipment is fully tested to perform at factory specifications before being shipped.
The BT Lab Systems BT921 Incubator Shaker includes:
- Universal Platform with Adjustable Bars
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
BT Lab Systems BT921 Incubator Shaker Specifications
| Temperature Control Range | Ambient +5°C to 60°C |
| Temperature Display Accuracy | 0.1°C |
| Temperature Control Accuracy at 37°C | ≤ ±0.3°C |
| Timing Range | 0 to 99 hr 59 min |
| Shaking Speed | 50 to 300 RPM |
| Orbit | 20 mm, horizontal |
| Platform Dimensions | 10.6 x 8.6 in. (27 x 21.8 cm) |
| Dimensions (W x D x H) | 14.2 x 17.1 x 12.6 in. (360 x 435 x 320 mm) |
| Weight | 41.3 lb. (18.7 kg) |
| Electrical Requirements | 120V, 60Hz, 5A |
- Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
- Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.
- Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
- Test all buttons to confirm full functionality and consistent responsiveness.
- Replace all platform assembly bearings to ensure smooth and reliable motion.
- Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
- Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
- Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
- Check drive belt tension to confirm correct alignment and function.
- Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
- Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
- Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
- Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.
Technician Inspection and Recertification Checklist
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Examine chamber glass for cracks or chips, replace as needed | Completed | |
| Inspect door seals for wear, replace to ensure tight seal | Completed | |
| Check display brightness, replace dim or dead pixels | Completed | |
| Test all buttons for full functionality and responsiveness | Completed | |
| Replace platform assembly bearings for reliable motion | Completed | |
| Inspect drive belt for wear, replace if torn or cracked | Completed | |
| Examine wiring for frays or breakages, repair as needed | Completed | |
| Verify PCB test points, replace faulty components | Completed | |
| Check drive belt tension for proper alignment | Completed | |
| Confirm compressor functionality, clean filter and fins | Completed | |
| Calibrate internal temperature with NIST probe | Completed | |
| Calibrate platform RPM with NIST-traceable tachometer | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
