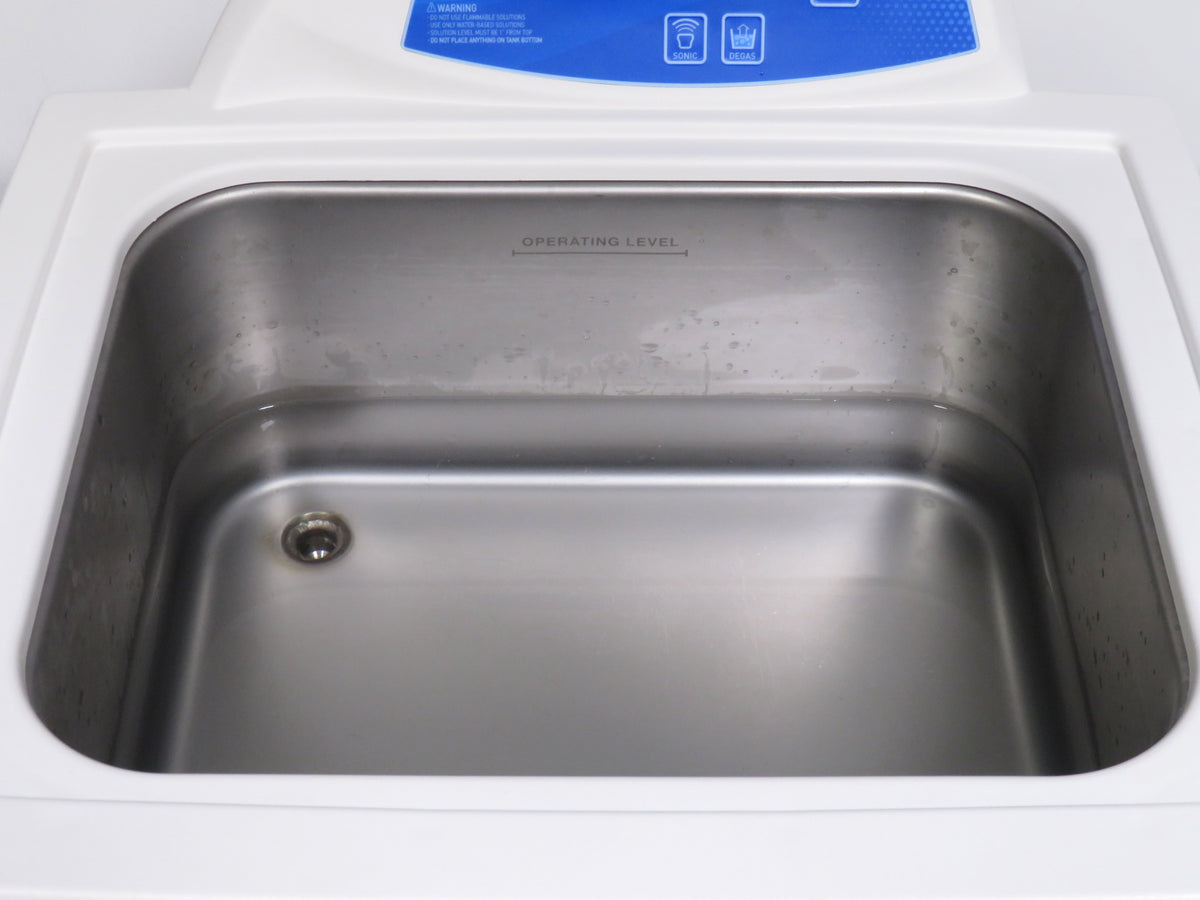

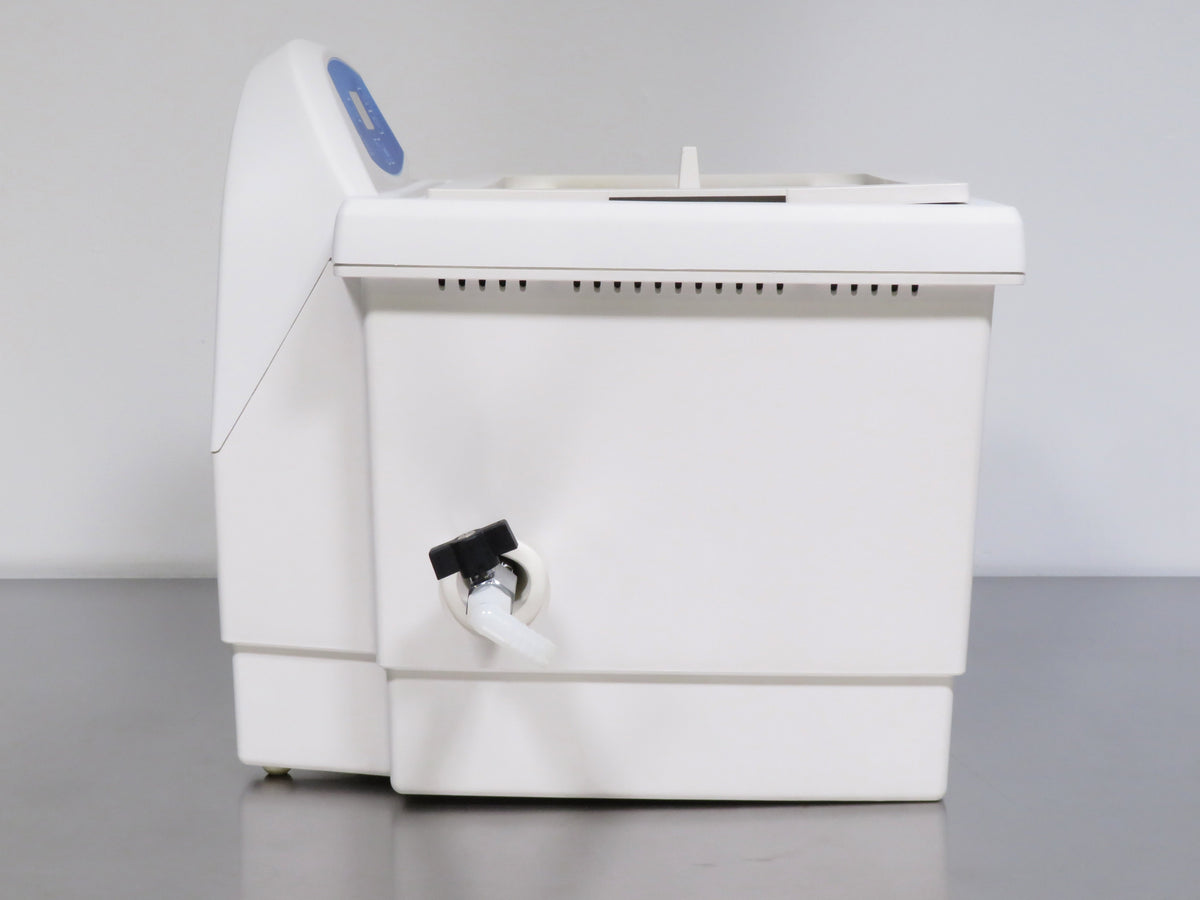

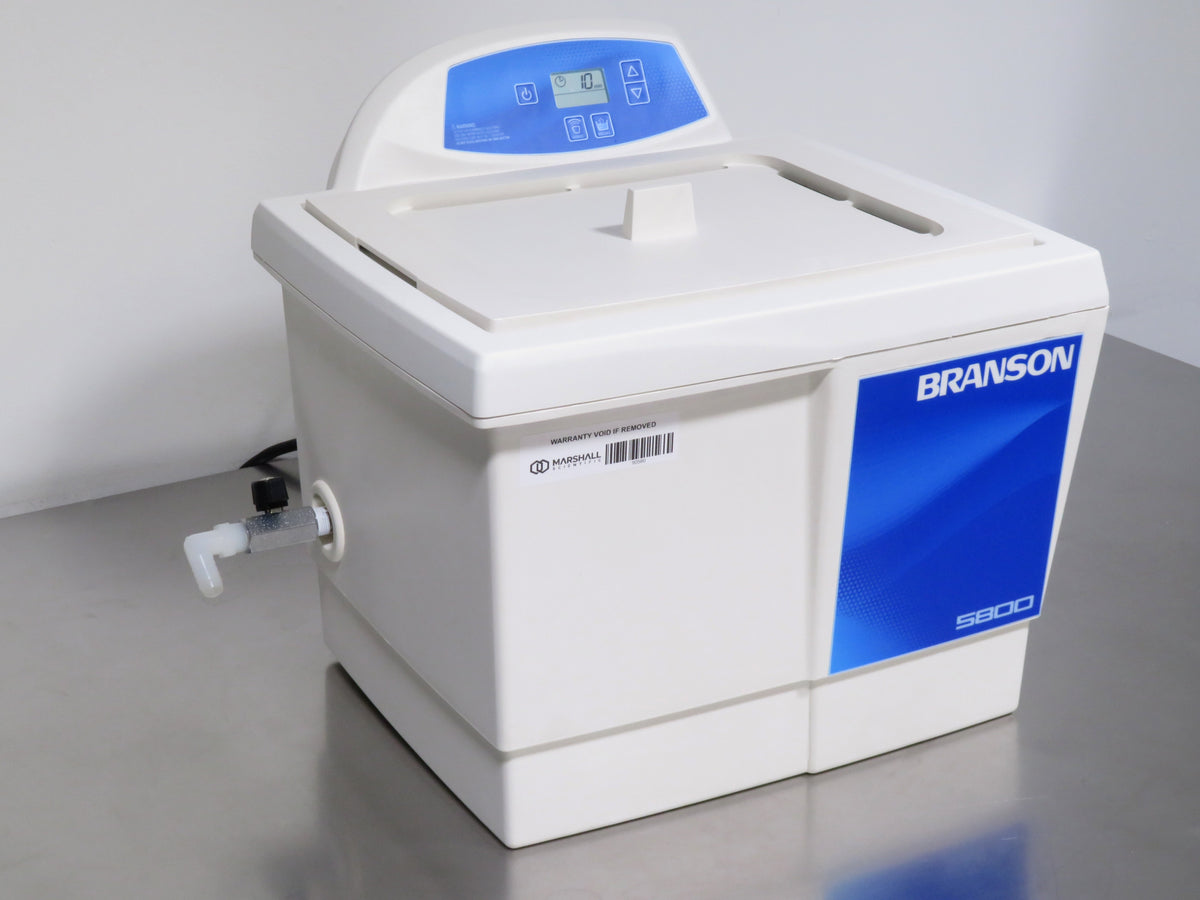

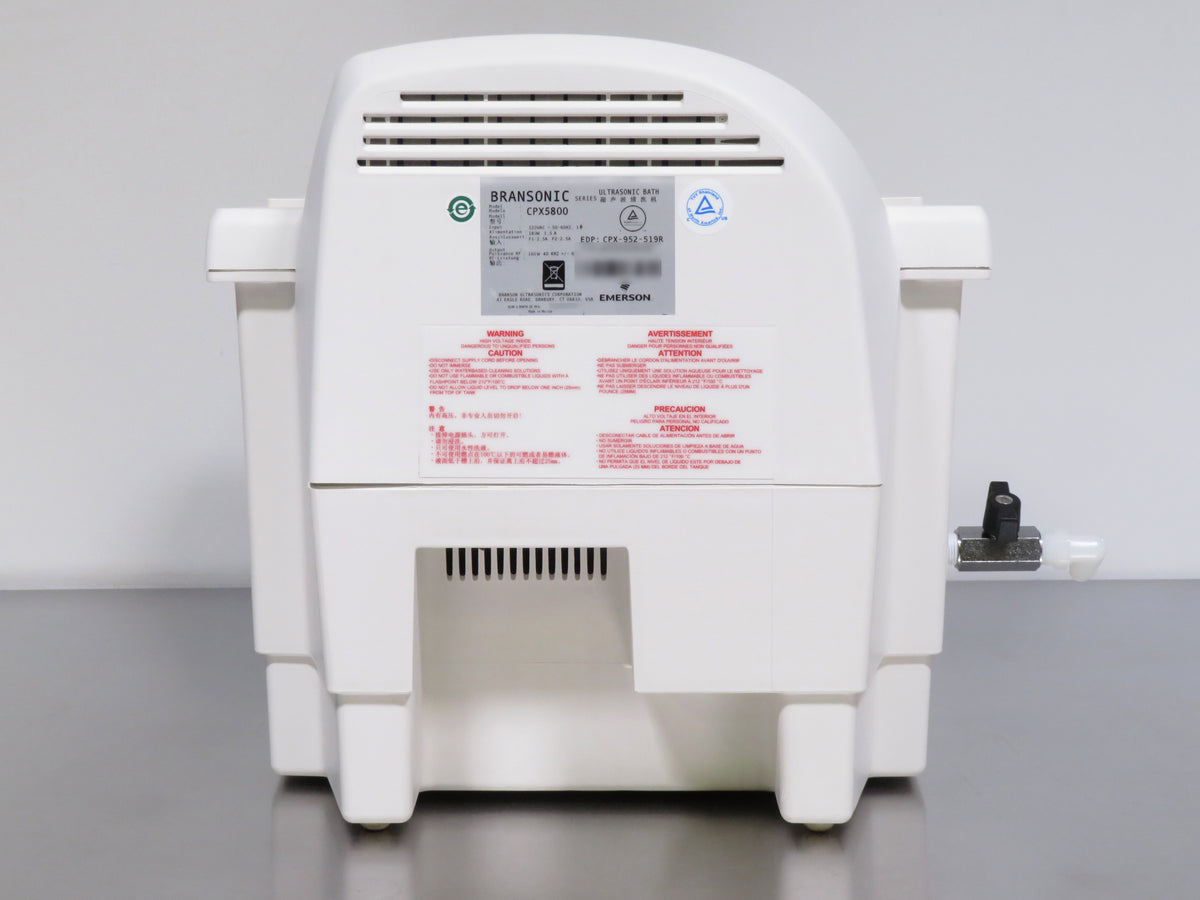

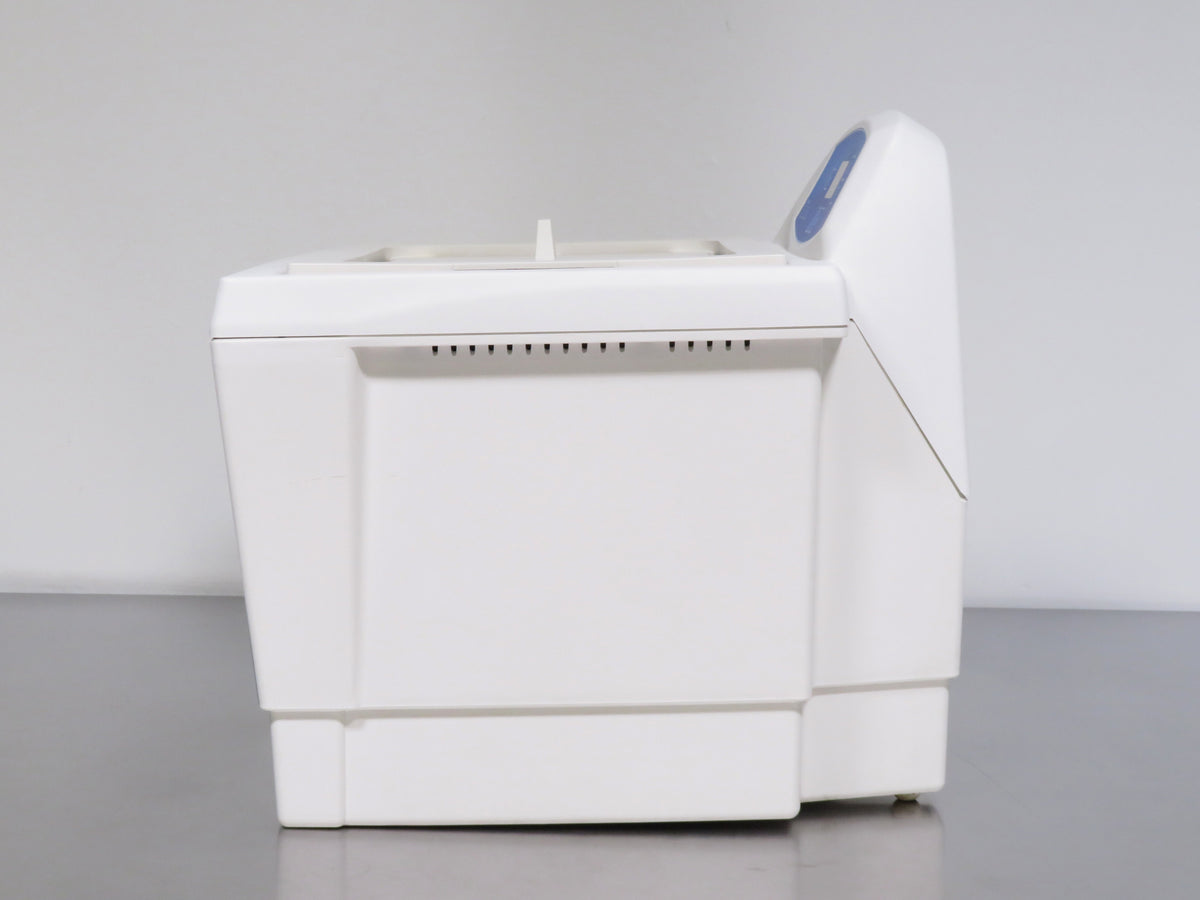

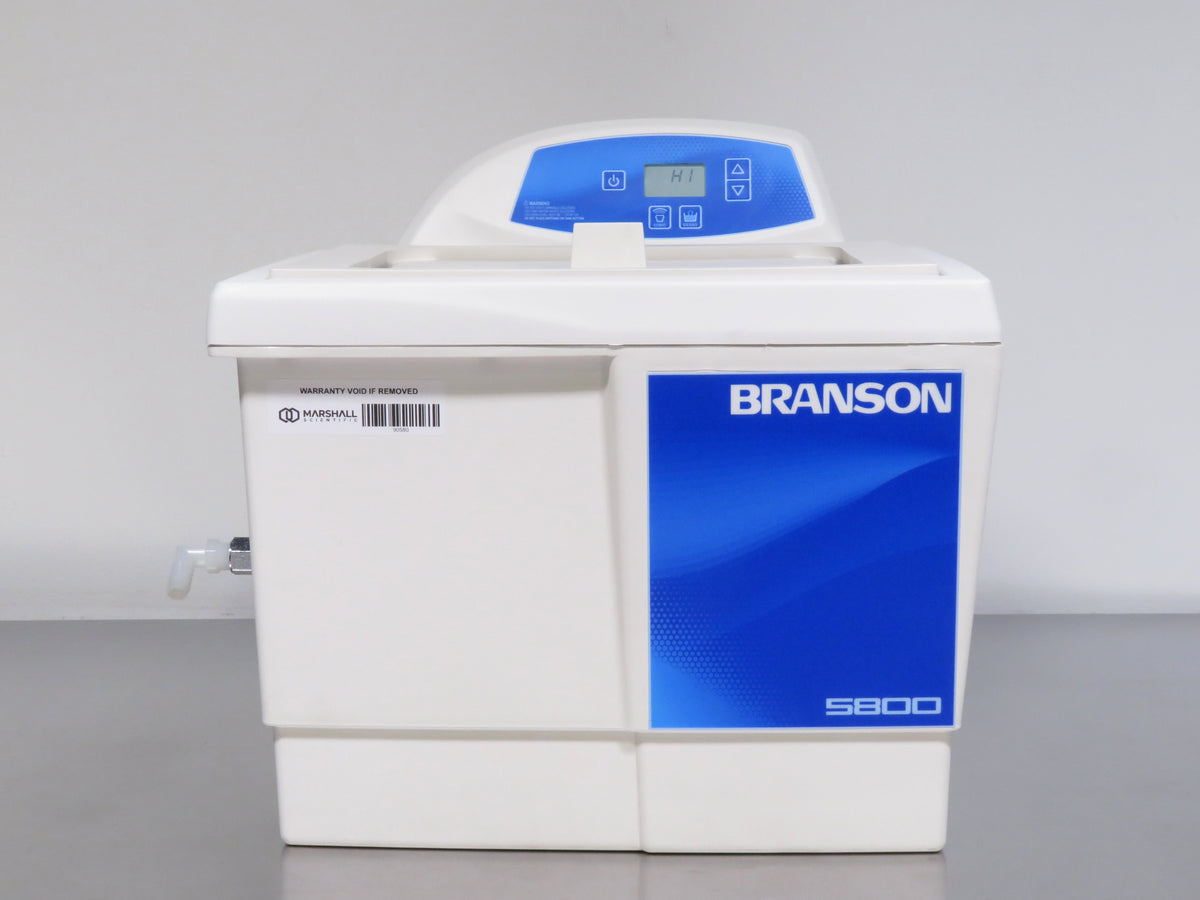

Branson CPX5800 Digital Ultrasonic Cleaner

Features

• Sweep frequency eliminates standing waves and creates consistent cavitation throughout the tank.
• 40 kHz rugged industrial transducers.
• 99-minute digital timer with continuous ultrasonic operation.
• Last stored parameters are recalled when unit is turned back on.

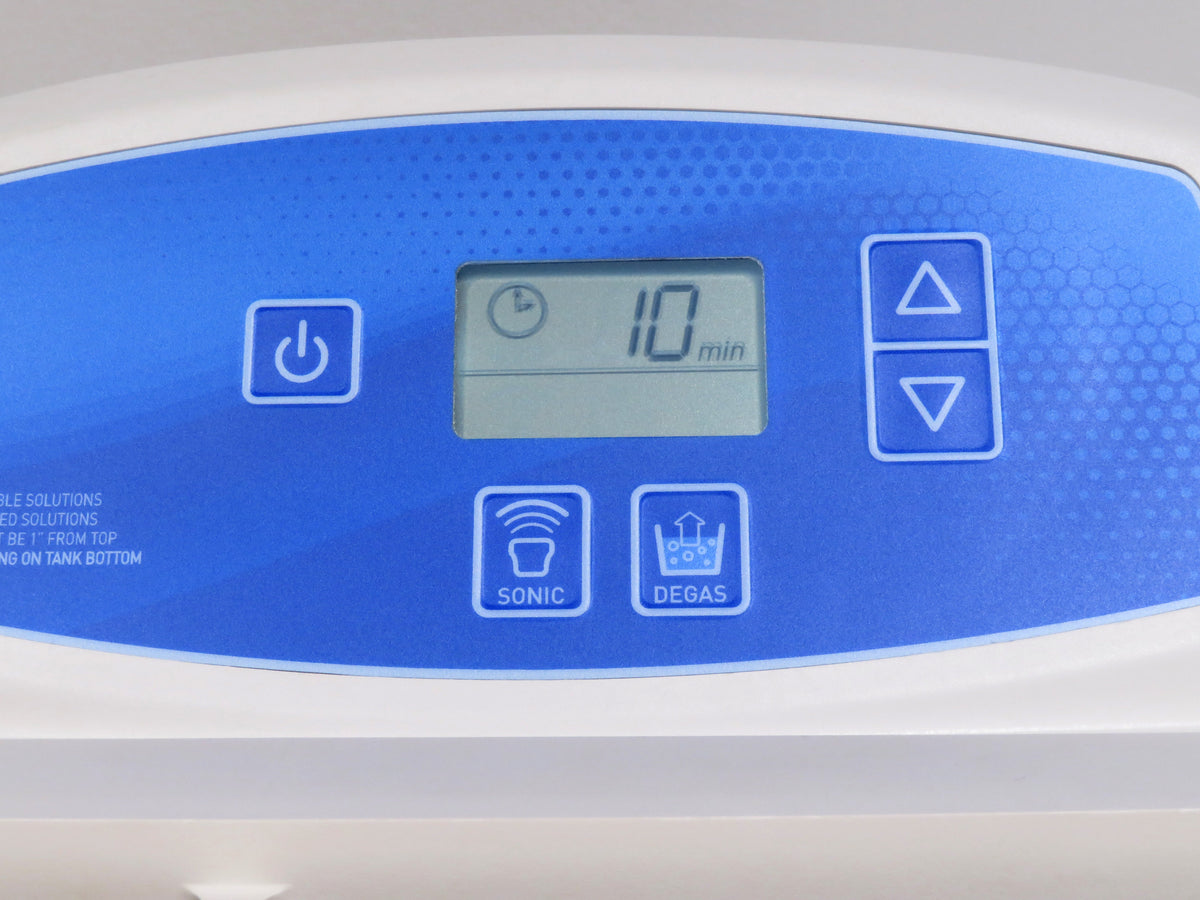

• Controls are located above and behind the cleaning tank in an easily accessible control tower panel, and raised above the tank to avoid damage from cleaning solutions.
• Convenient built-in pour drains are featured on .5- and .75-gallon models. Tank drains with valves are incorporated on models 1.5-gallon and larger.
• Plastic body, chemical-resistant.

The Branson CPX5800 Digital Ultrasonic Cleaner provides versatile ultrasonic cleaning with digital controls designed to maintain consistent performance across changing bath conditions and load sizes. Power tracking automatically adjusts ultrasonic output as liquid level and temperature change, helping provide uniform cleaning results during routine laboratory use. Users can select full power for standard applications or reduce output to 70% when working with more delicate components.

Beyond general cleaning, the CPX5800 supports a variety of laboratory processes including liquid degassing, sample preparation, mixing and homogenization, dissolving solids, cell lysis, and particle dispersion. The programmable degassing cycle can be set for up to 99 minutes, providing added flexibility for applications requiring extended processing.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Branson CPX5800 Digital Ultrasonic Cleaner Specifications

Ultrasonic Cleaner Inspection and Recertification Checklist

• Verify that the power supply and PCB are delivering stable and correct voltage outputs to all essential circuits
• Inspect the display for any dim, dead, or flickering pixels, replacing affected areas to maintain clear and accurate readings
• Confirm that all buttons and knobs function fully, providing precise and reliable input control
• Verify that the timer, degassing function, sonics, and heating elements are working properly, ensuring full operational capability
• Check the lid for signs of damage, warping, or wear, replacing as needed to maintain a secure seal
• Inspect the tank for any holes, rust, or other damage, confirming it remains structurally sound
• Confirm there are no fluid leaks within the tank to ensure operational safety
• Inspect for any internal leaks that may compromise performance or safety
• Examine internal wiring for tears, breaks, or worn areas; replace any components that do not meet performance standards
• Inspect internal insulation for wear or degradation, replacing where necessary to maintain thermal efficiency and safety
• Load a prepared sample into the ultrasonic cleaner, testing to confirm proper ultrasonic function and cleaning efficacy
• Verify temperatures using a NIST-traceable temperature probe to ensure accuracy
• Conduct a thorough cosmetic inspection to confirm all surfaces and components meet quality and aesthetic standards

Technician Inspection and Recertification Checklist: Ultrasonic Cleaner

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Verify stable, correct voltage outputs from power supply and PCB to circuits	Completed
Inspect display for dim, dead, or flickering pixels; replace as needed	Completed
Confirm full functionality of all buttons and knobs for reliable input control	Completed
Verify proper function of timer, degassing, sonics, and heating elements	Completed
Check lid for damage, warping, or wear; replace if needed for secure seal	Completed
Inspect tank for holes, rust, or damage to confirm structural integrity	Completed
Confirm absence of fluid leaks within tank for operational safety	Completed
Inspect for internal leaks that may compromise performance or safety	Completed
Examine internal wiring for tears or breaks; replace components as needed	Completed
Inspect internal insulation for wear; replace to maintain thermal efficiency	Completed
Test ultrasonic function by cleaning a prepared sample to confirm efficacy	Completed
Verify temperature accuracy using a NIST-traceable temperature probe	Completed
Conduct cosmetic inspection to confirm quality of surfaces and components	Completed
