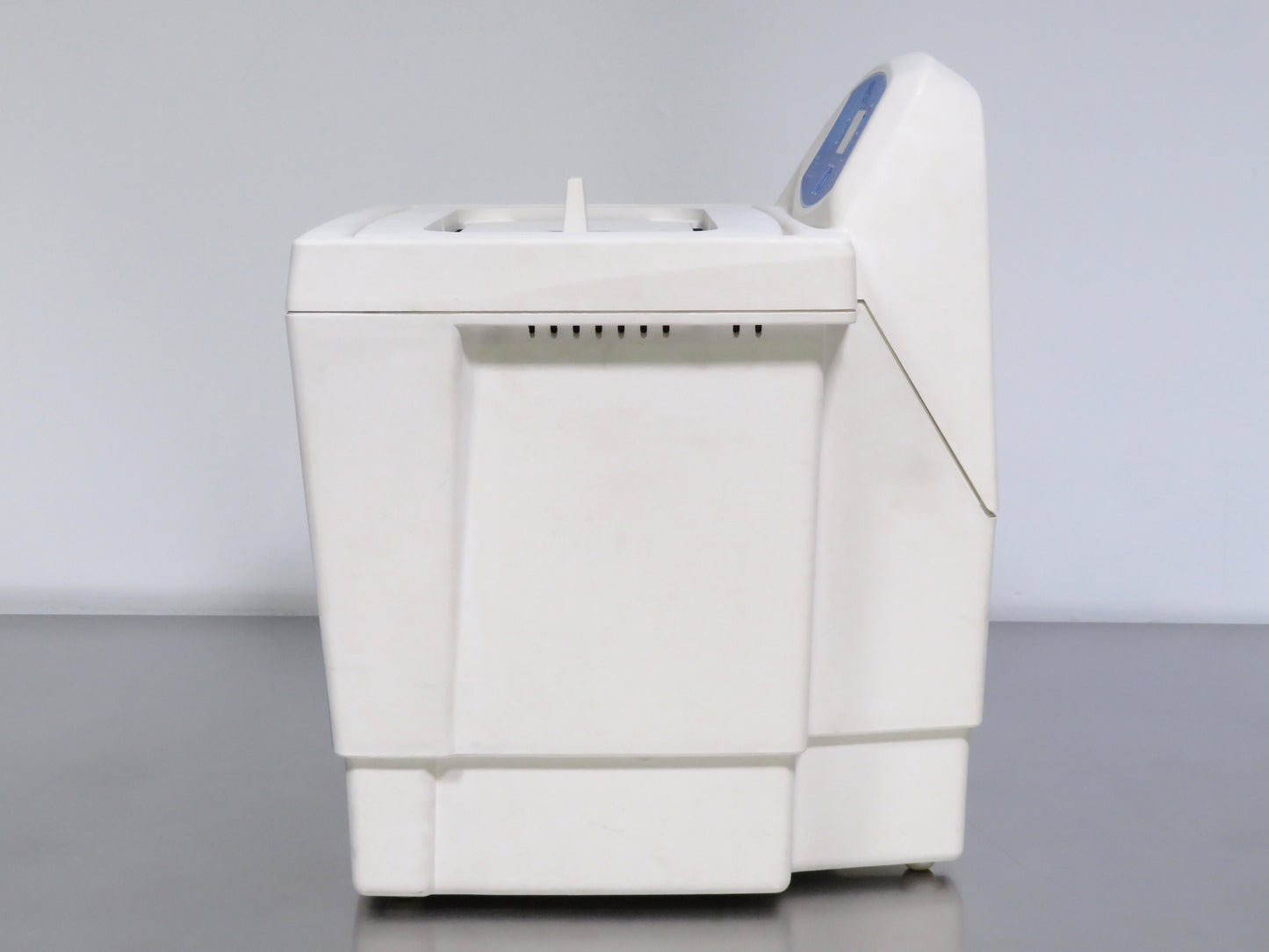

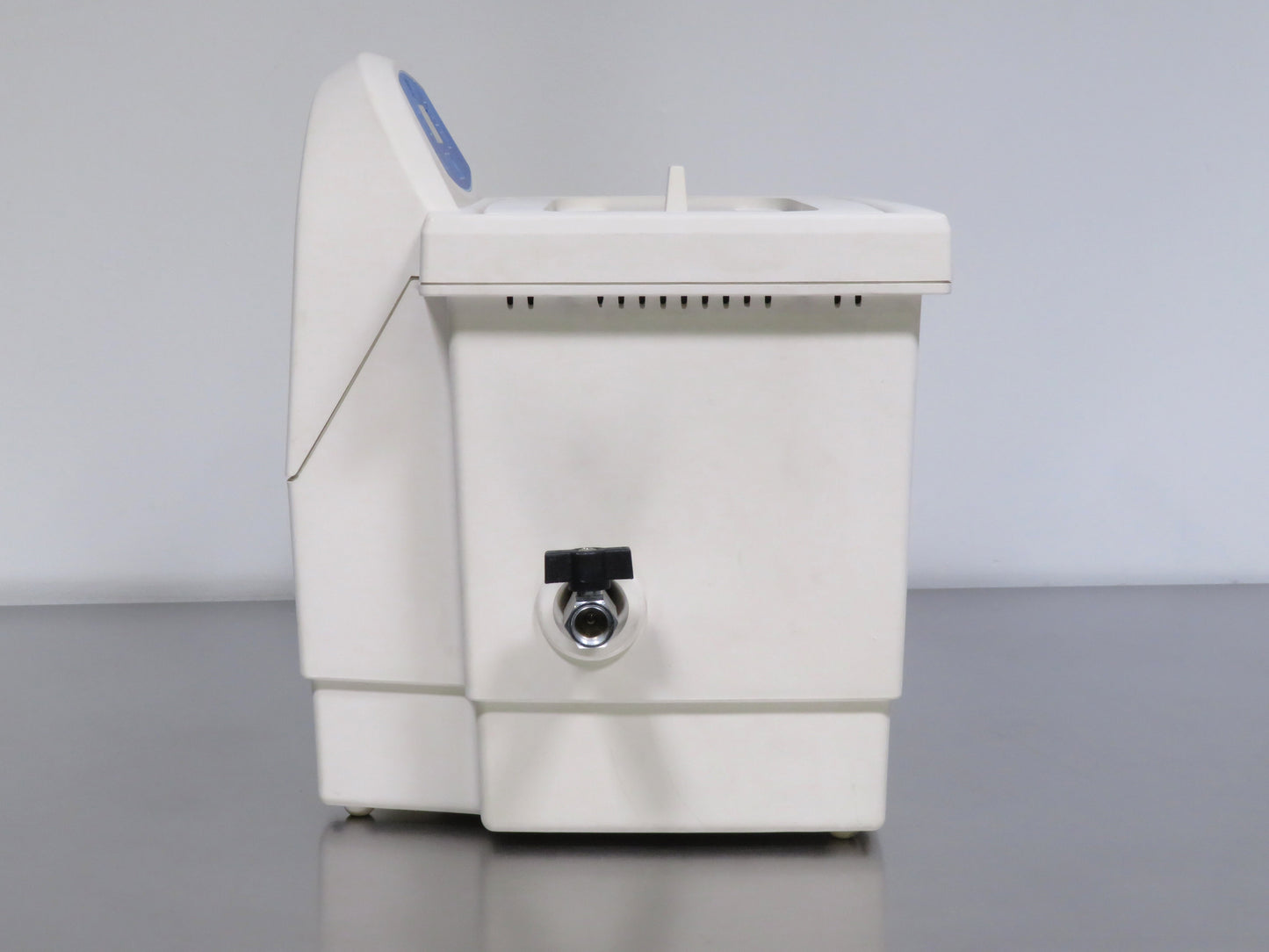

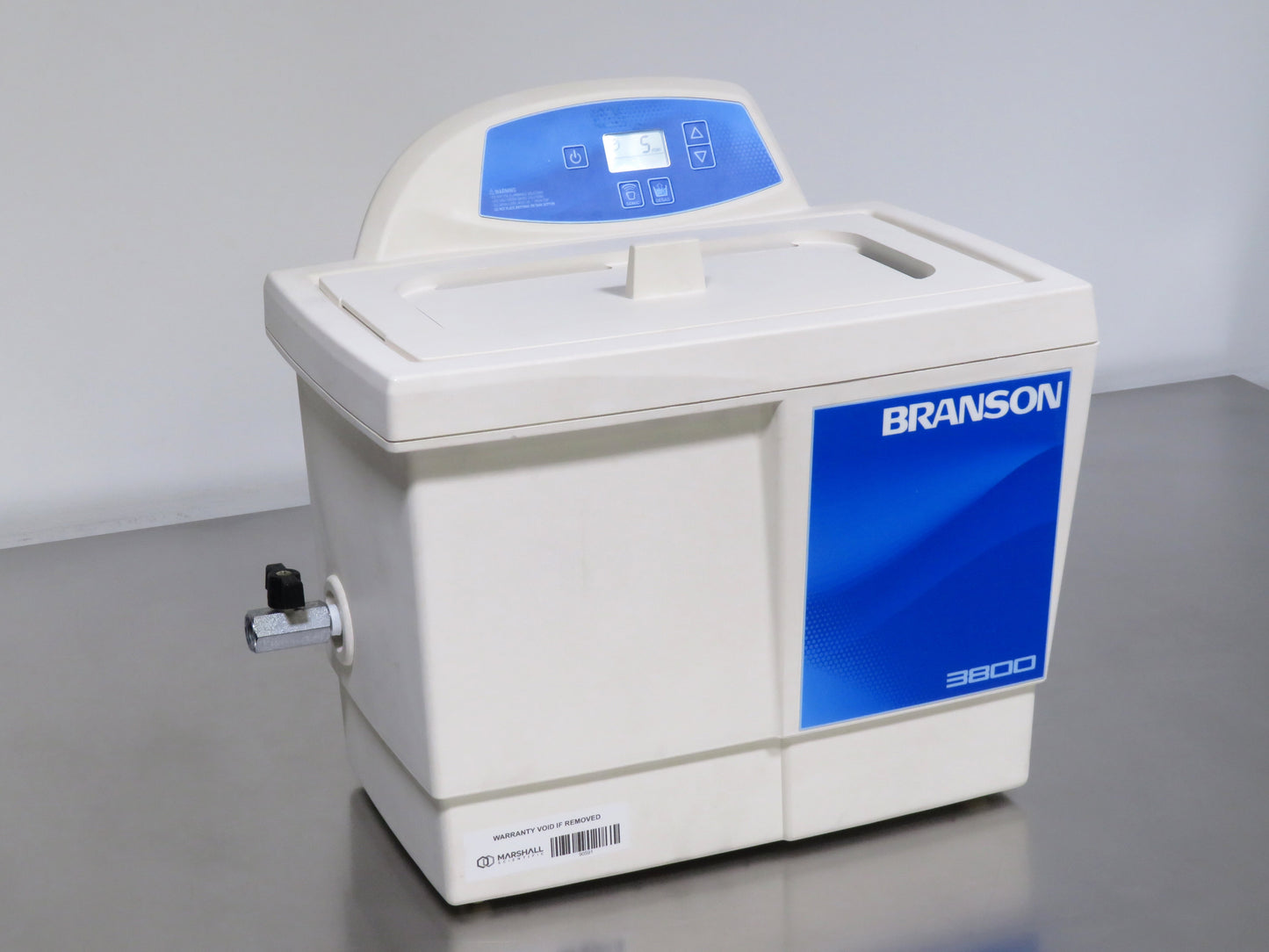

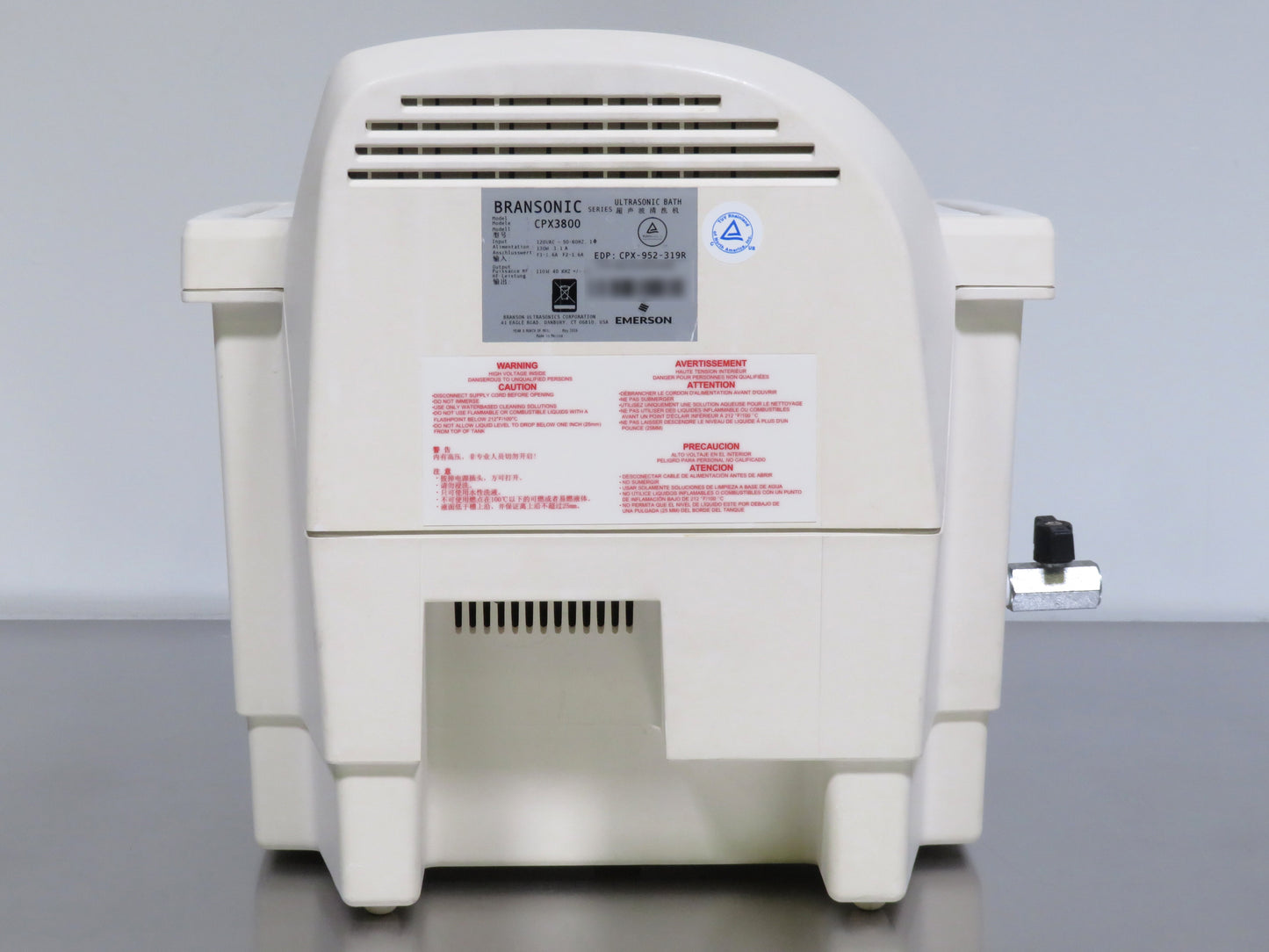

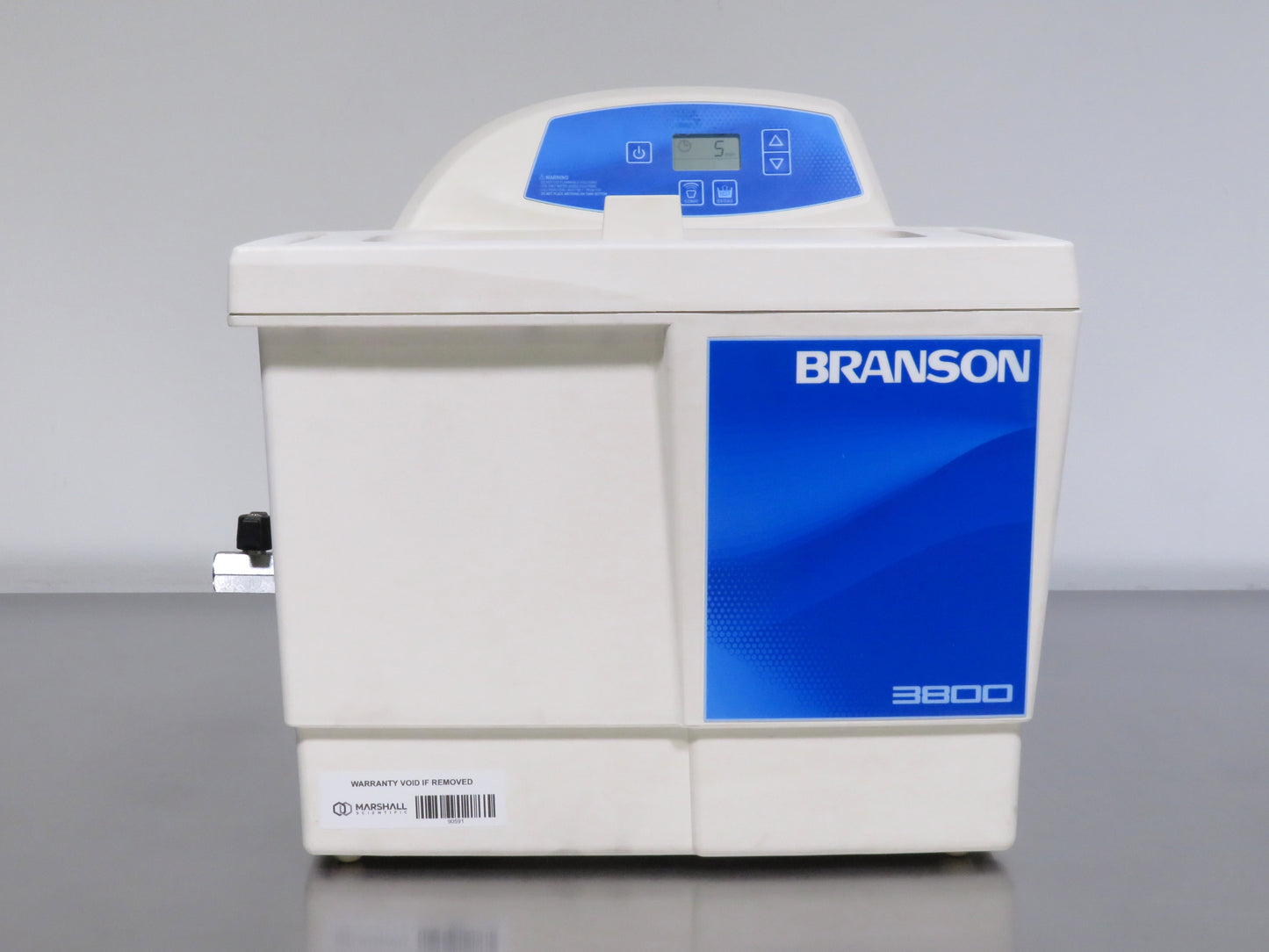

Branson CPX3800 Digital Ultrasonic Cleaner

Features

• Sweep frequency eliminates standing waves and creates consistent cavitation throughout the tank
• 40 kHz rugged industrial transducers
• 99-minute digital timer with continuous ultrasonic operation
• Last stored parameters are recalled when unit is turned back on

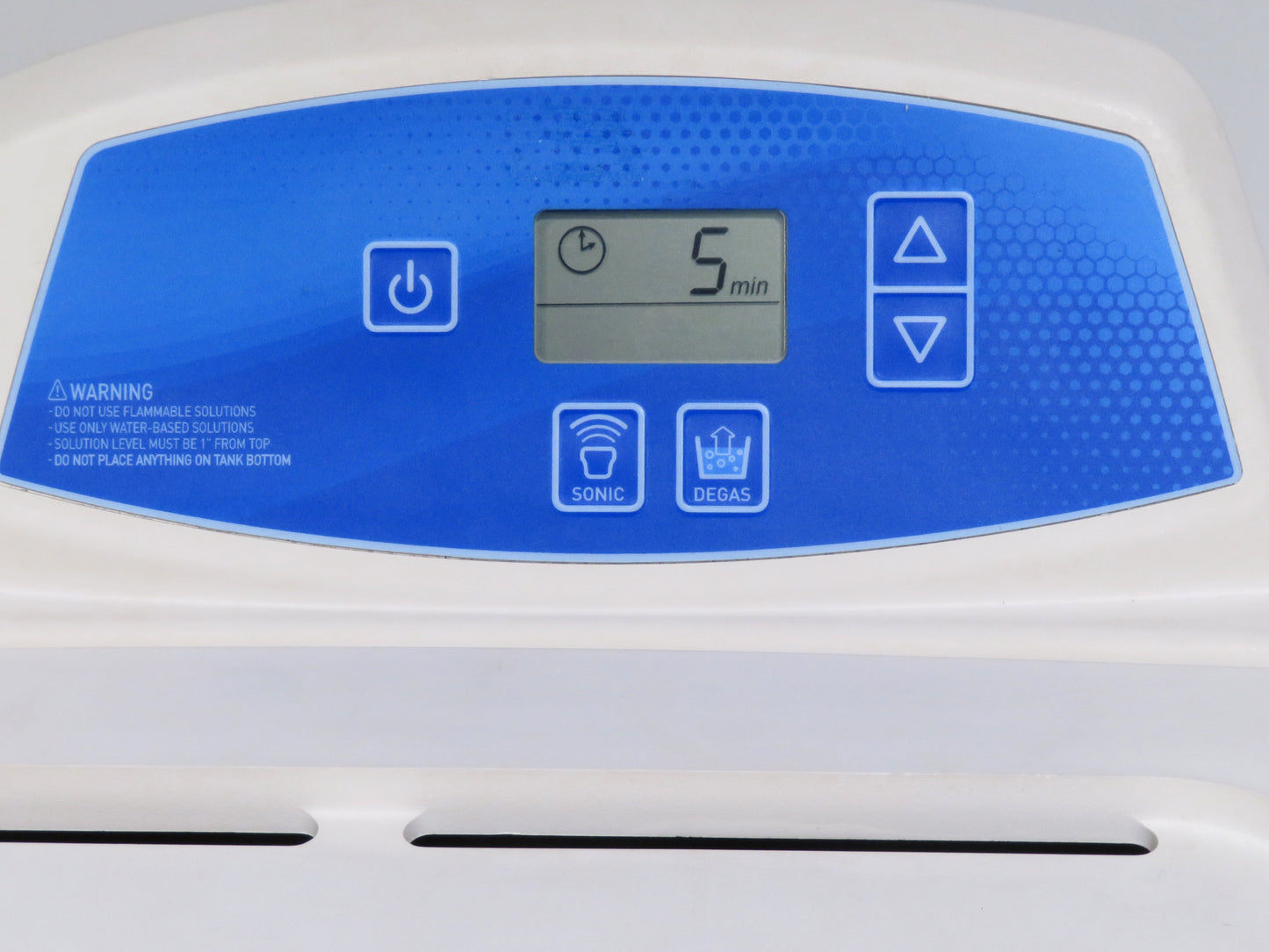

• Controls are located above and behind the cleaning tank in an easily accessible control tower panel, and raised above the tank to avoid damage from cleaning solutions

• Plastic body, chemical-resistant

The Branson CPX3800 Digital Ultrasonic Cleaner features digital controls with power tracking capabilities to adjust for light or heavy loads, high/low power control, degassing and sleep mode. The CPX baths offer the following features: Constant activity/power tracking automatically maintains the ultrasonic power by adjusting for changes in liquid level and temperature caused by a light or heavy load. This helps ensure more uniform cleaning and consistent performance, even with multiple users or when bath conditions change.

When cleaning delicate parts, the CPX allows the user to lower the amplitude of the acoustic energy in the bath: 100% power to the tank for normal applications, 70% power for delicate applications. Manipulating the output waveform in this manner greatly helps to avoid damage to the components in the bath during the ultrasonic process.

All of our equipment will be fully tested to perform at factory specifications before being shipped.

Branson CPX3800 Digital Ultrasonic Cleaner Specifications

Ultrasonic Cleaner Inspection and Recertification Checklist

• Verify that the power supply and PCB are delivering stable and correct voltage outputs to all essential circuits
• Inspect the display for any dim, dead, or flickering pixels, replacing affected areas to maintain clear and accurate readings
• Confirm that all buttons and knobs function fully, providing precise and reliable input control
• Verify that the timer, degassing function, sonics, and heating elements are working properly, ensuring full operational capability
• Check the lid for signs of damage, warping, or wear, replacing as needed to maintain a secure seal

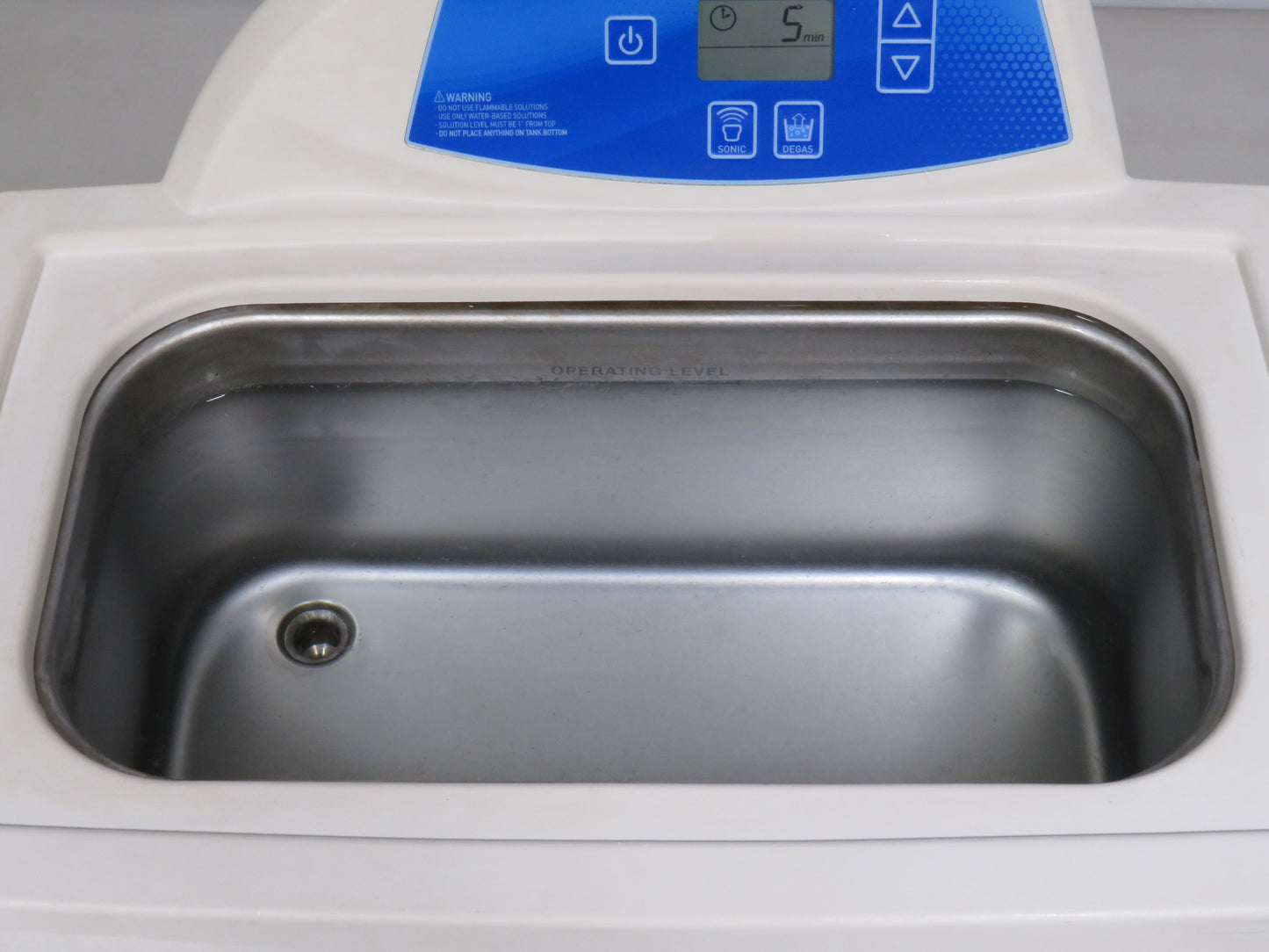

• Inspect the tank for any holes, rust, or other damage, confirming it remains structurally sound
• Confirm there are no fluid leaks within the tank to ensure operational safety
• Inspect for any internal leaks that may compromise performance or safety
• Examine internal wiring for tears, breaks, or worn areas; replace any components that do not meet performance standards
• Inspect internal insulation for wear or degradation, replacing where necessary to maintain thermal efficiency and safety
• Load a prepared sample into the ultrasonic cleaner, testing to confirm proper ultrasonic function and cleaning efficacy
• Verify temperatures using a NIST-traceable temperature probe to ensure accuracy
• Conduct a thorough cosmetic inspection to confirm all surfaces and components meet quality and aesthetic standards

Technician Inspection and Recertification Checklist: Ultrasonic Cleaner

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Verify stable, correct voltage outputs from power supply and PCB to circuits	Completed
Inspect display for dim, dead, or flickering pixels; replace as needed	Completed
Confirm full functionality of all buttons and knobs for reliable input control	Completed
Verify proper function of timer, degassing, sonics, and heating elements	Completed
Check lid for damage, warping, or wear; replace if needed for secure seal	Completed
Inspect tank for holes, rust, or damage to confirm structural integrity	Completed
Confirm absence of fluid leaks within tank for operational safety	Completed
Inspect for internal leaks that may compromise performance or safety	Completed
Examine internal wiring for tears or breaks; replace components as needed	Completed
Inspect internal insulation for wear; replace to maintain thermal efficiency	Completed
Test ultrasonic function by cleaning a prepared sample to confirm efficacy	Completed
Verify temperature accuracy using a NIST-traceable temperature probe	Completed
Conduct cosmetic inspection to confirm quality of surfaces and components	Completed
