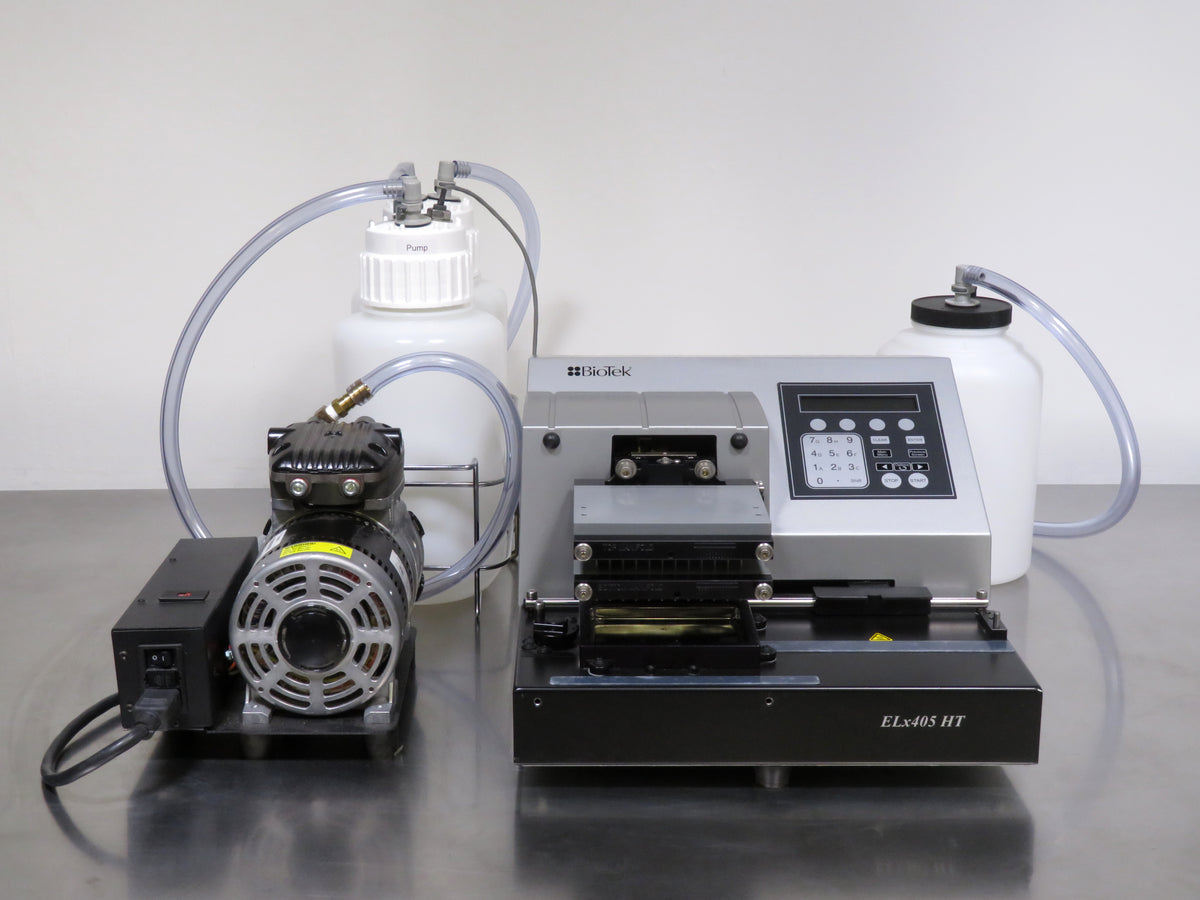

BioTek ELX405HTV2SM Microplate Washer
Microplate Type
96-Well
Wash Speed
96-wells, 300 µL/well, 3 cycles: <30 seconds
Volume Range
50 to 3000 Microliter Increments
- Supports standard ELISAs, magnetic bead assays, multiplex assays, and bead-based ELISAs
- Wash buffer switching provides added flexibility for multi-buffer protocols
- Ultrasonic cleaning helps prevent manifold clogging and simplifies routine maintenance
- Programmable aspiration and dispensing parameters for application-specific washing
- User-programmable shaking and soaking functions
- Fluid detection, flow, and vacuum sensors support reliable unattended operation
- Positive displacement pump provides consistent fluid delivery
- Designed for reliable, repeatable plate washing across routine and higher-throughput workflows
The BioTek ELx405HTV2SM Microplate Washer is an automated 96-well microplate washer designed for standard ELISAs as well as magnetic bead-based assays and multiplex applications. The system includes magnetic plate functionality that holds compatible plastic-coated metal beads at the bottom of the microwells during aspiration and soaking cycles, helping retain the bead-based substrate throughout the washing process. Magnetic beads are not included.
The ELx405HTV2SM provides programmable control over aspiration, dispensing, fluid volumes, flow rates, shaking, and soaking for consistent assay processing. Extensive onboard software supports up to 75 protocols, while a built-in ultrasonic cleaning system and pre-programmed maintenance routines help minimize manifold clogging and simplify routine upkeep. Fluid detection, flow, and vacuum monitoring further support dependable operation for routine and higher-throughput 96-well plate washing workflows.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The BioTek ELX405HTV2SM Microplate Washer includes:

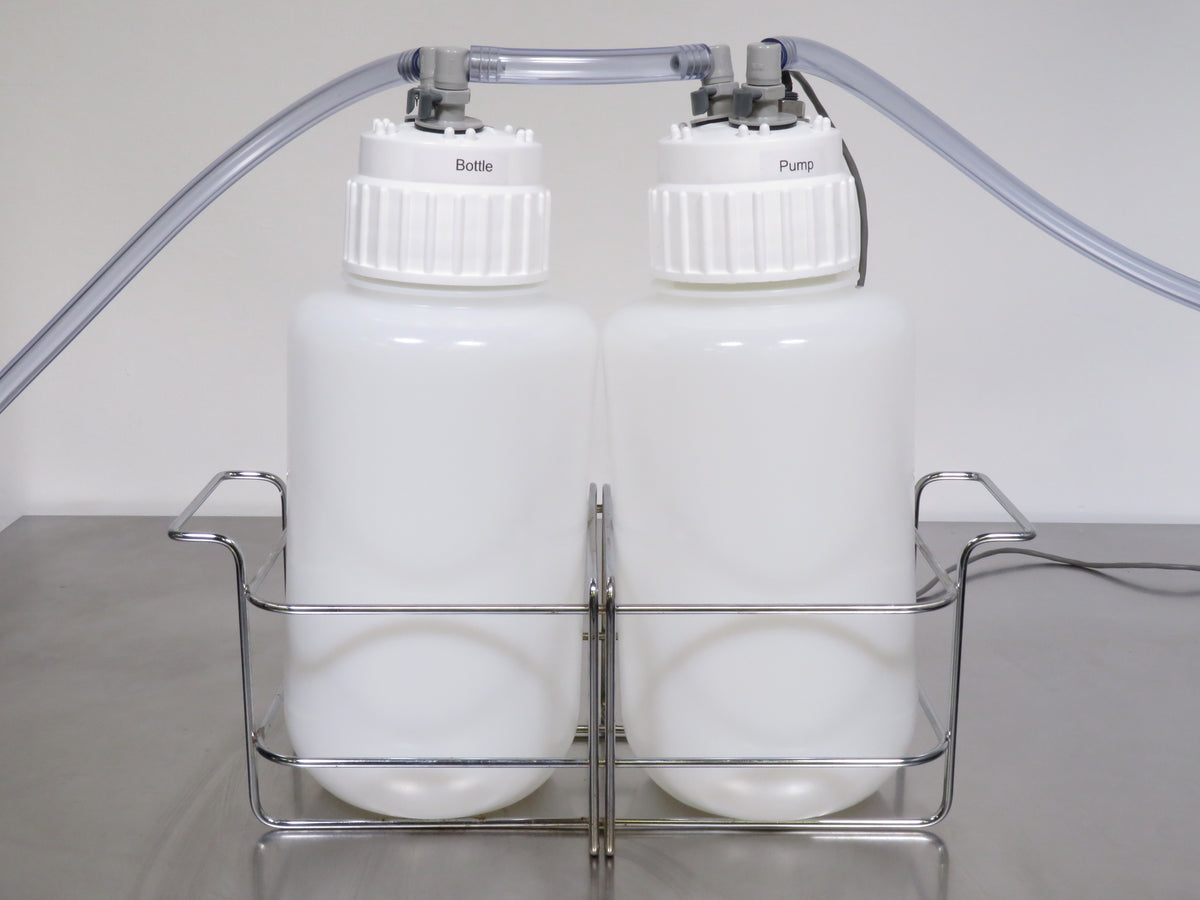

- (2) 4 Liter Waste Bottles
- (1) 4 Liter Buffer Bottle
- Vacuum Pump
- Stainless Steel Bottle Holder
- Microplate Carrier
- Vacuum Tubing with Connections
- 96F Magnet
- Power Cord
- Operator’s Manual
- Full 180 Day Parts and Labor Warranty
- Please Note: Plastic Coated Metal Beads to be used as a substrate are required for operation and are not included.
BioTek ELX405HTV2SM Microplate Washer Specifications
| Microplate Types | 96-well Low profile and standard height |

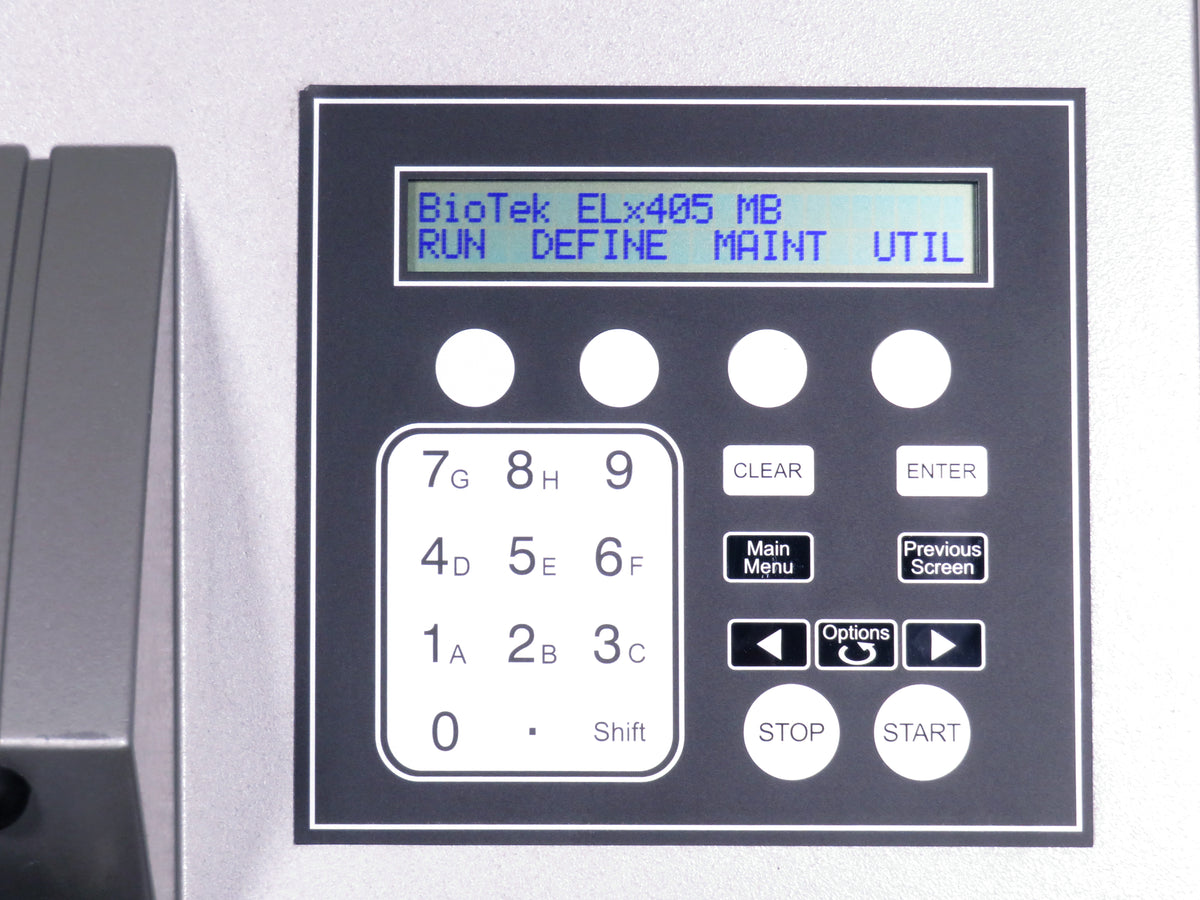

| Onboard Software | Create, edit and run multiple protocols |
| Soaking | Programmable up to 60 minutes |
| Manifold Types | 96 Tube Dual Action manifold for 96-well washing |
| Volume Range | 50 to 3000 microliter increments |
| Wash Cycles | 1 -10 |
| Buffer/reagent Selection | Auto switching module for up to 4 buffers (option) |
| Supply bottle | 4 L |
| Dispense Precision | ≤3% CV: 300 µL/well (96-well washing) |
| Residual Volume | <2 µL/well (standard 96-well plates) |
| Wash Speed | 96-wells, 300 µL/well, 3 cycles: <30 seconds |
| Flow Rates | High flow to low flow Optimized rates for cell assays |
| Sterilization | Chemical |
|
Vacuum Filtration
|
Selectable: Approximate final at 30 seconds:
Lowest: -38 mmHg
Low: -113 mmHg
Medium: -200 mmHg
High: -390 mmHg
Highest: -506 mmHg
Vacuum filtration time range: 5 to 999 seconds
|
- Install new waste and buffer bottles to ensure proper fluid containment and system functionality.
- Integrate a new pump into the system, verifying compatibility and secure connections.
- Verify that the power supply and PCB output the correct voltages for reliable component operation.
- Conduct a self-test on the microplate washer, evaluating all operational parameters.
- Inspect the X-axis motor belt for signs of wear, such as tears, frays, or breakages, replacing if necessary.
- Examine dispense and aspirate tubes for any damage that could affect fluid flow accuracy.
- Confirm internal pump functionality, replacing seals as needed to maintain optimal performance.
- Inspect all internal wiring for frays, tears, or breakages, addressing any faults for electrical safety.
- Verify functionality of all internal and external sensors, ensuring accurate readings across the unit.
- Disinfect the unit using an appropriate disinfection cycle to ensure sterility and safety.
- Check that residual aspiration levels are within the manufacturer’s specified limits for accuracy.
- Conduct a final cosmetic inspection to verify that all external surfaces meet appearance standards.
Technician Inspection and Recertification Checklist: Microplate Washer
The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment| Task | Completed? | Remarks? |
| Install new waste and buffer bottles | Completed | |
| Integrate new pump into system, verifying secure connections | Completed | |
| Verify power supply and PCB output correct voltages | Completed | |
| Conduct microplate washer self-test and evaluate results | Completed | |
| Inspect X-axis motor belt for wear, replacing if necessary | Completed | |
| Examine dispense and aspirate tubes for any damage | Completed | |
| Confirm internal pump functionality, replace seals as needed | Completed | |
| Inspect internal wiring for frays, tears, or breakages | Completed | |
| Verify functionality of all internal and external sensors | Completed | |
| Disinfect unit with appropriate disinfection cycle | Completed | |
| Check residual aspiration levels meet specifications | Completed | |
| Conduct cosmetic inspection for appearance standards | Completed |
