Benchmark H6004 Incu-Mixer Heated Microplate Mixer

Features

• Simultaneous heating from the bottom surface and lid promotes consistent incubation throughout microplate samples
• Heated lid helps minimize sample evaporation and prevents condensation during incubation
• Independent time, temperature, and mixing controls allow operation as an incubator, vortexer, or combined heated mixer
• Four-plate design enables multiple standard microplates to be processed simultaneously
• Accommodates microplates up to 46 mm high for greater application flexibility
• Large LCD provides real-time display of time, temperature, and mixing parameters
• Internal validation system continuously monitors operating parameters for accuracy
• Well suited for immunochemical reactions, enzyme and protein analysis, microarray analysis, and other molecular biology workflows

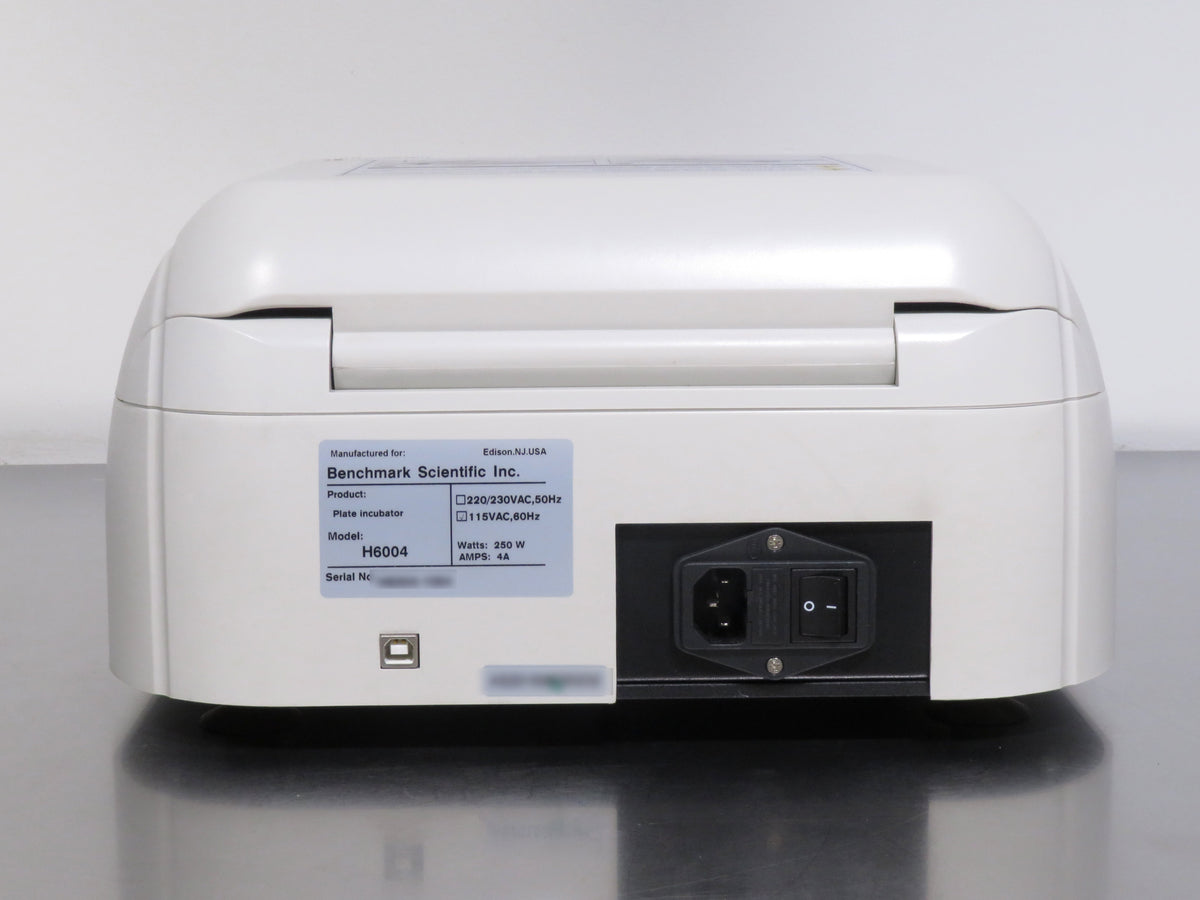

The Benchmark H6004 Incu-Mixer Heated Microplate Mixer combines controlled incubation and vortex mixing in a single compact instrument designed for microplate-based laboratory workflows. The four-plate configuration accommodates standard microplates, including plates up to 46 mm high, allowing multiple samples to be processed simultaneously. Independent controls for mixing speed, temperature, and time allow the H6004 to function as a multi-plate incubator, vortexer, or as a combined heated mixing system depending on the application.

Heating is applied from both the bottom surface and lid to promote uniform temperatures throughout the samples. The heated lid also helps minimize evaporation and prevent condensation during incubation. A compact 2 mm mixing orbit provides thorough microplate mixing while reducing the potential for splashing, and a large LCD continuously displays speed, temperature, and time. An internal validation system monitors operating parameters for accuracy throughout operation.

The H6004 is well suited for molecular biology workflows requiring consistent incubation and mixing, including immunochemical reactions, enzyme and protein analysis, and microarray analysis.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Benchmark H6004 Incu-Mixer Heated Microplate Mixer Specifications

Vortexer Inspection and Recertification Checklist

• Verify power supply and PCB output correct, stable voltages across all required circuits
• Confirm the correct platform head is installed according to specifications
• Inspect the display for dim or dead pixels, replacing any compromised sections to maintain clear visibility
• Confirm full functionality of all buttons and knobs, ensuring accurate input response
• Verify that touch, pulse, and continuous modes operate fully and as intended
• Inspect all internal wiring for breakages, tears, or wear, replacing any underperforming components to ensure reliability
• Disassemble and thoroughly clean the internal casing to remove any accumulated debris
• Check that the feet are intact and confirm the vortexer is properly balanced on a flat surface
• Conduct a comprehensive cosmetic inspection to ensure all exterior surfaces meet quality standards

Technician Inspection and Recertification Checklist: Vortexer

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Verify power supply and PCB output stable, correct voltages across circuits	Completed
Confirm correct platform head is installed according to specifications	Completed
Inspect display for dim or dead pixels; replace compromised sections for clarity	Completed
Confirm functionality of all buttons and knobs for accurate input response	Completed
Verify full operation of touch, pulse, and continuous modes as intended	Completed
Inspect internal wiring for damage; replace underperforming components for reliability	Completed
Disassemble and clean internal casing to remove accumulated debris	Completed
Check feet for integrity and confirm vortexer is balanced on flat surface	Completed
Conduct comprehensive cosmetic inspection to ensure quality of exterior surfaces	Completed
