Agilent 1290 Infinity II HPLC G7167B Multisampler
Injection Range
0 – 20 uL or 0 – 100 uL single stroke injection at max. pressure Up to 0.1 – 1500 uL with optional kits
Injection Precision
<0.15% RSD or SD <10 nL
Maximum Pressure
Up to 1300 bar (130 MPa)
- Flow-through needle design minimizes sample carryover and discrimination for reliable chromatographic analysis
- High-pressure injection capability up to 1300 bar supports demanding UHPLC applications
- Flexible injection system accommodates different sample volumes and analytical requirements
- High-capacity sample handling supports up to 6,144 samples in microtiter plates or 432 standard 2 mL vials

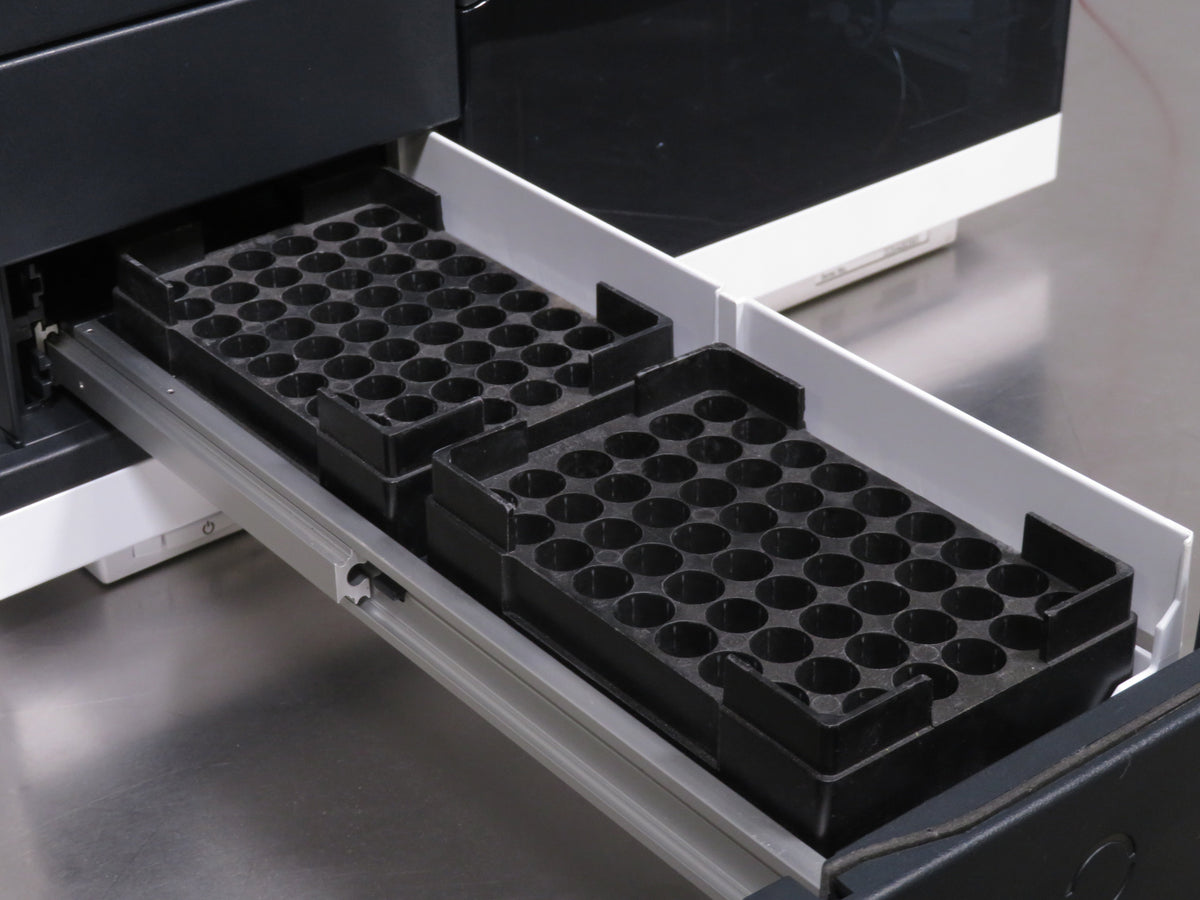

- Configurable sample drawer system accommodates microtiter plates, deep-well plates, and various vial sizes
- Automated internal sample handling enables efficient and consistent sample processing
- Fast injection cycle times as low as 10 seconds improve throughput for high-volume laboratory workflows
- Advanced injection programming supports multi-draw, mixing, dilution, and stacked injection operations
- Low sample carryover supports accurate and reproducible analysis across demanding applications
- High injection precision and accuracy provide consistent sample delivery and reliable analytical results
- Early Maintenance Feedback (EMF) continuously tracks instrument usage and provides customizable maintenance alerts
- Electronic maintenance and error records simplify troubleshooting and support dependable instrument operation
The Agilent 1290 Infinity II HPLC G7167B Multisampler is a high-performance autosampler designed for precise, efficient, and reliable sample handling in liquid chromatography applications. Featuring a flow-through needle design, the G7167B minimizes sample carryover and discrimination while supporting injection pressures up to 1300 bar. Its advanced injection system provides excellent precision and accuracy, making it well suited for conventional HPLC and high-pressure UHPLC workflows.

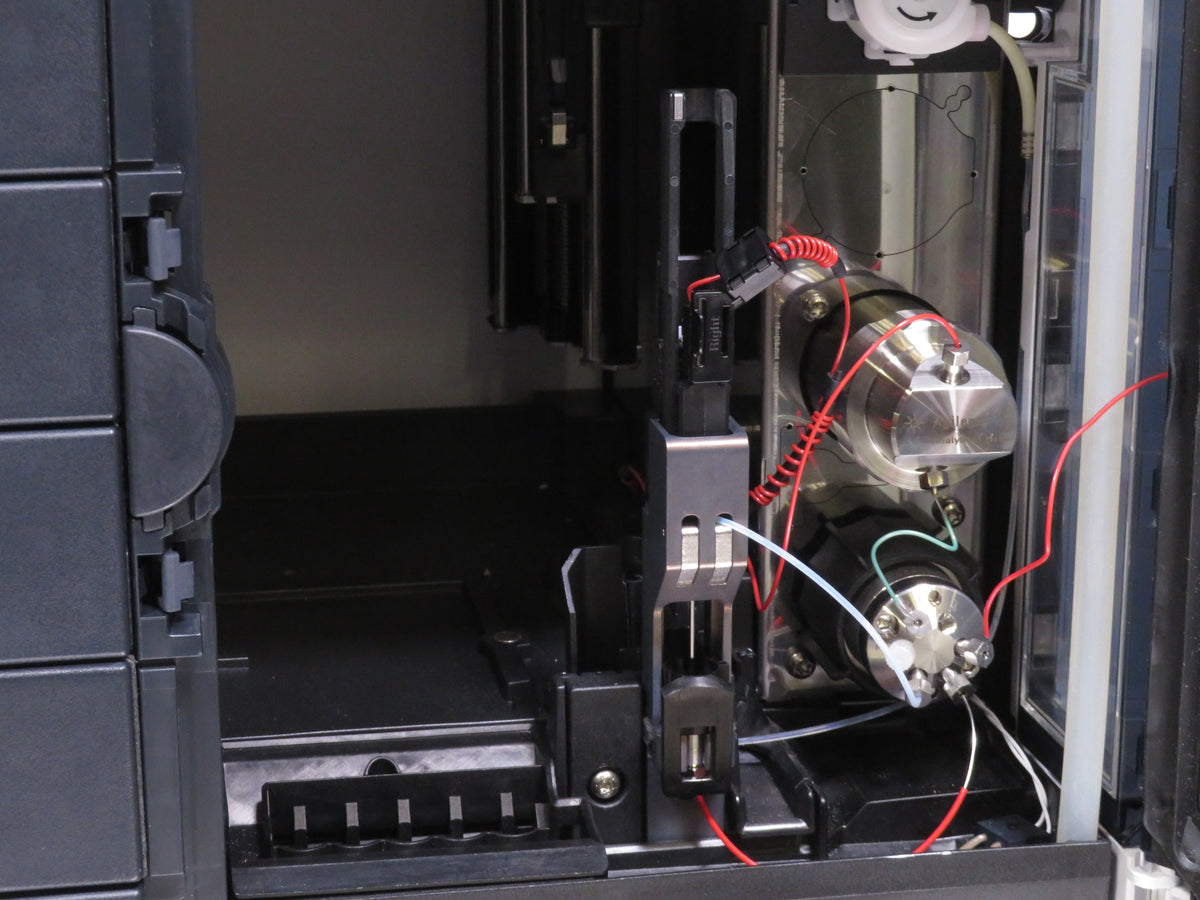

The G7167B features a flexible sample handling system capable of accommodating various sample containers, including microtiter plates and standard laboratory vials. Its automated internal robotics transport samples from the storage drawers to the injection workspace, supporting efficient and consistent sample processing. The unit is configured with vial trays for automated sample loading, while advanced injection programming supports operations such as multi-draw, mixing, dilution, and stacked injections.
Designed for dependable operation and simplified maintenance, the G7167B incorporates Early Maintenance Feedback (EMF) technology to monitor instrument usage and provide customizable maintenance alerts. Electronic maintenance and error records support troubleshooting and reliable performance across demanding analytical workflows.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Agilent 1290 Infinity II HPLC G7167B Multisampler includes:
- Latest Available Firmware Version (Please inquire)
- Front Cover
- Sample Drawer
- Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Agilent 1290 Infinity II HPLC G7167B Multisampler Specifications
| Injection Range | 0 – 20 µL or 0 – 100 µL single stroke injection at max. pressure Up to 0.1 – 1500 µL with optional kits |
| Injection Precision | <0.15% RSD or SD <10 nL |
| Injection Accuracy | 0.7% (10 µL, n=10) |
| Pressure Range | Up to 1300 bar (130 MPa) |
| Sample Viscosity Range | 0.2–5.0 cP |
| Sample Capacity | Up to 6,144 samples using microtiter plates or 432 standard 2 mL vials; configurable single-, double-, and triple-height drawers |
| Injection Cycle Time | As low as 10 seconds (single-needle configuration) |
| Carryover | <0.003% (30 ppm) without Multiwash |
| Hydraulic System | Flow-through needle design for minimized sample carryover and discrimination |
| Injection Programming | Multi-draw, mixing, stacked injections, and dilution |
| Dimensions (H × W × D) | 12.6 × 15.6 × 18.4 in. (32 × 39.6 × 46.8 cm) |
| Weight | 48.5 lb. (22 kg) |
| Electrical Requirements | 100–240V, 50/60Hz |
Downloads
Click Here to View the Technical Specs for the Agilent 1290 Infinity II HPLC G7167B Multisampler
