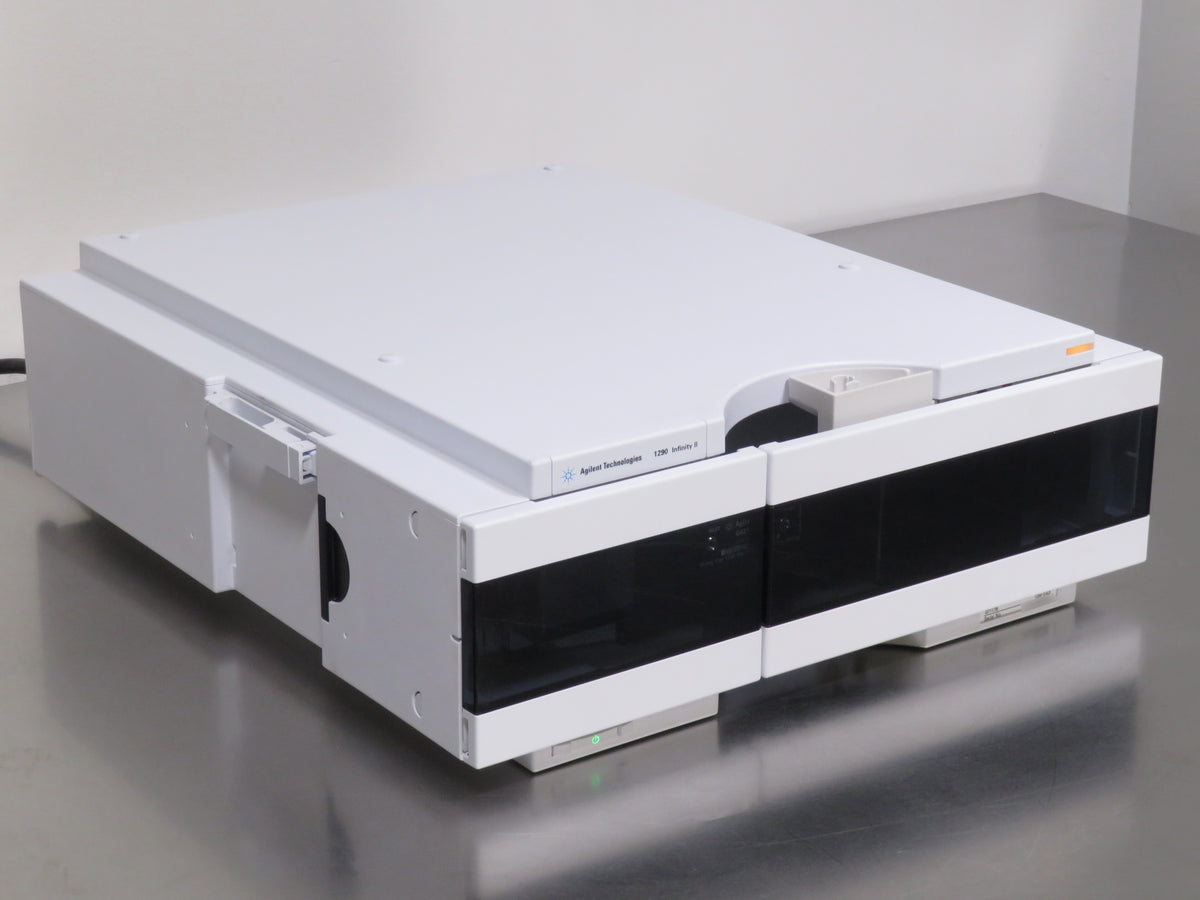

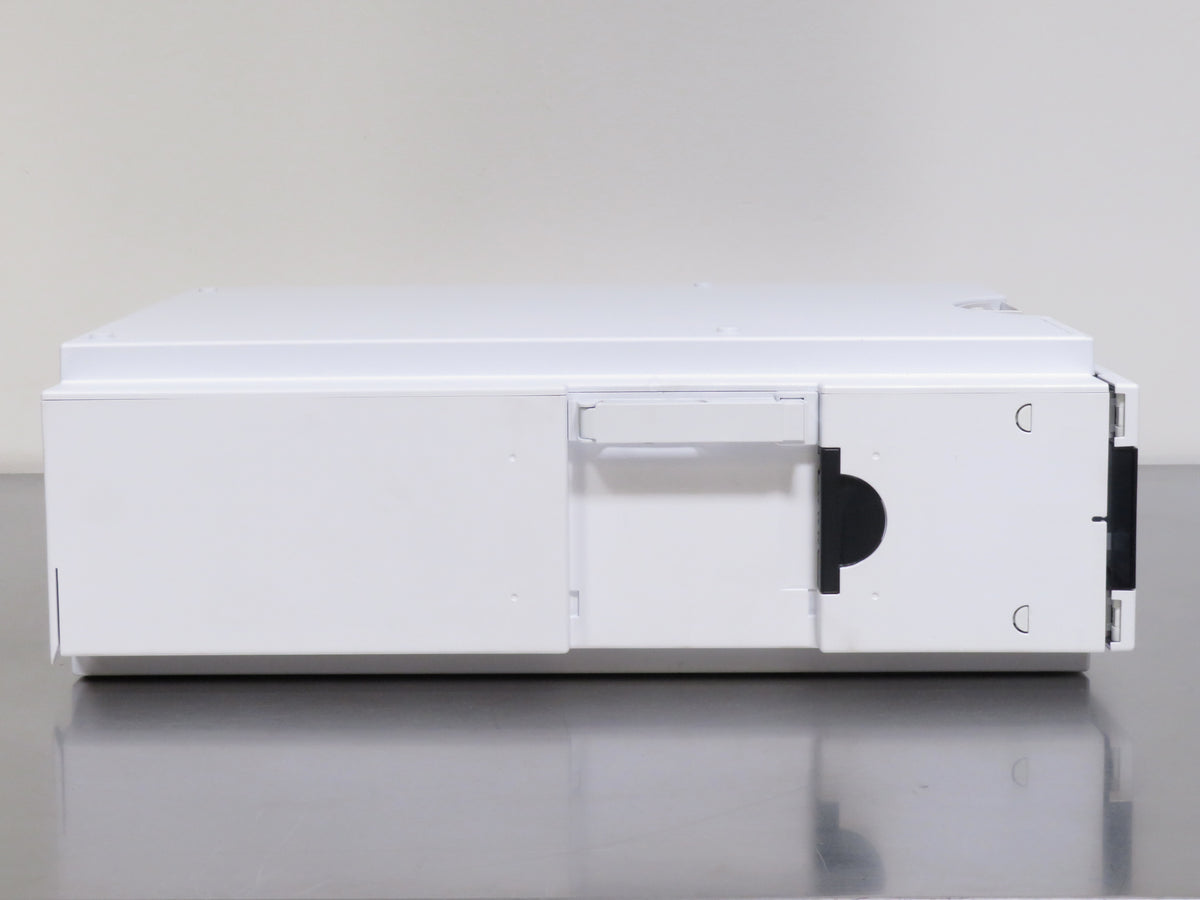

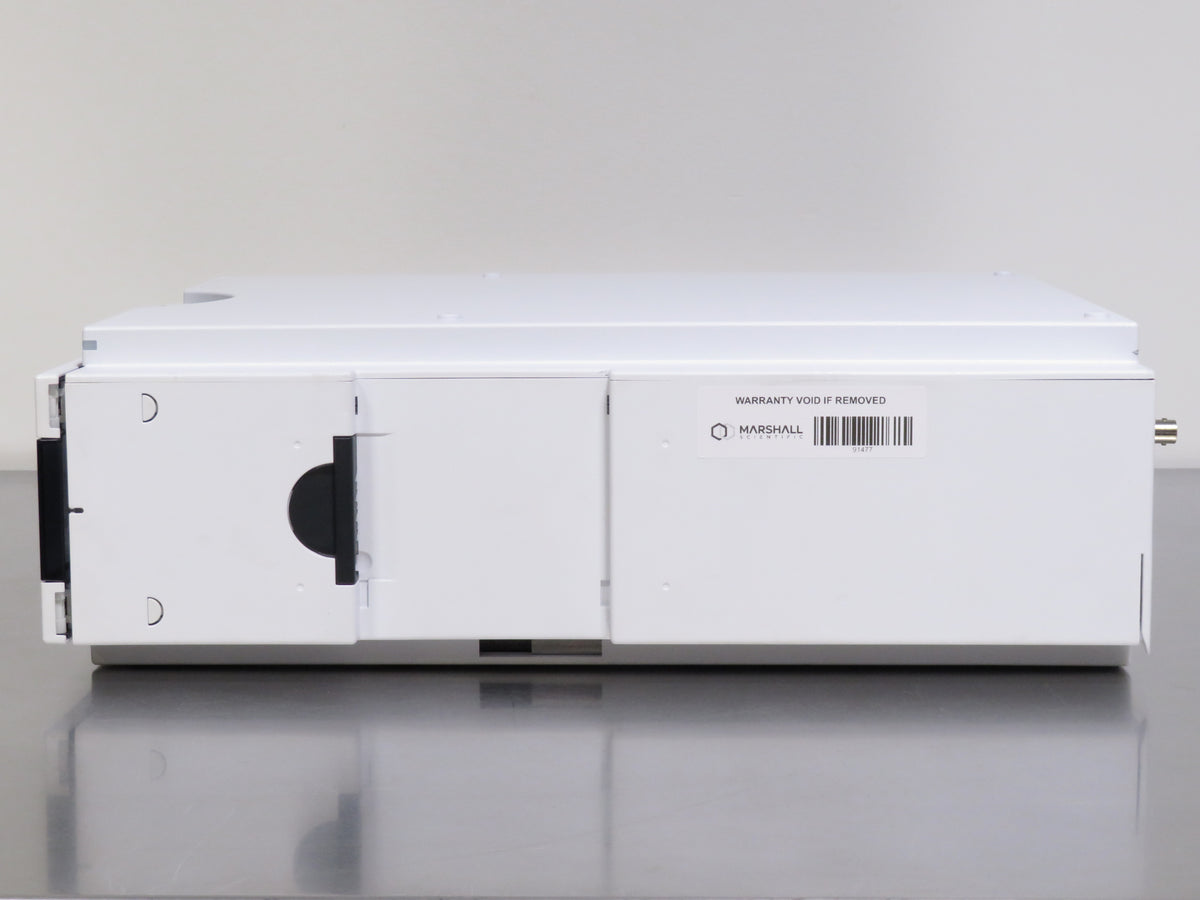

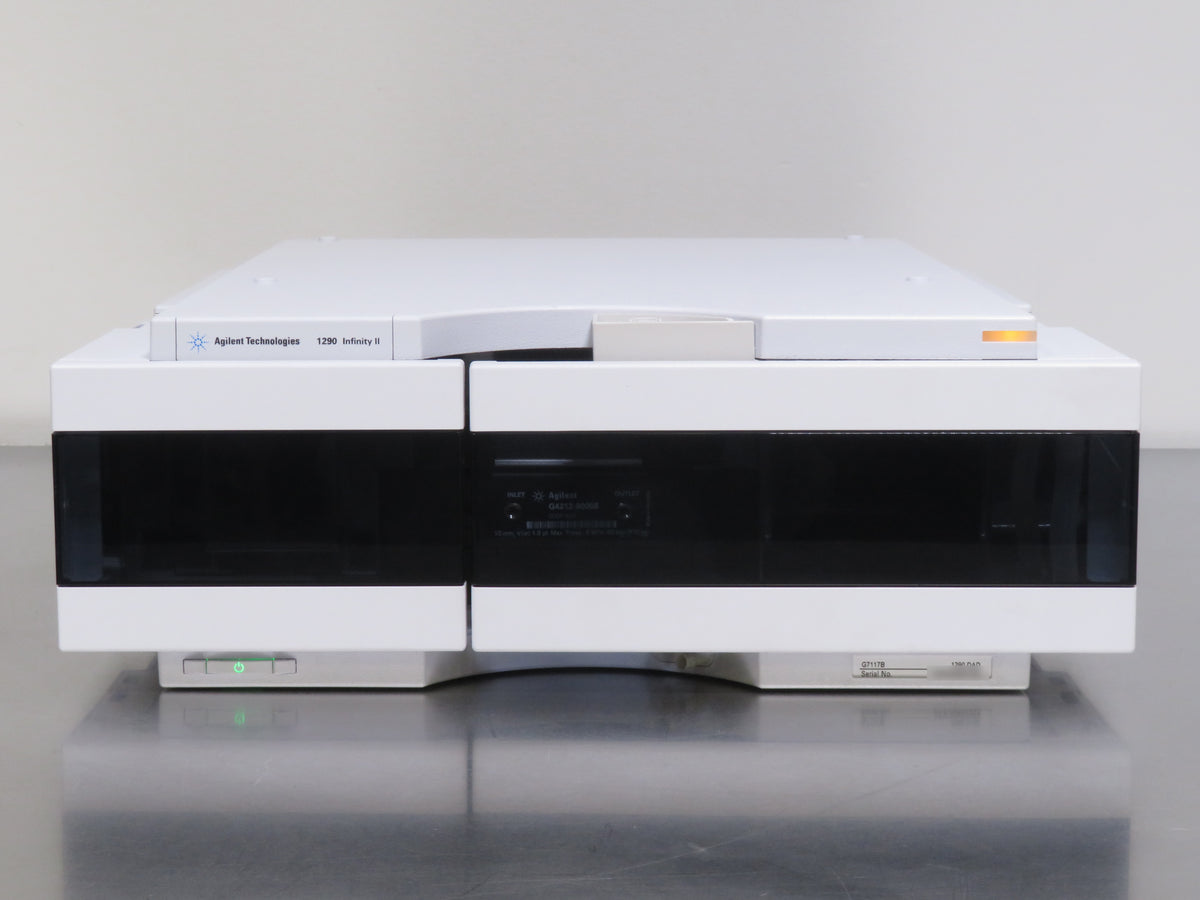

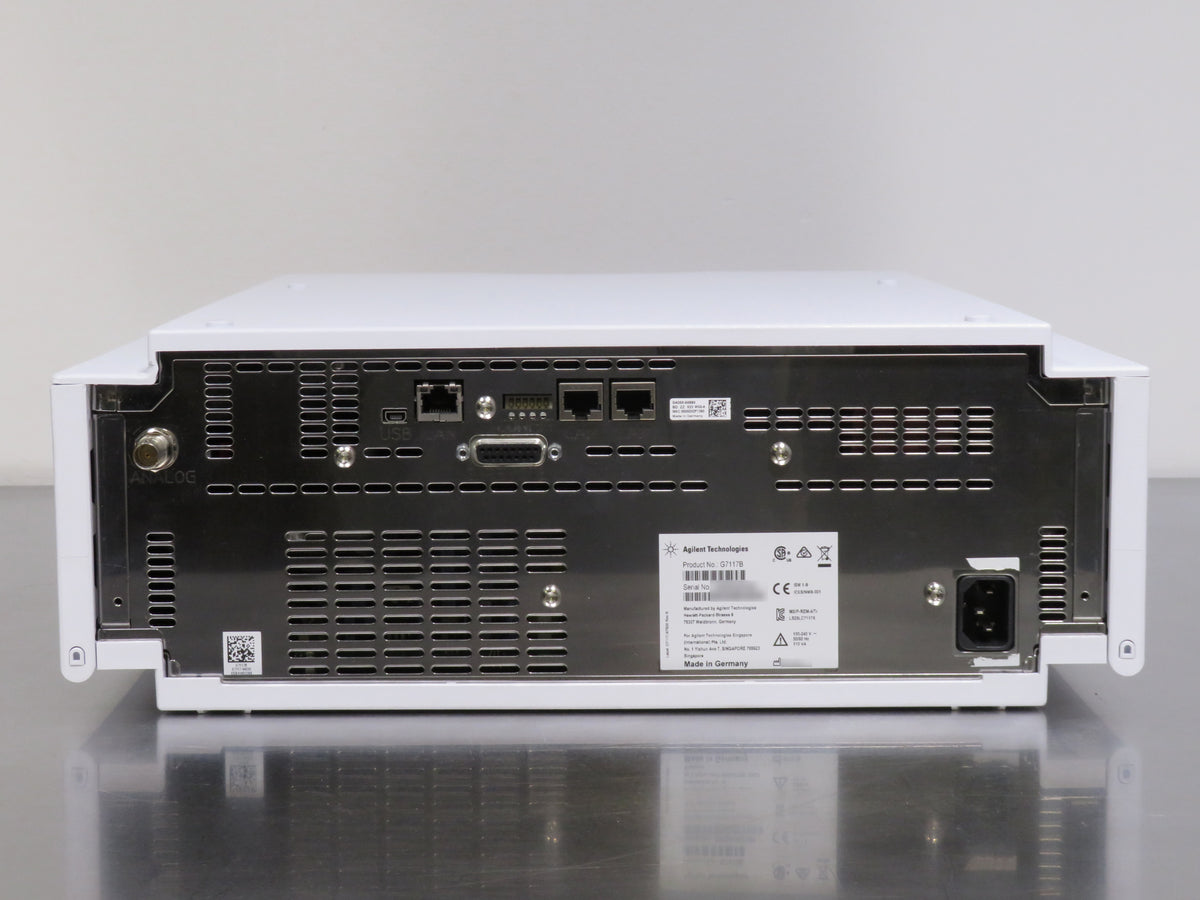

Agilent 1290 Infinity II HPLC G7117B DAD Detector
Wavelength Range
190 - 640 nm
Detection Type
1024-element photodiode array
Maximum Sampling Rate
240 Hz
- Engineered for high optical performance, precise peak integration, and GLP compliance
- Full spectral acquisition supports peak purity evaluation and spectral library comparisons
- Low baseline noise and drift for reliable detection and reproducible results
- Simultaneous monitoring of up to eight chromatographic signals for flexible analysis
- Programmable slit widths of 1, 2, 4, and 8 nm for optimized sensitivity and spectral resolution
- Automatic wavelength calibration using deuterium emission lines for accurate detection
- Early Maintenance Feedback (EMF) tracks lamp usage and provides customizable maintenance alerts
- Integrated leak detection with automatic shutdown signaling for improved operational safety
- Diagnostic tools for monitoring instrument temperature, lamp voltage, and operating conditions
The Agilent 1290 Infinity II HPLC G7117B Diode Array Detector (DAD) is a high-performance detector designed to deliver exceptional sensitivity, accuracy, and reliability for liquid chromatography applications. Featuring a 1024-element diode array and advanced Max-Light cartridge flow cell technology, the G7117B utilizes optofluidic waveguides to achieve nearly 100% light transmission while minimizing peak dispersion. This advanced optical design reduces the effects of refractive index changes and temperature fluctuations, resulting in lower baseline noise and drift for more accurate peak integration and consistent analytical results.
The G7117B provides a broad wavelength range of 190–640 nm with simultaneous monitoring of up to eight signals and full spectral acquisition at sampling rates up to 240 Hz, making it well suited for both conventional HPLC and fast chromatographic separations. Programmable slit widths of 1, 2, 4, and 8 nm allow users to optimize sensitivity, linearity, and spectral resolution according to their analytical requirements. The detector features a standard 10 mm Max-Light cartridge flow cell designed for high light transmission and minimal dispersion, along with second-generation electronic temperature control to maintain optical stability.
Additional features include RFID tracking of the flow cell and UV lamp, early maintenance feedback for monitoring instrument usage, and integrated leak detection with automatic shutdown signaling for improved operational safety and reliability. These advanced monitoring and diagnostic capabilities help simplify maintenance, minimize downtime, and support consistent performance across demanding analytical workflows.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Agilent 1290 Infinity II HPLC G7117B DAD Detector includes:
- Latest Available Firmware Version (Please inquire)

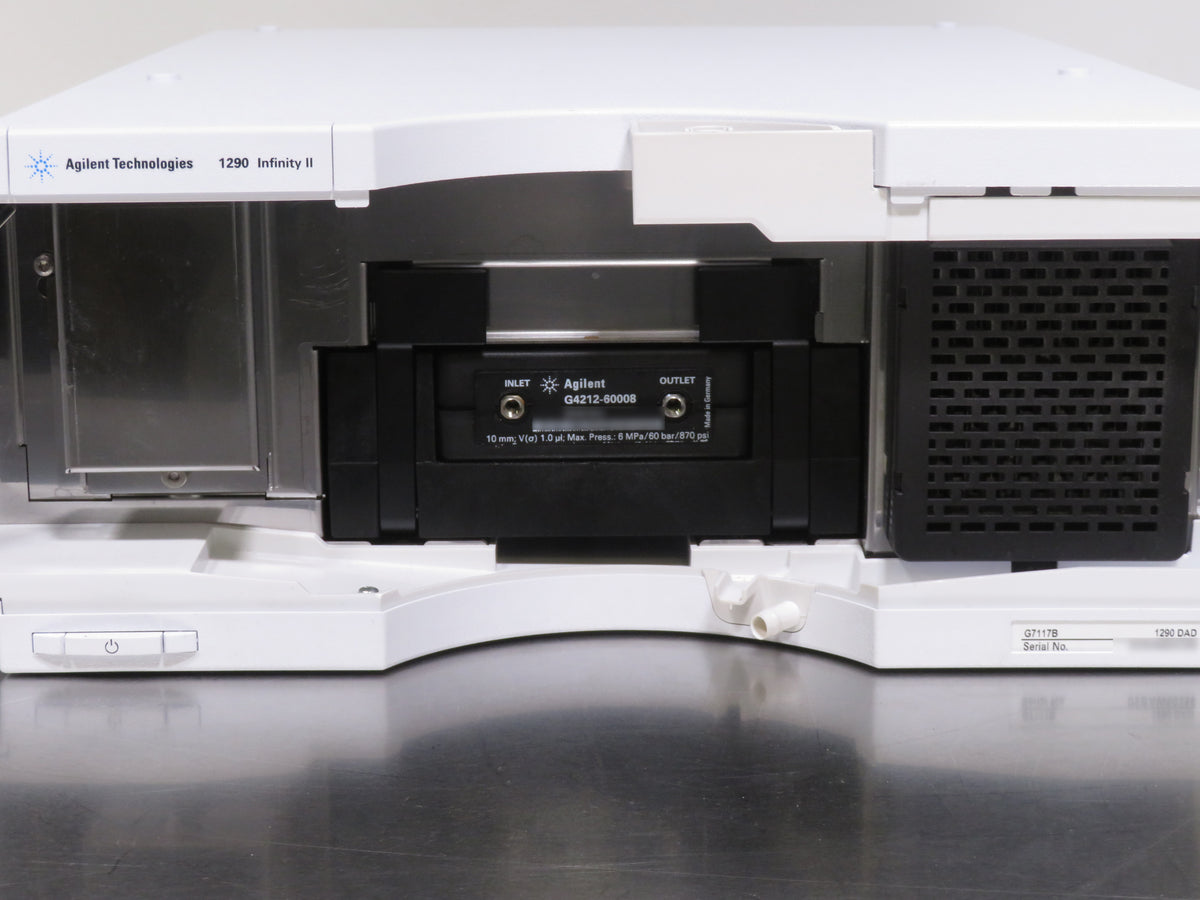

- Flow Cell
- Tungsten and Deuterium Lamps
- Lab Advisor Calibration Report
- Lan Cable / Power Cord
- Operator's Guide
- Full 180 Day Parts and Labor Warranty
Agilent 1290 Infinity II HPLC G7117B DAD Detector Specifications
| Detection Type | 1024-element photodiode array |
| Light Source | Deuterium lamp |
| Number of Signals | 8 |
| Maximum Sampling Rate | 240 Hz |
| Wavelength Range | 190 - 640 nm |
| Short Term Noise (ASTM) | < ±3 x 10⁻⁶ AU (10 mm cell); < ±0.6 x 10⁻⁶ AU/cm (60 mm cell), at 230/4 nm |
| Drift | < 0.5 x 10⁻³ AU/h at 230 nm |
| Linearity | > 2.0 AU (5%) at 265 nm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Bunching | 2 - 400 nm, programmable in 1 nm steps |
| Slit Width | 1, 2, 4, 8 nm |
| Diode Width | ~0.5 nm |
| Flow Cell | Standard: 10 mm cell path length, 60 bar (870 PSI) pressure maximum |
| Dimensions (H x W x D) | 5.5 x 15.6 x 17.2 in. (14.0 x 39.6 x 43.7 cm) |
| Weight | 25.4 lb. (11.5 kg) |
| Electrical Requirements | 100–240V, 50/60Hz |
