Agilent 1290 Infinity II HPLC G7104A Flexible Pump
Settable Flow Range
0.001 to 5 mL/min, in 0.001 mL/min increments
Flow Precision
≤0.07% RSD or 0.01 min SD, whichever is greater
Flow Accuracy
±1% or ±10 µL/min, whichever is greater

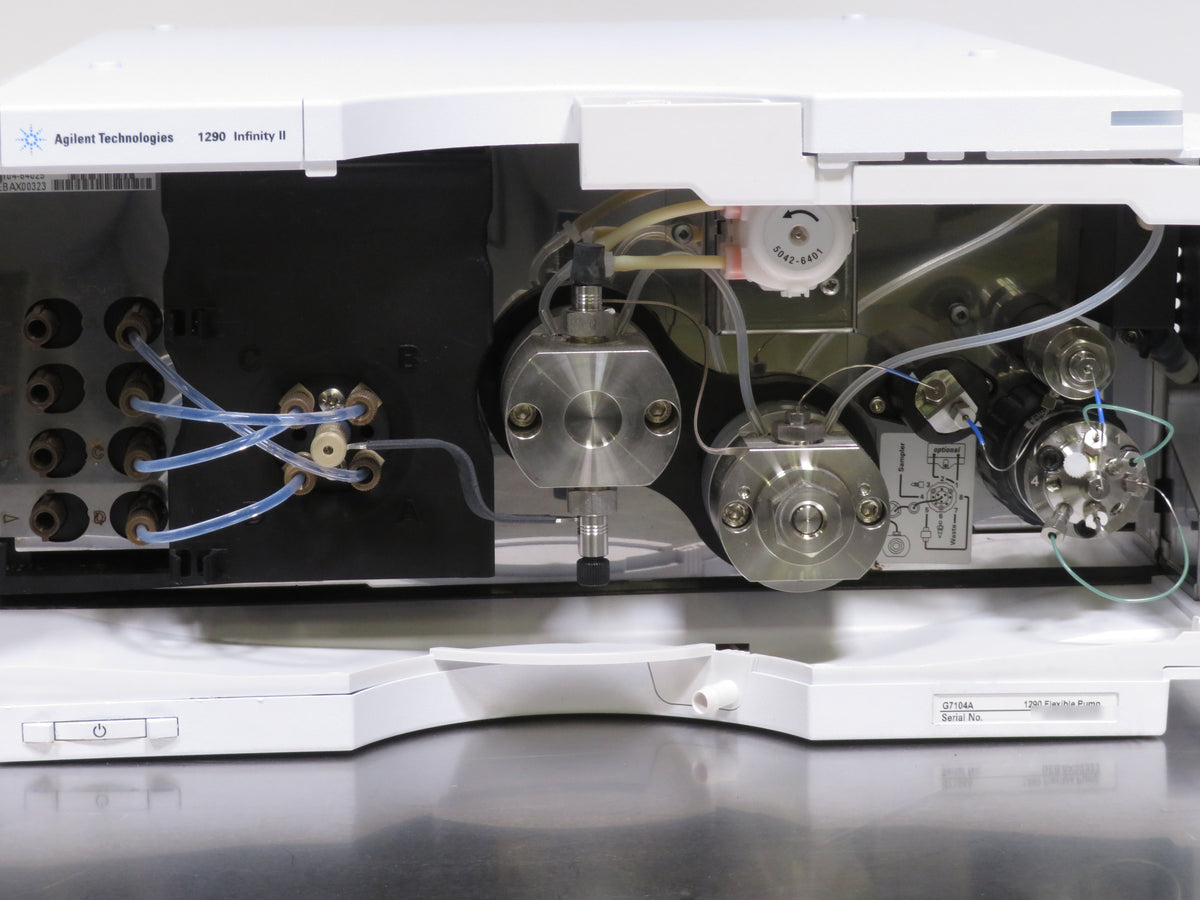

- Dual-piston, servo-controlled hydraulic system with variable stroke technology for smooth and consistent solvent delivery
- High-pressure operation up to 1300 bar supports demanding UHPLC applications and high-resolution separations
- Low-pressure quaternary gradient formation enables precise mixing of up to four solvents
- Low delay volume supports rapid gradient response and reproducible separations
- Automatic compressibility compensation maintains consistent solvent delivery across varying mobile phase conditions
- Integrated four-channel degassing system reduces dissolved gases for improved flow stability
- Active seal wash system helps reduce seal wear and maintain long-term pump performance
- Early Maintenance Feedback (EMF) monitors seal wear and pumped solvent volume for proactive maintenance scheduling
- Integrated leak detection and automatic shutdown signaling enhance operational safety
- Advanced diagnostic capabilities and electronic maintenance records simplify troubleshooting and instrument management
The Agilent 1290 Infinity II HPLC G7104A Flexible Pump is a high-performance solvent delivery system designed for exceptional precision, accuracy, and reliability in demanding liquid chromatography applications. Featuring a dual-piston, servo-controlled hydraulic system with variable stroke technology and active damping, the G7104A delivers smooth, consistent flow with minimal pressure pulsation. Supporting flow rates from 0.001 to 5 mL/min and operating pressures up to 1300 bar, the pump provides the flexibility and performance required for both conventional HPLC and high-pressure UHPLC separations.
The G7104A utilizes low-pressure quaternary gradient formation with an integrated four-solvent selection valve, enabling precise mixing and delivery of up to four solvents. Its low delay volume and accurate composition control support reproducible gradient separations across a wide range of analytical methods. Additional features include automatic compressibility compensation, integrated four-channel degassing, and an automatic purge valve for convenient system preparation and maintenance.
Designed for dependable operation and simplified maintenance, the G7104A incorporates advanced diagnostic capabilities, leak detection, and automatic shutdown signaling to help protect the instrument and maintain reliable performance. Early Maintenance Feedback (EMF) continuously monitors seal wear and pumped solvent volume, providing customizable maintenance alerts and electronic records of instrument activity. These integrated monitoring and maintenance features help minimize downtime and ensure consistent solvent delivery across demanding analytical workflows.
All of our equipment is fully tested to perform at factory specifications before being shipped.
The Agilent 1290 Infinity II HPLC G7104A Flexible Pump includes:
- Latest Available Firmware Version (Please inquire)
- Leak and Pressure Diagnostic Report
- Lan Cable / Power Cord
- Operator's Manual
- Full 180 Day Parts and Labor Warranty
Agilent 1290 Infinity II HPLC G7104A Flexible Pump Specifications
| Hydraulic System | Dual pistons in series with servo-controlled variable stroke design and active damping |
| Settable Flow Range | 0.001 to 5 mL/min, in 0.001 mL/min increments |
| Flow Precision | ≤0.07% RSD or 0.01 min SD, whichever is greater |
| Flow Accuracy | ±1% or ±10 µL/min, whichever is greater |
| Pressure Operating Range | Up to 130 MPa (1300 bar) at 0–2 mL/min, decreasing to 80 MPa (800 bar) at 5 mL/min |
| Pressure Pulsation | <1% amplitude or <0.5 MPa (5 bar), whichever is greater |
| Compressibility Compensation | Automatic |
| Gradient Formation | Low-pressure quaternary mixing |
| Delay Volume | As low as 350 µL |
| Composition Range | Settable range: 0–100% Recommended range: 1–99% or 5 µL/min |
| Composition Precision | <0.15% RSD or 0.02 min SD, whichever is greater |
| Composition Accuracy | ±0.4% absolute (1–99% B) |
| Number of Solvents | 4, expandable to a maximum of 26 with optional solvent selection valve |
| Solvent Selection Valve | Integrated 4-solvent gradient formation valve |
| Integrated Degassing Unit | 4 channels, 1.5 mL internal volume per channel |
| Automatic Purge Valve | Included, supports inline-filter backflushing and automatic mixer changes |
| Electrical Requirements | 100–240V, 50/60Hz |
