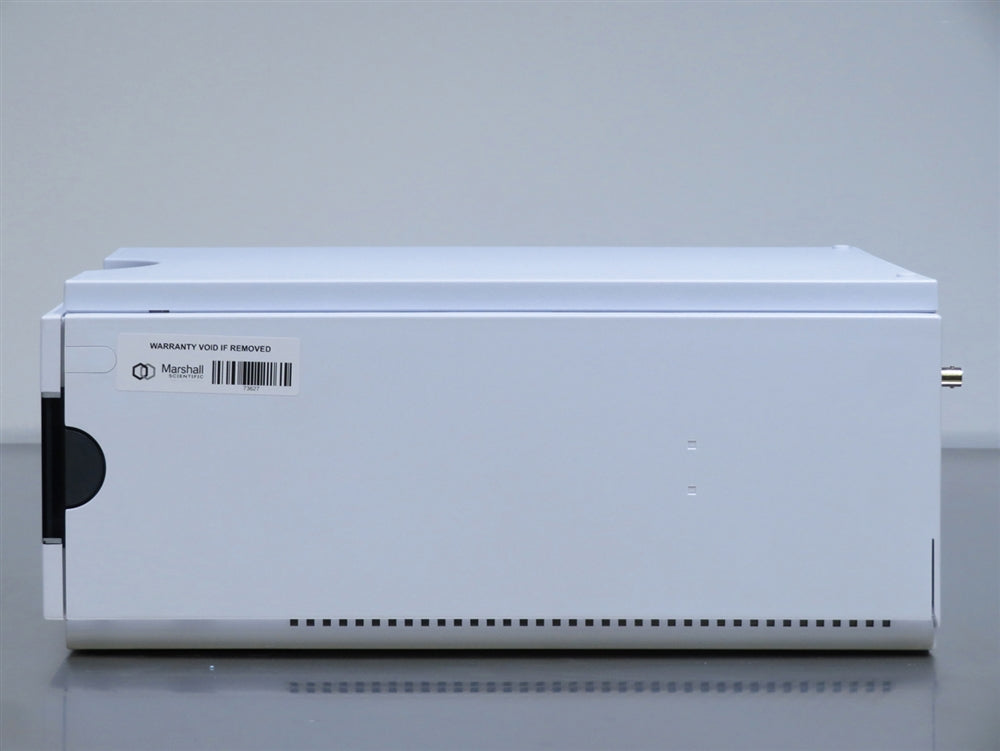

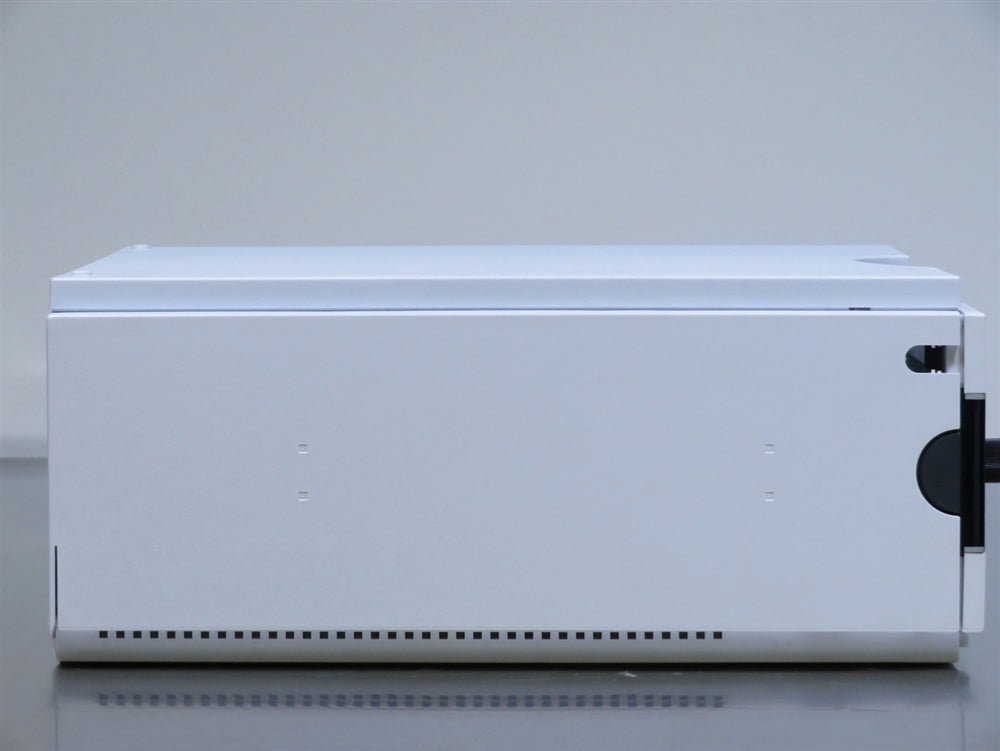

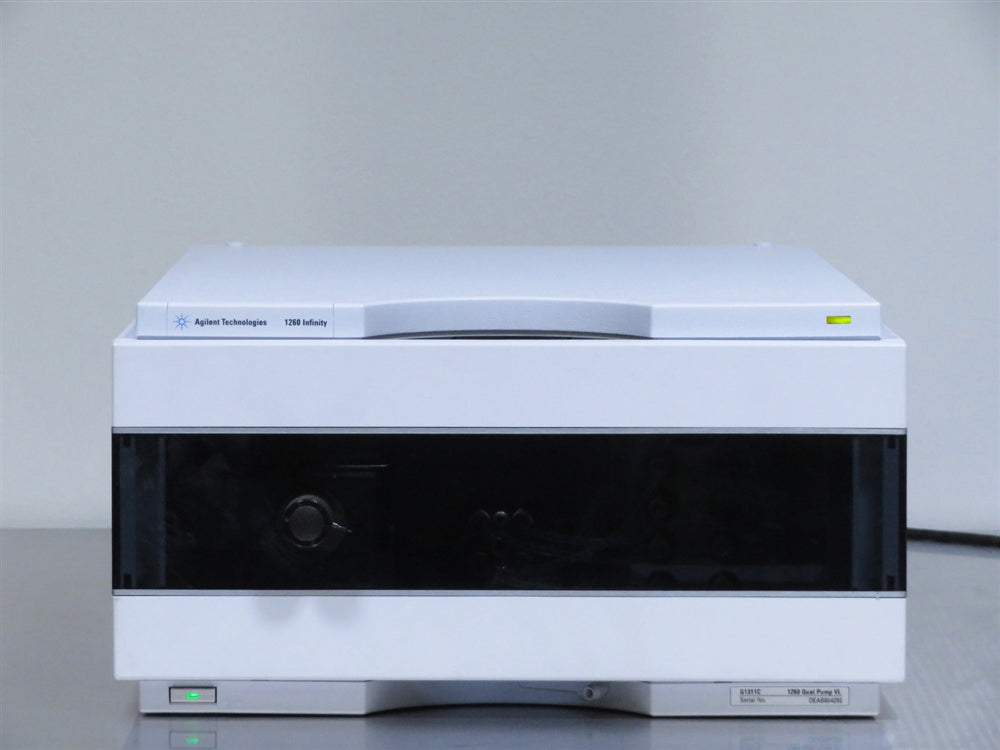

Agilent 1260 Infinity I HPLC G1311C Quat Pump VL

The Agilent 1260 Infinity I HPLC G1311C Quat Pump VL comprises an optional solvent cabinet, a vacuum degasser and a four-channel gradient pump. The four-channel gradient pump comprises a high-speed proportioning valve and a pump assembly. It provides gradient generation by low pressure mixing. A solvent cabinet provides enough space for four one-liter bottles. An active seal wash can be purchased and installed by the user when the quaternary pump is used with concentrated buffer solutions. The G1311C Quat Pump VL is based on a two-channel, dual-piston in-series design which comprises all essential functions that a solvent delivery system must fulfill. The design ensures virtually pulse free and stable solvent flow, with dual floating pistons in series, precisely servo-controlled. The variable stroke volume allows pulse-free solvent delivery and efficient mixing.

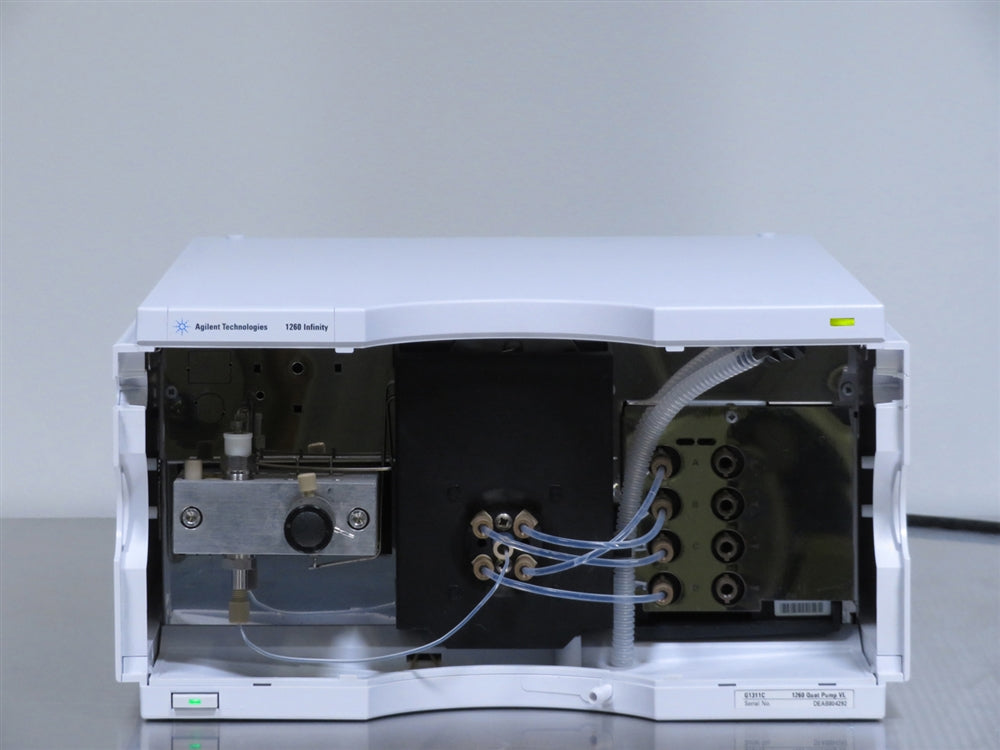

Metering of solvent and delivery to the high-pressure side are performed by one pump assembly which can generate pressure up to 400 bar. Degassing of the solvents is done in a built-in vacuum degasser. Solvent compositions are generated on the low-pressure side by a multi-channel gradient valve (MCGV), which is a high-speed proportioning valve. The pump assembly includes a pump head with a passive inlet valve and an outlet valve. A damping unit is connected between the two piston chambers. A purge valve including a PTFE frit is fitted at the pump outlet for convenient priming of the pump head. The Agilent 1260 Infinity HPLC G1311C Quat Pump VL is recommended for a wide range of research and routine applications as well as for method development.

All of our equipment is fully tested to perform at factory specifications before being shipped.

Agilent 1260 Infinity I HPLC G1311C Quat Pump VL Specifications

Hydraulic System	Dual piston in series pump with servo-controlled variable stroke drive, power transmission by gears and ball screws, floating pistons
Settable Flow Range	Set points 0.001 to 10 ml/min, in 0.001 ml/min increments
Flow Range	0.2 to 10.0 ml/min
Flow Precision	≤ 0.07% RSD, or ≤ 0.02 min SD whatever is greater, based on retention time at constant room temperature
Flow Accuracy	± 1% or 10 µl/min, whatever is greater, pumping degassed H2O at 10 MPa (100 bar)
Pressure Operating Range	Operating range up to 40 MPa (400 bar, 5880 psi) up to 5 ml/min Operating range up to 20 MPa (200 bar, 2950 psi) up to 10 ml/min
Pressure Pulsation	< 2 % amplitude (typically < 1.0%) or < 0.3 MPa (3 bar, 44 psi), whatever is greater, at 1 ml/min isopropanol, at all pressures > 1 MPa (10 bar, 145 psi)
Compressibility Compensation	User selectable, based on mobile phase compressibility
Recommended pH Range	1.0 to 12.5, solvents with pH < 2.3 should not contain acids which attack stainless steel
Gradient Formation	Low pressure quaternary mixing/gradient capability using proprietary high-speed proportioning valve
Delay Volume	600 to 900 µl, dependent on back pressure; measured with water at 1 ml/min
Composition Range	0 to 95% or 5 to 100%, user selectable
Composition Precision	< 0.2 % RSD or < 0.04 min SD, whatever is greater, at 1 ml/min; based on retention time at constant room temperature
Integrated Degasser	Number of channels: 4 Internal volume per channel: 1.5 ml
Dimensions (H x W x D)	7 x 13.5 x 17 in. (18 x 34.5 x 43.5 cm)
Weight	32 lb. (14.5 kg.)
Electrical Requirements	100 - 240V, 50/60Hz, 180VA
