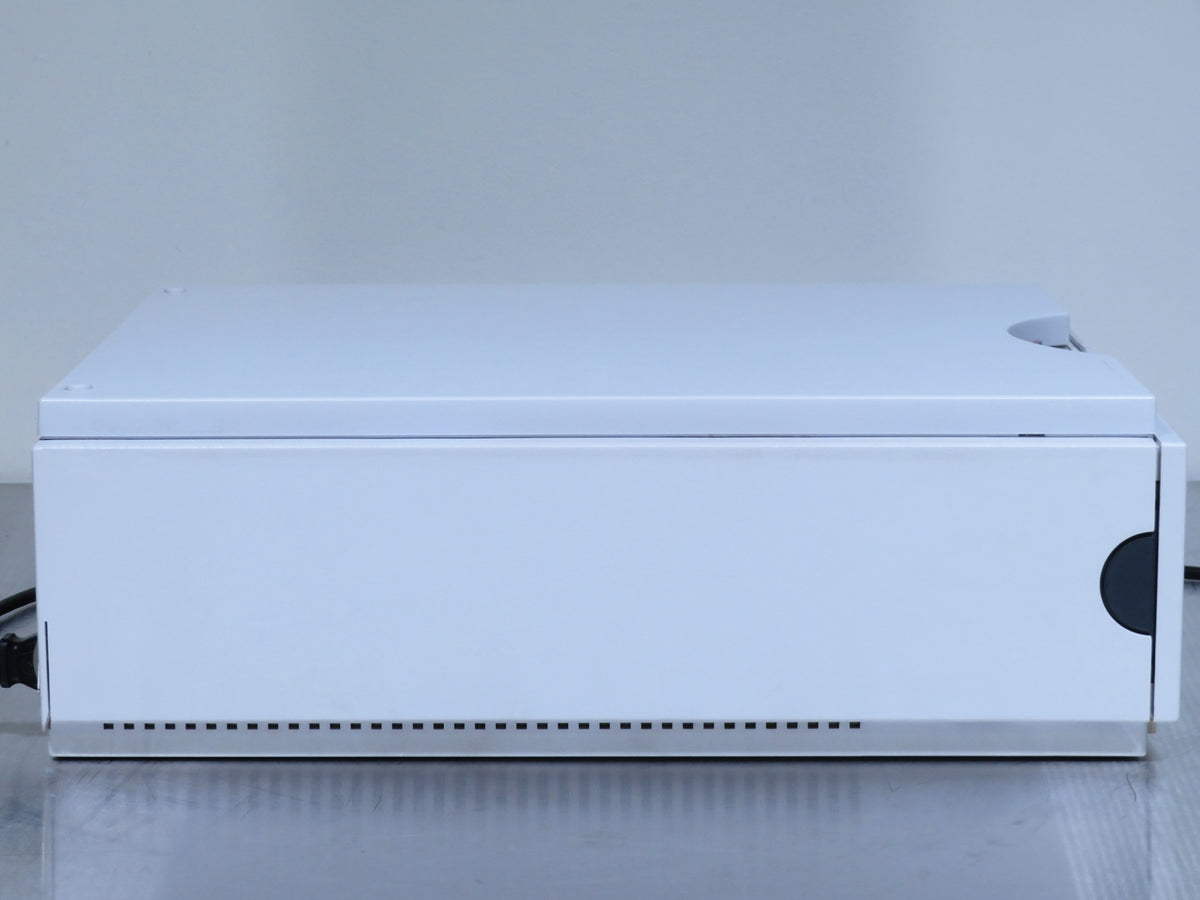

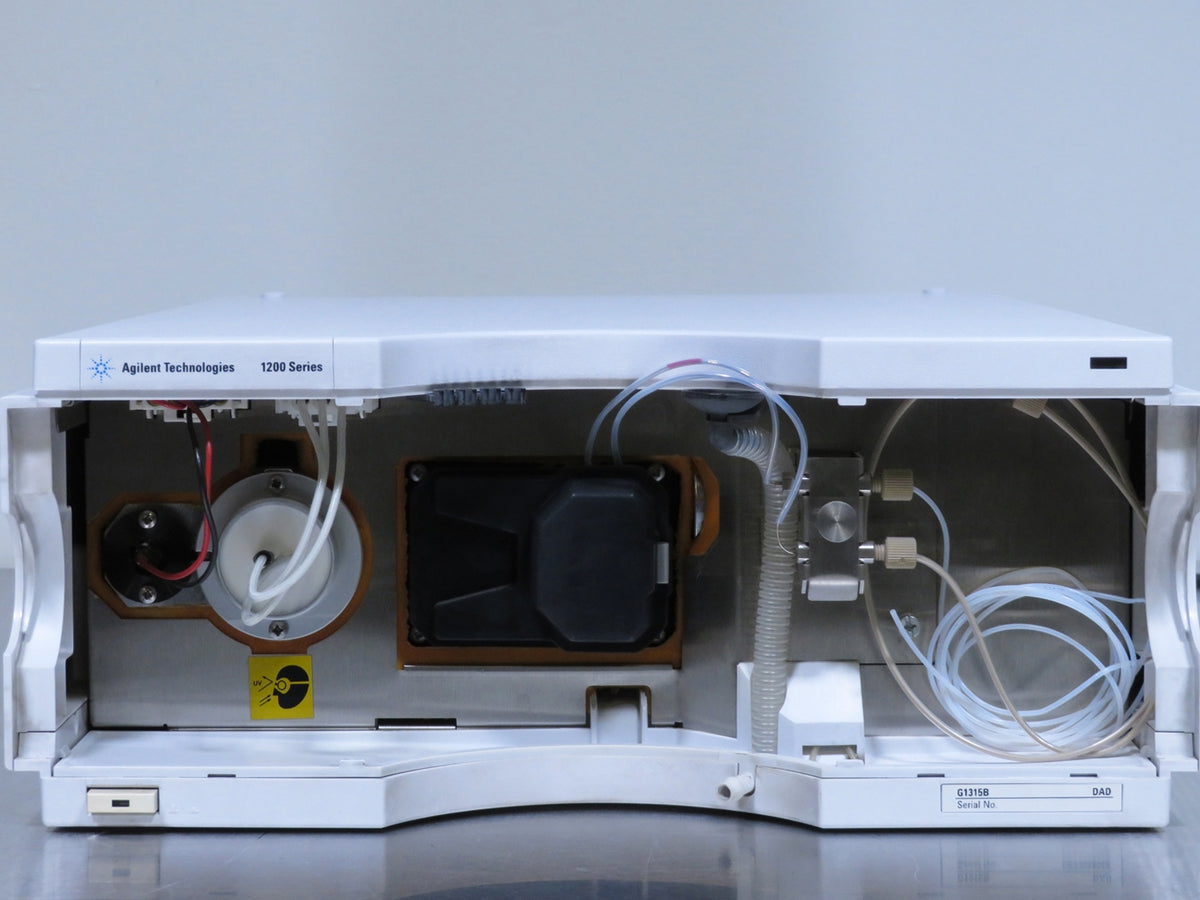

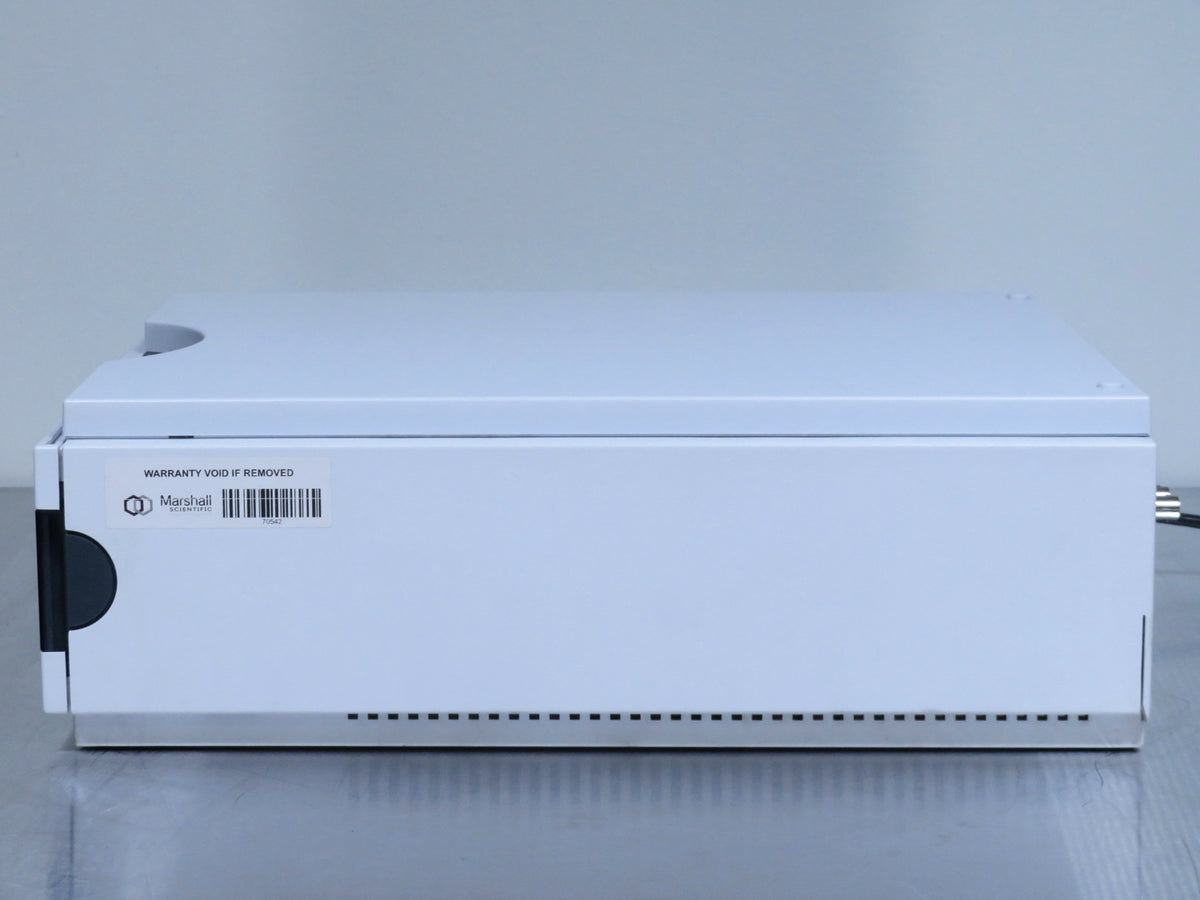

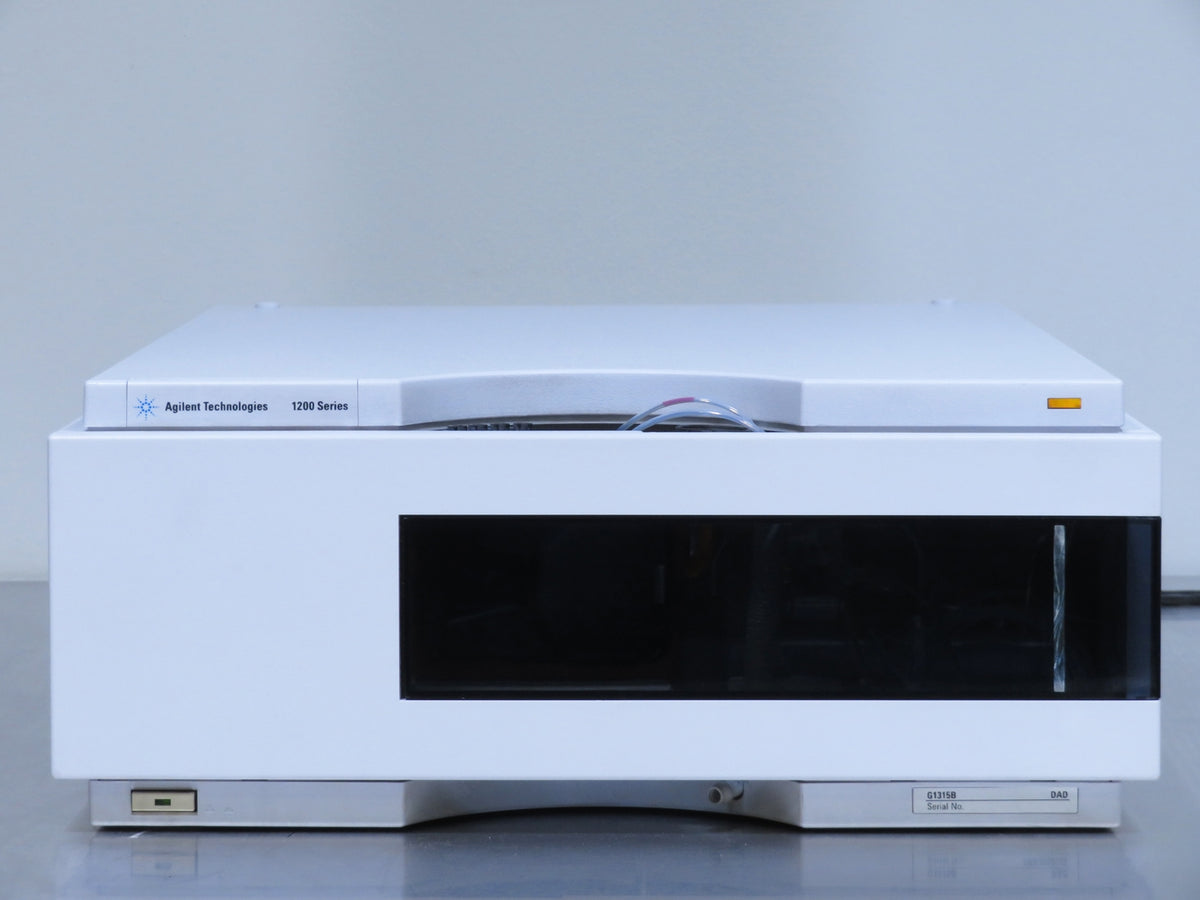

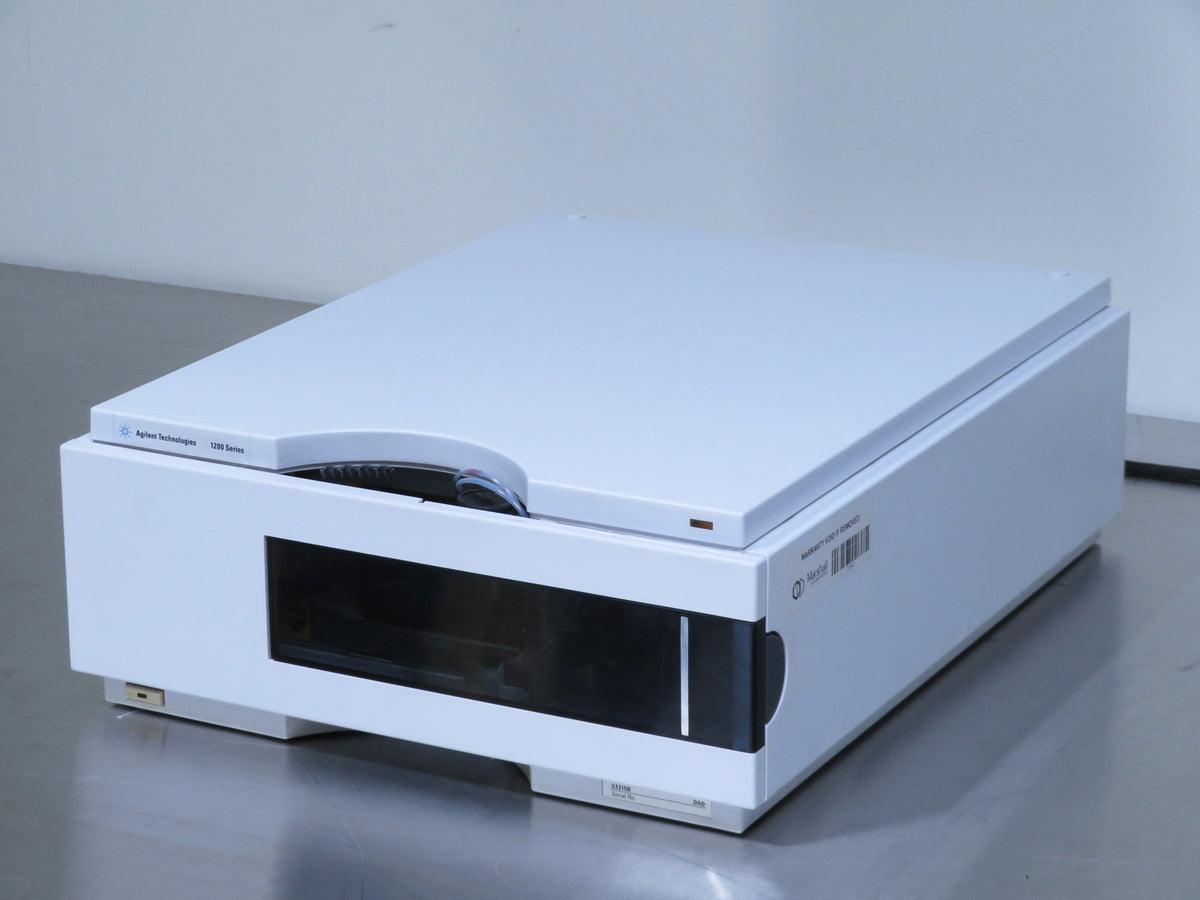

Agilent 1200 HPLC G1315B DAD Detector

The Agilent 1200 HPLC G1315B DAD Detector verifies separation quality with peak purity, multiple signals, and spectral libraries during analytical quantification, offering an extended wavelength range with the highest sensitivity. The diode array detector allows for automated wavelength verification for performance tracking. The Agilent 1200’s temperature management system ensures optimum baseline stability, even under rough ambient conditions. This detector features superb illumination using combined deuterium and tungsten lamps for the highest intensity and lowest detection limit from 190 to 950 nm, 1024 diodes and 1-nm slit for highest spectral resolution. The programmable slit helps you explore the spectral landscape for faster sample characterization, ensuring higher sensitivity or lower baseline noise as necessary on the 1100. Slit settings can be stored and reported from 1 – 16 nm with raw data for GLP traceability.

All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.

Agilent 1200 HPLC G1315B DAD Detector Specifications

Detection Type	1024-element photodiode array
Light Source	Deuterium and tungsten lamps
Wavelength Range	190 - 950 nm
Short Term Noise (ASTM) Single and Multi-Wavelength	< ± 1 x 10 -5 AU, at 254 and 750 nm
Drift	2 x 10 -3 AU/h at 254 nm
Linear Absorbance Range	> 2 AU (upper limit)
Wavelength Accuracy	± 1 nm
Wavelength Bunching	1 - 400 nm
Slit Width	1, 2, 4, 8, 16 nm
Diode Width	< 1 nm
Flow Cell	Standard: 13 ul volume, 10 mm cell path length and 120 bar (1740 psi) pressure maximum
Control and Data Evaluation	Agilent ChemStation for LC
Dimensions (W x D x H)	13.5 x 17 x 5.5 in. (34.5 x 43.5 x 14 cm)
Weight	26 lb. (11.5 kg)
Electrical Requirements	100-240V, 50/60Hz
