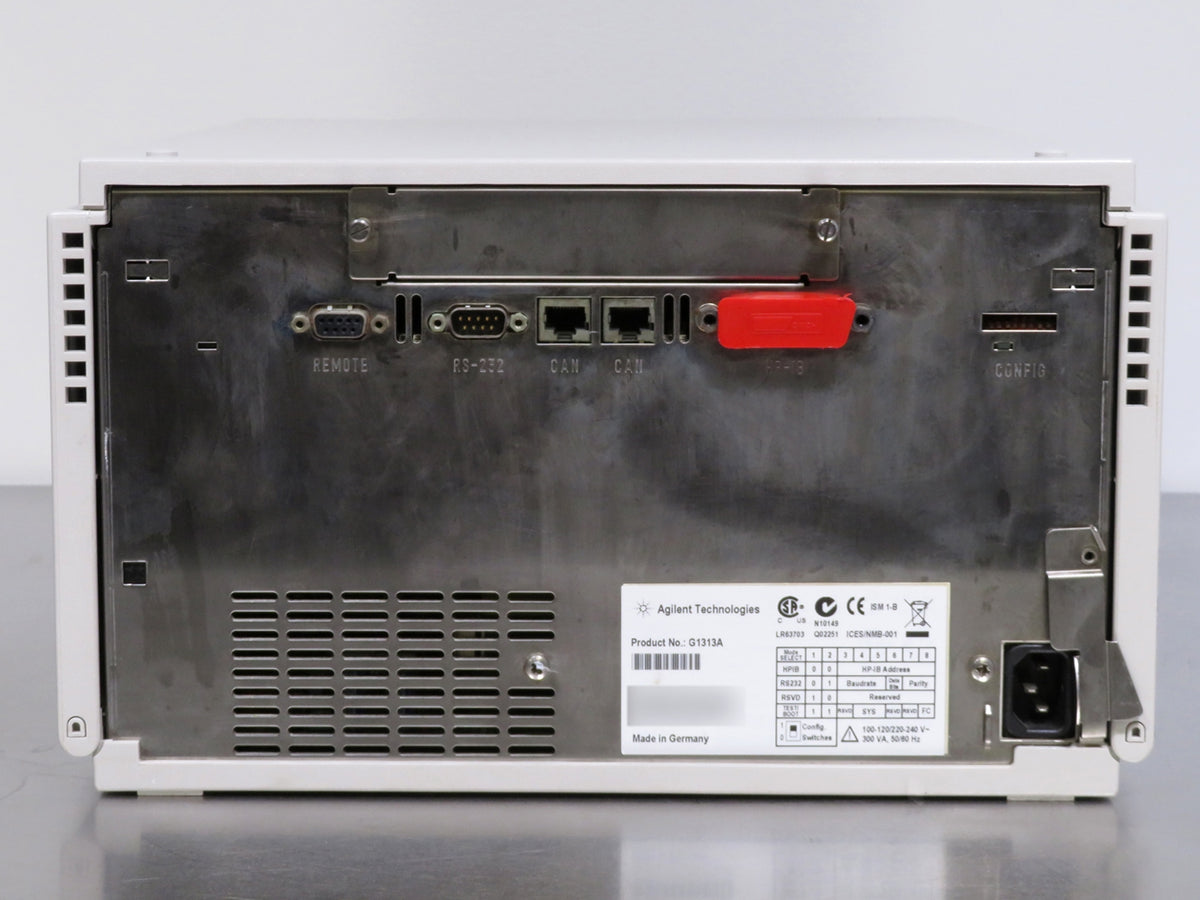

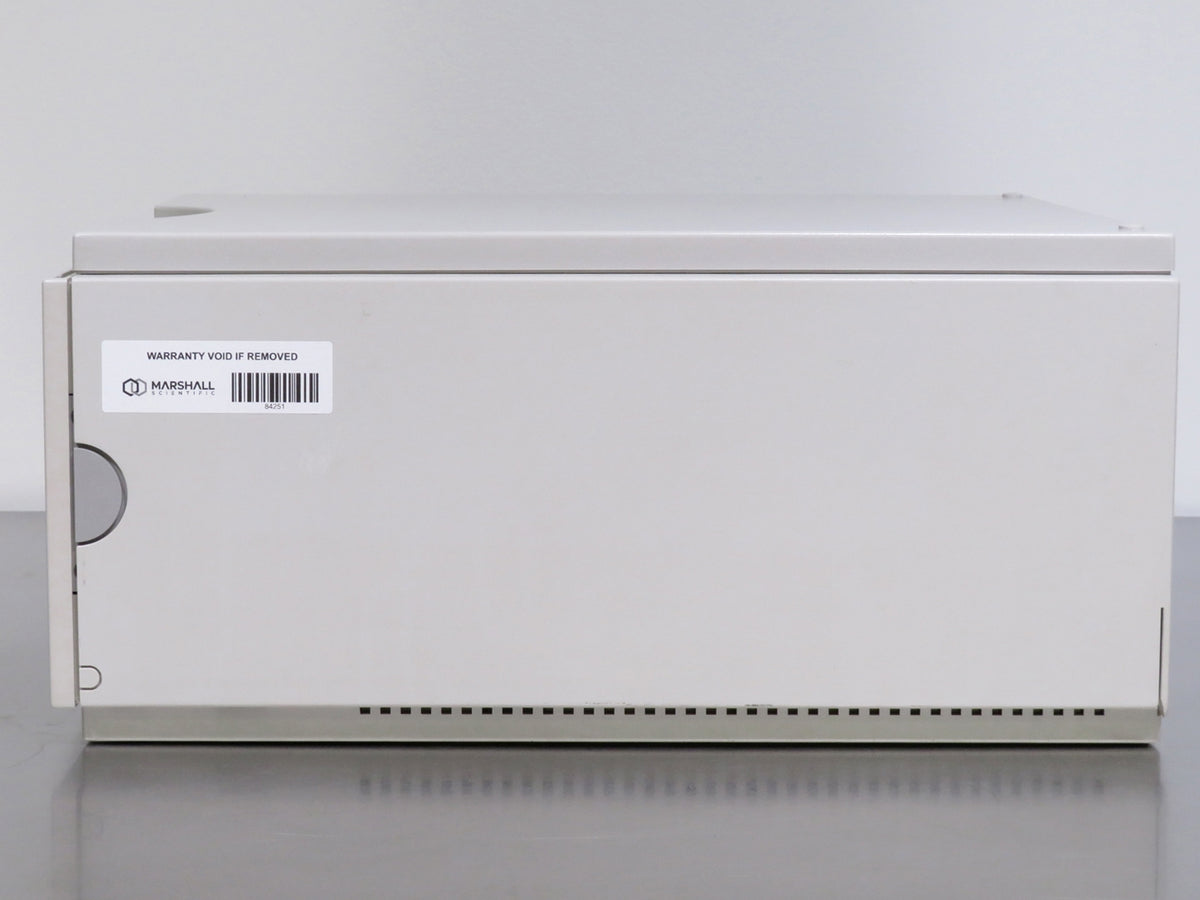

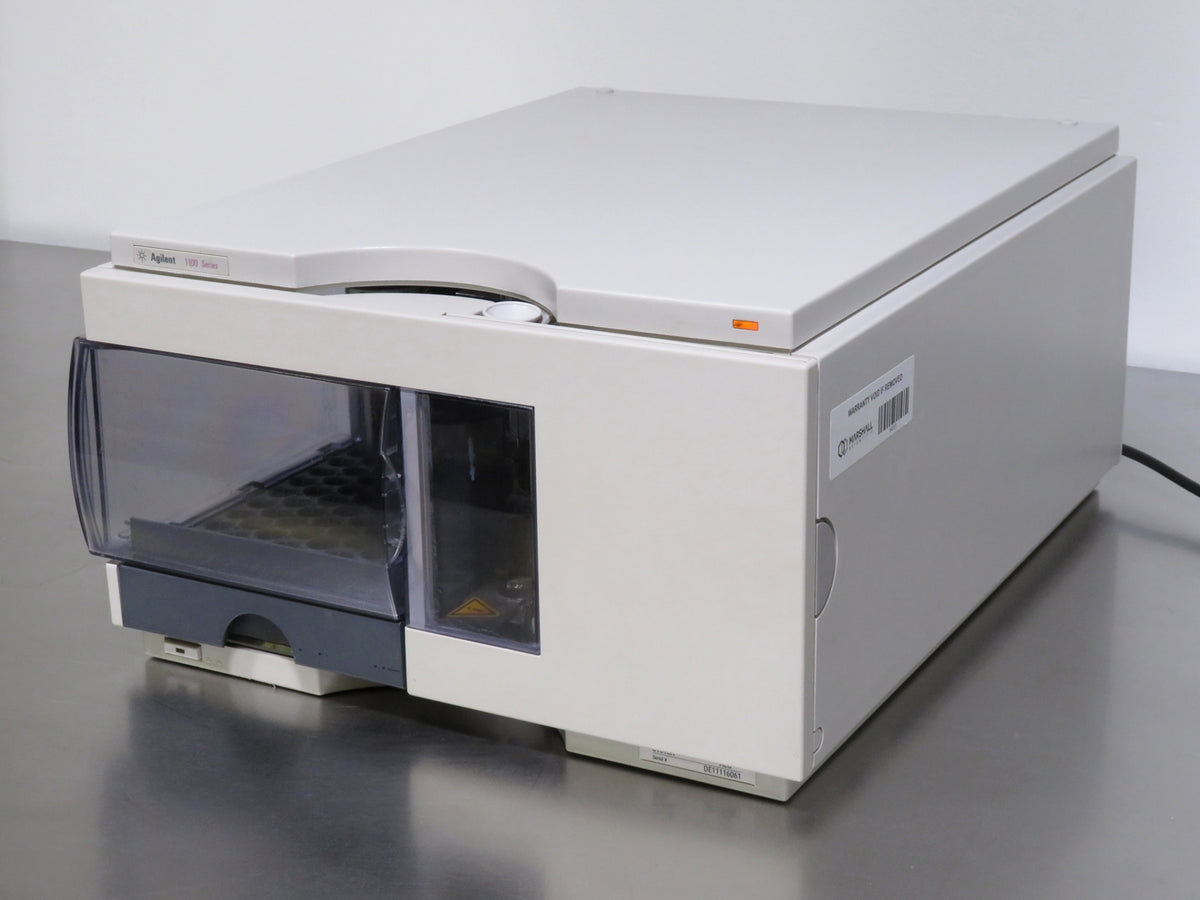

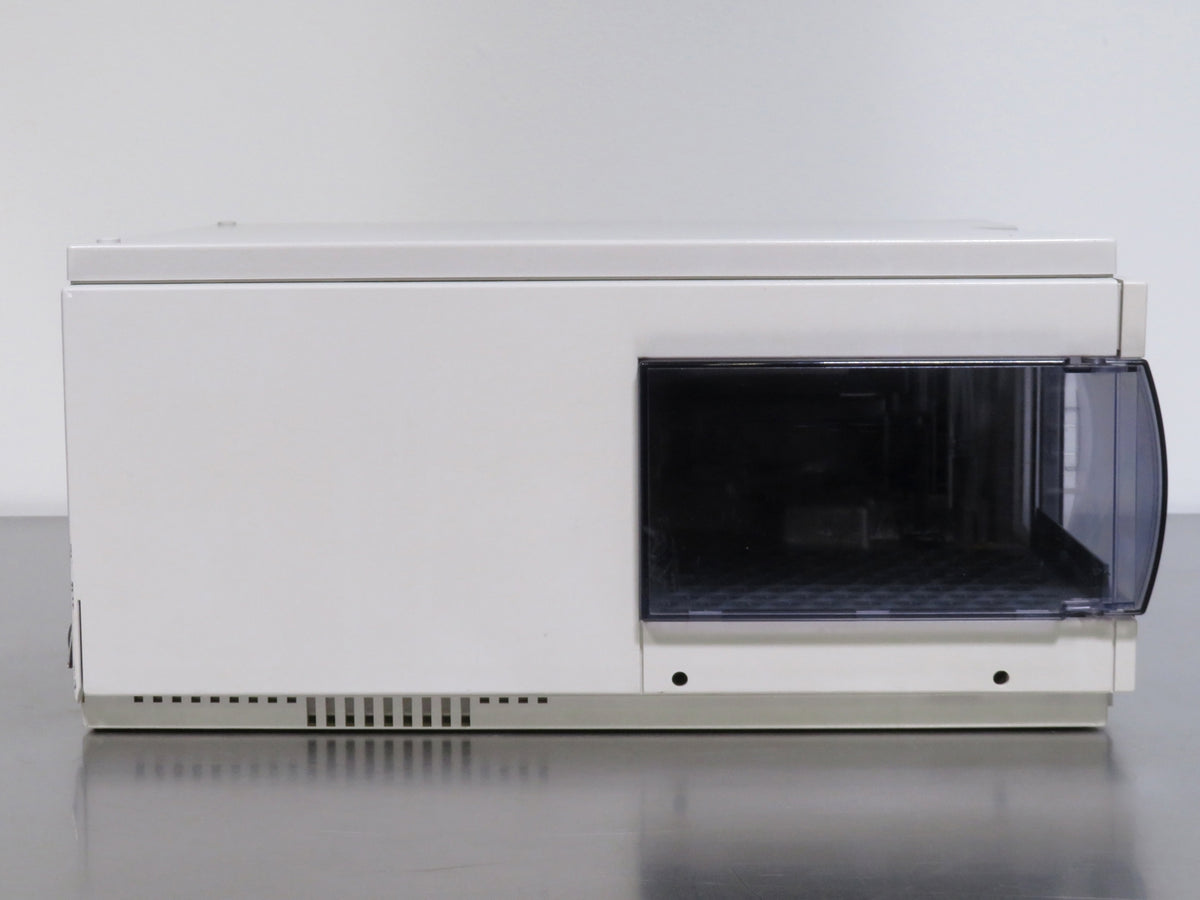

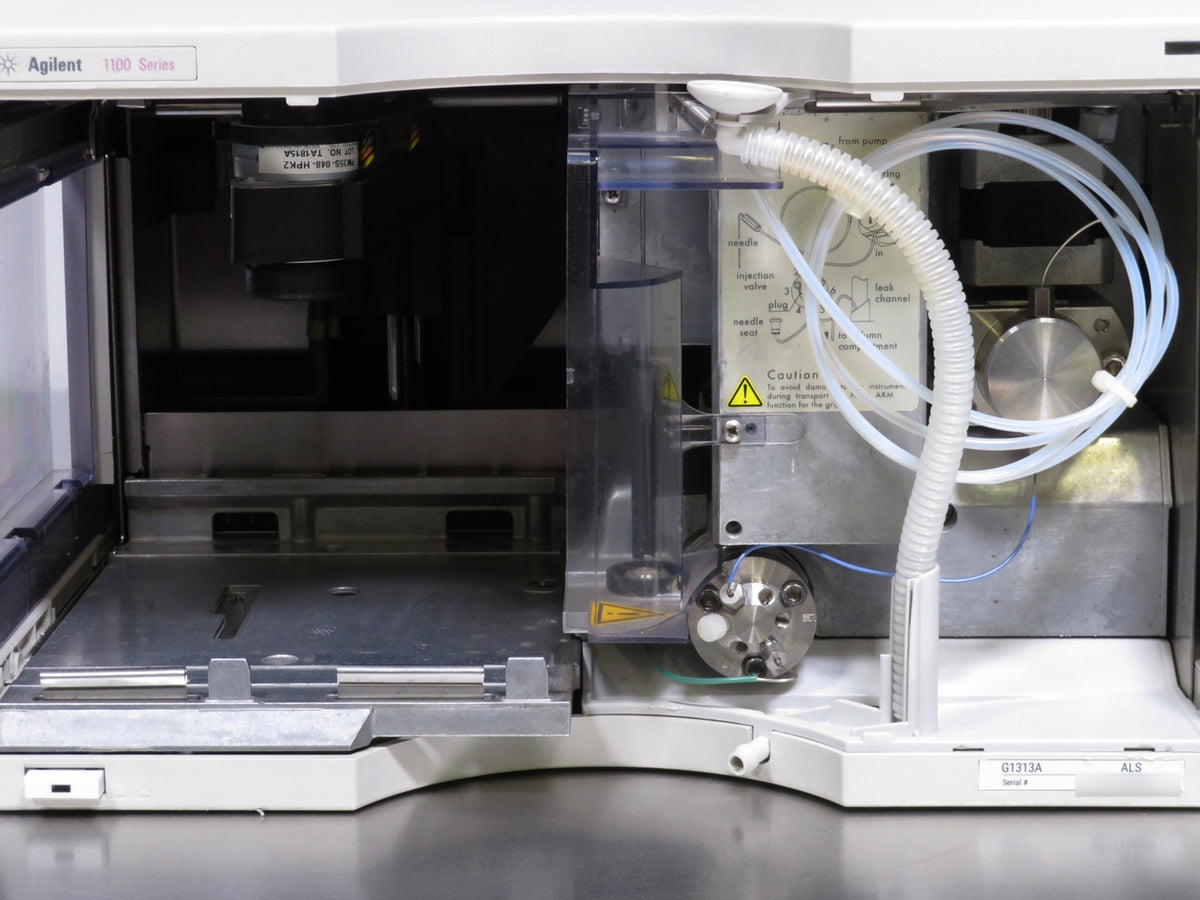

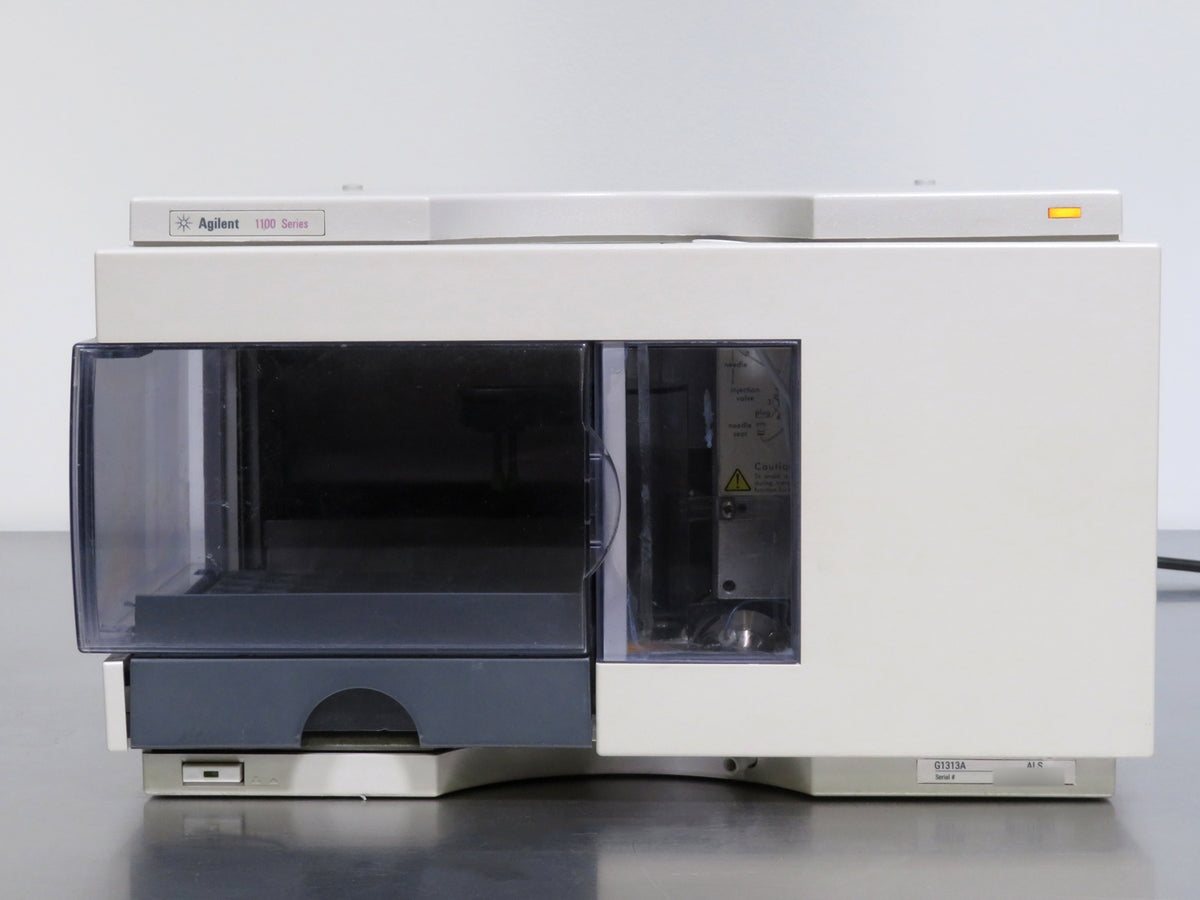

Agilent 1100 HPLC G1313A Autosampler
Injection Range
0.1 to 100 µl
Precision
Typically < 0.5 % RSD of peak areas from 5 to 100 µl
Typically < 1 % RSD of peak areas from 1 to 5 µl
Minimum Sample Volume
1 µl from 5 µl sample
- GLP features include early maintenance feedback and electronic maintenance records
- Leak detection with safe handling and error display for enhanced safety
- Supports replicate injections from 1 to 99 per vial
- Compatible with a wide range of sample viscosities from 0.2 to 50 cp
- Injection cycle time typically 50 seconds depending on parameters
- Sample capacity of up to 100 × 2-mL vials in a standard tray
- Controller-area network (CAN), GPIB, and RS232C communication support
- Low internal volume (300 µL) minimizes system contribution
The recertified Agilent 1100 G1313A Autosampler is designed for the reliability, safety, and ease of use needed in pharmaceutical routine tasks and quality control, as well as for environmental and food analyses. The G1313A features reliable injections from 0.1 µL to 100 µL with easy adaption for injection volumes up to 1500 µL for applications ranging from microbore to semipreparative chromatography. The Agilent 1100 G1313A's low internal volume of 300 µL allows minimum contribution to a system's total internal volume. The system uses overlapped injections for increased productivity with sample capacities of 100 × 2-mL vials in a standard tray, 40 × 2-mL vials in a standard tray, or 15 × 6-mL vials in a half tray.
The Agilent G1313A is in excellent condition and will be fully tested to perform at factory specifications before being shipped.
The Agilent 1100 HPLC G1313A Autosampler includes:
- Latest Available Firmware Version (Please inquire)

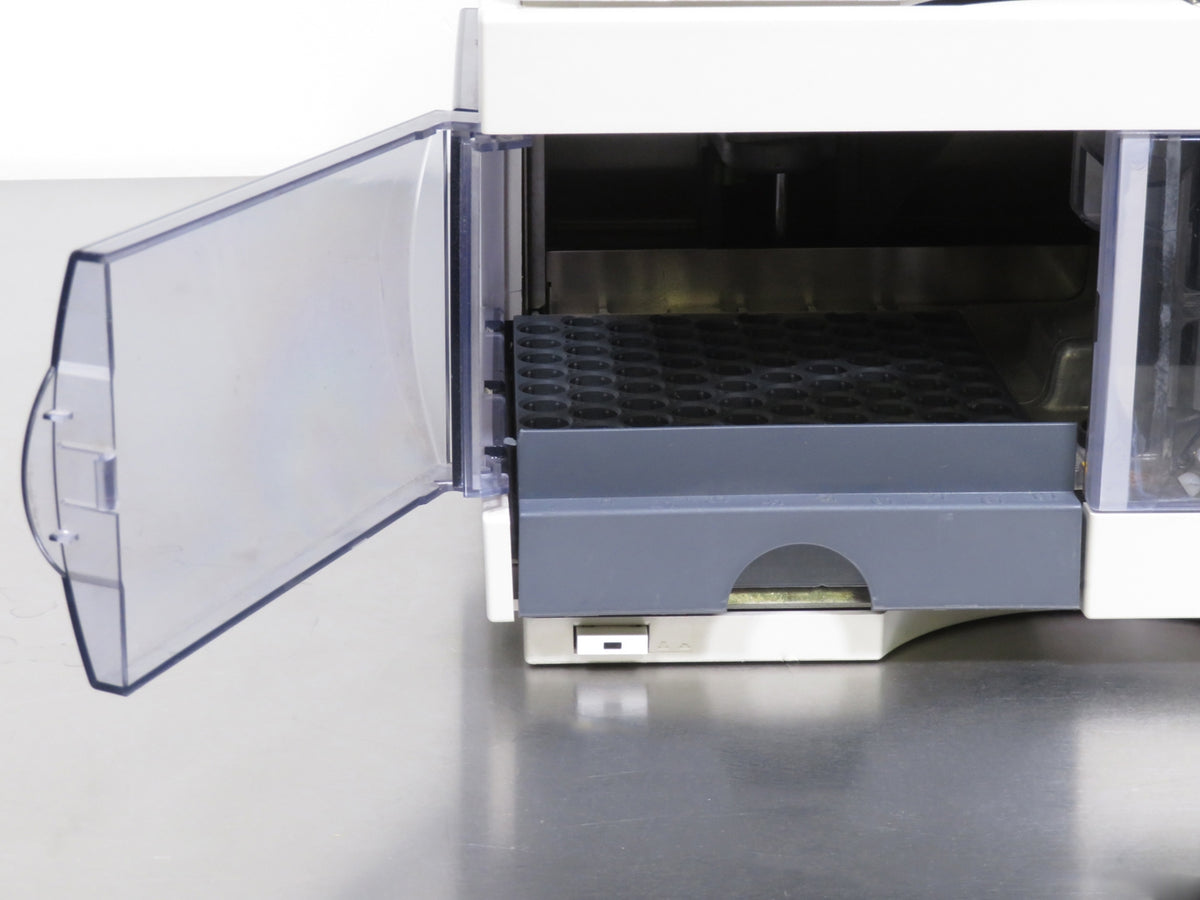

- 100 Vial Tray
- Front Cover
- Lab Advisor Diagnostic Report
- Power Cord
- Operator’s Guide
- Full 180 Day Parts and Labor Warranty
Agilent 1100 HPLC G1313A Autosampler Specifications
|
GLP Features |
Early maintenance feedback (EMF), electronic records of maintenance and errors |
|
Communications |
Controller-area network (CAN). GPIB (IEEE-448), RS232C, APG-remote standard, optional four external contact closures and BCD vial number output |
|
Safety Features |
Leak detection and safe leak handling, low voltages in maintenance areas, error detection and display |
|
Injection Range |
0.1 – 100 µl in 0.1 µl increments Up to 1500 µl with multiple draw (hardware modification required) |
|
Replicate Injections |
1 – 99 from one vial |
|
Precision |
Typically < 0.5 % RSD of peak areas from 5 – 100 µl Typically < 1 % RSD of peak areas from 1 – 5 µl |
|
Minimum Sample Volume |
1 µl from 5 µl sample in 100 µl microvial, or 1 µl from 10 µl sample in 300 µl microvial |
|
Carryover |
Typically < 0.1 %, < 0.05 % with external needle cleaning |
|
Sample Viscosity Range |
0.2 – 50 cp |
|
Replicate Injections Per Vial |
1 – 99 |
|
Sample Capacity |
100 × 2-ml vials in 1 tray 40 × 2-ml vials in ½ tray 15 × 6-ml vials in ½ tray (Agilent vials only) |
|
Injection Cycle Time |
Typically 50 s depending on draw speed and injection volume |
Click Here to View the Technical Specs for the G1313A
