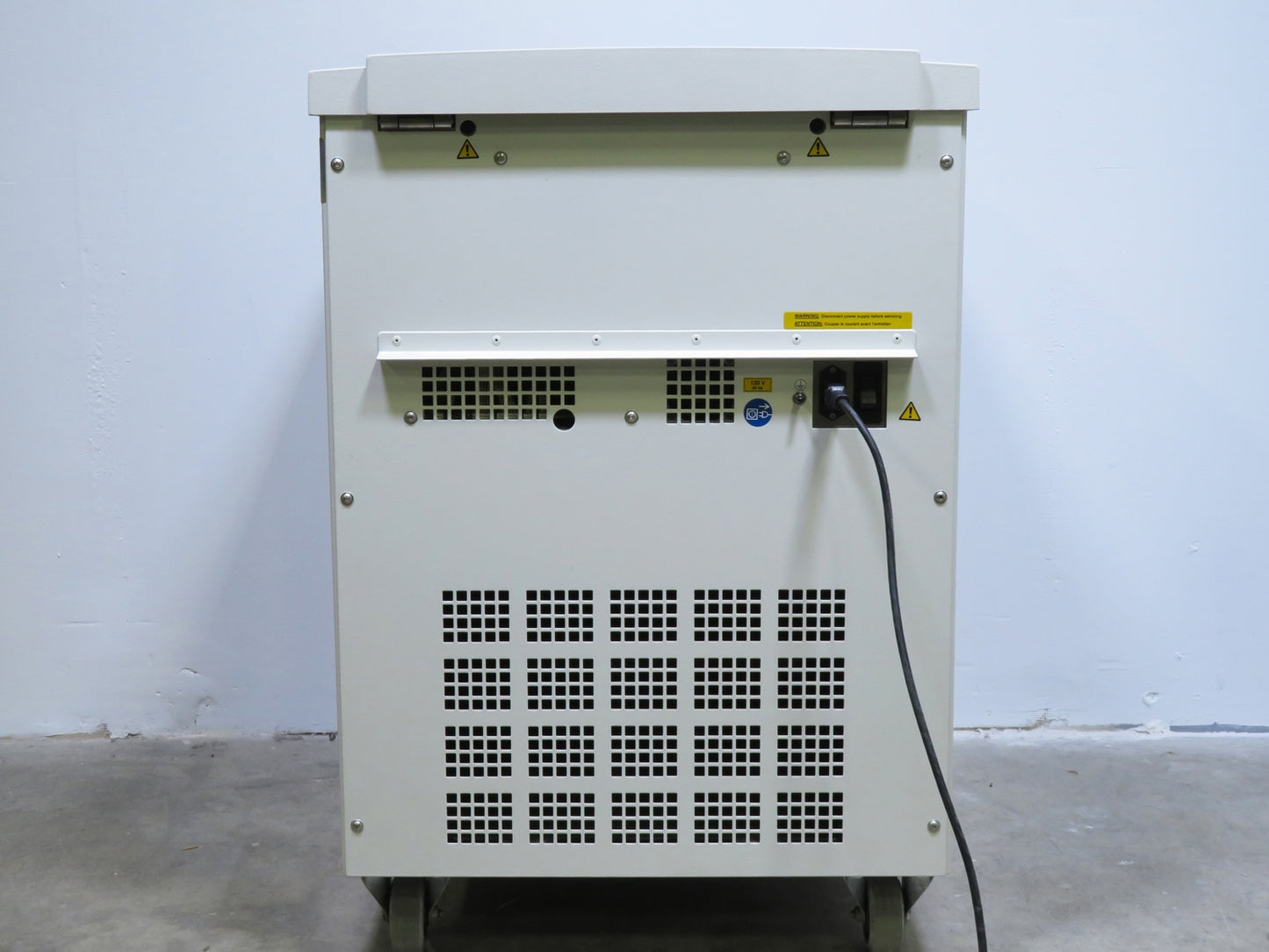

Thermo Scientific Sorvall Legend XF Centrifuge

Net 30 Terms and Financing Available

Our Price: $7,495.00

Price with Selected Options: $7,495.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 3 to 5 Business Days
Included Documentation: NIST Centrifuge Calibration and Preventative Maintenance Report

Request a Formal Quote

Quantity in Stock:1

Product Code: TSO-LEGXF

		Please Select an Option Below
Select Included Option*:

Qty:

Description

Recertification Protocol

Technical Specification Sheet

Thermo Scientific Sorvall Legend XF Centrifuge

Maximum Speed
15,200 RPM

Max Capacity
4 x 750mL

Maximum RCF
25,314 x G

Features

Maximum speed of 15,200 RPM with a maximum RCF of 25,314 x g for high-performance centrifugation
Large capacity of 4 x 750mL (3 Liters) for high-throughput applications
Quiet operation with noise levels below 61 dBa, suitable for all lab environments
Onboard LCD display for easy reading of parameters and data entry
Extended timer options with a maximum run time of 99 hours, 59 minutes or indefinite operation
Program storage capability for up to 99 unique centrifugation programs
Runs on 120V 60Hz power supply, adaptable to standard lab setups
Compatible with various adapters depending on the chosen rotor

The Thermo Sorvall Legend XF Centrifuge features a maximum speed of 15,200 RPM (fixed Angle rotor) and a maximum relative centrifugal force of 25,314 times gravity. An onboard LCD display makes reading information easy and entering parameters a breeze. The XF has a maximum timer run time of 99 hours and 59 minutes and also offers the ability to run indefinitely. With a maximum capacity of 4 x 1000 milliliters, the Sorvall Legend XF offers an extremely high throughput. With advanced sound-reducing technology, the XF features a quiet running noise level, making it the perfect centrifuge for both smaller and larger labs. We may have different adapters available depending on the rotor chosen with this centrifuge. If the selected rotor includes adapters that will not work for your application, please inquire.

Please confirm the selected rotor meets your application needs and request a different rotor, if necessary. Available rotors can be found in our Rotor Compatibility Guide.

INCLUDED:
The Thermo Scientific Sorvall Legend XF Centrifuge includes:

> Rotor Selected Above
> NIST Centrifuge Calibration and Preventative Maintenance Report
> Power Cord
> Full 180 Day Parts and Labor Warranty

Thermo Sorvall Legend XF Centrifuge Specifications

Maximum Speed	15,200 Rotations per Minute
Max Capacity	4 x 750mL (3 Liters)
Maximum RCF	25,314 x G
Noise level	<61dBa
Timer	99 hours, 59 minutes
Program Storage	99 Programs
Electrical Requirements	120V 60Hz
Refrigeration	No Refrigeration

Click Here to Expand Rotor Specifications

TX-750 Rotor Specs
Capacity	4 x 750 mL bottles
Max RPM	4,500
Max RCF	4,415 x g

Fiberlite F-15-8x50Cy Rotor Specs
Capacity	8 x 50 mL Conical Tubes
Max RPM	14,500
Max RCF	24,446 x g

Fiberlite F-15-6x100Y Rotor Specs
Capacity	6 x 100 mL Tubes
Max RPM	15,000
Max RCF	24,652 x g

M-20 Microplate Rotor Specs
Capacity	2 x 3 Standard or 2 x 1 Deepwell Plates
Max RPM	4,000
Max RCF	2,272 x g

Bioliner Rotor Specs
Capacity	4 x 750 mL bottles
Max RPM	3,500
Max RCF	2,739 x g

TX-1000 Rotor Specs
Capacity	4 x 1000 mL Bottles
Max RPM	3,800
Max RCF	3,374 x g

Preventative Maintenance Performed on The Thermo Scientific Sorvall Legend XF Centrifuge

Door Latch Assembly Checked for Full Function
Door Hinges are Checked and Lubed as Needed
Drive Belt is Checked for Rips and Tears and Replaced if Needed
Rotors and O-rings are Lubed as Needed
Lamps and Display are Checked and Replaced if Dim
Line Cord is Checked Signs of Fray or Damage and Replaced Accordingly
Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly

Downloads

Technical Specification Download

Operator's Manual Download

Request a Formal Quote

Centrifuge Inspection and Recertification Checklist

Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
Check the door mechanism alignment to ensure secure and smooth opening and closing
Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
Replace and confirm full functionality of all lid lock switches to maintain secure closure
Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
Check the centrifuge error log to ensure zero recorded issues, confirming system reliability

Technician Inspection and Recertification Checklist: Centrifuges

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Confirm power supply output voltages match specified requirements	Completed
Measure and verify voltages at PCB test points for accuracy	Completed
Confirm rotor compatibility and detection for proper identification	Completed
Inspect exterior for cosmetic or structural damage	Completed
Check door mechanism alignment for secure opening and closing	Completed
Inspect and replace gas strut with OEM part as needed	Completed
Examine rotor chamber for dents or damage and replace if necessary	Completed
Replace and confirm functionality of all lid lock switches	Completed
Lubricate door lock mechanism and lid lock rail for smooth operation	Completed
Test compressor (if applicable) for proper operation and cooling	Completed
Run 8-12 hour cycle test to ensure consistent performance	Completed
Check rotor motor for stability, noise, and integrity	Completed
Inspect and clear condensation drain to prevent buildup	Completed
Verify RPM accuracy with NIST traceable tachometer and calibrate	Completed
Check centrifuge error log for zero recorded issues	Completed
