Thermo Scientific Multifuge X3R Refrigerated Centrifuge

Net 30 Terms and Financing Available

Our Price: $8,495.00

Price with Selected Options: $8,495.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 1 to 3 Business Days
Included Documentation: NIST Centrifuge Calibration and Preventative Maintenance Report

Request a Formal Quote

Quantity in Stock:1

Product Code: H-X3R

		Please Select an Option Below
Select Included Option*:

Qty:

Description

Recertification Protocol

Technical Specification Sheet

Thermo Scientific Multifuge X3R Refrigerated Centrifuge

Max Capacity
4 x 750mL

Max Speed
15,200 RPM (25,999 x G RCF)

Temperature Range
-10 °C to +40 °C

Features

Intuitive control panel and digital display
Detailed operation information, including display of set and actual parameters, maximizes run performance and temperature accuracy
Easily adjust speed, time and temperature, even during the run, with the convenient keyboard for direct input
Innovative lid-locking technology enables one finger downward motion for easy closing and locking of centrifuge lid, even on tall benches
Double temperature management system displays the air temperature in the chamber as well as the sample temperature
Secure locking system allows easy push-button installation and exchange of rotors
SMARTSpin rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket
Compact size conserves workspace, and ergonomic height and curved design ensure comfortable sample handling and cleaning of unit

The Thermo Scientific Multifuge Refrigerated X3R centrifuge is meant to separate materials of different density or particle size in a liquid by generation of Relative Centrifugal Force such as human samples (blood, urine, and other body fluids) alone or with additives, other chemicals, and environmental samples. It can run at a speed of 300 rpm to 15200 rpm (depending on rotor) with an unlimited runtime. The maximum RCF value is 25314 x g. Recommended for use in interior spaces with a maximum relative humidity 80% up to 31 °C; decreasing linearly up to 50% relative humidity at 40 °C. We may have different adapters available depending on the rotor chosen with this centrifuge. If the selected rotor includes adapters that will not work for your application, please inquire.

Please confirm the selected rotor meets your application needs and request a different rotor, if necessary. Available rotors can be found in our Rotor Compatibility Guide.

INCLUDED:
The Thermo Scientific Multifuge X3R Refrigerated Centrifuge includes:

> Rotor Selected Above
> NIST Centrifuge Calibration and Preventative Maintenance Report
> Power Cord
> Operator's Guide
> Full 180 Day Parts and Labor Warranty

Thermo Scientific Multifuge X3R Centrifuge Specifications

Max. Speed (n max.) Min. Speed (n min.)	15200 rpm (depending on the rotor) 300 rpm
Running time	Unlimited
Maximum RCF value at n max.	25314 x g
Maximum kinetic energy	< 62.5 kJ
Noise level at maximum speed	< 64 dB (A)
permissible ambient temperature	+2 °C to +35 °C
Heat dissipation	230V ventilated 5800 BTU/h 120V ventilated 4776 BTU/h 230V refrigerated 6653 BTU/h 120V refrigerated 4776 BTU/h
Temperature setting range (refrigerated)	-10 °C to +40 °C
Dimensions (H x W x D)	360 mm x 550 mm x 670 mm ventilated 360 mm x 745 mm x 670 mm refrigerated
Table op height	310 mm
Weight without rotor	86 kg ventilated 116 kg refrigerated
Environmental conditions	- max. relative humidity 80% up to 31 °C; decreasing linearly up to 50% relative humidity at 40 °C. - Use in interior spaces - Altitudes of up to 2,000 m above sea level

Click Here to Expand Rotor Specifications

TX-750 Rotor Specs
Capacity	4 x 750 mL
Max RPM	4,300
Max RCF	4,031 x g

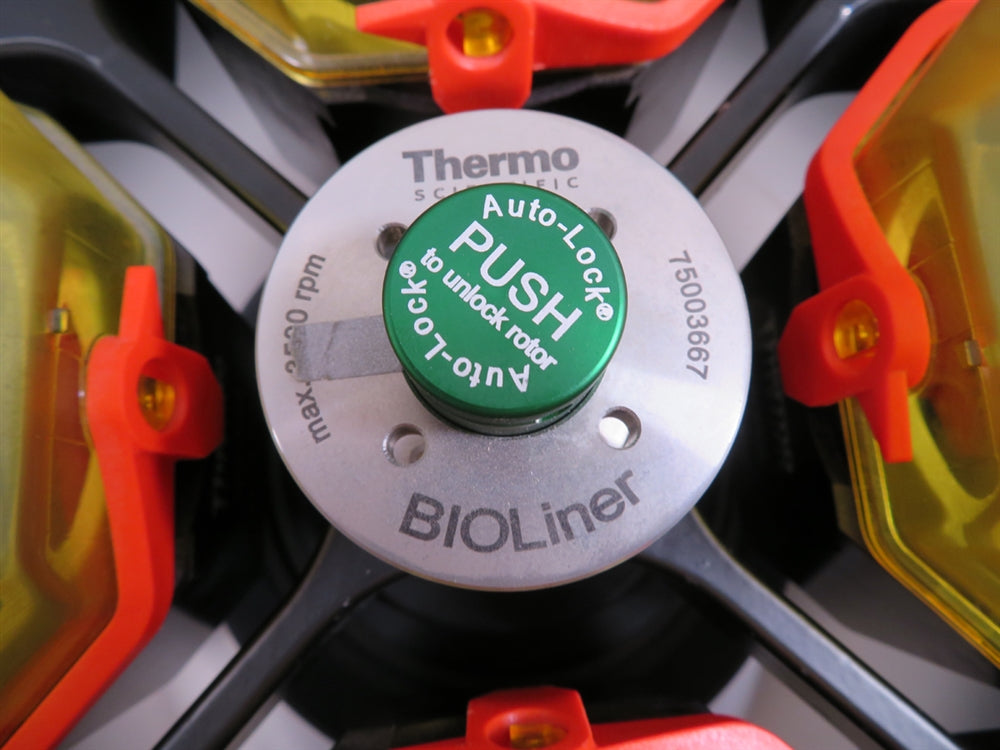

Bioliner Rotor Specs
Capacity	4 x 750 mL
Max RPM	3,500
Max RCF	2,739 x g

Fiberlite F-15-8x50Cy Rotor Specs
Capacity	8 x 50 mL Conical tubes
Max RPM	14,500
Max RCF	24,652 x g

Fiberlite F-15-6x100Y Rotor Specs
Capacity	6 x 100 mL
Max RPM	15,000
Max RCF	24,652 x g

M-20 Microplate Rotor Specs
Capacity	2 x 3 Standard or 2 x 1 Deepwell Plates
Max RPM	4,000
Max RCF	2,272 x g

TX-1000 Rotor Specs
Capacity	4 x 1000 mL
Max RPM	4,200
Max RCF	4,122 x g

Preventative Maintenance Performed on The Thermo Scientific Multifuge X3R Refrigerated Centrifuge

Door Latch Assembly Checked for Full Function
Door Hinges are Checked and Lubed as Needed
Drive Belt is Checked for Rips and Tears and Replaced if Needed
Rotors and O-rings are Lubed as Needed
Lamps and Display are Checked and Replaced if Dim
Line Cord is Checked Signs of Fray or Damage and Replaced Accordingly
Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly

Thermo Scientific

Downloads

Technical Specification Download

Operator's Manual Download

Request a Formal Quote

Centrifuge Inspection and Recertification Checklist

Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
Check the door mechanism alignment to ensure secure and smooth opening and closing
Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
Replace and confirm full functionality of all lid lock switches to maintain secure closure
Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
Check the centrifuge error log to ensure zero recorded issues, confirming system reliability

Technician Inspection and Recertification Checklist: Centrifuges

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Confirm power supply output voltages match specified requirements	Completed
Measure and verify voltages at PCB test points for accuracy	Completed
Confirm rotor compatibility and detection for proper identification	Completed
Inspect exterior for cosmetic or structural damage	Completed
Check door mechanism alignment for secure opening and closing	Completed
Inspect and replace gas strut with OEM part as needed	Completed
Examine rotor chamber for dents or damage and replace if necessary	Completed
Replace and confirm functionality of all lid lock switches	Completed
Lubricate door lock mechanism and lid lock rail for smooth operation	Completed
Test compressor (if applicable) for proper operation and cooling	Completed
Run 8-12 hour cycle test to ensure consistent performance	Completed
Check rotor motor for stability, noise, and integrity	Completed
Inspect and clear condensation drain to prevent buildup	Completed
Verify RPM accuracy with NIST traceable tachometer and calibrate	Completed
Check centrifuge error log for zero recorded issues	Completed
