Thermo Scientific Megafuge 40 Centrifuge

Net 30 Terms and Financing Available

Our Price: $5,795.00

Price with Selected Options: $5,795.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 1 to 3 Business Days
Included Documentation: NIST Centrifuge Calibration and Preventative Maintenance Report

Request a Formal Quote

Quantity in Stock:2

Product Code: TS-HM40

		Please Select an Option Below
Select Included Option*:

Qty:

Description

Recertification Protocol

Technical Specification Sheet

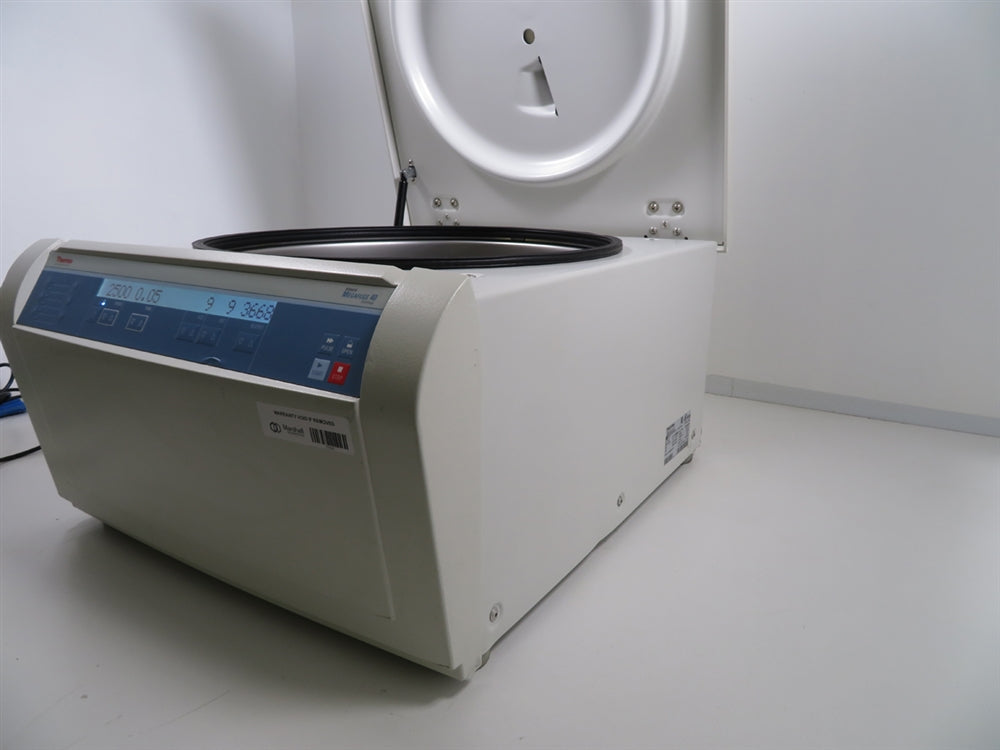

Thermo Scientific Megafuge 40 Centrifuge

The Thermo Scientific Megafuge 40 Centrifuge is a benchtop centrifuge designed with the user in mind. The user-friendly control panel makes it easy to pre-set the speed, RCF value, running time, temperature, and running profile. The set speed is reached within seconds. The Megafuge 40 can reach maximum speeds of 15,200 RPM and maximum RCF of 25,314 x g. The maintenance-free induction motor ensures quiet and low-vibration operation even at high speeds, and guarantees a very long lifetime.We may have different adapters available depending on the rotor chosen with this centrifuge. If the selected rotor includes adapters that will not work for your application, please inquire.

All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.

INCLUDED:
The Thermo Scientific Megafuge 40 Centrifuge includes:

> Rotor Selected Above
> NIST Centrifuge Calibration and Preventative Maintenance Report
> Power Cord
> Full 180 Day Parts and Labor Warranty

Thermo Scientific Megafuge 40 Centrifuge Specifications

Max Speed	15,200 RPM (fixed angle rotor)
Min Speed	300 RPM
Max RCF	25, 314 x g
Maximum Kinetic Energy	62.5 kJ
Noise Level at Max Speed	< 64 dB (A)
Dimensions (H x W x D)	360 x 550 x 670 mm
Table Top Height	310 mm
Weight	86 kg
Environmental Conditions	Max. relative humidity 80 % up to 31 C; Decreasing linearly up to 50 % Relative humidity at 40 C.
Refrigeration	No Refrigeration

Click Here to Expand Rotor Specifications

TX-750 Rotor Specs
Capacity	4 x 750 mL
Max RPM	4,700
Max RCF	4,816 x g

Bioliner Rotor Specs
Capacity	4 x 750 mL
Max RPM	3,500
Max RCF	2,739 x g

Fiberlite F-15-6x100Y Rotor Specs
Capacity	6 x 100 mL
Max RPM	15,000
Max RCF	24,652 x g

M-20 Microplate Rotor Specs
Capacity	2 x 3 Standard or 2 x 1 Deepwell Plates
Max RPM	4,00
Max RCF	2,272 x g

TX-1000 Rotor Specs
Capacity	4 x 1000 mL
Max RPM	3,800
Max RCF	3,374 x g

Preventative Maintenance Performed on The Thermo Scientific Megafuge 40 Centrifuge

Door Latch Assembly Checked for Full Function
Door Hinges are Checked and Lubed as Needed
Drive Belt is Checked for Rips and Tears and Replaced if Needed
Rotors and O-rings are Lubed as Needed
Lamps and Display are Checked and Replaced if Dim
Line Cord is Checked Signs of Fray or Damage and Replaced Accordingly
Internal Circuitry is Checked for Faulty/Shorted Components and Replaced Accordingly

Downloads

Technical Specification Download

Operator's Manual Download

Request a Formal Quote

Centrifuge Inspection and Recertification Checklist

Confirm the power supply output voltages match specified requirements for stable distribution to all internal components
Measure and verify voltages at PCB test points to ensure accurate power delivery and circuit integrity
Confirm rotor compatibility with the centrifuge model and check that rotor detection systems recognize the rotor type
Inspect the exterior for any cosmetic or structural damage that could affect performance or safety
Check the door mechanism alignment to ensure secure and smooth opening and closing
Inspect and replace the gas strut with an OEM part to maintain proper door support and safety
Examine the rotor chamber bowl for dents or damage and replace as needed to ensure safe operation
Replace and confirm full functionality of all lid lock switches to maintain secure closure
Inspect and lubricate the door lock mechanism, applying grease to the lid lock rail for smooth operation
Test compressor functionality (if applicable) to ensure proper operation and consistent temperature control
Conduct an 8-12 hour cycle test to validate consistent performance over prolonged use
Confirm rotor motor stability, check for unusual noise, and assess mechanical integrity during operation
Inspect the condensation drain and clear any clogs to prevent moisture buildup in the rotor chamber
Verify RPM accuracy using an NIST-traceable tachometer and perform calibration as necessary
Check the centrifuge error log to ensure zero recorded issues, confirming system reliability

Technician Inspection and Recertification Checklist: Centrifuges

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Confirm power supply output voltages match specified requirements	Completed
Measure and verify voltages at PCB test points for accuracy	Completed
Confirm rotor compatibility and detection for proper identification	Completed
Inspect exterior for cosmetic or structural damage	Completed
Check door mechanism alignment for secure opening and closing	Completed
Inspect and replace gas strut with OEM part as needed	Completed
Examine rotor chamber for dents or damage and replace if necessary	Completed
Replace and confirm functionality of all lid lock switches	Completed
Lubricate door lock mechanism and lid lock rail for smooth operation	Completed
Test compressor (if applicable) for proper operation and cooling	Completed
Run 8-12 hour cycle test to ensure consistent performance	Completed
Check rotor motor for stability, noise, and integrity	Completed
Inspect and clear condensation drain to prevent buildup	Completed
Verify RPM accuracy with NIST traceable tachometer and calibrate	Completed
Check centrifuge error log for zero recorded issues	Completed
