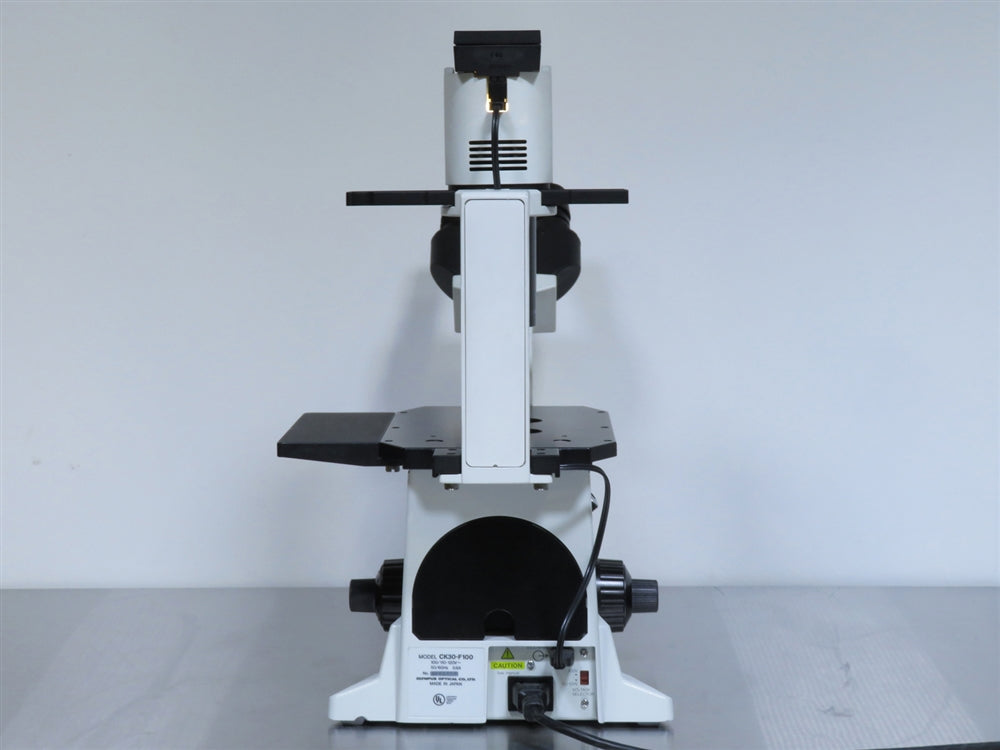

Olympus CK30 Inverted Phase Contrast Microscope

The Olympus CK30 Inverted Phase Contrast Microscope produces high quality images for tissue culture labs, readily meeting biological and metallurgical research needs. This Olympus microscope offers simple operation with an easy-to-maintain inverted microscope frame. This inverted phase microscope is configured with S Plan 4xPL, A 20xPL, and A 40x PL Objectives with critical halogen illumination. The CK30 can accommodate a variety of Olympus objectives on its revolving triple nosepiece, along with multiple other accessories, such as stage adapters and extenders, sliders and rings, and extra long working condensers.

All of our equipment is in excellent condition and will be fully tested to perform at factory specifications before being shipped.

Olympus CK30 Inverted Phase Contrast Microscope Specifications

Optical System	LB optical system (finite-corrected system)
Illumination	6 V 30 W HAL high-intensity halogen bulb
Focusing	Coarse/fine adjustment knobs (provided with tension adjustment mechanism)
Revolving Nosepiece	Quadruple
Observation Tube	Binocular tube CH3-BI45 incorporated in micrscope body
Eyepiece	NCWHK 10X
Objectives	S Plan 4xPL, A 20xPL, and A 40x PL
Stage Dimensions (W x D)	160 x 250 mm
Condenser	Ultra-long-working distance condenser N.A. 0.3, W.D. 72 mm; detachable
Dimensions (W x D x H)	236 x 469 x 476 mm
Weight	17.6 lb. (8 kg.)
Electrical Requirements	100/110-120V, 50/60Hz, 0.6A
