New Brunswick Innova 4330 Refrigerated Incubator Shaker

New Brunswick Innova 4330 Incubator Shaker

Net 30 Terms and Financing Available

Our Price: $7,995.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 3 to 5 Business Days
Included Documentation: NIST Calibration and Preventative Maintenance Report

Request a Formal Quote

Quantity in Stock:1

Product Code: NB-4330

Qty:

Description

Recertification Protocol

Technical Specification Sheet

Popular Alternative Choice

Thermo Scientific MaxQ 8000 Refrigerated Incubator Shaker

Stackable orbital shaker ideal for sensitive cultures and "hard shake" applications, working in Ambient -20ºC to 60ºC.
Features heavy-duty drive for 25-400 RPM speeds with minimal vibration, even with three stacked shakers.
Equipped with a slide-out platform, horizontal HEPA filter design, and intuitive microprocessor control for easy operation.
Designed for high-capacity, able to stack up to three units, and includes a full 180 Day Parts and Labor Warranty.

Go to Product Details

Fully Recertified!

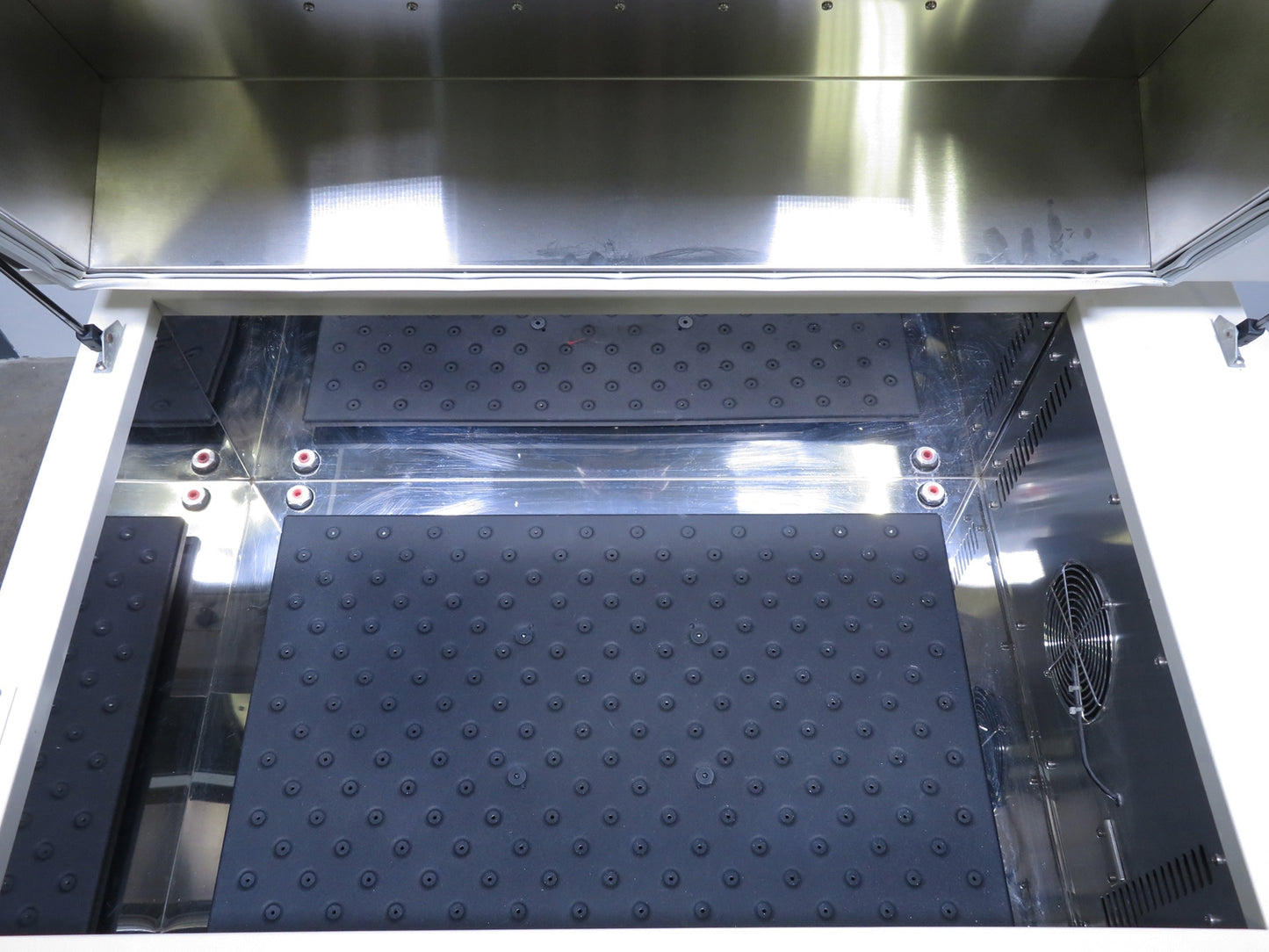

New Brunswick Innova 4330 Refrigerated Incubator Shaker

Temperature Range
15°C below ambient to 60°C

Speed Range
25 to 500 RPM

Interior Dimensions
34.75 x 22.25 x 19.25 in.

Features

Triple eccentric counterbalanced drive to provide horizontal plane rotary motion.
Integral microprocessor controller with instantaneous feedback provides reliable speed control and readings.
1/5 HP refrigeration system combines with hermetically sealed door ensure adequate temperature conditions.
Foot pedal for lift assist.
Automatic control system for refrigeration to ensure cooling function responds to ambient temperature conditions.

The New Brunswick Innova 4330 Incubator Shaker is a large-capacity environmental shaker that allows for uniform heating and motion and accurate regulation of shaking speed. This equilibration creates faster operation and allows enhanced productivity for laboratories with shaking requirements. Designed for handling greater quantities of flasks, the Innova 4330 easily holds 12 x 2 L flasks and accepts flasks up to 6 L. The 4330 shaker provides temperatures from 15°C below ambient to 60°C for incubation. Shaking speeds from 25 RPM to 500 RPM on a 1 inch circular orbit. The 4330 features alarms for deviations of shaking speed and temperature outside of tolerance limits and for end of timed run (which can be from 0.1 hour to 99.9 hours).

All of our equipment is fully tested to perform at factory specifications before being shipped.

INCLUDED:
The New Brunswick Innova 4330 Refrigerated Incubator Shaker includes:

> 18 x 30" Platform
> NIST Calibration and Preventative Maintenance Report
> Power Cord
> Operator's Manual
> Full 180 Day Parts and Labor Warranty

New Brunswick Innova 4330 Refrigerated Incubator Shaker Specifications

Platform Size	18 x 30 in
Speed	25 to 500 RPM
Speed Accuracy	± 1 RPM
Orbit Diameter	1 in
Temperature Range	Ambient -15°C to 60°C
Temperature Accuracy	± 0.1°C at 30-40°C ± 0.25°C for others
Overall Dimensions (W x D x H)	45 x 28 x 37 in
Weight	425 lbs

New Brunswick Innova 4330 Manual
Click Here to View all the Technical Specs for the Innova 4330

Request a Formal Quote

Inspection and Recertification Checklist

Examine the chamber glass for cracks or chips, replacing it as needed to maintain structural integrity.
Inspect door seals for signs of wear or damage, replacing them to ensure a tight seal.
Check the display for brightness and clarity, replacing any dim or dead pixels to maintain optimal visibility.
Test all buttons to confirm full functionality and consistent responsiveness.
Replace all platform assembly bearings to ensure smooth and reliable motion.
Inspect the drive belt for wear, replacing it if torn or cracked to maintain performance.
Examine all wiring for frays, tears, or breakages, addressing any issues for electrical safety.
Verify each PCB test point, replacing any malfunctioning components to ensure system reliability.
Check drive belt tension to confirm correct alignment and function.
Confirm the compressor’s operation, cleaning condenser filter and fins for efficient cooling.
Calibrate internal temperature accuracy using an NIST-traceable temperature probe.
Measure and calibrate platform RPMs with an NIST-traceable tachometer to ensure precision.
Conduct a final cosmetic inspection to verify all surfaces meet appearance standards.

Technician Inspection and Recertification Checklist

The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment

Task	Completed?	Remarks?
Examine chamber glass for cracks or chips, replace as needed	Completed
Inspect door seals for wear, replace to ensure tight seal	Completed
Check display brightness, replace dim or dead pixels	Completed
Test all buttons for full functionality and responsiveness	Completed
Replace platform assembly bearings for reliable motion	Completed
Inspect drive belt for wear, replace if torn or cracked	Completed
Examine wiring for frays or breakages, repair as needed	Completed
Verify PCB test points, replace faulty components	Completed
Check drive belt tension for proper alignment	Completed
Confirm compressor functionality, clean filter and fins	Completed
Calibrate internal temperature with NIST probe	Completed
Calibrate platform RPM with NIST-traceable tachometer	Completed
Conduct cosmetic inspection for appearance standards	Completed
