Home > Freeze Dryer Systems >

Labconco Freezone 4.5 Liter Freeze Dryer System

Net 30 Terms and Financing Available

Stock Notification!

The Labconco Freezone 4.5 Liter Freeze Dryer System you were interested in is currently unavailable, but we have found a great alternative at an excellent price!

Our Price: $12,495.00

Condition: Fully Recertified and Tested to Perform at Manufacturer Specifications
Warranty: 180-Day Full Parts and Labor (Click for Info)
Typically Ships Within: 5 to 7 Business Days

Request a Formal Quote

Quantity in Stock:

Product Code: LA-4.5L

Qty:

Email me when Back-In-Stock

Description

Recertification Protocol

Technical Specification Sheet

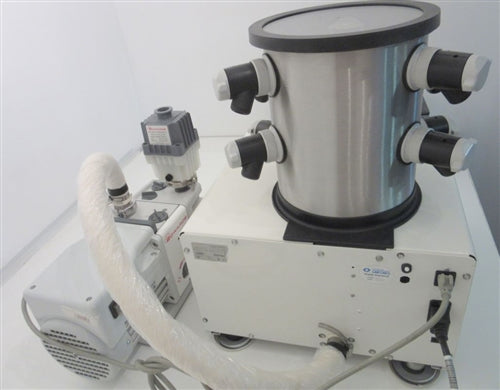

Labconco Freezone 4.5 Liter Freeze Dry System

The Labconco FreeZone 4.5 Liter Console Freeze Dryer is a compact laboratory lyophilizer with ice holding capacity for light to moderate sample loads. This freeze dryer system has a permanently installed 10-port drying chamber and stainless steel collector chamber and coil. The Labconco FreeZone 4.5L can remove over two liters of water in 24 hours and includes a retractable collector drain line for increased mobility. The onboard LCD display shows system operating parameters (with temperature in C or F and vacuum in mBar, Pa, or Torr) and allows for the user to enable precautionary alarms. This model is not for use with samples containing acetonitrile.

All of our equipment is fully tested to perform at factory specifications before being shipped.

INCLUDED:
The Labconco Freezone 4.5 Liter Freeze Dry System includes:

> 10-Port Drying Chamber
> New Edwards RV5 Vacuum Pump
> Vacuum Hose, Oil, Filter and all hardware
> Operator's Guide
> Power Cord
> Full 180 Day Parts and Labor Warranty

Labconco Freezone 4.5 Liter Freeze Dry System Specifications

Ice Holding Capacity	4.5L
Lowest Temperature	-50C
Water Removal Over 24 Hours	2L
Manifold	10 Port Drying Chamber
Electrical Requirements	115V, 60Hz, 14A
Vacuum Pump Displacement Required	86L/min
Ambient Temperature Range	5C to 40C
Dimensions (W x D x H)	18.6 x 18.5 x 22.5 in
Weight	102 lbs
Conformance	CAN/CSA C22.2, UL

Labconco Freezone 4.5 Liter Manual

Click Here to View all the Technical Specs for the FreeZone 4.5 Liter

Request a Formal Quote

Recertification Inspection Protocol

Inspect the display for pixel clarity and brightness issues; replace any dim or defective pixels to ensure optimal visual quality.
Test each button for responsiveness, resistance, and continuity; replace any buttons that show wear or unresponsiveness.
Check the acrylic/glass lid for structural integrity, looking for cracks or chips; replace if any damage is found.
Examine all external gasket seals for elasticity, cracks, or tears; replace compromised seals with OEM-approved parts.
Remove and replace all manifold ports with new OEM parts, ensuring proper fit and sealing to maintain system integrity.
Drain and replace the oil, verifying the new oil’s viscosity and particulate levels fall within operational standards.
Conduct diagnostic checks on all PCB test points, replacing any malfunctioning components to maintain circuit integrity.
Inspect all internal rubber connections and gaskets for cracks or brittleness; replace compromised parts as needed.
Disassemble and clean the condenser coils and fan assembly to remove dust; replace worn components to ensure efficiency.
Confirm the start capacitor for the refrigeration system meets the manufacturer-specified capacitance range; replace if readings deviate.
Test and calibrate all internal sensors and safety switches, ensuring accurate readings and replacing any faulty components.
Verify displayed temperatures by cross-referencing with independent calibrated probes; recalibrate the system if discrepancies are detected.
Check vacuum pressure using an independent gauge, aiming for ~0.40 mbar; address any leaks or inefficiencies affecting vacuum levels.
Confirm the system achieves and maintains low temperatures (~-50°C or ~-80°C) using certified measurement tools; troubleshoot as necessary.
Inspect all external surfaces, labels, and interfaces for cosmetic wear; address any scratches, blemishes, or visible signs of damage.

Technician Inspection and Recertification Checklist

The Following Checklist Is to Be Performed on All Incoming and Outgoing Equipment

Task	Completed?	Remarks?
Inspect display for pixel issues and replace if needed	Completed
Test button functionality and replace any defective buttons	Completed
Examine door seal and lock functionality; replace if compromised	Completed
Conduct PCB test point diagnostics and replace as needed	Completed
Verify compressor and internal fan functionality	Completed
Confirm temperature probe accuracy with NIST-traceable probe	Completed
Inspect all wiring for frays, tears, or breakages	Completed
Test start capacitor capacitance range; replace if needed	Completed
Replace all internal filters and clean condenser fins	Completed
Test alarm battery for full functionality	Completed
Run 72-hour test with data recorder to confirm stable temperatures	Completed
Conduct cosmetic inspection and address any issues	Completed

To View More of Our Recertification Protocol Click Here

Average Rating: Average Rating: 4.5 of 5

4.5 of 5 Total Reviews: 3 Write a review »

5 of 6 people found the following review helpful:

Can't Go Wrong	December 7, 2021
Reviewer: Carmen Bradford from Kansas City, MO

Easy to operate.

Was this review helpful to you?

5 of 5 people found the following review helpful:

Good company to do business with	December 7, 2021
Reviewer: Ted Carroll from Greensboro, NC

Nice service, fast shipping, very helpful stuff!

Was this review helpful to you?

4 of 5 people found the following review helpful:

Good Quality	October 20, 2020
Reviewer: Sandra Leeman from Las Vegas, NV

Recently purchased this Labconco Freezone 4.5 Liter Freeze Dry System and couldn't be happier. Free works well, is easy to operate, and looks great.

Was this review helpful to you?
