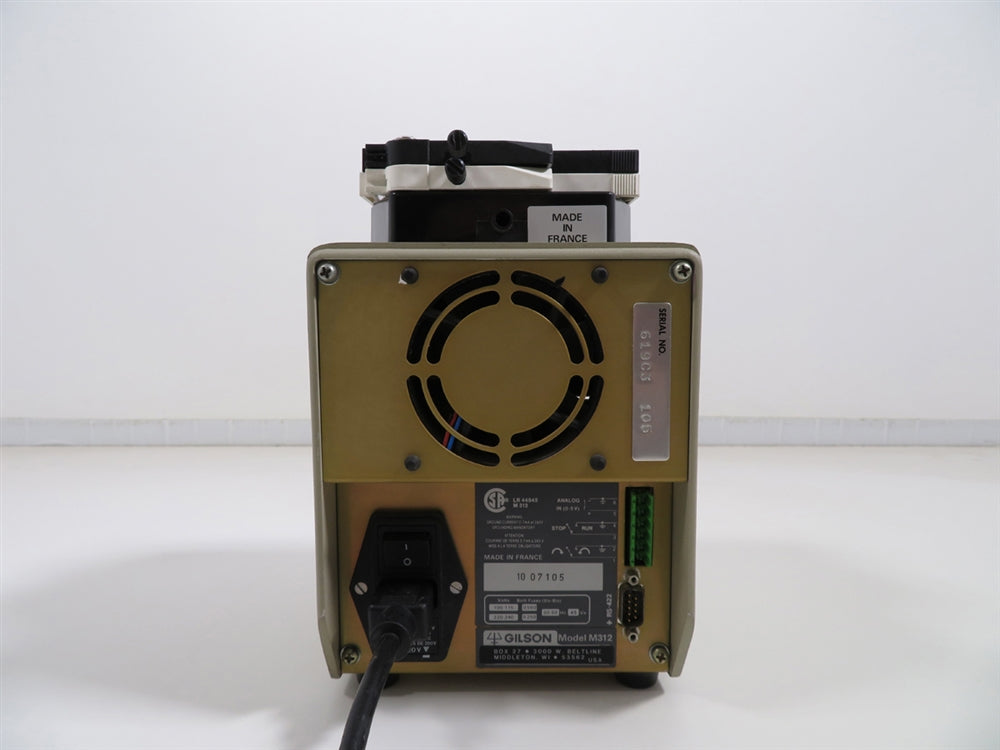

Gilson Minipuls 3 Peristaltic Pump w/ 2-Channel Head

The Gilson Minipuls 3 is a peristaltic pump with interchangeable heads for delivering smooth, low pulse flows of biological and chemical fluids in 1, 2, 4, or 8 channel standard flow rate and 2 or 4 channel high flow rate configurations. The Minipuls 3 combines microprocessor speed control with a high-torque stepper motor and is specifically designed to meet your process laboratory liquid handling needs. The Minipuls 3 delivers high resolution and precision speed and control for smooth flows without sample shearing or degradation.

All of our equipment is fully tested to perform at factory specifications before being shipped.

INCLUDED:
The Gilson Minipuls 3 Peristaltic Pump w/ 2-Channel Head includes:

> 2-Channel Pump Head
> Operator's Guide
> Power Cord
> Full 180 Day Parts and Labor Warranty

Gilson Minipuls 3 Peristaltic Pump w/ 2-Channel Head Specifications

Standard Flow Rates (1, 2, 4, or 8 channels)	0.3 µL/min–40 mL/min at a maximum pressure of 0.5 MPa
High Flow Rates (2 or 4 channels)	1 mL/min–220 mL/min at a maximum pressure of 0.3 MPa
Head Speed	Continuous adjustment from 0 to 48 rpm by 0.01 rpm increments up to 9.99 rpm and by 0.1 rpm increments above 10 rpm
Motor Speed Stability	0.5% for any variation of line voltage, torque, or temperature
Peristaltic Tubing Diameter	Standard model: 0.25–4mm (ID) High-Flow model: 2–8mm (ID)
Pump Heads	Standard model: 1-, 2-, 4-, or 8-channel heads with 10 stainless steel rollers per head High-Flow model: 2- or 4-channel heads with five stainless steel rollers per head
Power Requirements	90-132 or 180-264V; 47-63Hz
Dimensions	15 x 17.5 x 18 cm (5.9 x 6.9 x 7.1 in)

Gilson Minipuls 3 Peristaltic Pump Manual

Click Here to View the Technical Specs for the Gilson Minipuls 3 Peristaltic Pump

Request a Formal Quote

Peristaltic Pump Inspection and Recertification Checklist

Verify power supply and PCB voltage outputs for accuracy and stability
Inspect display for dim or dead pixels, replacing any compromised segments
Test full functionality of speed, time, and start/stop buttons
Confirm proper bidirectional rotation of the pump head
Examine all internal wiring within the casing for secure and intact connections
Inspect pump head for any blockages or obstructions that could hinder rotation
Confirm functionality of the fan, replacing if performance is suboptimal
Inspect and clean the internal casing to maintain optimal conditions
Verify RPM of pump head using a NIST-traceable tachometer
Conduct a cosmetic inspection to ensure all surfaces meet quality standards

Technician Inspection and Recertification Checklist: Peristaltic Pumps

The Following Checklist Is to Be Performed on All Incoming and Outgoing Pieces of Equipment

Task	Completed?	Remarks?
Verify power supply and PCB voltage outputs for accuracy and stability	Completed
Inspect display for dim or dead pixels; replace any compromised segments	Completed
Test full functionality of speed, time, and start/stop buttons	Completed
Confirm proper bidirectional rotation of the pump head	Completed
Examine all internal wiring for secure and intact connections	Completed
Inspect pump head for blockages or obstructions	Completed
Confirm fan functionality, replacing if performance is suboptimal	Completed
Inspect and clean internal casing to maintain optimal conditions	Completed
Verify RPM of pump head using a NIST-traceable tachometer	Completed
Conduct cosmetic inspection to ensure all surfaces meet quality standards	Completed
